Carrier
Central Air Conditioner

Model # 38TPA036 SERIES300 Official Carrier condensing unit

Here are the diagrams and repair parts for Official Carrier 38TPA036-SERIES300 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

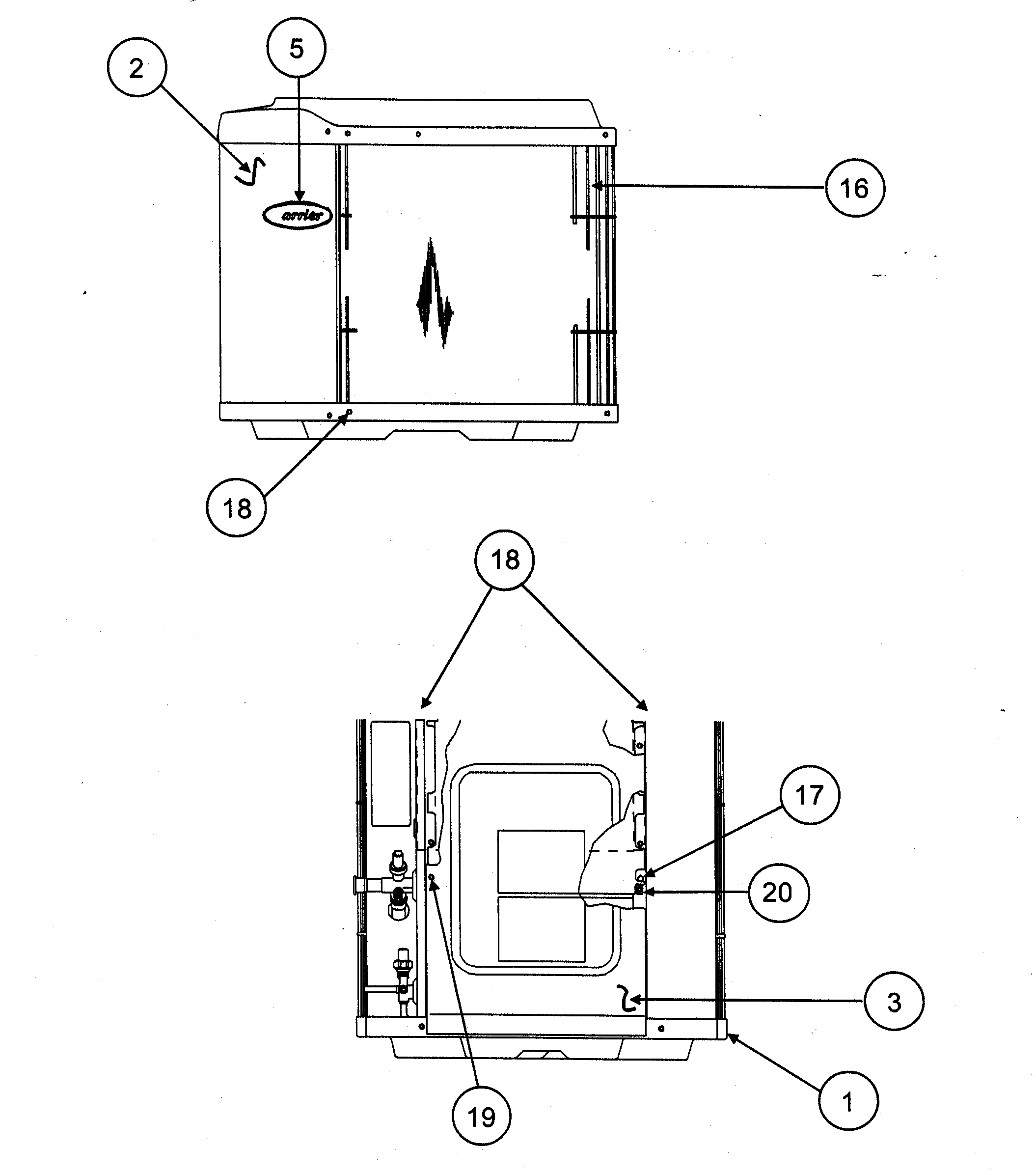

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Contactor HN51KB024
#41

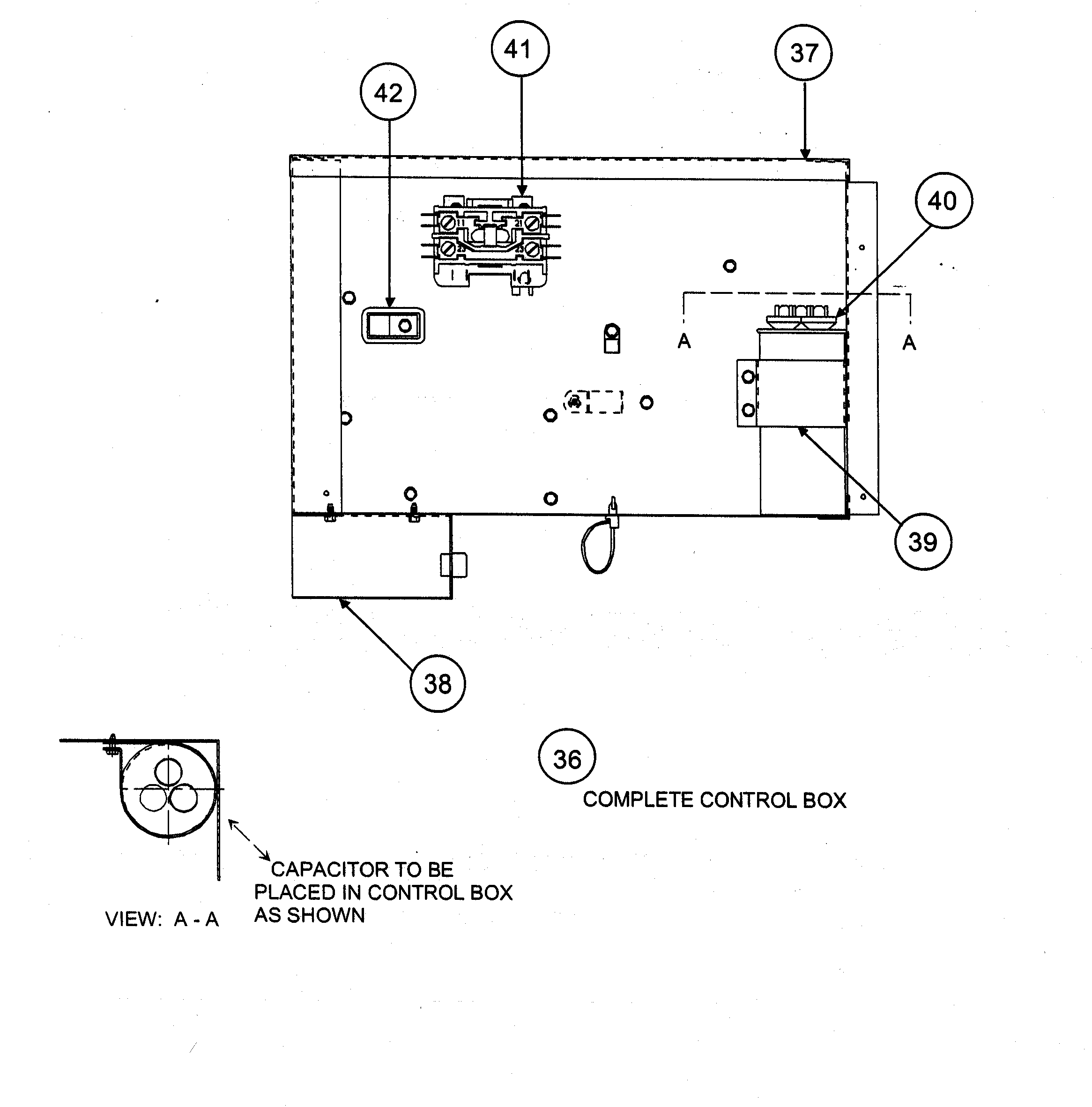

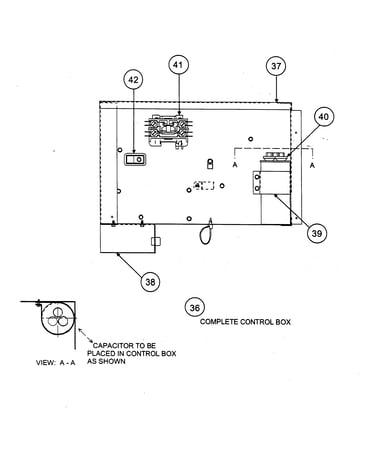

Control asy diagram

Contactor

Part #HN51KB024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51KB024. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Central Air Conditioner Condenser Fan Motor (replaces Hc35sl231, Hc39ge232, Hc39ge236) HC39GE237
#56

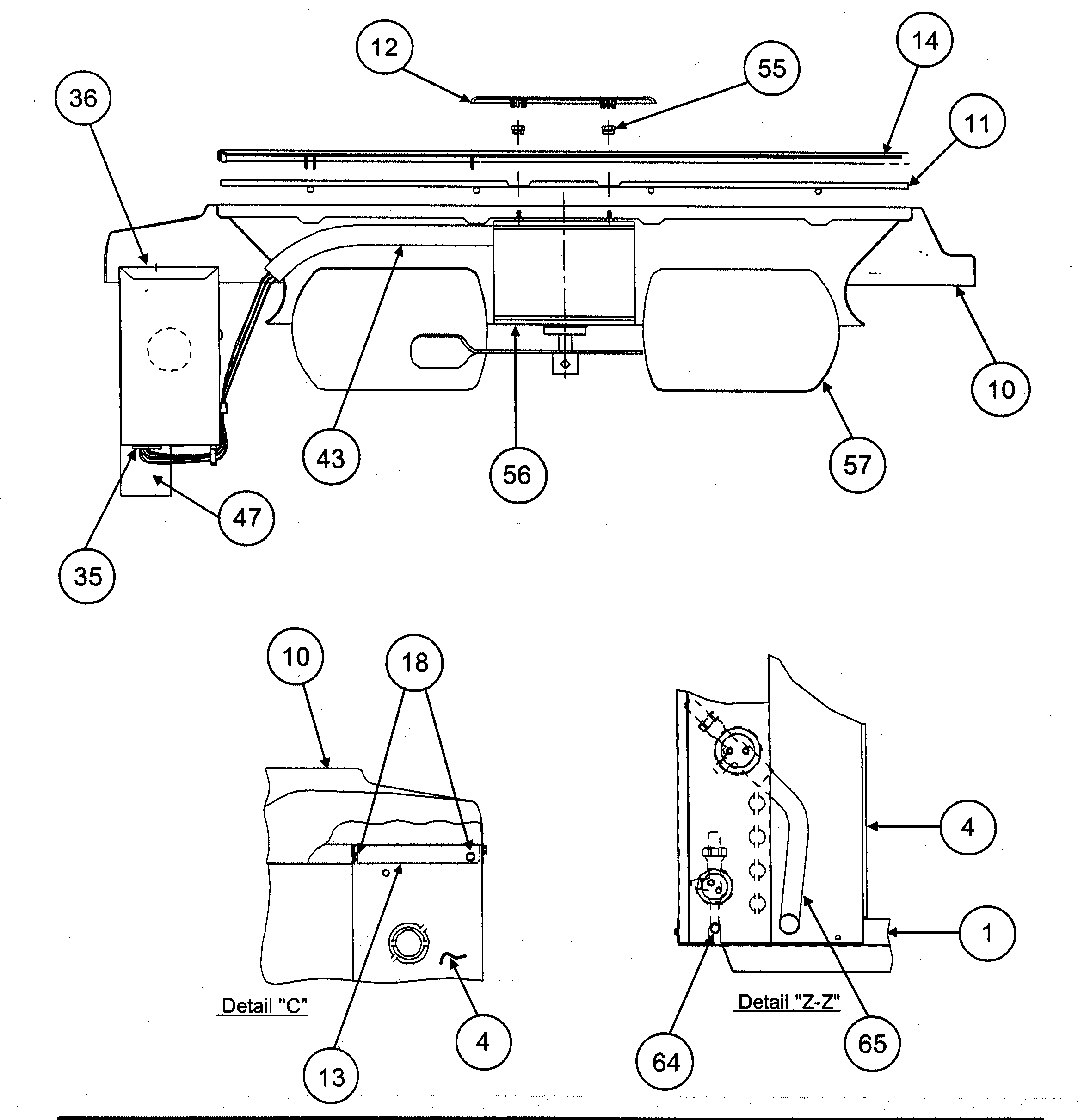

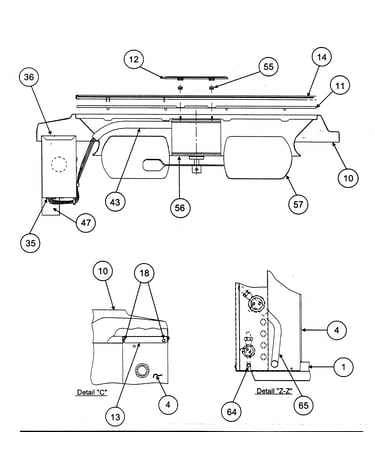

Fan asy diagram

Central air conditioner condenser fan motor (replaces hc35sl231, hc39ge232, hc39ge236)

Part #HC39GE237

$360.93 |
$12.00 OFF Phone Price : $372.93
In Stock
Central Air Conditioner Start Capacitor (replaces Hc95de088, P281-8805) P281-8806
#NI

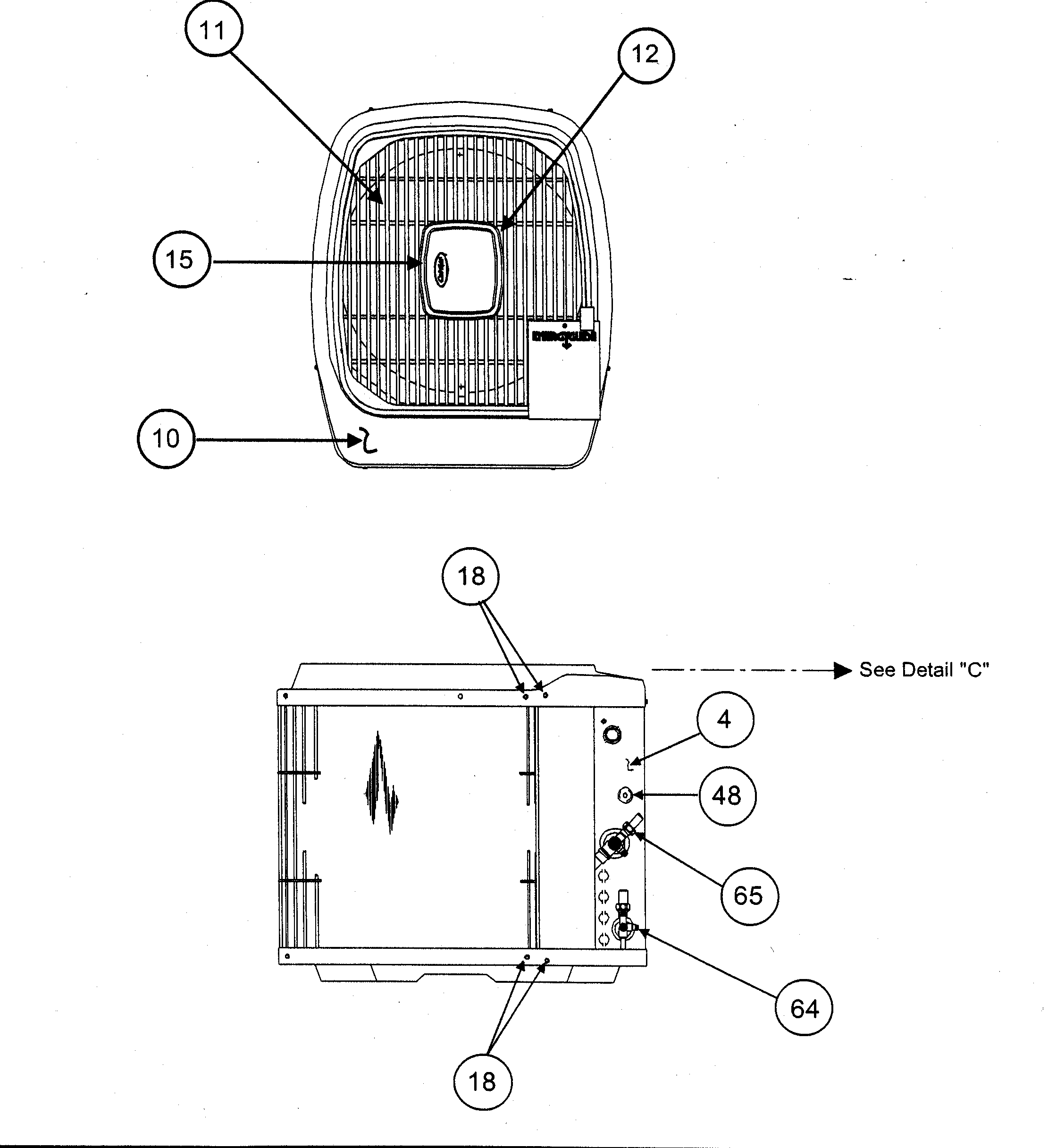

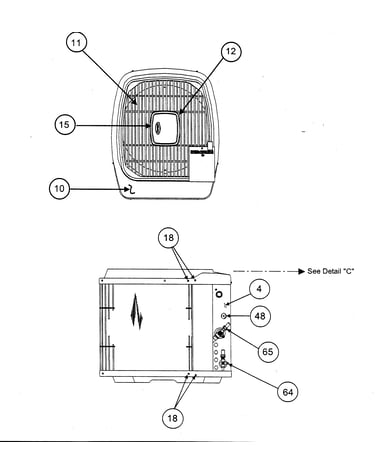

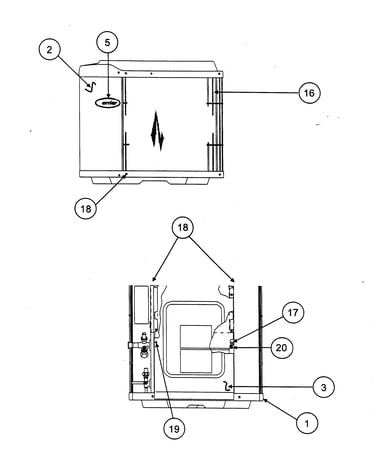

Outside view 1 diagram

Central air conditioner start capacitor (replaces hc95de088, p281-8805)

Part #P281-8806

$36.73
In Stock
Central Air Conditioner Condenser Fan Blade LA01EC018
#57

Fan asy diagram

Central air conditioner condenser fan blade

Part #LA01EC018

$145.02
In Stock
Carrier Start Assist Ptc Kit KAACS0201PTC
#NI

Outside view 1 diagram

Carrier start assist ptc kit

Part #KAACS0201PTC

$242.33
In Stock
Grille 320232-401
Grille

Part #320232-401

$774.40
In Stock
Grommet KA56TR057
#28

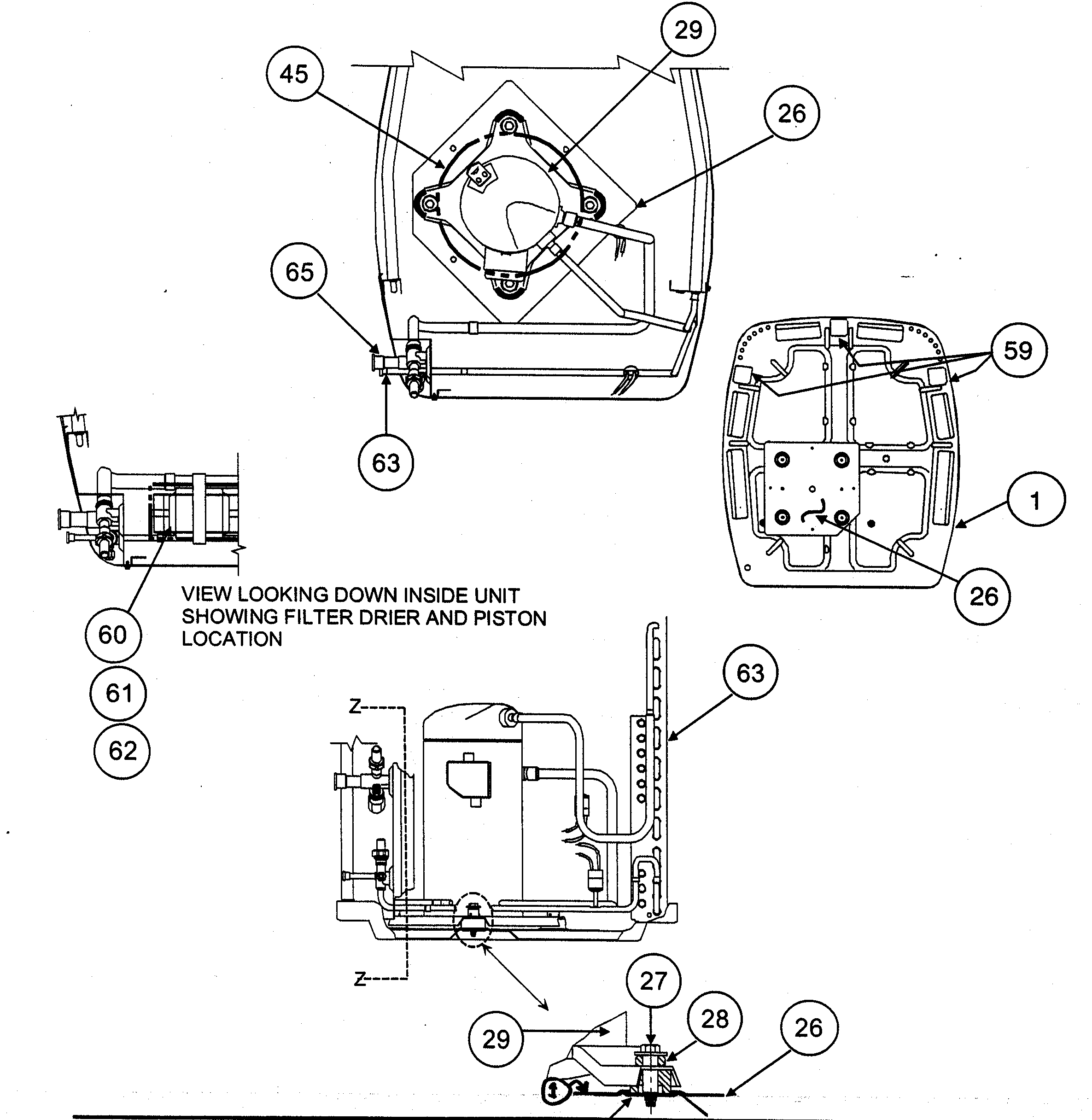

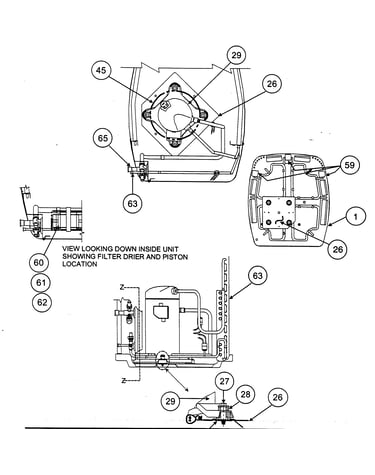

Compressor asy diagram

Grommet

Part #KA56TR057

This item is not returnable
$4.89
In Stock
Paint 313974-751
#NI

Outside view 1 diagram

Paint

Part #313974-751

$60.89
In Stock
Central Air Conditioner Capacitor Strap 317739-302
#39

Control asy diagram

Central air conditioner capacitor strap

Part #317739-302

$11.74
In Stock
Lug HY90AZ009
#42

Control asy diagram

Lug

Part #HY90AZ009

$8.23
In Stock
