Craftsman
Chainsaw

Model # 917352120 Official Craftsman chainsaw

Here are the diagrams and repair parts for Official Craftsman 917352120 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

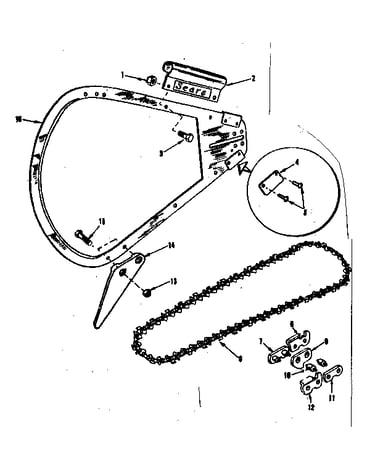

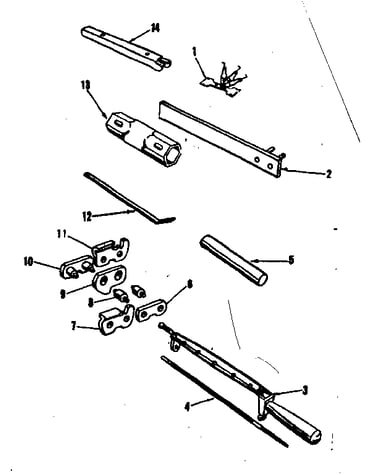

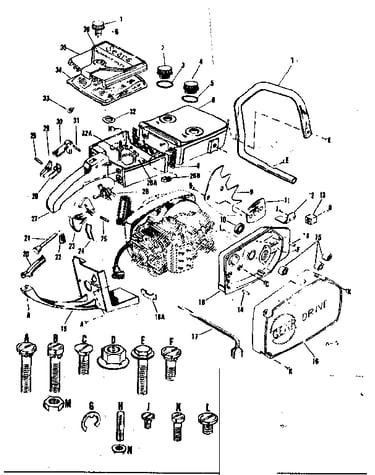

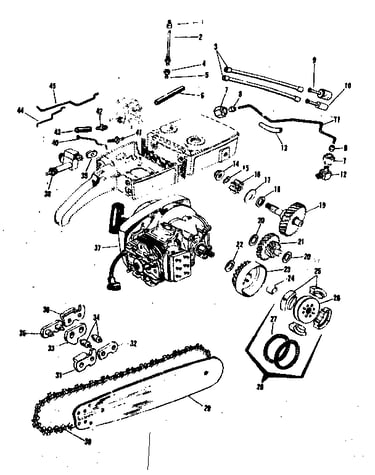

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 246 parts  |
Cover 610118
#57

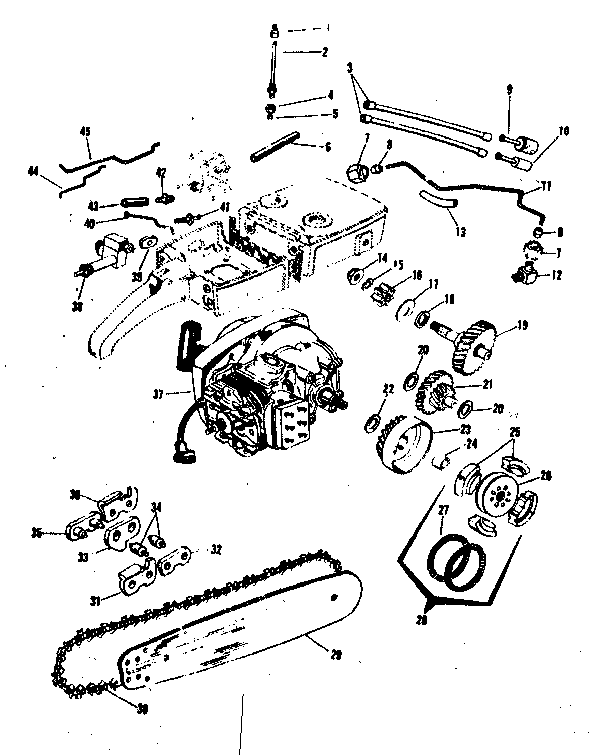

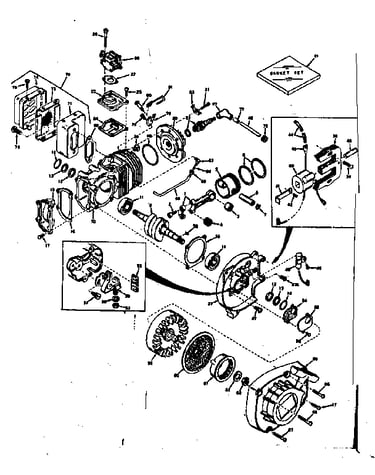

Engine diagram

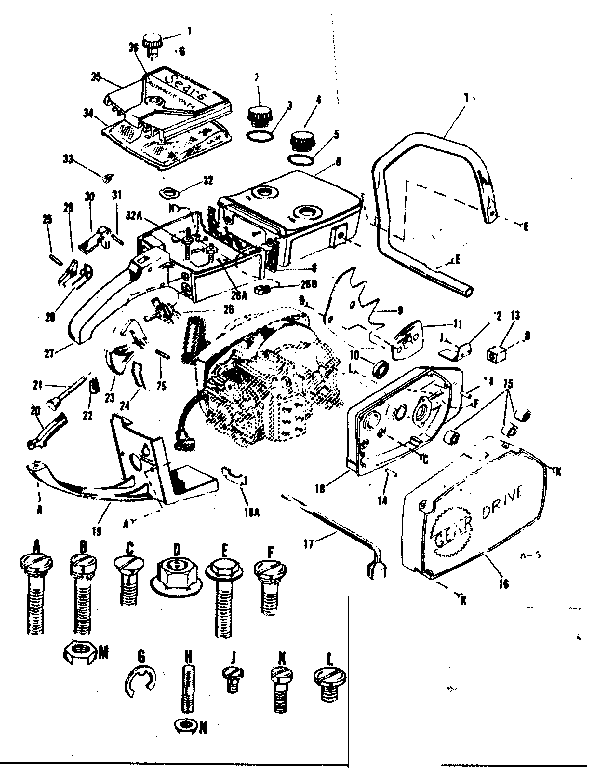

Cover

Part #610118

Replaced by #610118

?
Manufacturer substitution
This part replaces 610118. Substitute parts can look different from the original.
This item is not returnable
$5.24 |
16% OFF Phone Price : $6.24
In Stock
Dog 590389
#7

Rewind starter diagram

Dog

Part #590389

Replaced by #590389

?
Manufacturer substitution
This part replaces 590389. Substitute parts can look different from the original.
This item is not returnable
$6.14
In Stock
Ring 310217
#8

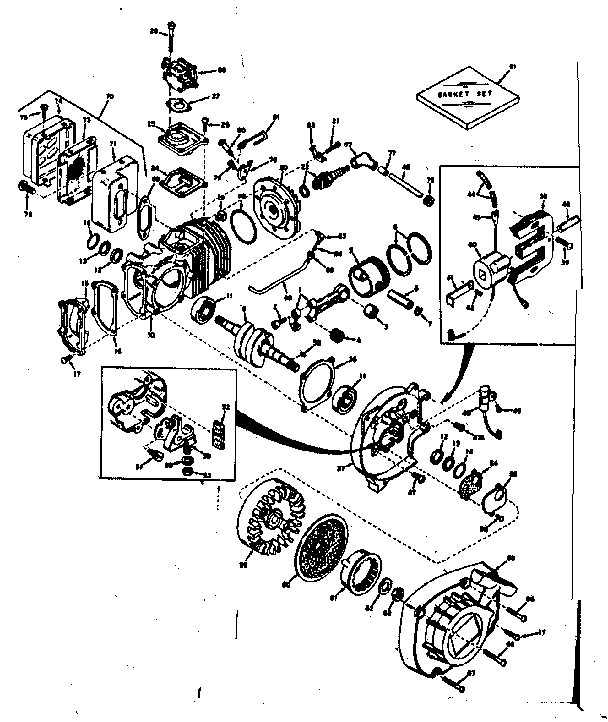

Engine diagram

Ring

Part #310217

Replaced by #310289A

?
Manufacturer substitution
This part replaces 310217. Substitute parts can look different from the original.
$16.51
In Stock
Screw 650576
#26

Engine diagram

Screw

Part #650576

Replaced by #650597

?
Manufacturer substitution
This part replaces 650576. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Gasket 510277
#24

Engine diagram

Gasket

Part #510277

Replaced by #510277A

?
Manufacturer substitution
This part replaces 510277. Substitute parts can look different from the original.
This item is not returnable
$4.14
In Stock
Spring 590391
#9

Rewind starter diagram

Spring

Part #590391

Replaced by #590391

?
Manufacturer substitution
This part replaces 590391. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Gasket 510260
#18

Engine diagram

Gasket

Part #510260

Replaced by #510227A

?
Manufacturer substitution
This part replaces 510260. Substitute parts can look different from the original.
$11.26
In Stock
Retaining Ring 310167
#7

Engine diagram

Retaining ring

Part #310167

Replaced by #310296

?
Manufacturer substitution
This part replaces 310167. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw 650350
#2

Engine diagram

Screw

Part #650350

Replaced by #650702

?
Manufacturer substitution
This part replaces 650350. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Cover Gasket 510232
#16

Engine diagram

Cover gasket

Part #510232

Replaced by #510270A

?
Manufacturer substitution
This part replaces 510232. Substitute parts can look different from the original.
This item is not returnable
$5.71
In Stock
