Model # UH40150HD Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover UH40150HD vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

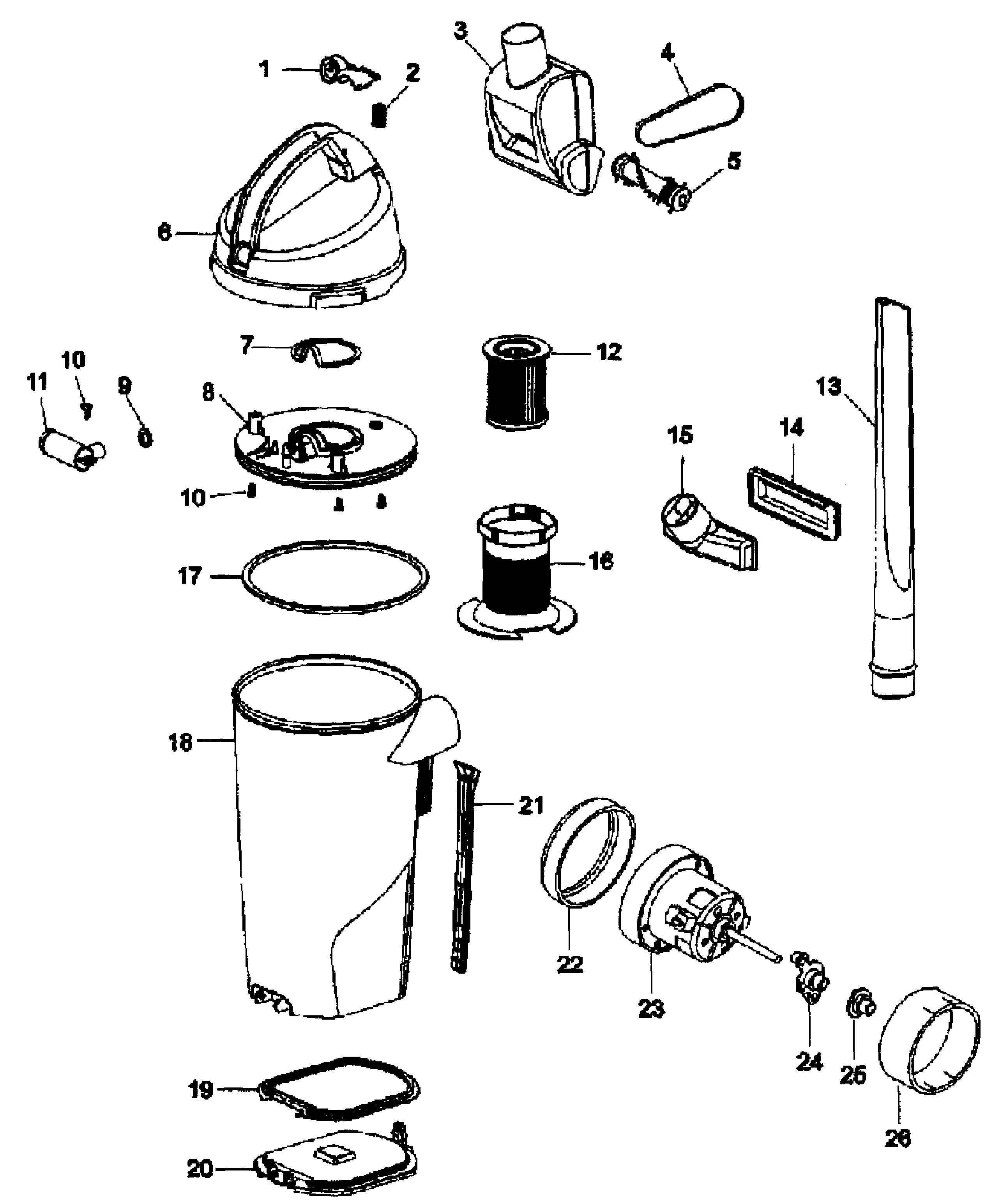

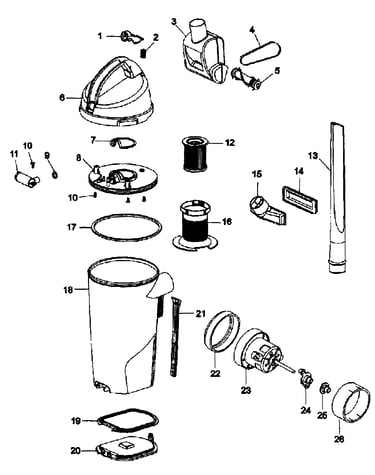

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |

Body Base 93002068
#7

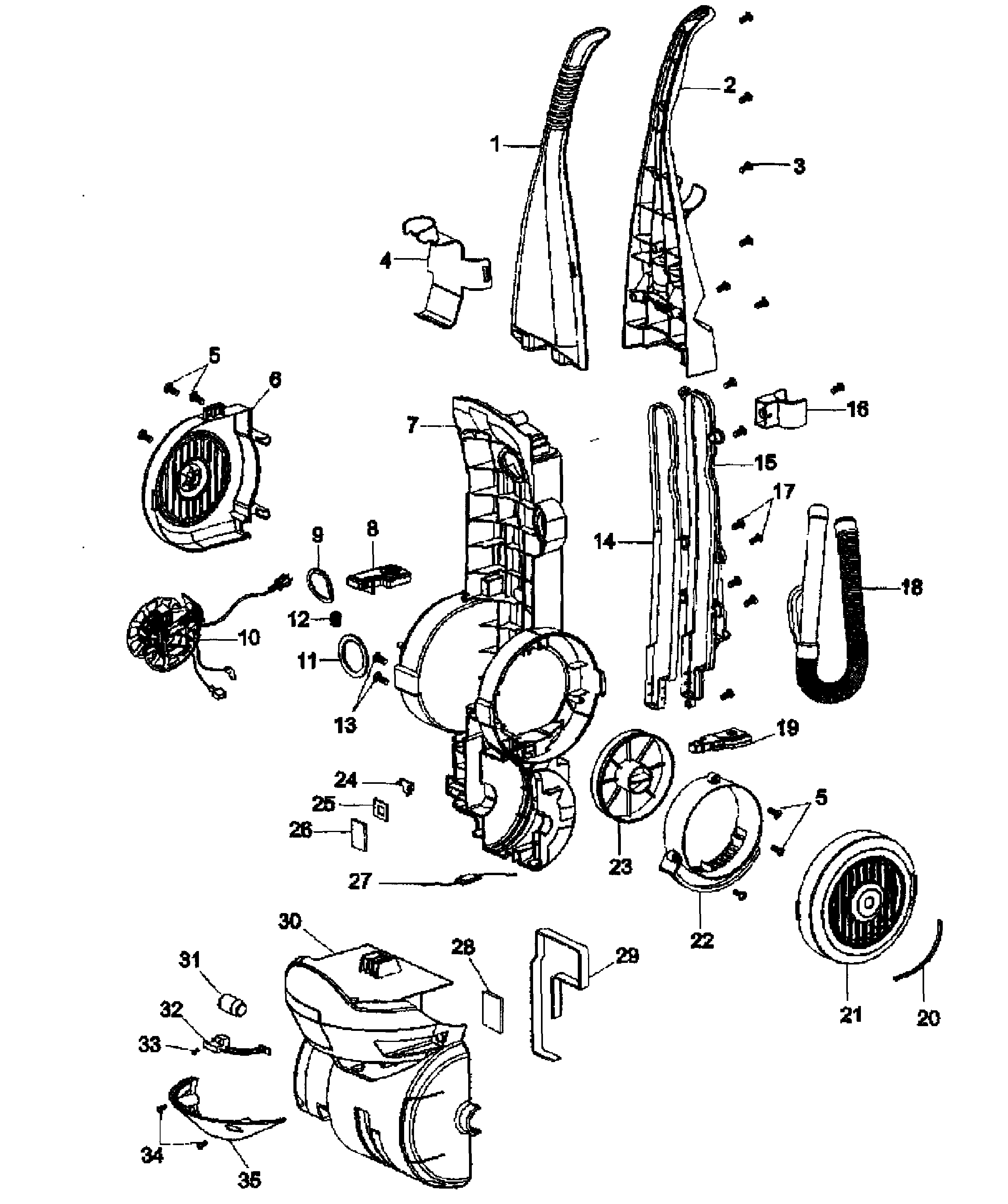

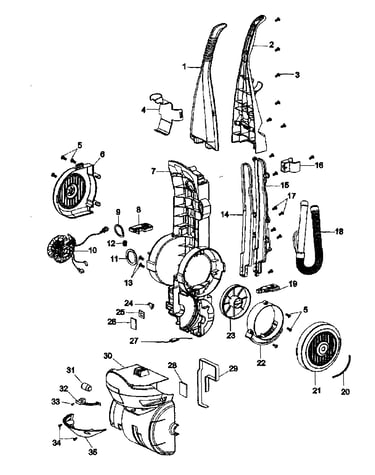

Main body diagram

Body base

Part #93002068

The manufacturer no longer makes this part, and there's no substitute part

Screw 4x16 93001579
Screw 4x16

Part #93001579

The manufacturer no longer makes this part, and there's no substitute part

Lamp Seal 59157023
#28

Main body diagram

Lamp seal

Part #59157023

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Exhaust Filter 59157014
#23

Main body diagram

Vacuum exhaust filter

Part #59157014

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Assembly 93002110
#18

Main body diagram

Vacuum hose assembly

Part #93002110

The manufacturer no longer makes this part, and there's no substitute part

Washer12pk 59155119
#4

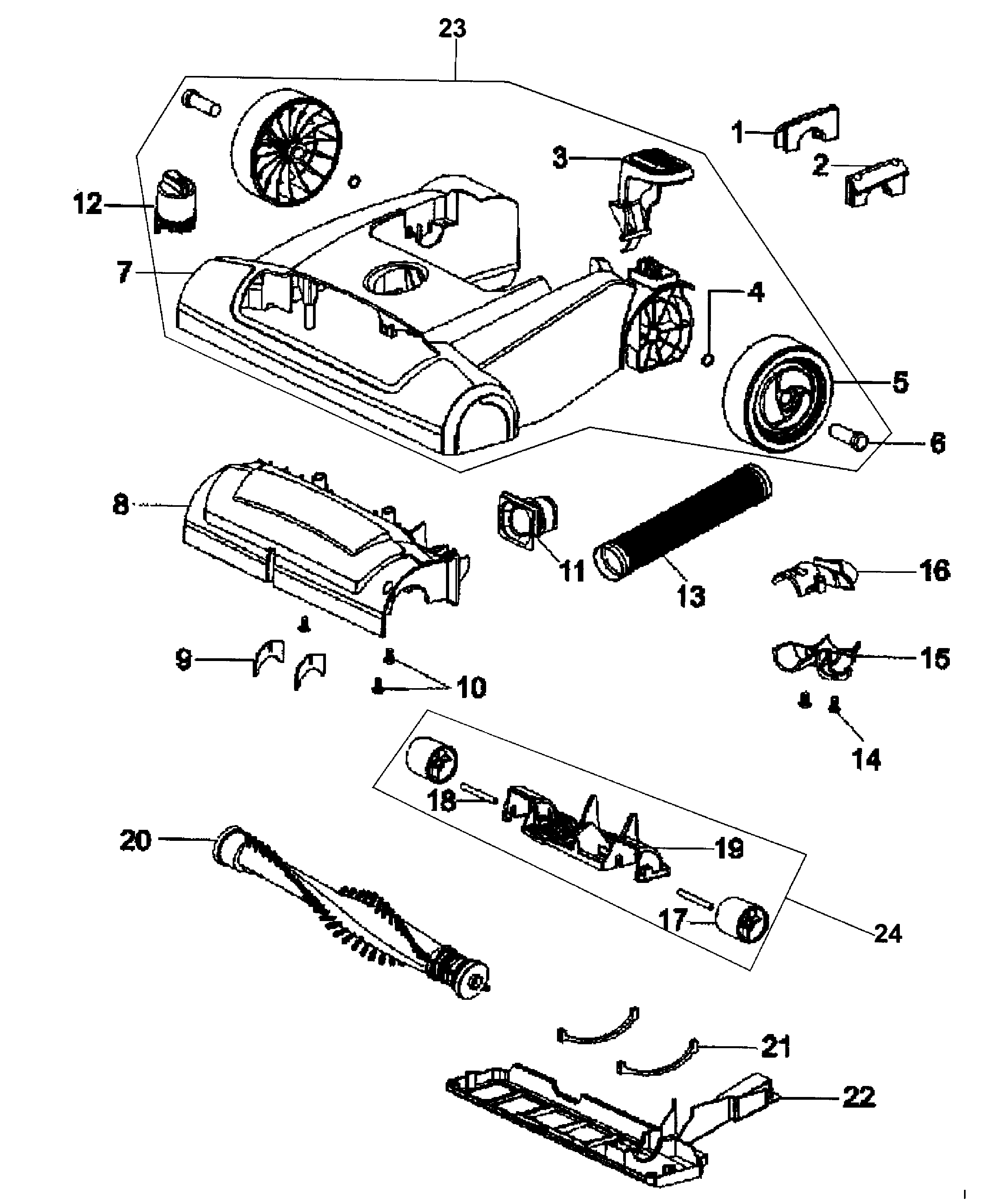

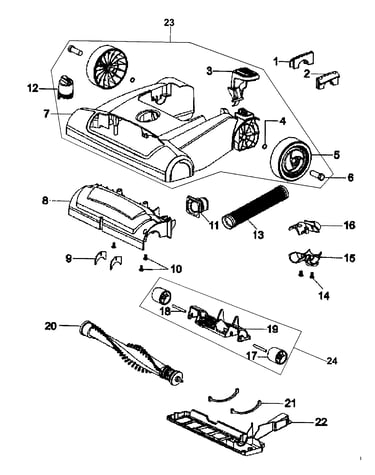

Base assy diagram

Washer12pk

Part #59155119

The manufacturer no longer makes this part, and there's no substitute part

Cover 59157003
#14

Main body diagram

Cover

Part #59157003

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 38528040
#NI

Base assy diagram

Vacuum beater bar belt

Part #38528040

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Nozzle Housing Seal 93002123
#9

Base assy diagram

Vacuum nozzle housing seal

Part #93002123

The manufacturer no longer makes this part, and there's no substitute part

Light Cover 59157020
#35

Main body diagram

Light cover

Part #59157020

The manufacturer no longer makes this part, and there's no substitute part
