Lawn & Garden Engine

Model # 143652032 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143652032 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Lawn Mower O-ring 631028
#25

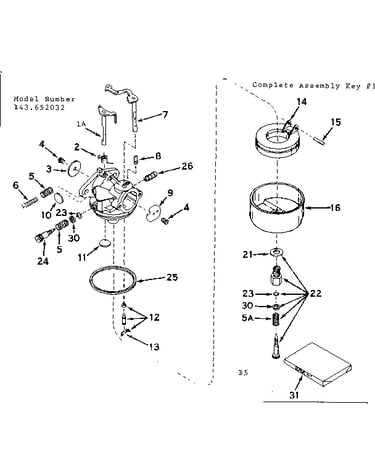

Carburetor diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#71

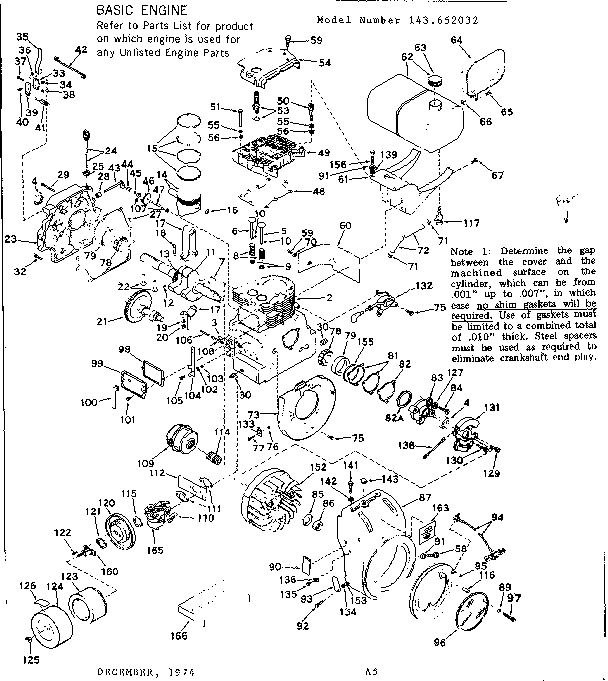

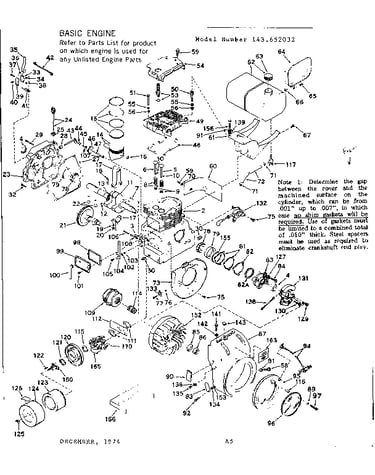

Engine diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Screw 650451
#65

Engine diagram

Troybilt lawn & garden equipment screw

Part #650451

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Engine Screw 28942
#135

Engine diagram

Lawn & garden equipment engine screw

Part #28942

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Screw 30564
#32

Engine diagram

Screw

Part #30564

Replaced by #650451

?
Manufacturer substitution
This part replaces 30564. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Engine Choke Spring 630735
#8

Carburetor diagram

Lawn & garden equipment engine choke spring

Part #630735

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Engine Carburetor Float Pin 631022
#13

Carburetor diagram

Lawn & garden equipment engine carburetor float pin

Part #631022

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Generac Screw 650128
Generac screw

Part #650128

This item is not returnable
$5.71
In Stock
Lawn & Garden Equipment Washer 630739
#30

Carburetor diagram

Lawn & garden equipment washer

Part #630739

This item is not returnable
$2.16
In Stock
Cook Top Side Trim Kit Retaining Ring 29193
Cook top side trim kit retaining ring

Part #29193

This item is not returnable
$2.16
In Stock
