Model # 38CKC060300 Official Carrier condensing unit

Here are the diagrams and repair parts for Official Carrier 38CKC060300 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Central Air Conditioner Condenser Fan Motor (replaces Hc35sl231, Hc39ge232, Hc39ge236) HC39GE237
#31

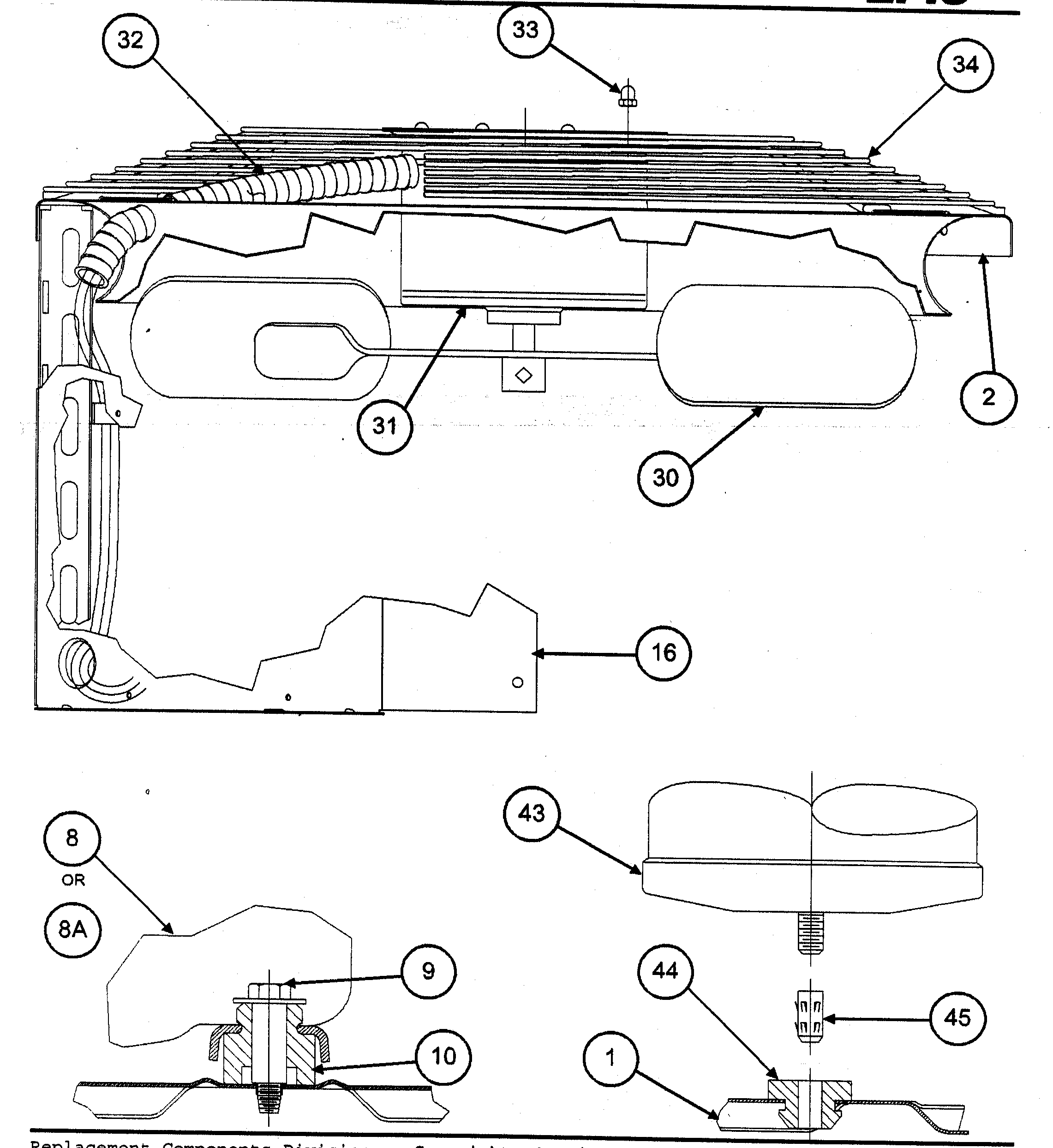

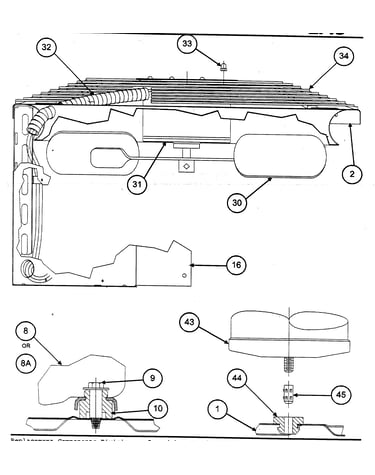

Fan blade diagram

Central air conditioner condenser fan motor (replaces hc35sl231, hc39ge232, hc39ge236)

Part #HC39GE237

$360.93 |
$12.00 OFF Phone Price : $372.93
In Stock
Propeller LA01RA027
#30

Fan blade diagram

Propeller

Part #LA01RA027

$125.29
In Stock
Fan Guard 323745-401
#34

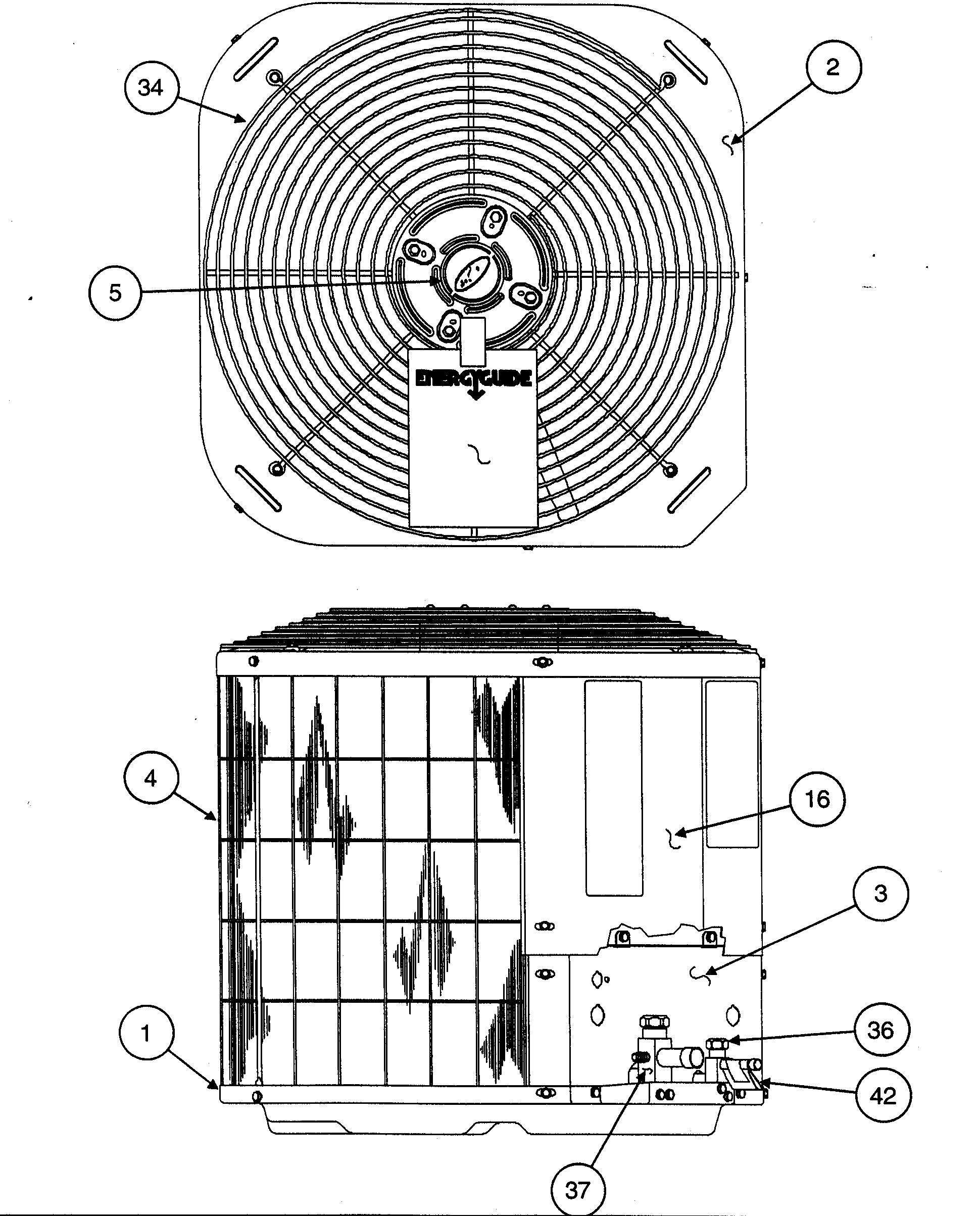

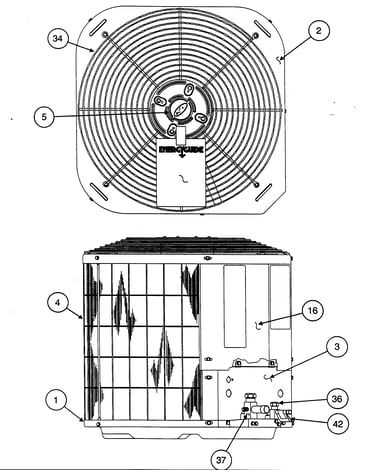

Outlet grille/top cover diagram

Fan guard

Part #323745-401

Replaced by #323745-412

?
Manufacturer substitution
This part replaces 323745-401. Substitute parts can look different from the original.
$245.56 |
5% OFF Phone Price : $257.56
In Stock
Lug HY90AZ009
#24

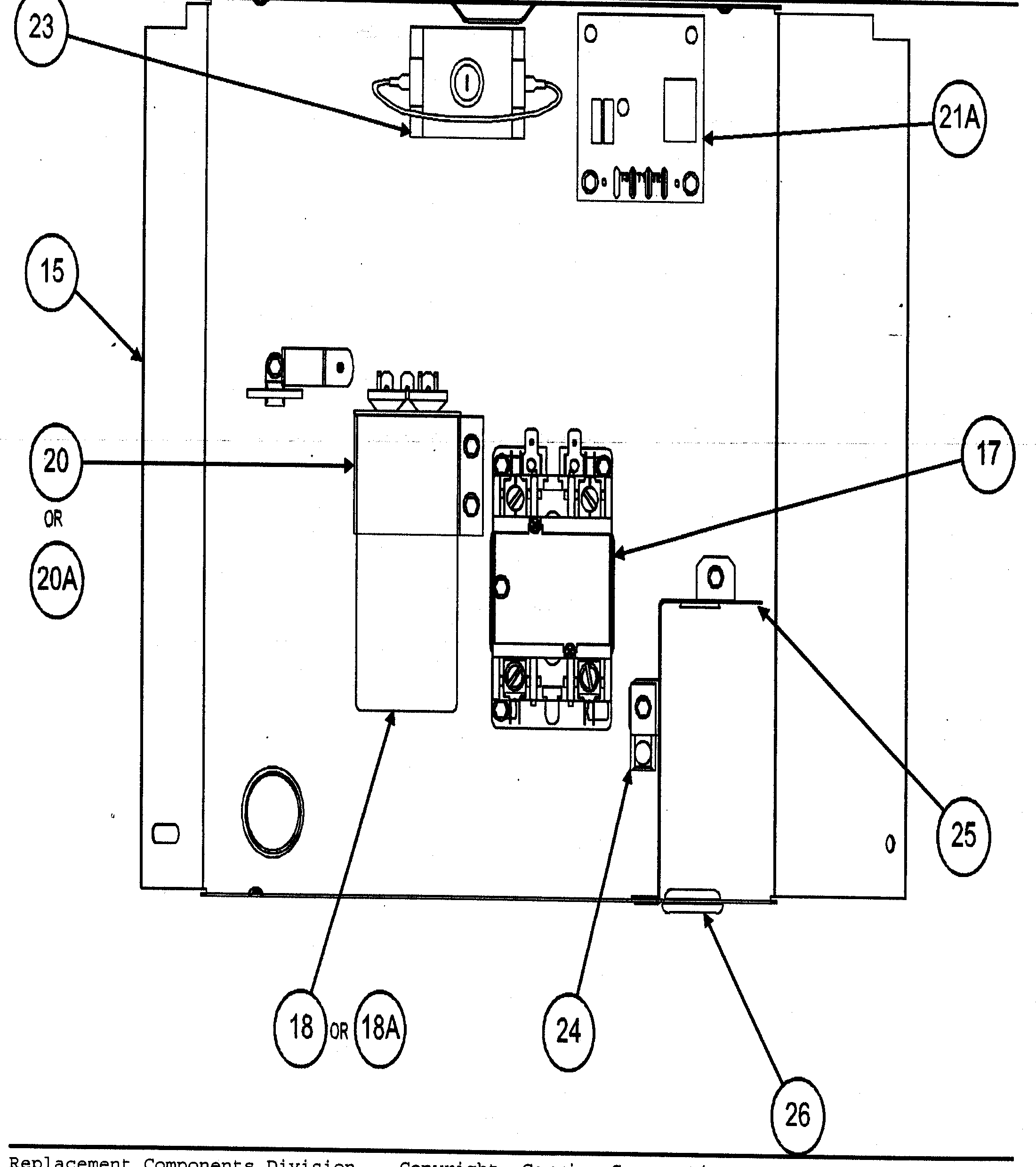

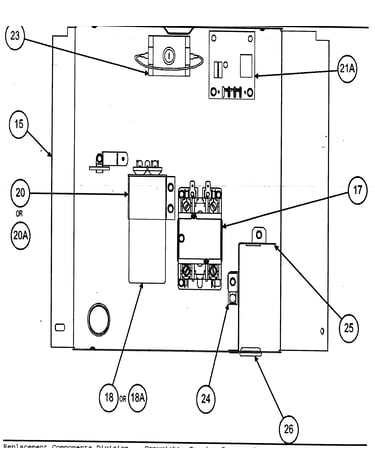

Control box diagram

Lug

Part #HY90AZ009

$9.11
In Stock
Carrier Valve Piston EA52PH093
#NI

Outlet grille/top cover diagram

Carrier valve piston

Part #EA52PH093

$26.91
In Stock
Carrier Condenser Coil 322337-7014
#35

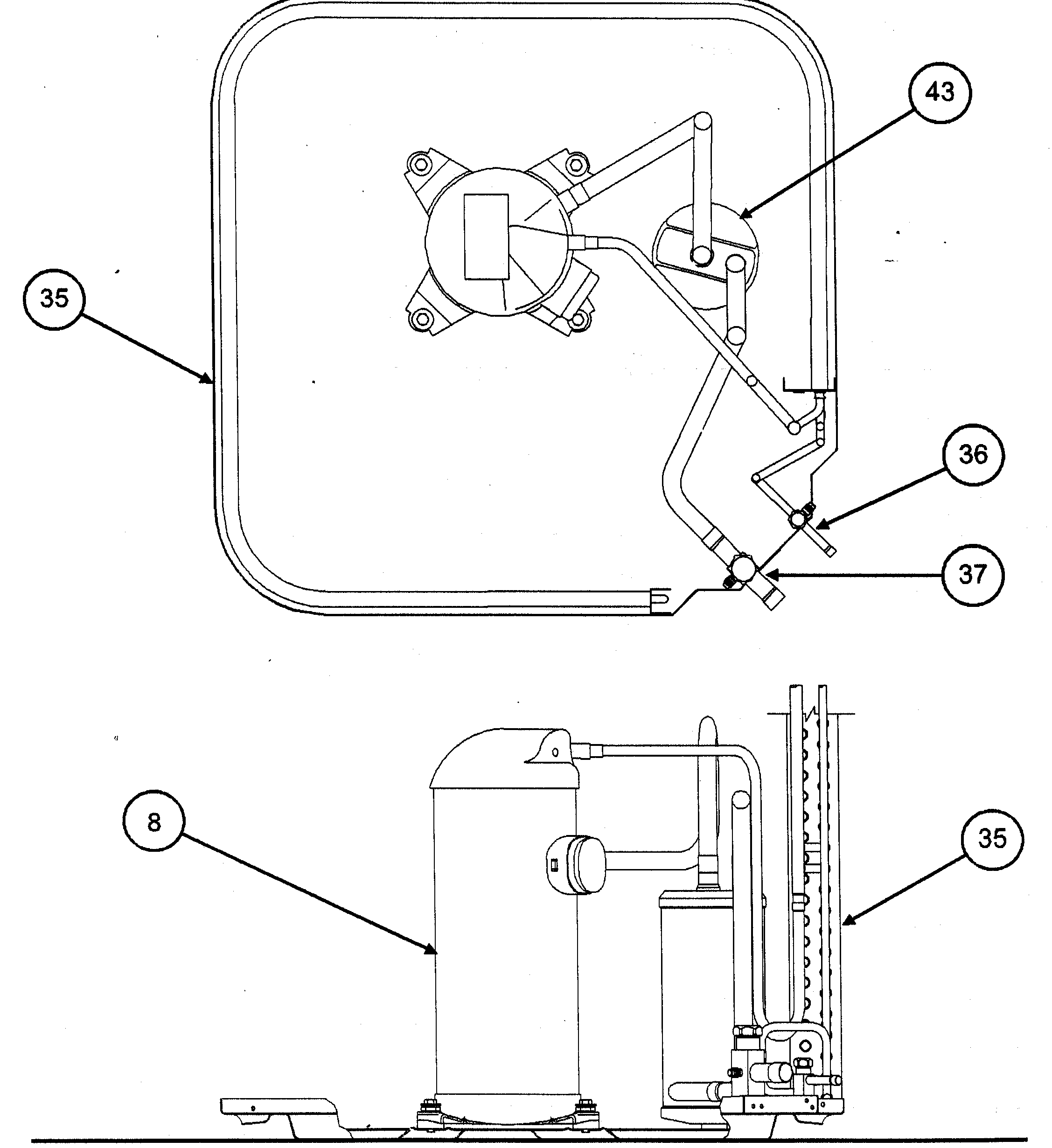

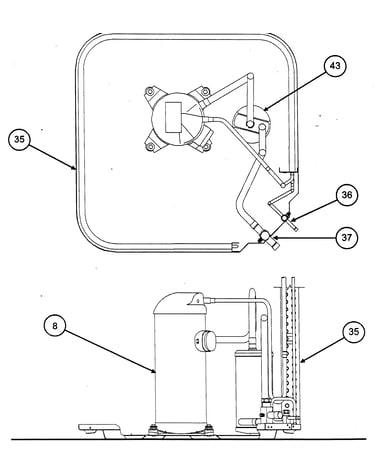

Compressor/condenser coil diagram

Carrier condenser coil

Part #322337-7014

$3039.69
In Stock
Central Air Conditioner Nameplate 323761-101
#5

Outlet grille/top cover diagram

Central air conditioner nameplate

Part #323761-101

$26.14
In Stock
Valve EC39DM061
#NI

Outlet grille/top cover diagram

Valve

Part #EC39DM061

This item is not returnable
$5.66
In Stock
Strap Cap 317739-303
#20

Control box diagram

Strap cap

Part #317739-303

$9.20
In Stock
Grommet P041-5103
#10

Fan blade diagram

Grommet

Part #P041-5103

$14.23
In Stock
