Model # DM46KG-15T-R Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag DM46KG-15T-R microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

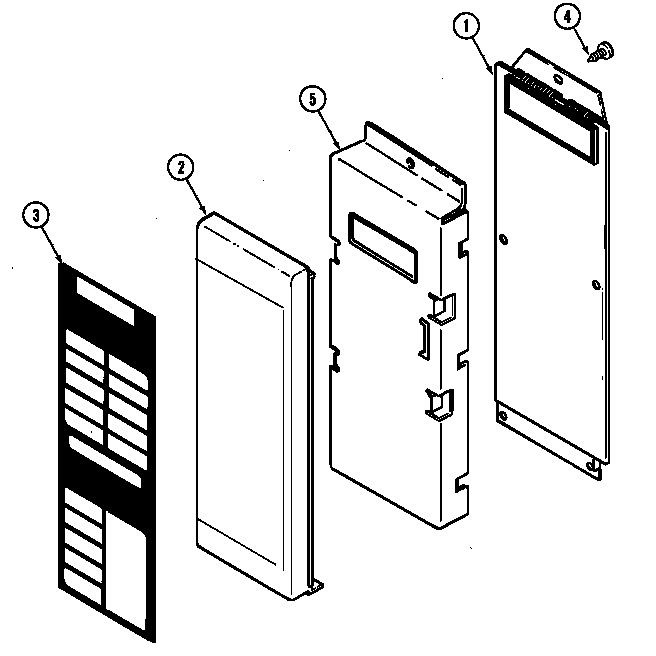

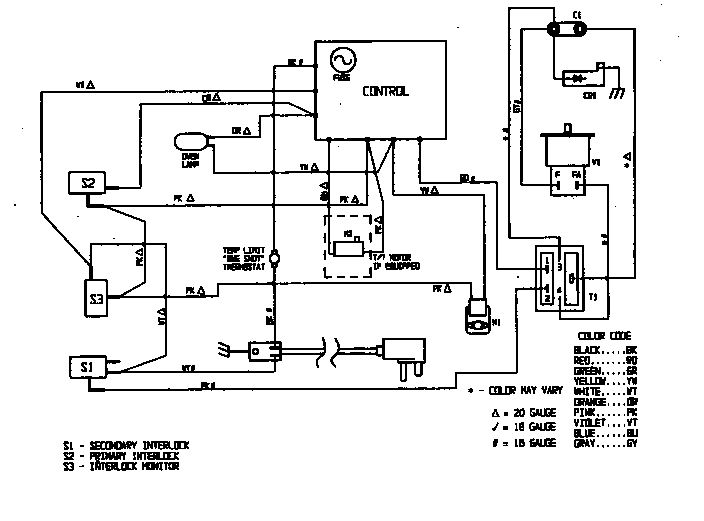

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Fuse 51001303
#19

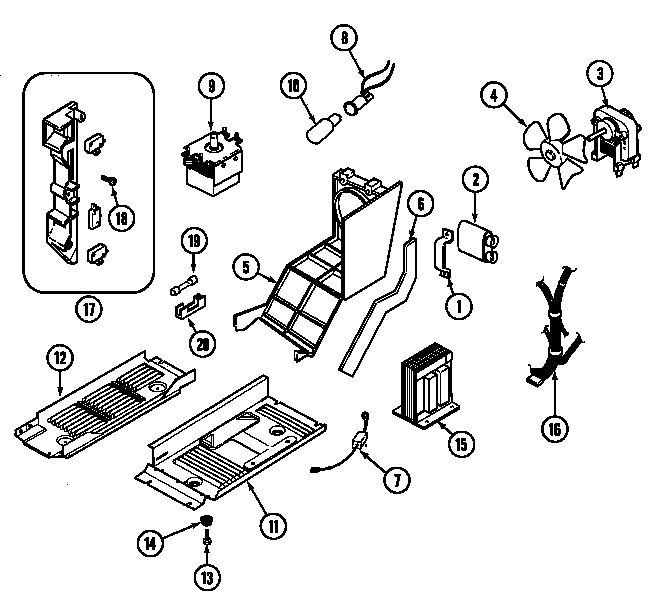

Internal controls diagram

Fuse

Part #51001303

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces 51001303. Substitute parts can look different from the original.
This item is not returnable
$6.68 |
13% OFF Phone Price : $7.68
In Stock
Fan Bracket 51001138
#5

Internal controls diagram

Fan bracket

Part #51001138

The manufacturer no longer makes this part, and there's no substitute part

"t" Fitting (flange) N/P
"t" fitting (flange)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 51001095
#8

Internal controls diagram

Receptacle

Part #51001095

The manufacturer no longer makes this part, and there's no substitute part

Screw 51001241
#13

Internal controls diagram

Screw

Part #51001241

The manufacturer no longer makes this part, and there's no substitute part

Cavity (wht) 51001204
#4

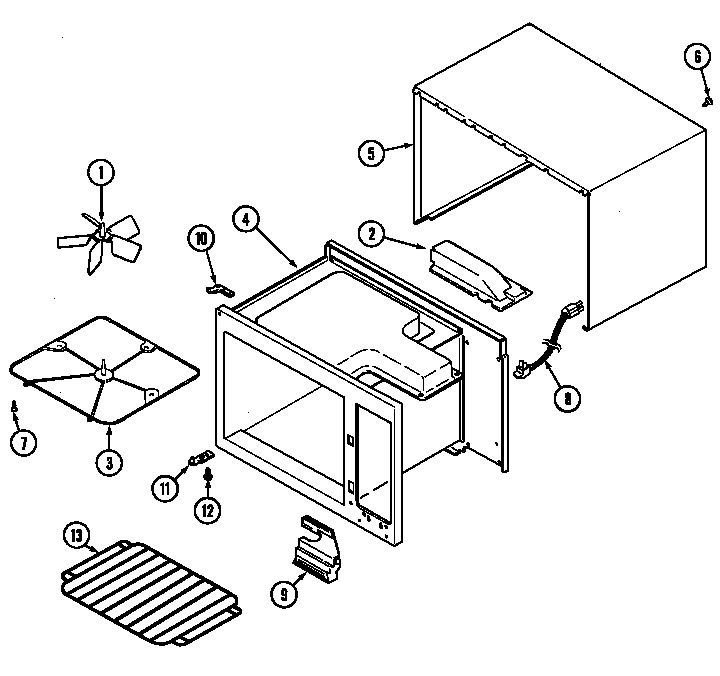

Base diagram

Cavity (wht)

Part #51001204

The manufacturer no longer makes this part, and there's no substitute part

Interlock 51001245
#17

Internal controls diagram

Interlock

Part #51001245

The manufacturer no longer makes this part, and there's no substitute part

Clip 03110078
#20A

Internal controls diagram

Clip

Part #03110078

The manufacturer no longer makes this part, and there's no substitute part

Door Spring 51001197
#6

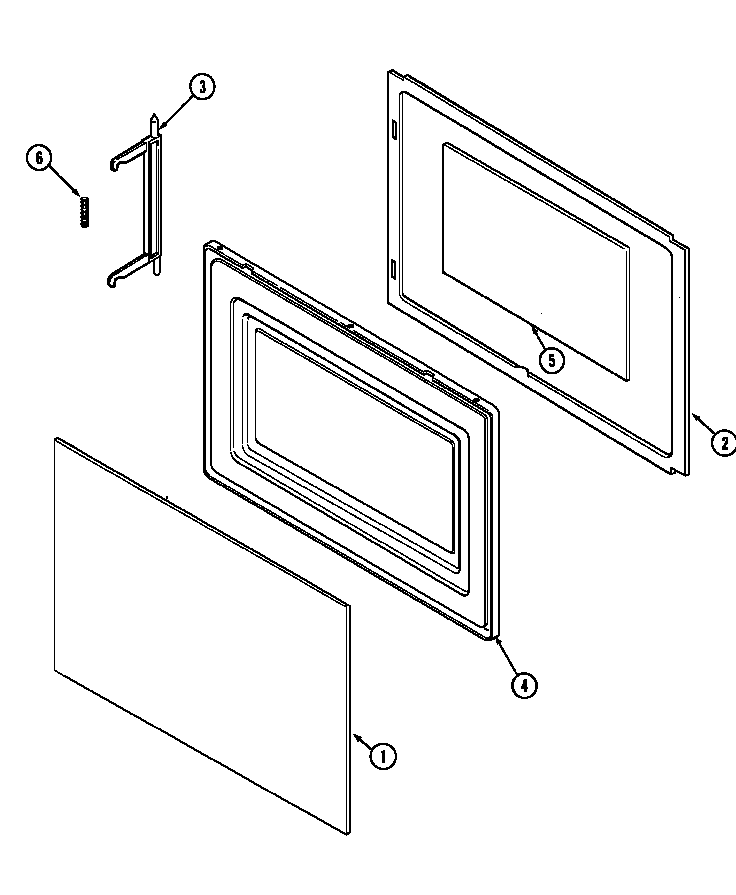

Door diagram

Door spring

Part #51001197

The manufacturer no longer makes this part, and there's no substitute part

Push Clip 03110070
#6

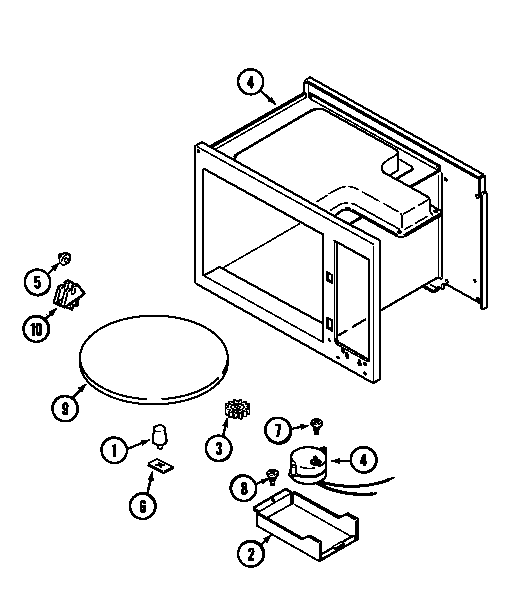

Turntable diagram

Push clip

Part #03110070

The manufacturer no longer makes this part, and there's no substitute part
