Eureka
Upright Vacuum

Model # 4874B Official Eureka omega upright vacuum

Here are the diagrams and repair parts for Official Eureka 4874B omega upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

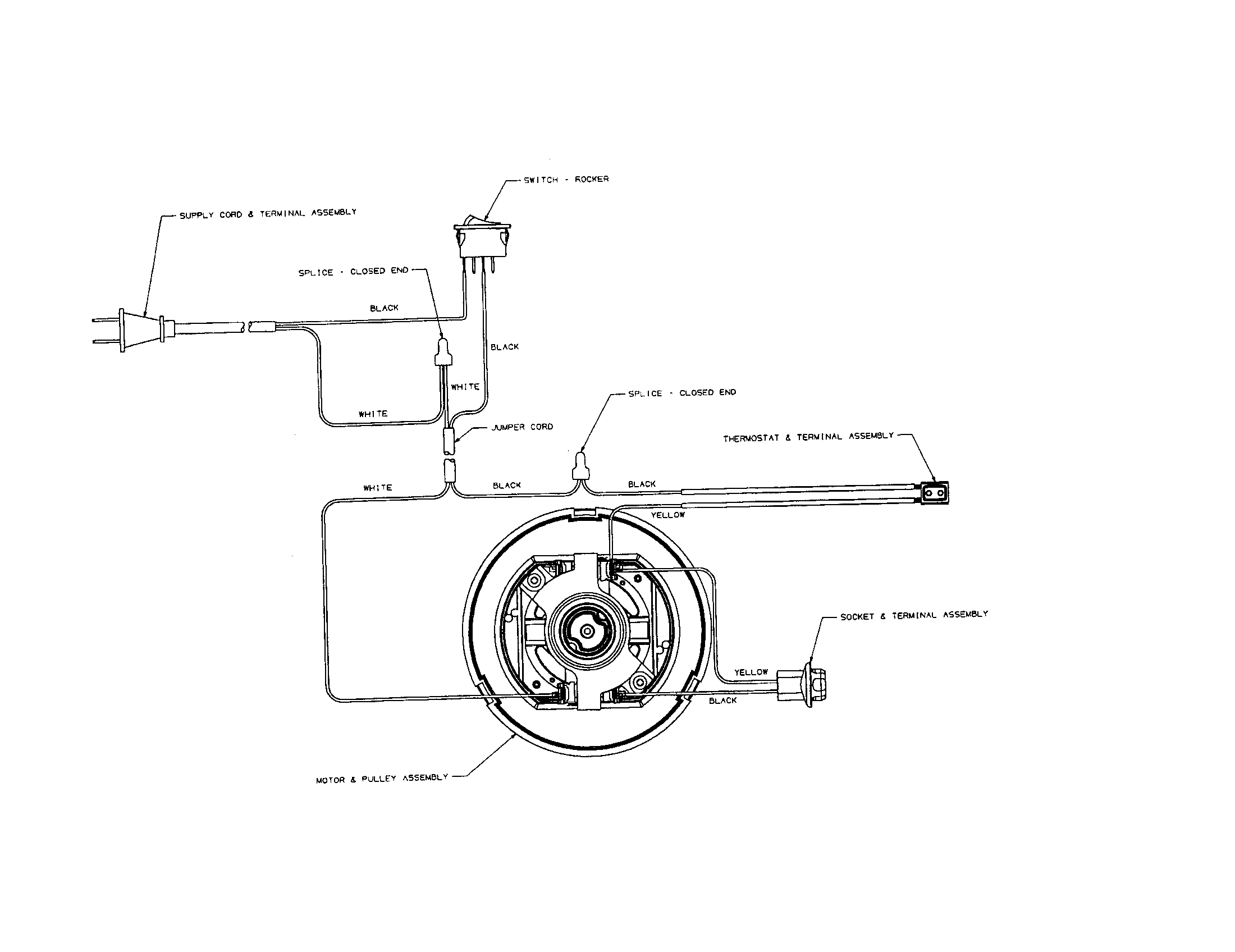

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Sleeve 70873
#8

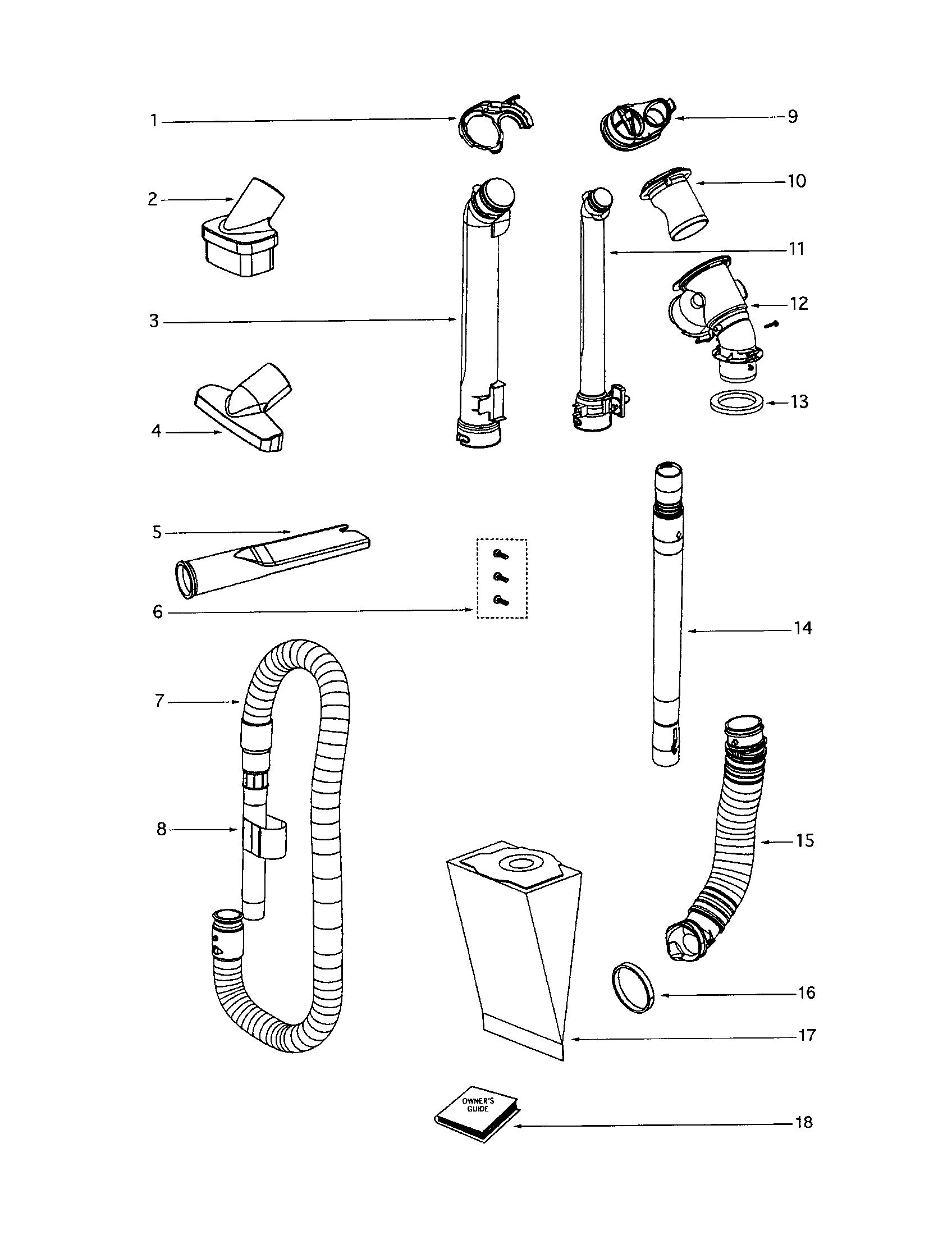

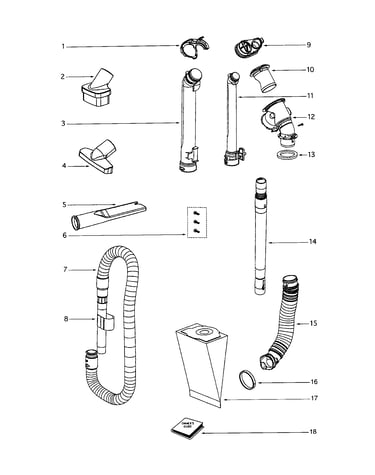

Hose diagram

Sleeve

Part #70873

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Clamp 53201
#12

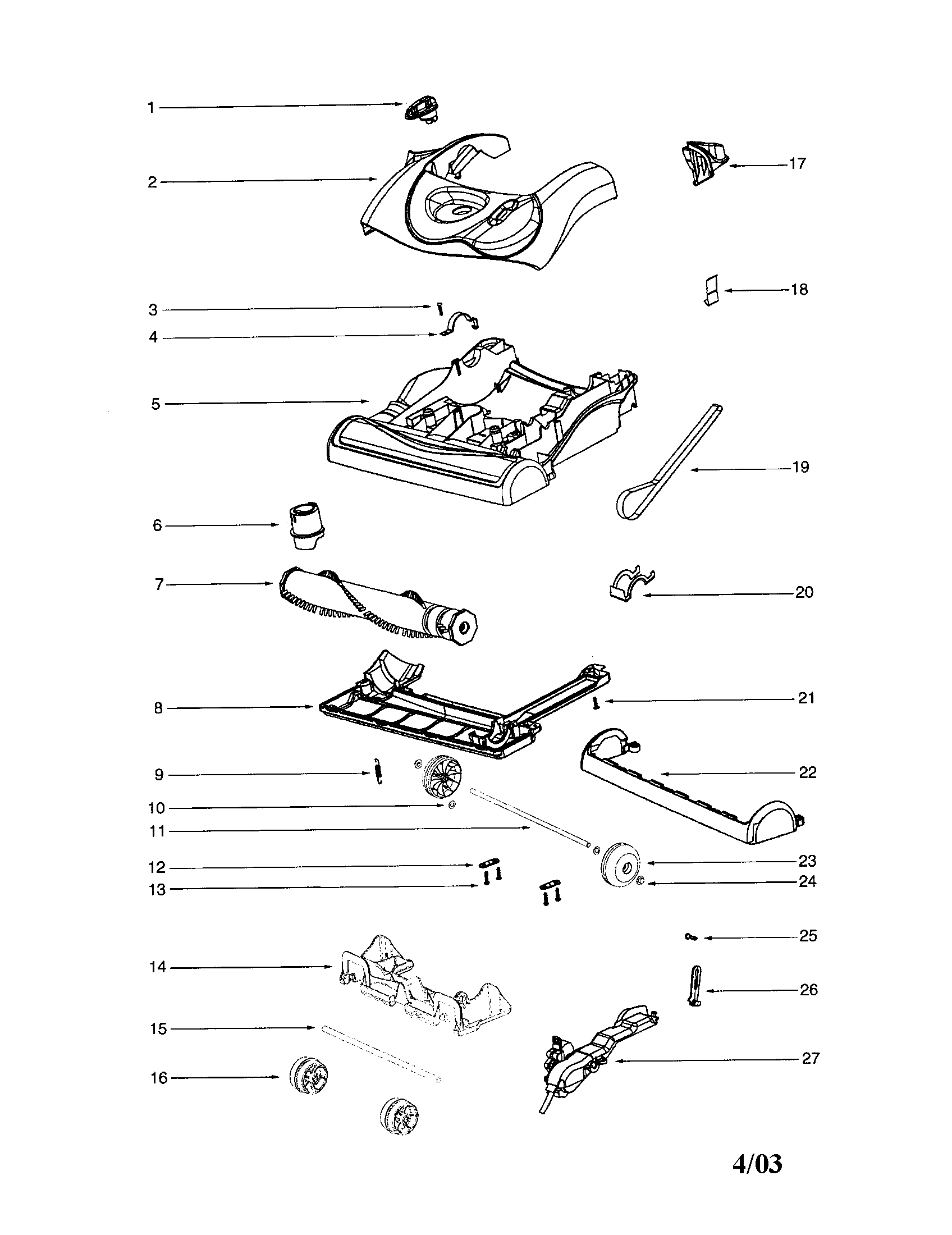

Hood/base diagram

Kenmore clamp

Part #53201

The manufacturer no longer makes this part, and there's no substitute part

Gasket 70085
#7

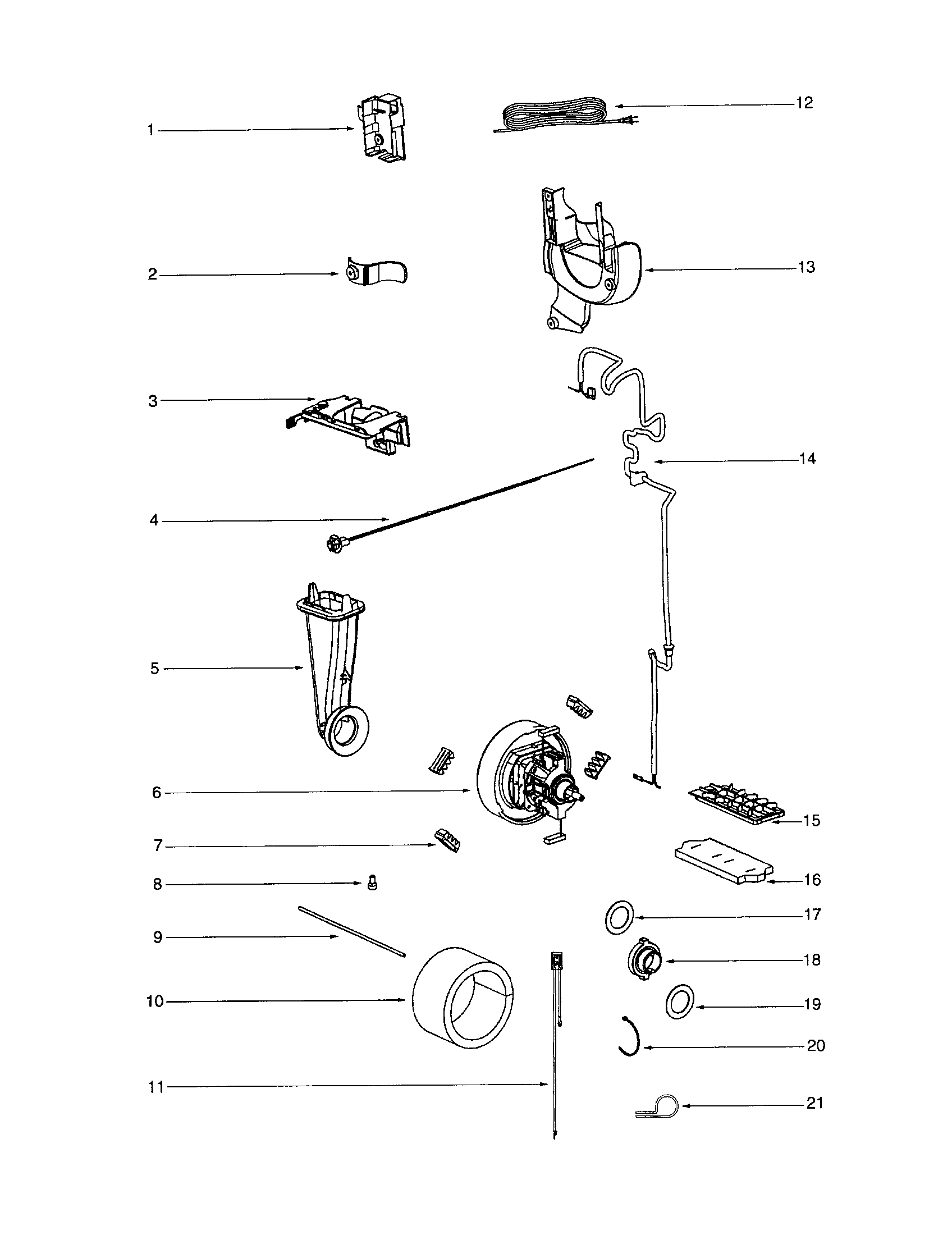

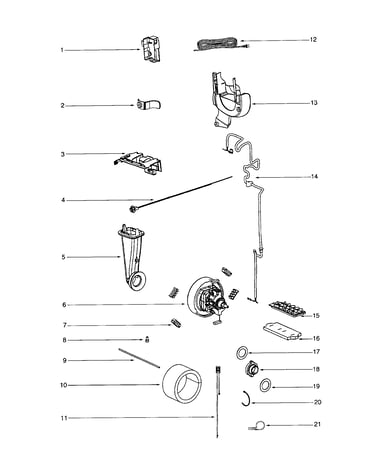

Motor/thermostat diagram

Gasket

Part #70085

The manufacturer no longer makes this part, and there's no substitute part

Pushnuts 60613-1
#24

Hood/base diagram

Pushnuts

Part #60613-1

The manufacturer no longer makes this part, and there's no substitute part

Exit 70408-119N
#1

Motor/thermostat diagram

Exit

Part #70408-119N

The manufacturer no longer makes this part, and there's no substitute part

Washer 53110
#10

Hood/base diagram

Washer

Part #53110

The manufacturer no longer makes this part, and there's no substitute part

Clamp 71077A
#21

Motor/thermostat diagram

Clamp

Part #71077A

The manufacturer no longer makes this part, and there's no substitute part

Latch 70096-355N
#15

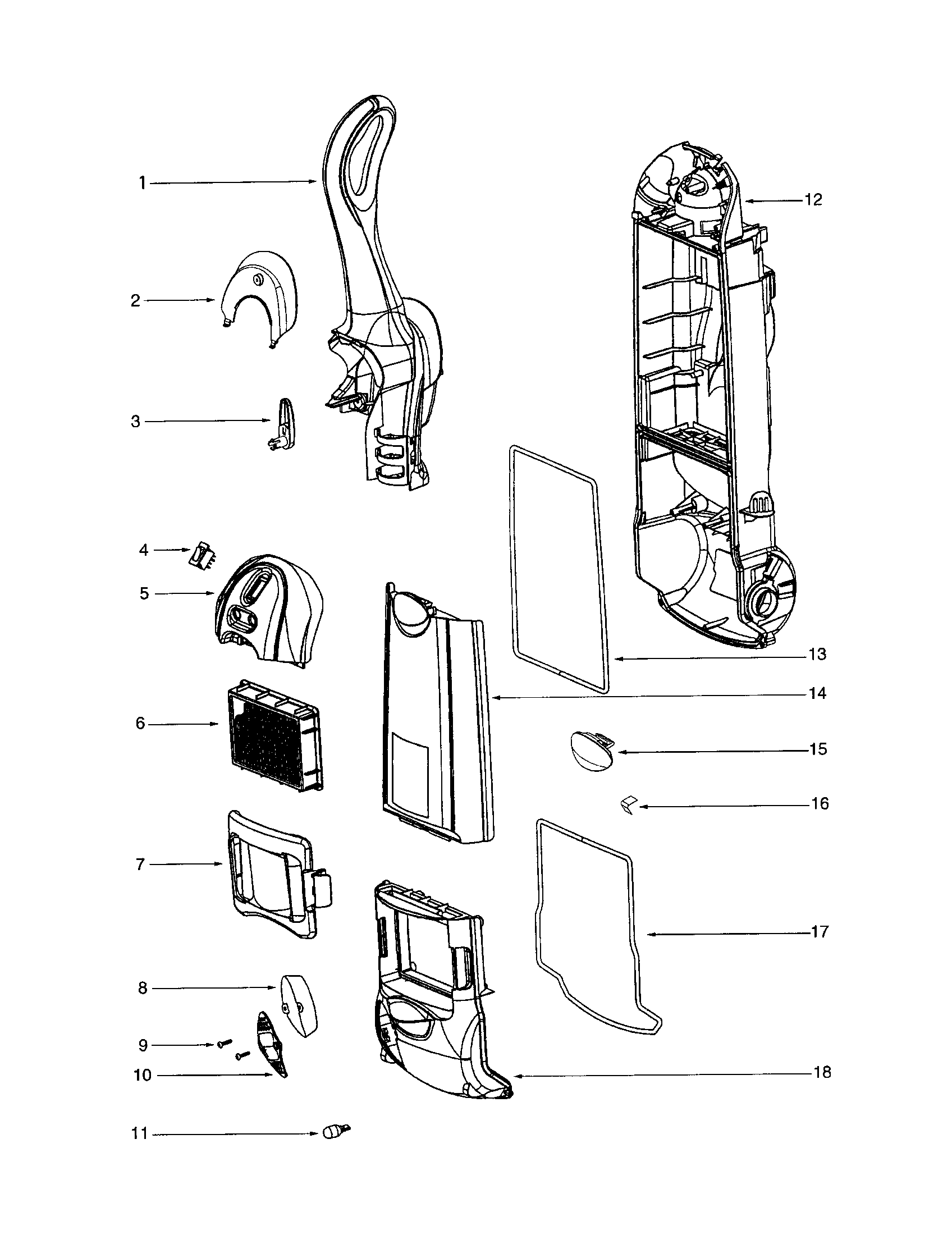

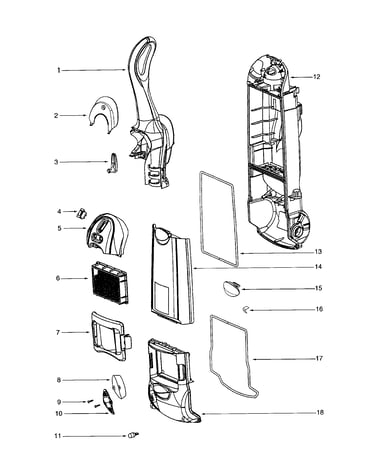

Handle/bag cover diagram

Latch

Part #70096-355N

The manufacturer no longer makes this part, and there's no substitute part

Gasket 70081
#17

Handle/bag cover diagram

Gasket

Part #70081

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Wire Tie 46713-5
#20

Motor/thermostat diagram

Electrolux wire tie

Part #46713-5

The manufacturer no longer makes this part, and there's no substitute part
