Craftsman
Gas Grill

Model # 2581530130 Official Craftsman gas grill

Here are the diagrams and repair parts for Official Craftsman 2581530130 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Cup Kit 11002-133
#12

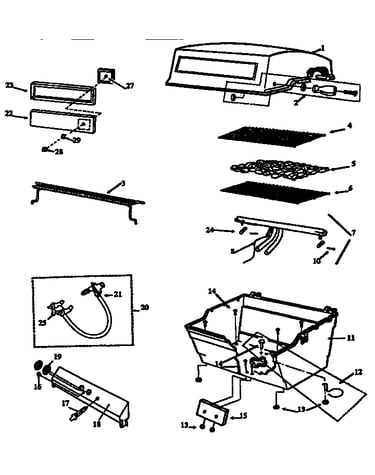

Grill head parts diagram

Cup kit

Part #11002-133

The manufacturer no longer makes this part, and there's no substitute part

Leg Cap Y-12651
#54

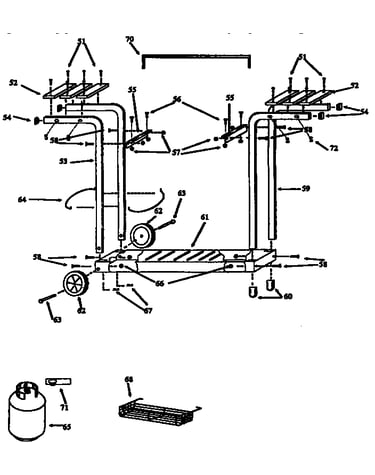

Cart diagram

Leg cap

Part #Y-12651

The manufacturer no longer makes this part, and there's no substitute part

Burner 10390-329
#7

Grill head parts diagram

Burner

Part #10390-329

The manufacturer no longer makes this part, and there's no substitute part

Cover W/label 10550-149-4
#18

Grill head parts diagram

Cover w/label

Part #10550-149-4

The manufacturer no longer makes this part, and there's no substitute part

Handle Wheel 10338-170-1
#53

Cart diagram

Handle wheel

Part #10338-170-1

The manufacturer no longer makes this part, and there's no substitute part

Grate 10222-74
#6

Grill head parts diagram

Grate

Part #10222-74

The manufacturer no longer makes this part, and there's no substitute part

Retainer 10401-28-1
#23

Grill head parts diagram

Retainer

Part #10401-28-1

The manufacturer no longer makes this part, and there's no substitute part

Cap Nut STD541806
#28

Grill head parts diagram

Cap nut

Part #STD541806

The manufacturer no longer makes this part, and there's no substitute part

10x1 1/4 Ths Y-13046
#51

Cart diagram

10x1 1/4 ths

Part #Y-13046

The manufacturer no longer makes this part, and there's no substitute part

Washer 10239-6
#24

Grill head parts diagram

Washer

Part #10239-6

The manufacturer no longer makes this part, and there's no substitute part
