Model # GUJ050N12C1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP GUJ050N12C1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Fan Tmr Cont 1010031
#7

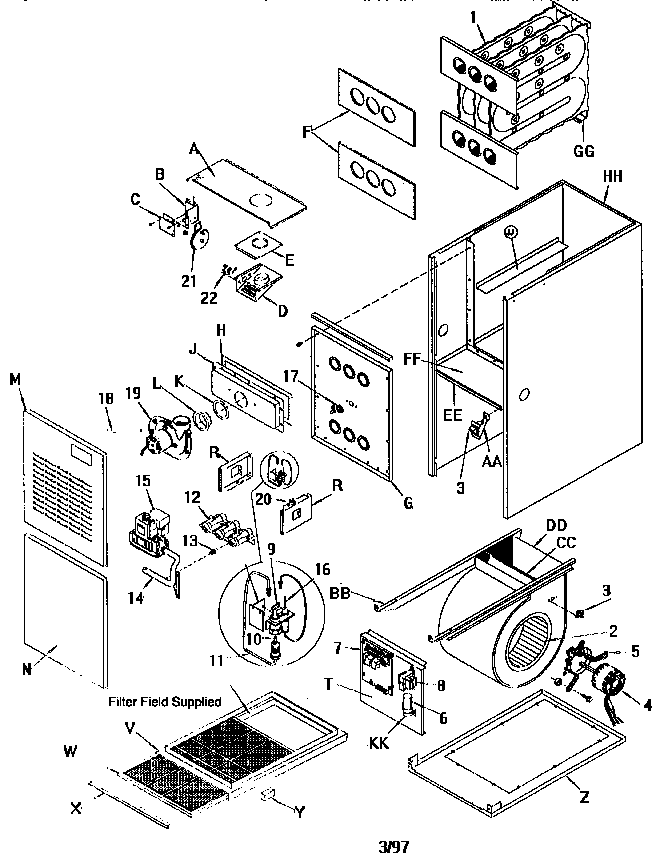

Unit parts diagram

Fan tmr cont

Part #1010031

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1010031. Substitute parts can look different from the original.
$220.46 |
5% OFF Phone Price : $232.46
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#2

Unit parts diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Motor 1009054
#4

Unit parts diagram

Motor

Part #1009054

Replaced by #1012514

?
Manufacturer substitution
This part replaces 1009054. Substitute parts can look different from the original.
$345.23 |
$12.00 OFF Phone Price : $357.23
In Stock
Conv Kit 1160991

#NI

All parts diagram

Conv kit

Part #1160991

$87.04
In Stock
Arcoaire Gskt Htx Bnr 2480904
#F

Unit parts diagram

Arcoaire gskt htx bnr

Part #2480904

This item is not returnable
$3.37
In Stock
Clamp Capctr 1095020
#AA

Unit parts diagram

Clamp capctr

Part #1095020

$100.98
In Stock
Rail Galv Bl 57059
#EE

Unit parts diagram

Rail galv bl

Part #57059

$952.55
In Stock
Baffle 707010031
#JJ

Unit parts diagram

Baffle

Part #707010031

$49.47
In Stock
Furnace Burner 1009178
#12

Unit parts diagram

Furnace burner

Part #1009178

$109.11
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#5

Unit parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
