Model # 58031976 Official Craftsman alternator

Here are the diagrams and repair parts for Official Craftsman 58031976 alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Screw 24421
#19

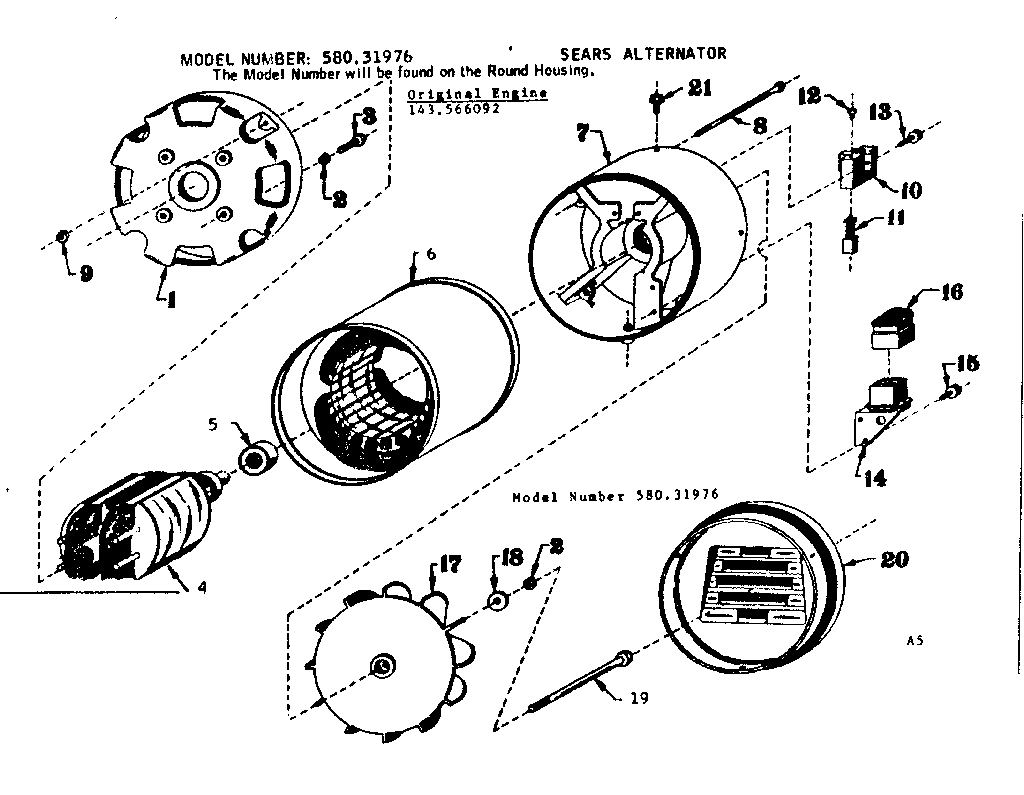

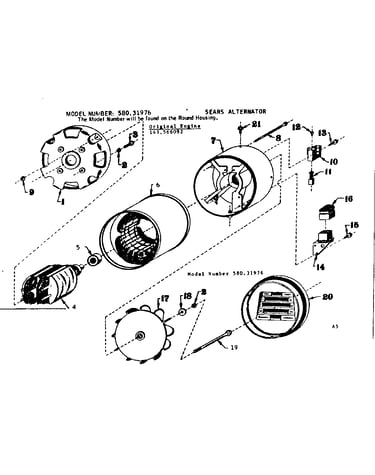

Stator assembly diagram

Screw

Part #24421

Replaced by #24421GS

?
Manufacturer substitution
This part replaces 24421. Substitute parts can look different from the original.
$26.36
In Stock
Screw 24489
#15

Stator assembly diagram

Screw

Part #24489

The manufacturer no longer makes this part, and there's no substitute part

Screw 24488
#13

Stator assembly diagram

Screw

Part #24488

The manufacturer no longer makes this part, and there's no substitute part

Fan Cover 24487
#20

Stator assembly diagram

Fan cover

Part #24487

The manufacturer no longer makes this part, and there's no substitute part

Handle 23877-C
#10

Stator assembly diagram

Handle

Part #23877-C

The manufacturer no longer makes this part, and there's no substitute part

Outlet 24824
#8

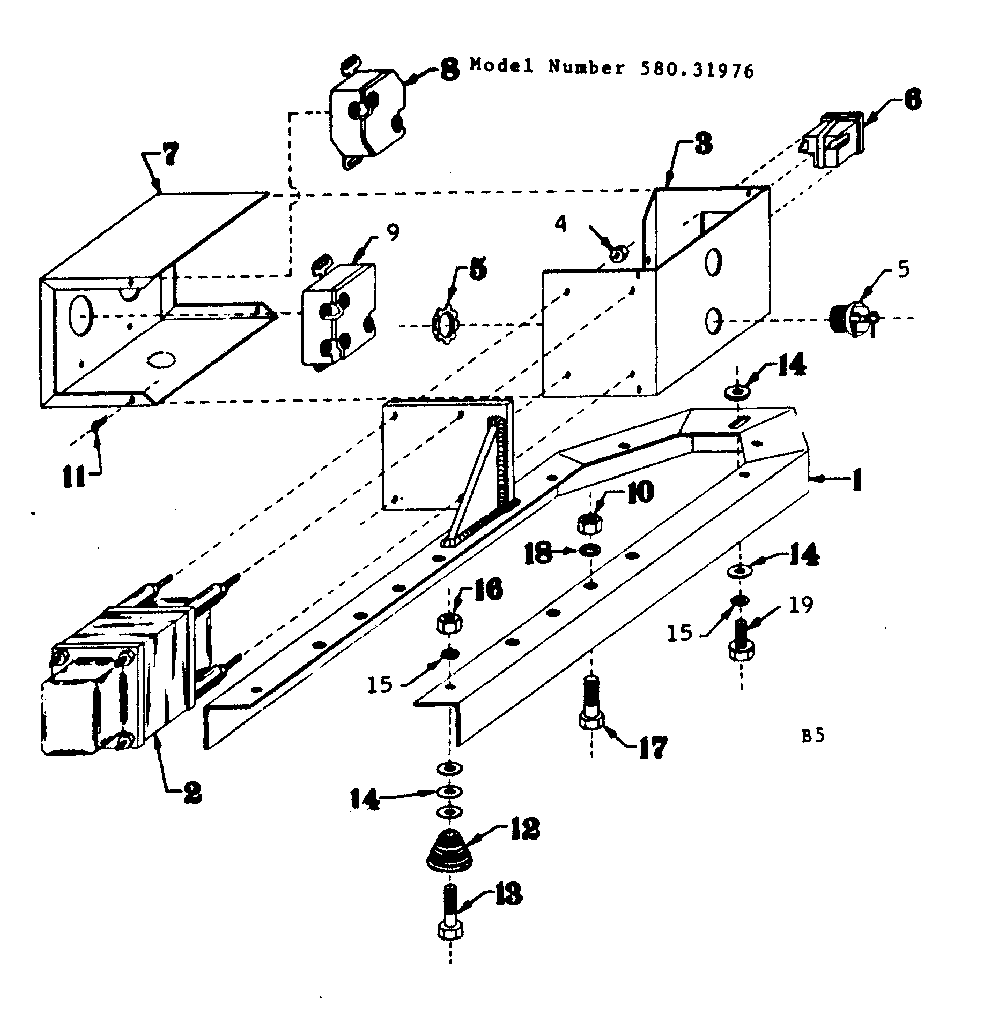

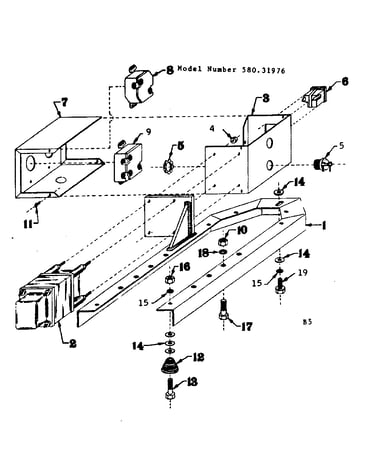

Mounting base diagram

Outlet

Part #24824

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22125
#13

Mounting base diagram

Cap screw

Part #22125

The manufacturer no longer makes this part, and there's no substitute part

Stator B-24992
#6A

Stator assembly diagram

Stator

Part #B-24992

The manufacturer no longer makes this part, and there's no substitute part

Rectifier B-22695
#16

Stator assembly diagram

Rectifier

Part #B-22695

The manufacturer no longer makes this part, and there's no substitute part

Box Back 24989
#3

Mounting base diagram

Box back

Part #24989

The manufacturer no longer makes this part, and there's no substitute part
