Model # UFS7EVP/P4020005201 Official Amana microwave

Here are the diagrams and repair parts for Official Amana UFS7EVP-P4020005201 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

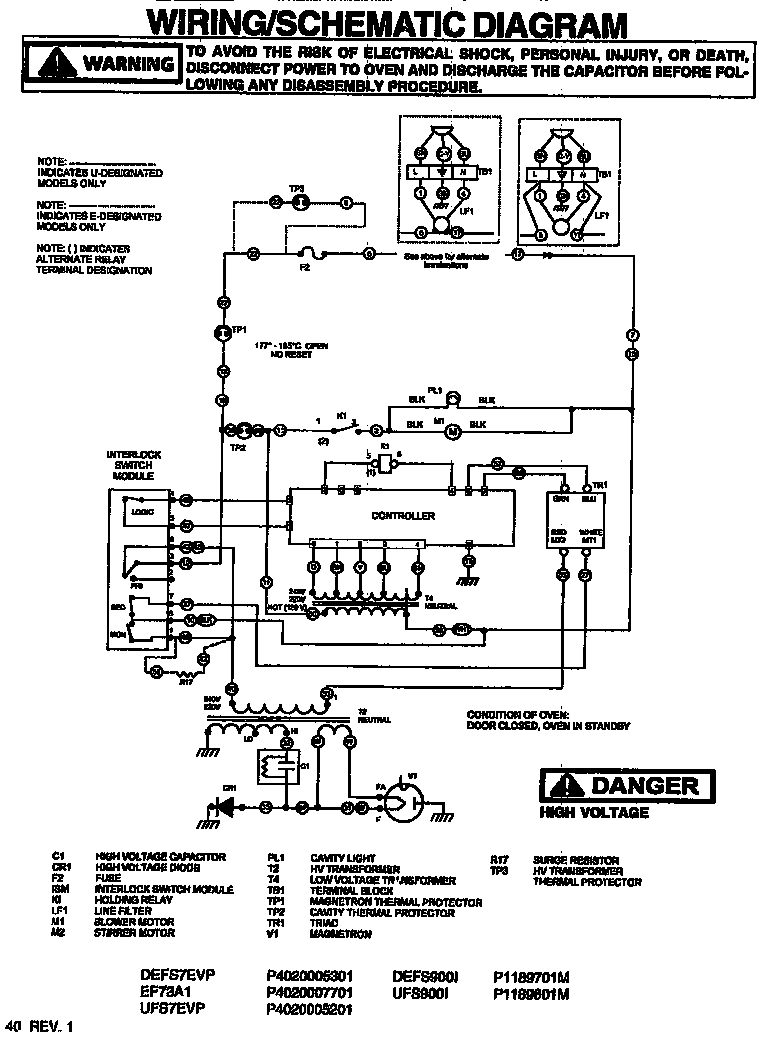

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Head Screw M0211217
Head screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Insert-handle (defs900i, Ufs900i Only) 1085809
#12

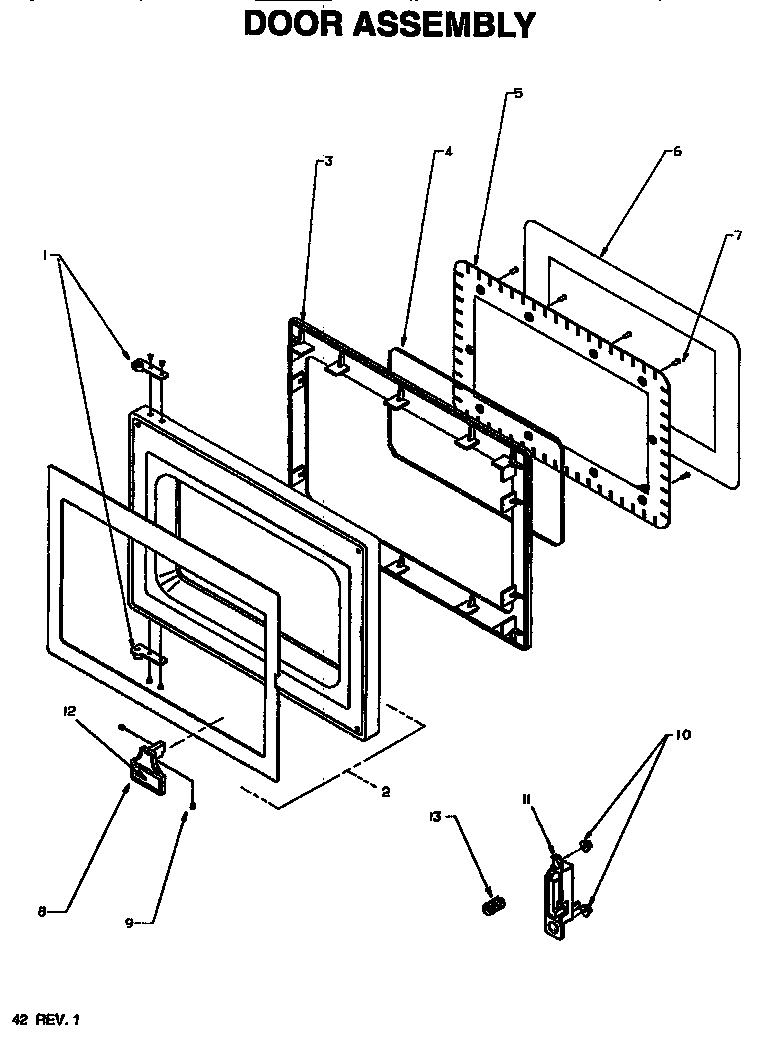

Door assembly diagram

Insert-handle (defs900i, ufs900i only)

Part #1085809

The manufacturer no longer makes this part, and there's no substitute part

#10x.250set Screw 5051032202
#9

Door assembly diagram

#10x.250set screw

Part #5051032202

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Support Bar M20D327
#7

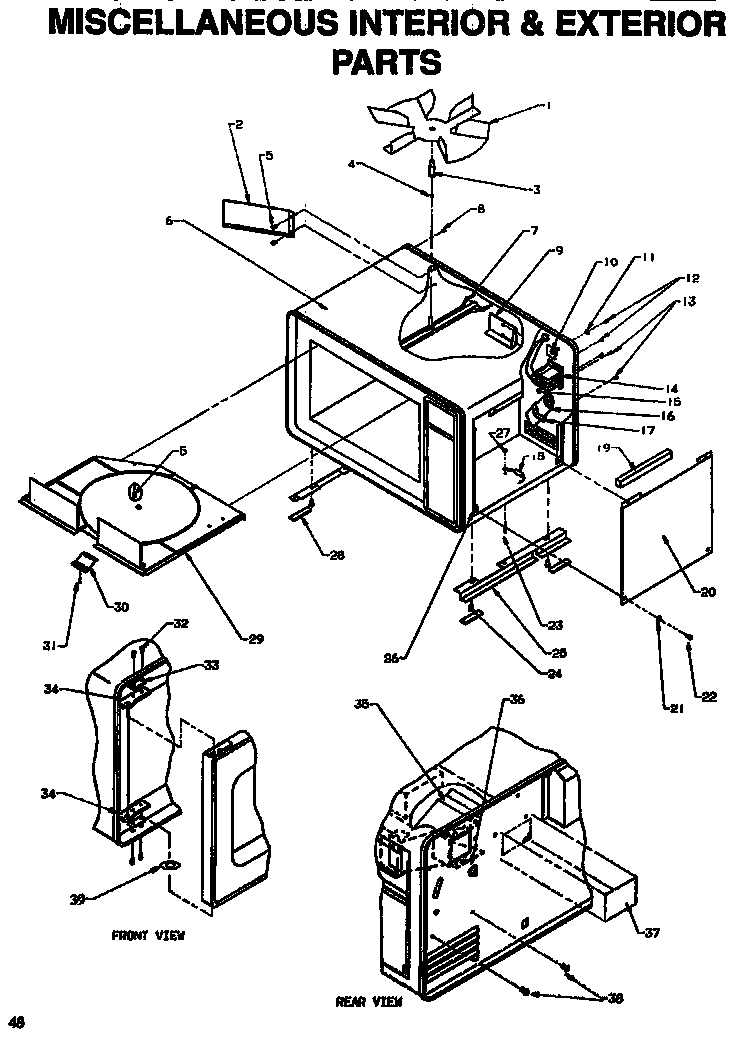

Miscelaneous interior & exterior diagram

Stirrer support bar

Part #M20D327

The manufacturer no longer makes this part, and there's no substitute part

Bracket 26046P01
#17

Miscelaneous interior & exterior diagram

Bracket

Part #26046P01

The manufacturer no longer makes this part, and there's no substitute part

Tape (2.75 In) 5079-D
#37

Miscelaneous interior & exterior diagram

Tape (2.75 in)

Part #5079-D

The manufacturer no longer makes this part, and there's no substitute part

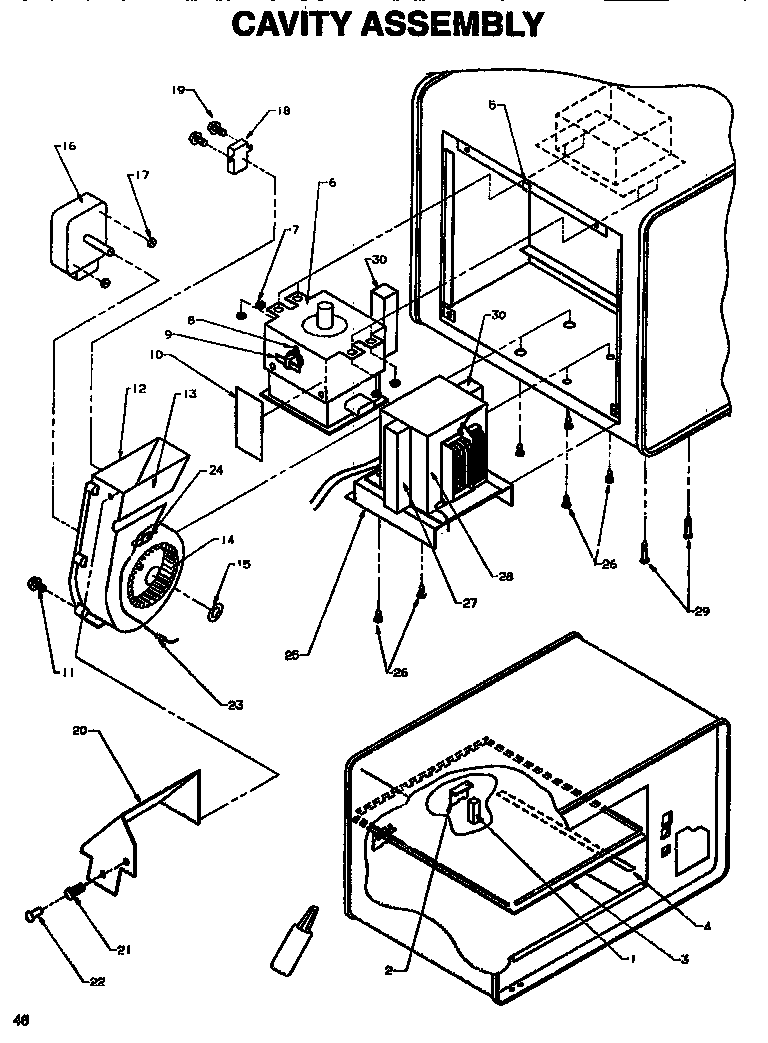

Cavity Assembly M77D131
#6

Miscelaneous interior & exterior diagram

Cavity assembly

Part #M77D131

The manufacturer no longer makes this part, and there's no substitute part

#8 Int Tooth Lock Washer 5003-K
#21

Miscelaneous interior & exterior diagram

#8 int tooth lock washer

Part #5003-K

The manufacturer no longer makes this part, and there's no substitute part

Interlock Switch Assembly 4002006801
#13

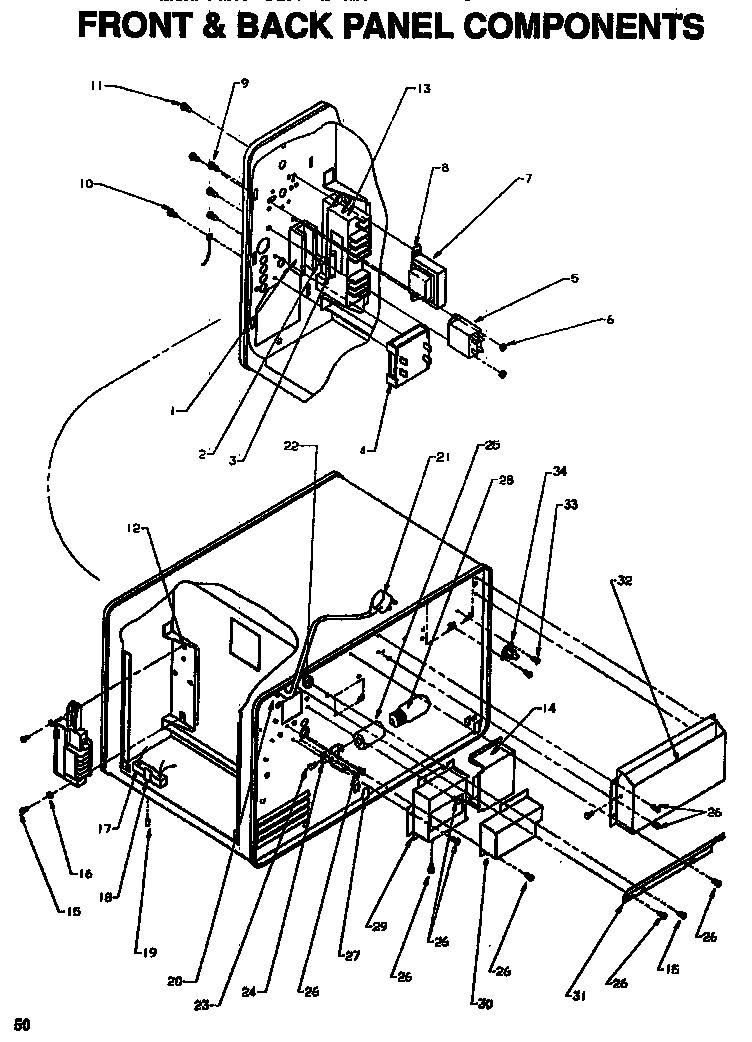

Front & back panel components diagram

Interlock switch assembly

Part #4002006801

The manufacturer no longer makes this part, and there's no substitute part

Protector-thermal 1751172501
#34

Front & back panel components diagram

Protector-thermal

Part #1751172501

The manufacturer no longer makes this part, and there's no substitute part
