Electric Water Heater

Model # 930DKRT Official Reliance water heater

Here are the diagrams and repair parts for Official Reliance 930DKRT water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Box Cover 184660-000
#20

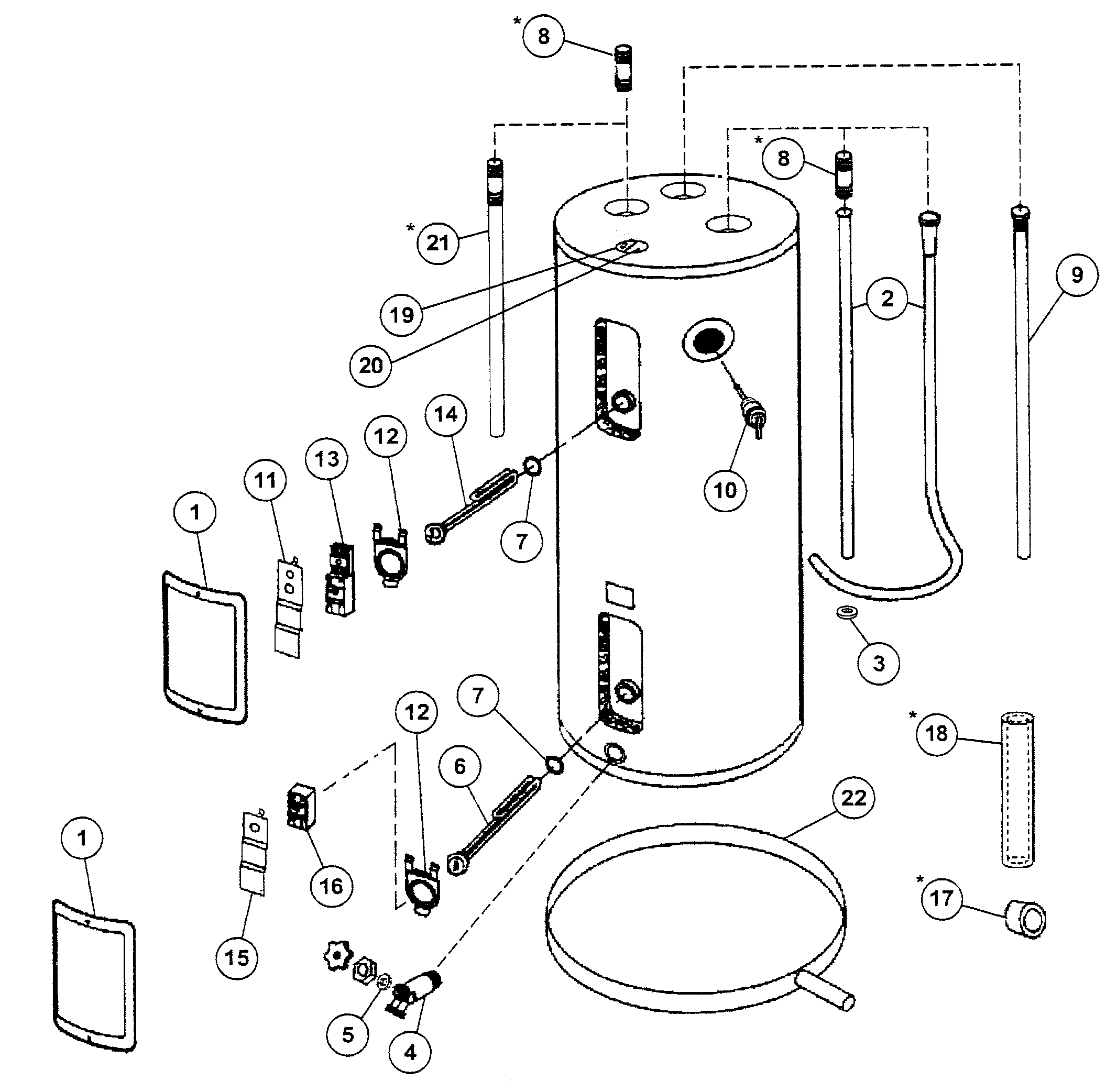

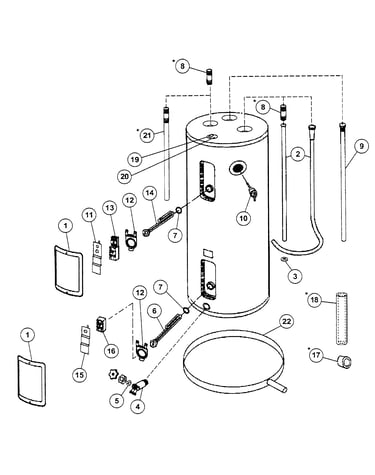

Water heater diagram

Box cover

Part #184660-000

$17.99
In Stock
Cover 184659-000
#19

Water heater diagram

Cover

Part #184659-000

$17.99
In Stock
Thermostat 183532-000
#16

Water heater diagram

Thermostat

Part #183532-000

Replaced by #9000507015

?
Manufacturer substitution
This part replaces 183532-000. Substitute parts can look different from the original.
$32.20 |
16% OFF Phone Price : $38.20
In Stock
Thermostat 183534-000
#13

Water heater diagram

Thermostat

Part #183534-000

Replaced by #9001954015

?
Manufacturer substitution
This part replaces 183534-000. Substitute parts can look different from the original.
$28.09 |
18% OFF Phone Price : $34.09
In Stock
Spacer 184011-000
#3

Water heater diagram

Spacer

Part #184011-000

The manufacturer no longer makes this part, and there's no substitute part

Anode Rod 183463-023
#9

Water heater diagram

Anode rod

Part #183463-023

The manufacturer no longer makes this part, and there's no substitute part

Cover Terminal 183529-000
#15

Water heater diagram

Cover terminal

Part #183529-000

The manufacturer no longer makes this part, and there's no substitute part

Drain Pan 9002845
#22C

Water heater diagram

Drain pan

Part #9002845

The manufacturer no longer makes this part, and there's no substitute part

Cover W/h.limit 183530-000
#11

Water heater diagram

Cover w/h.limit

Part #183530-000

The manufacturer no longer makes this part, and there's no substitute part

Drain Pan 9002843
#22A

Water heater diagram

Drain pan

Part #9002843

The manufacturer no longer makes this part, and there's no substitute part
