Whirlpool
Room Air Conditioner

Model # ACM072XH0 Official Whirlpool room air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACM072XH0 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Cement 279368
#10

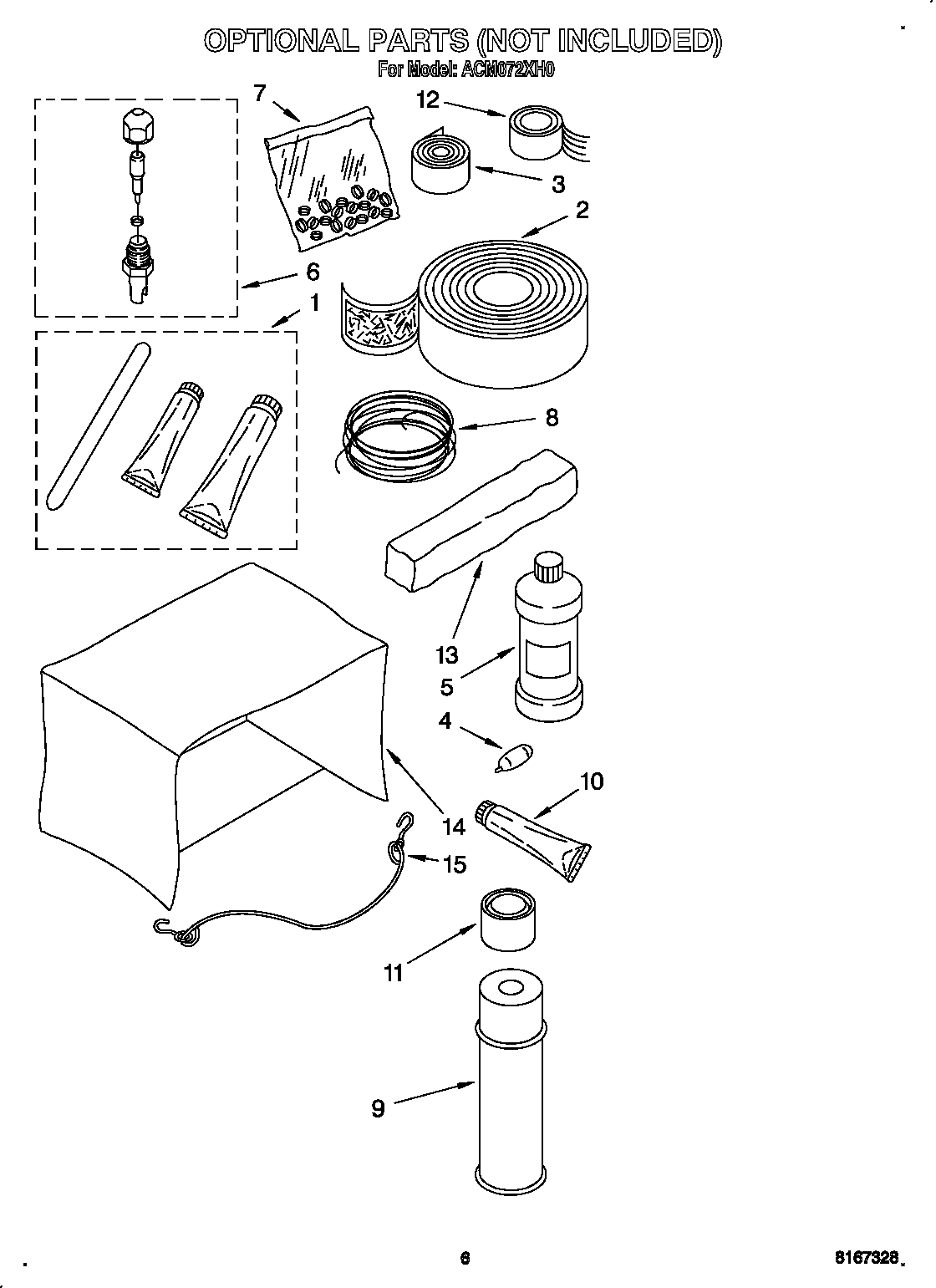

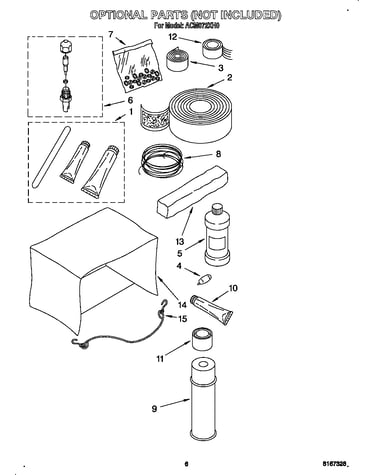

Optional parts diagram

Cement

Part #279368

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Valve 876764
#6A

Optional parts diagram

Valve

Part #876764

Replaced by #876764

?
Manufacturer substitution
This part replaces 876764. Substitute parts can look different from the original.
BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Valve Kit 978025
#6B

Optional parts diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Screw, 8 X 1 488480
Screw, 8 x 1

Part #488480

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Sealer 212643
#12

Optional parts diagram

Sealer

Part #212643

Replaced by #212643

?
Manufacturer substitution
This part replaces 212643. Substitute parts can look different from the original.
This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock

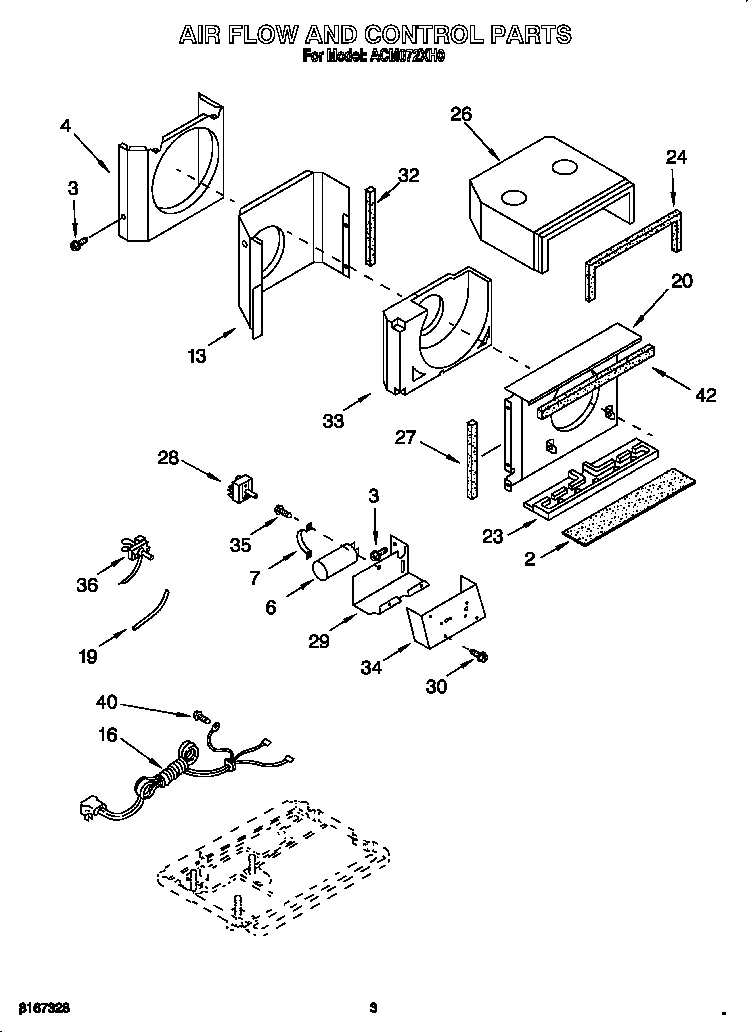

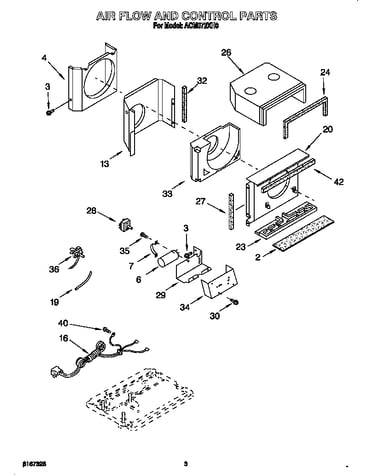

Seal Strip 1158850
#32

Airflow and control diagram

Seal strip

Part #1158850

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 1158850. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Ge Room Air Conditioner Outdoor Cover 484184
#14D

Optional parts diagram

Ge room air conditioner outdoor cover

Part #484184

$54.49 |
10% OFF Phone Price : $60.49
In Stock
Valve Kit 978030
#6G

Optional parts diagram

Valve kit

Part #978030

Replaced by #978030

?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
$40.49 |
13% OFF Phone Price : $46.49
In Stock

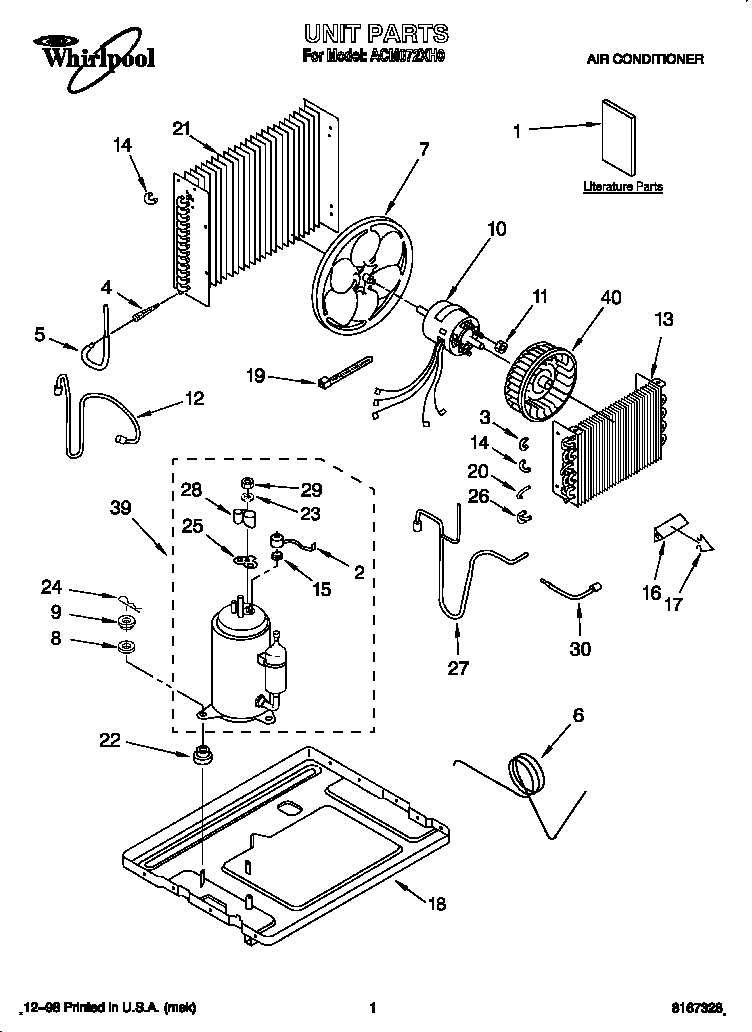

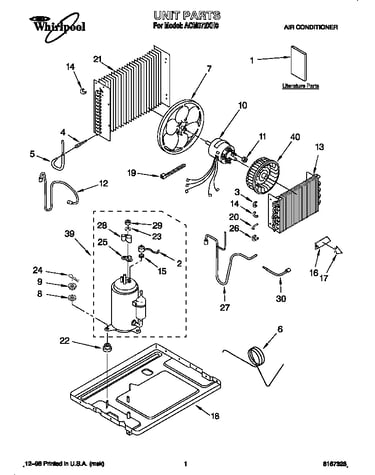

Grommet 950212
#22

Unit diagram

Grommet

Part #950212

Replaced by #WP1188564

?
Manufacturer substitution
This part replaces 950212. Substitute parts can look different from the original.
$25.83
In Stock

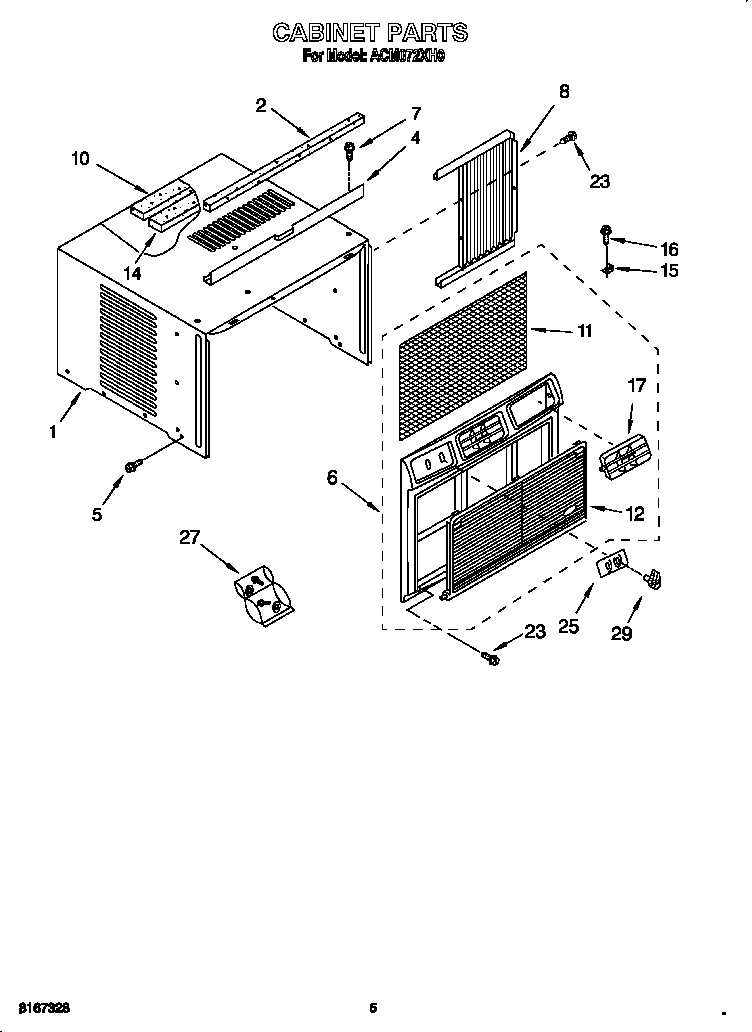

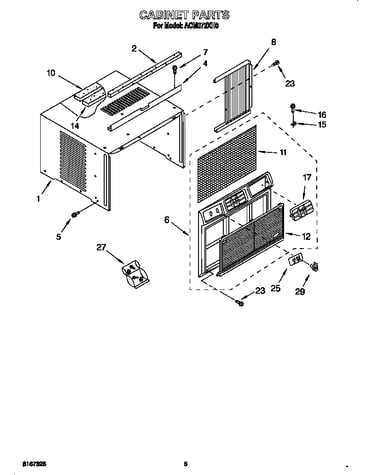

Cover 484067
#14B

Optional parts diagram

Cover

Part #484067

The manufacturer no longer makes this part, and there's no substitute part
