DeLonghi
Room Air Conditioner

Model # PAC02 Official DeLonghi air conditioner

Here are the diagrams and repair parts for Official DeLonghi PAC02 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

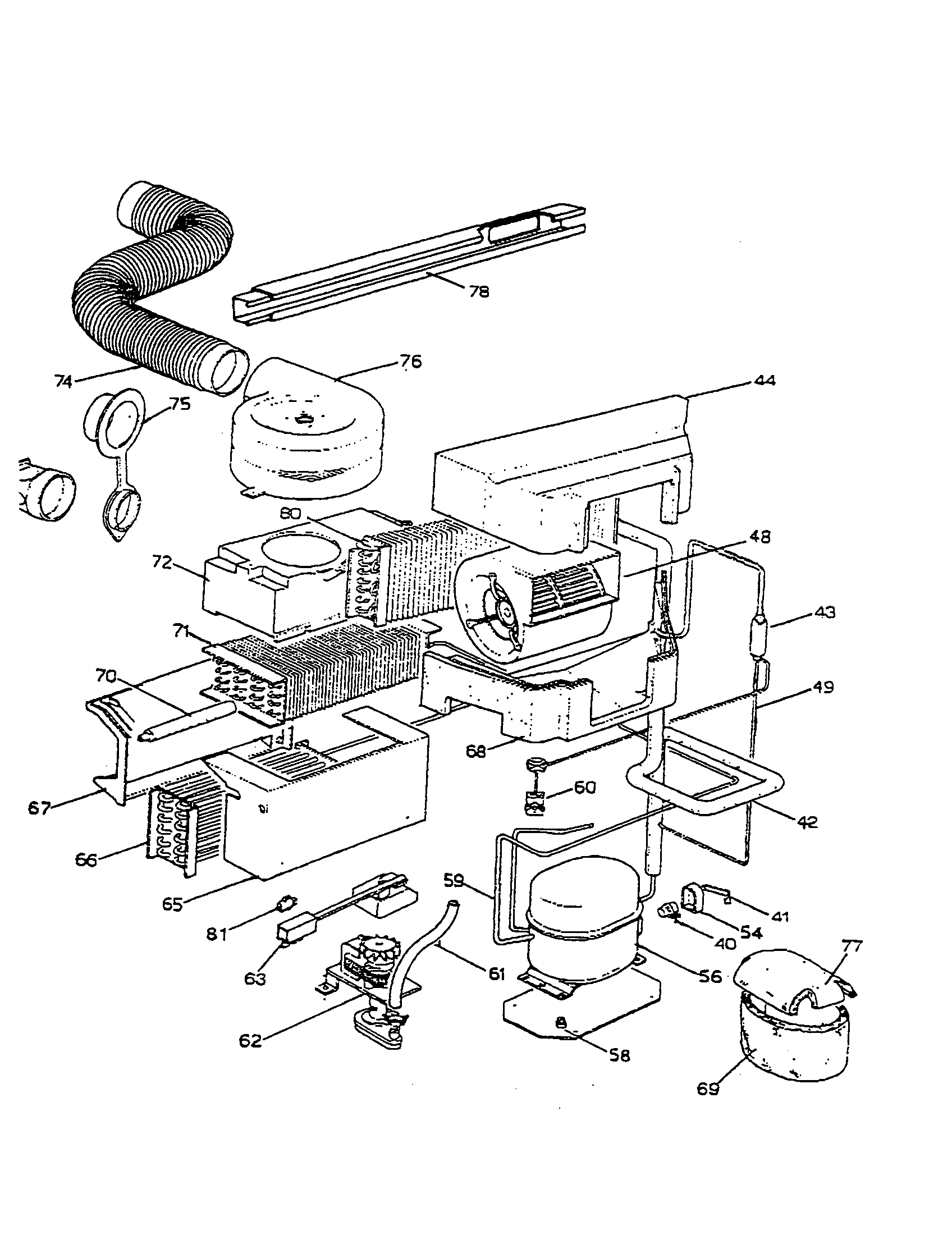

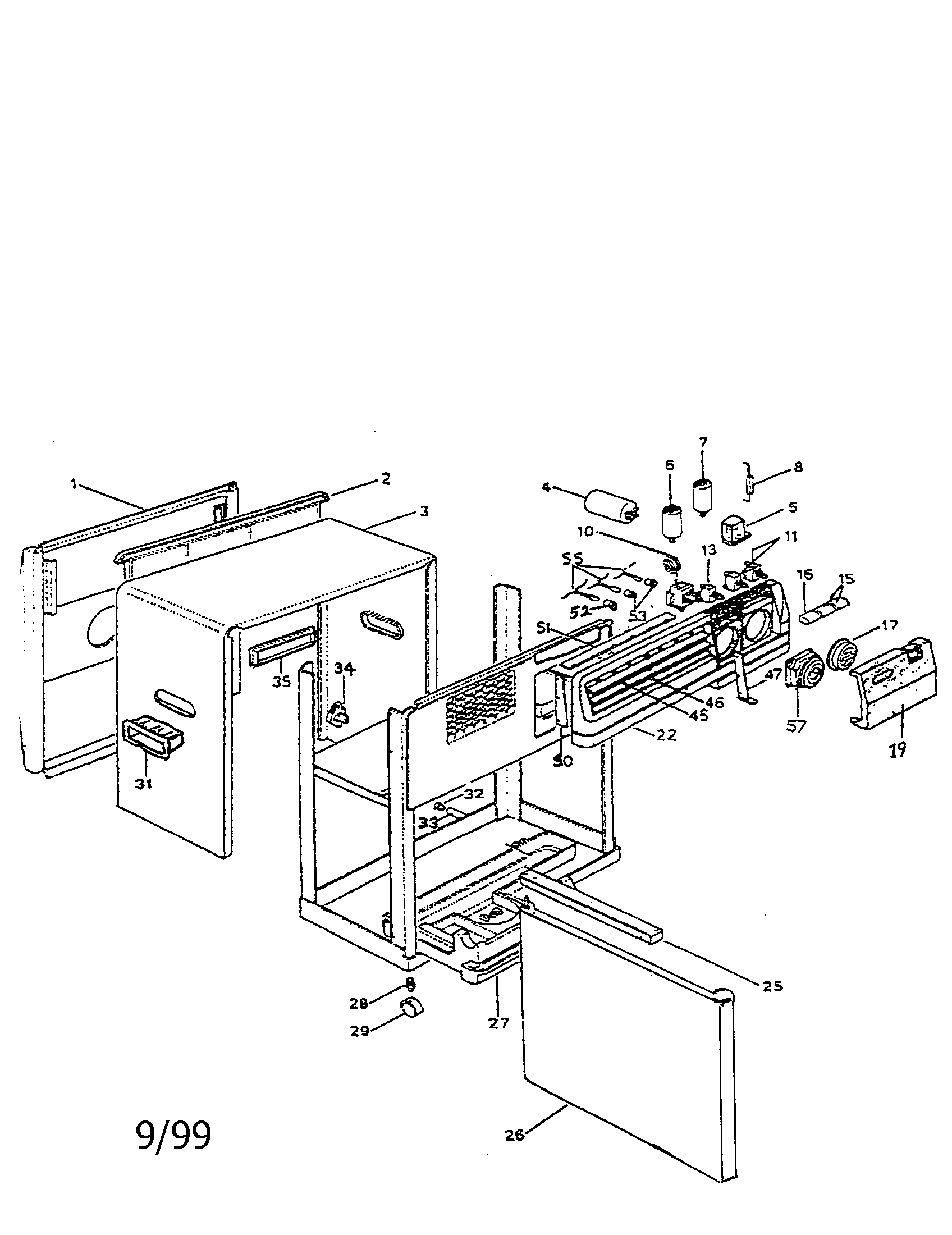

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Delonghi Switch 511409

#11

All parts diagram

Delonghi switch

Part #511409

The manufacturer no longer makes this part, and there's no substitute part

Delonghi Switch 512049

#13

All parts diagram

Delonghi switch

Part #512049

The manufacturer no longer makes this part, and there's no substitute part

Relay 511484

#5

All parts diagram

Relay

Part #511484

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 511492

#7

All parts diagram

Capacitor

Part #511492

The manufacturer no longer makes this part, and there's no substitute part

Cover 533393

#65

All parts diagram

Cover

Part #533393

The manufacturer no longer makes this part, and there's no substitute part

Insulator 535272

#69

All parts diagram

Insulator

Part #535272

The manufacturer no longer makes this part, and there's no substitute part

Castor 551713

#29

All parts diagram

Castor

Part #551713

The manufacturer no longer makes this part, and there's no substitute part

Water Hose 534917

#61

All parts diagram

Water hose

Part #534917

The manufacturer no longer makes this part, and there's no substitute part

Float 734008

#63

All parts diagram

Float

Part #734008

The manufacturer no longer makes this part, and there's no substitute part

Delonghi Knob 592887

#17

All parts diagram

Delonghi knob

Part #592887

The manufacturer no longer makes this part, and there's no substitute part
