Model # WEBE09392 Official Weider pro 256 weight system

Here are the diagrams and repair parts for Official Weider WEBE09392 pro 256 weight system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

Toyostove Elliptical Nut 148710
#33

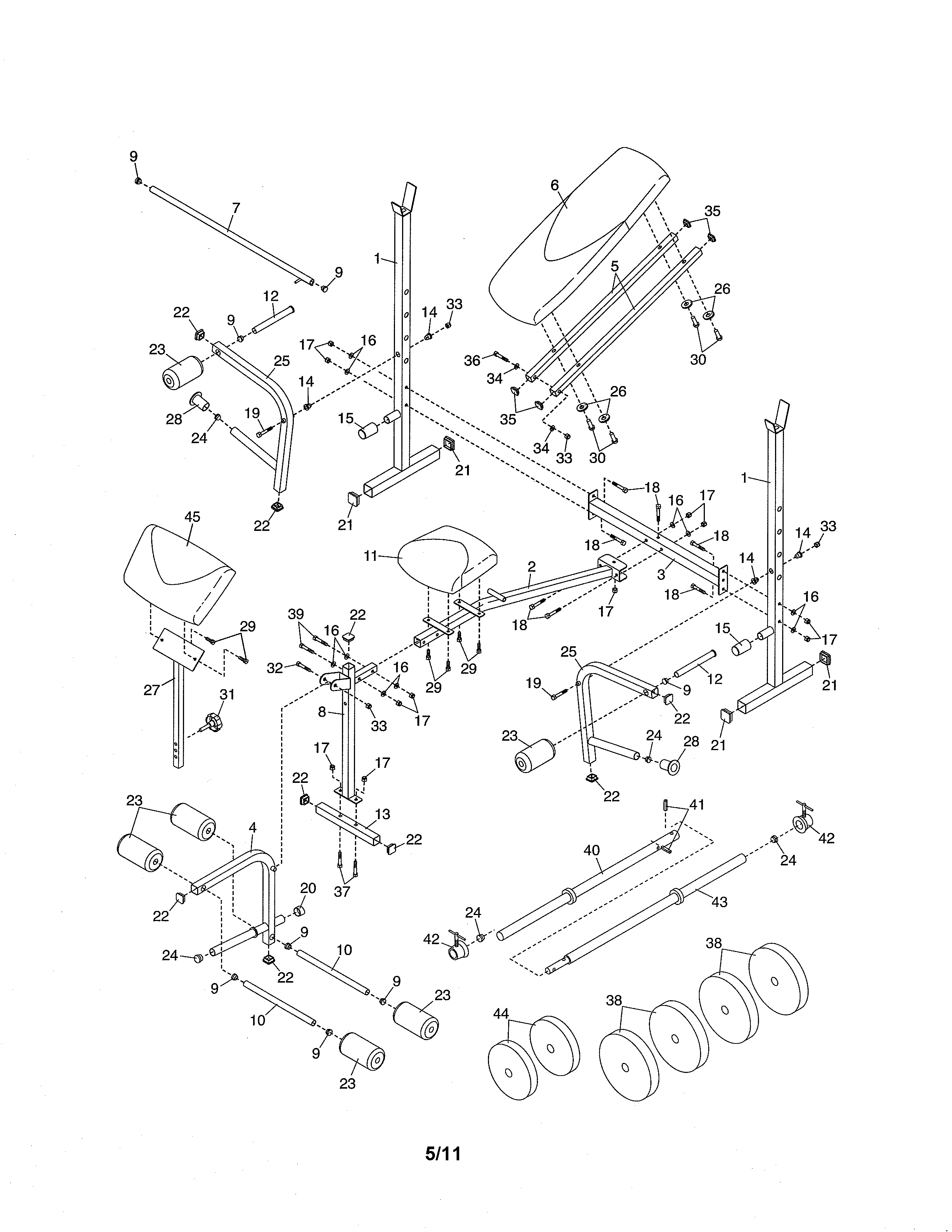

Weight bench diagram

Toyostove elliptical nut

Part #148710

This item is not returnable
In Stock
Internal Round End Cap, 1-in 120733
#24

Weight bench diagram

Internal round end cap, 1-in

Part #120733

This item is not returnable
In Stock
Reebok Internal Round End Cap, 3/4-in 115366
#9

Weight bench diagram

Reebok internal round end cap, 3/4-in

Part #115366

This item is not returnable
In Stock
Exercise Equipment Flat Washer 014073
#16

Weight bench diagram

Exercise equipment flat washer

Part #014073

This item is not returnable
In Stock
Image Screw 181862
#19

Weight bench diagram

Image screw

Part #181862

This item is not returnable
In Stock
Weight 139993
#38

Weight bench diagram

Weight

Part #139993

In Stock
Long Pad Tube 263195
#10

Weight bench diagram

Long pad tube

Part #263195

In Stock
Foam Pad 263064
#23

Weight bench diagram

Foam pad

Part #263064

In Stock
Pad,cstm,8.2 302857
#6

Weight bench diagram

Pad,cstm,8.2

Part #302857

In Stock
Seat M Frame 327294
#2

Weight bench diagram

Seat m frame

Part #327294

In Stock
