Model # F8MTL0701412A1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP F8MTL0701412A1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Furnace Burner Igniter 1176919
#12

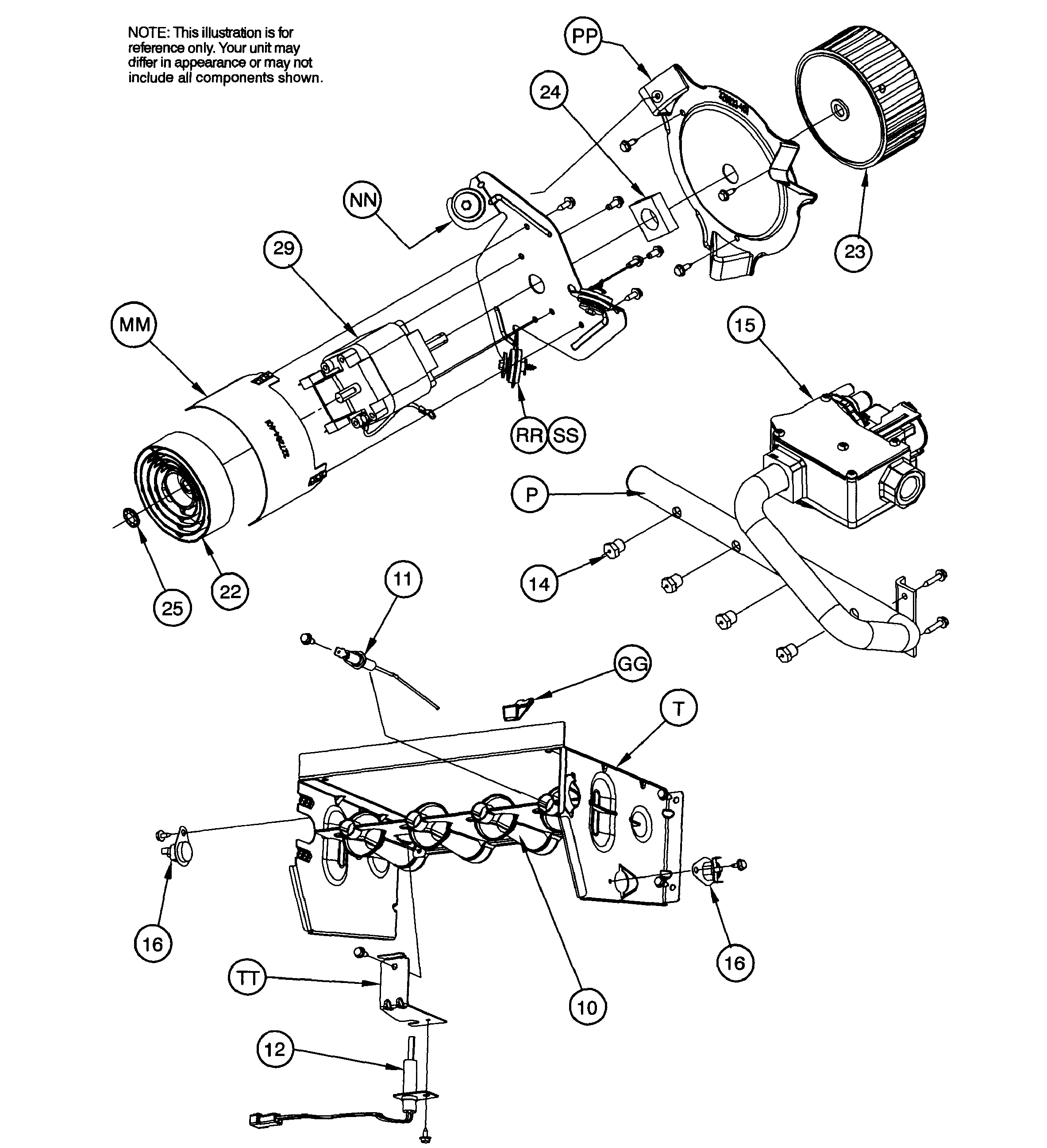

Furnace 2 diagram

Furnace burner igniter

Part #1176919

$62.36
In Stock
Furnace Gas Valve 1183456
#15

Furnace 2 diagram

Furnace gas valve

Part #1183456

The manufacturer no longer makes this part, and there's no substitute part

Transformer 1177217
#7

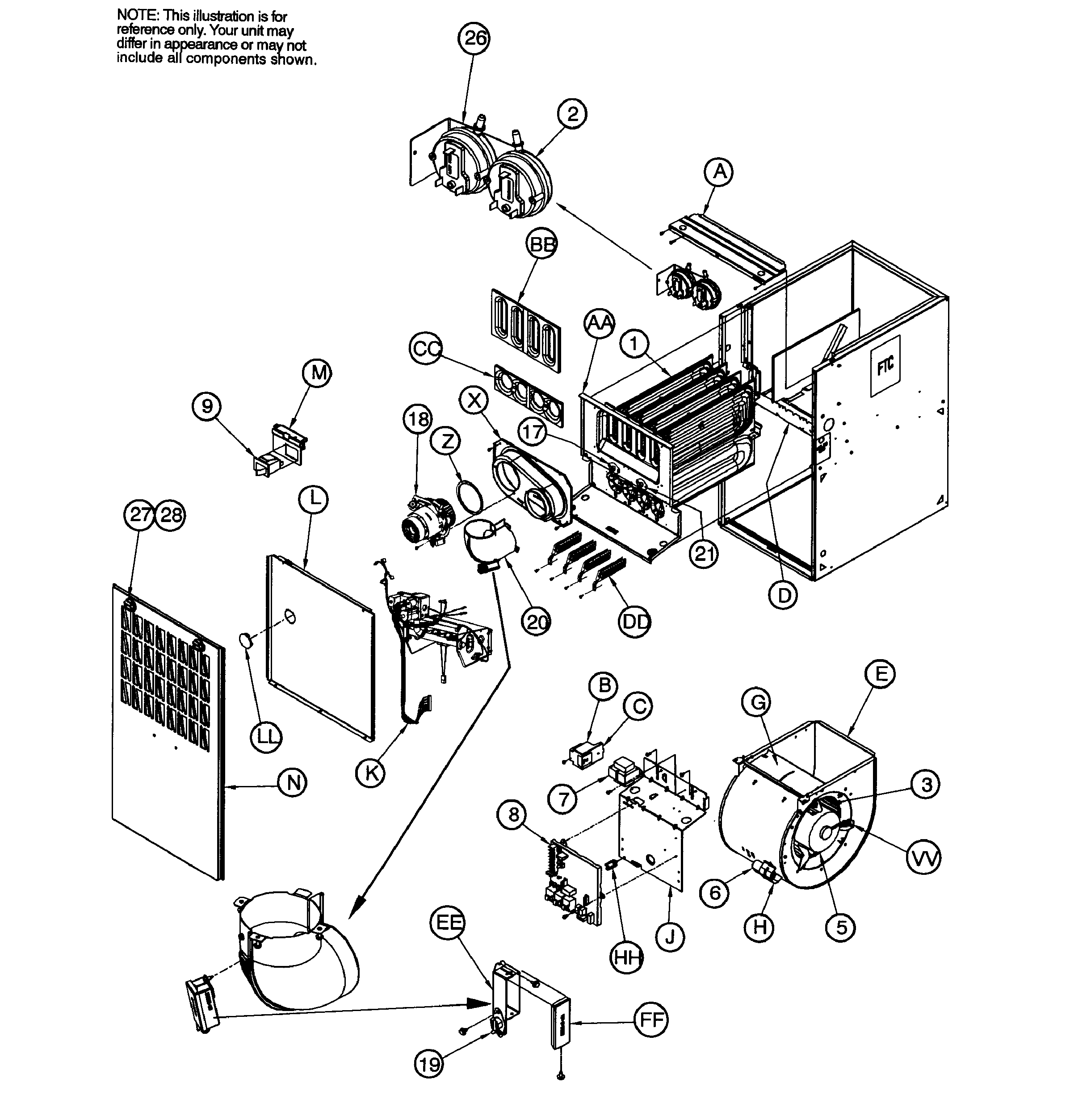

Furnace 1 diagram

Transformer

Part #1177217

The manufacturer no longer makes this part, and there's no substitute part

Top Plate 1183414
#A

Furnace 1 diagram

Top plate

Part #1183414

$79.78
In Stock
Kit Gasket 1183413
#NI

Furnace 1 diagram

Kit gasket

Part #1183413

$36.76
In Stock
Gasket Inl 1176893
#CC

Furnace 1 diagram

Gasket inl

Part #1176893

$51.44
In Stock
Shaft Seal 1183443
#24

Furnace 2 diagram

Shaft seal

Part #1183443

$11.09
In Stock
Clip,harne 1176946
#HH

Furnace 1 diagram

Clip,harne

Part #1176946

This item is not returnable
$2.16
In Stock
Kit Hi Alt 1183387
#NI

Furnace 1 diagram

Kit hi alt

Part #1183387

$68.93
In Stock
Clip 1177196
#25

Furnace 2 diagram

Clip

Part #1177196

This item is not returnable
$2.16
In Stock
