Model # N2H318AKA100 Official ICP split-system air conditioner

Here are the diagrams and repair parts for Official ICP N2H318AKA100 split-system air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 40 parts |

Condensing Unit Defrost Control Board 1173636

#26

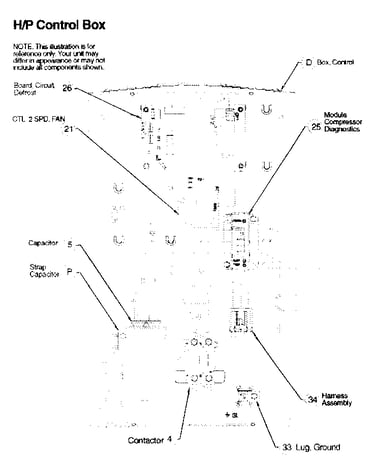

Control box diagram

Condensing unit defrost control board

Part #1173636

$174.11 |

6% OFF Phone Price : $186.11

In Stock

Qty

#15

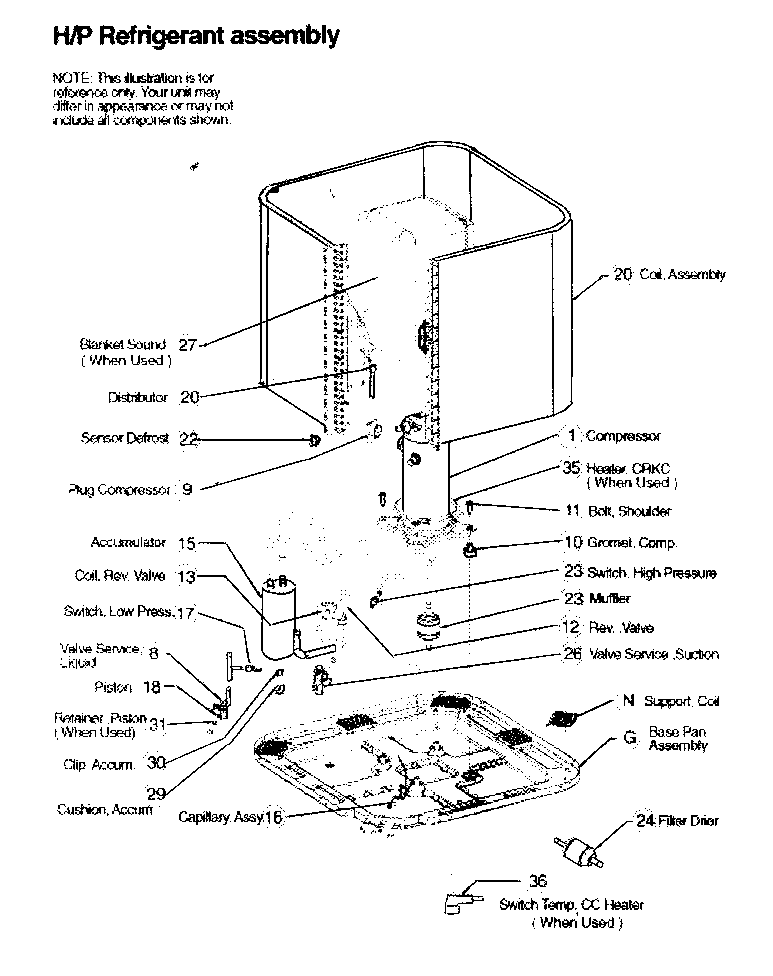

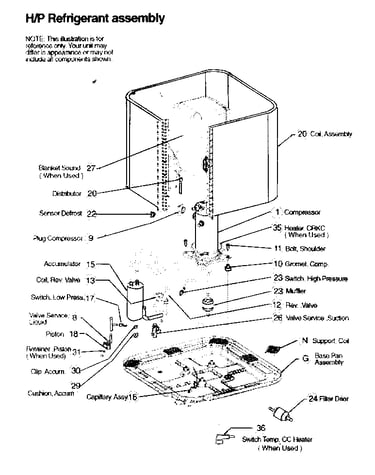

Refrigerant assy diagram

Accumulatr

Part #1173718

$157.64

In Stock

Qty

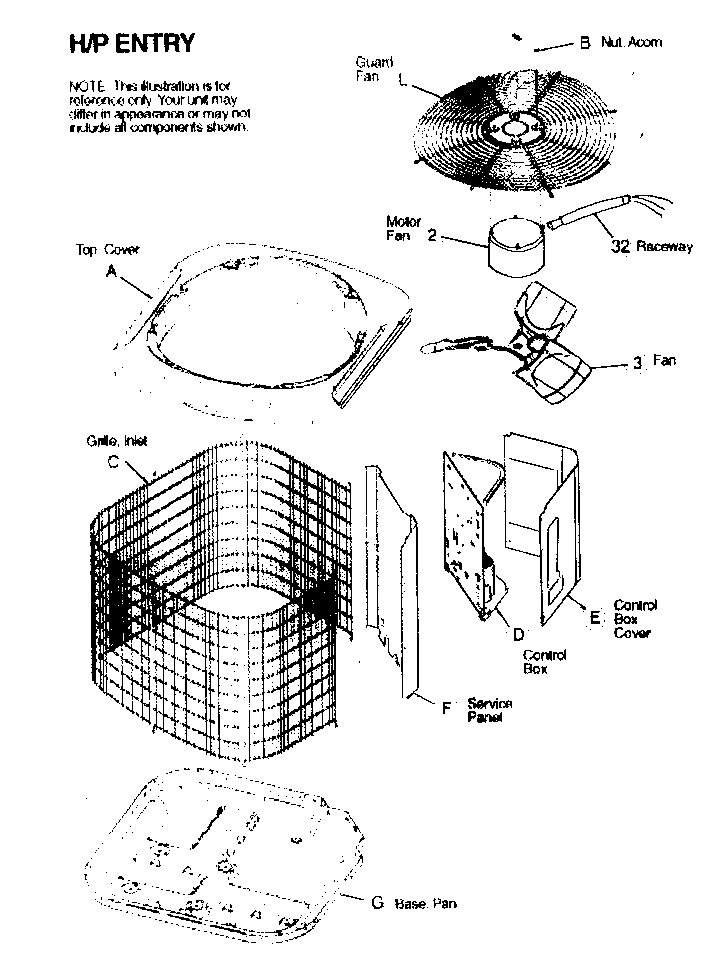

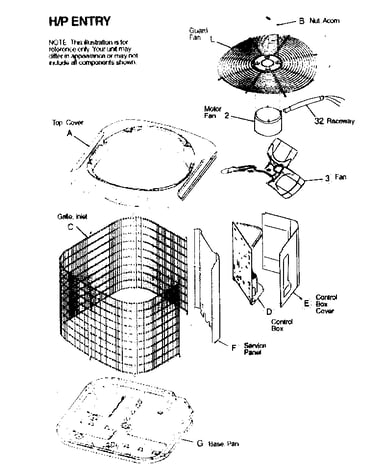

Cabinet parts diagram

Central air conditioner condenser fan motor

Part #1173716

$316.36 |

$12.00 OFF Phone Price : $328.36

In Stock

Qty

#30

Refrigerant assy diagram

Clip

Part #1173640

This item is not returnable

$2.16

In Stock

Qty

#33

Control box diagram

Lug ground

Part #1172300

This item is not returnable

$6.54

In Stock

Qty

#24

Refrigerant assy diagram

Drier bifl

Part #1173639

$79.71

In Stock

Qty

Cabinet parts diagram

Fan

Part #1173721

$298.93

In Stock

Qty

#18

Refrigerant assy diagram

Piston

Part #1173990

$12.00

In Stock

Qty

Central Air Conditioner Heat Pump Defrost Control 1173637

#22

Refrigerant assy diagram

Central air conditioner heat pump defrost control

Part #1173637

$34.73

In Stock

Qty

Refrigerant assy diagram

Condenser coil

Part #1173648

$2286.35

In Stock
