Model # 42HDT20M Official Hitachi plasma television

Here are the diagrams and repair parts for Official Hitachi 42HDT20M plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Pcb Assembly FPF17R-XSS5010
#(NI)

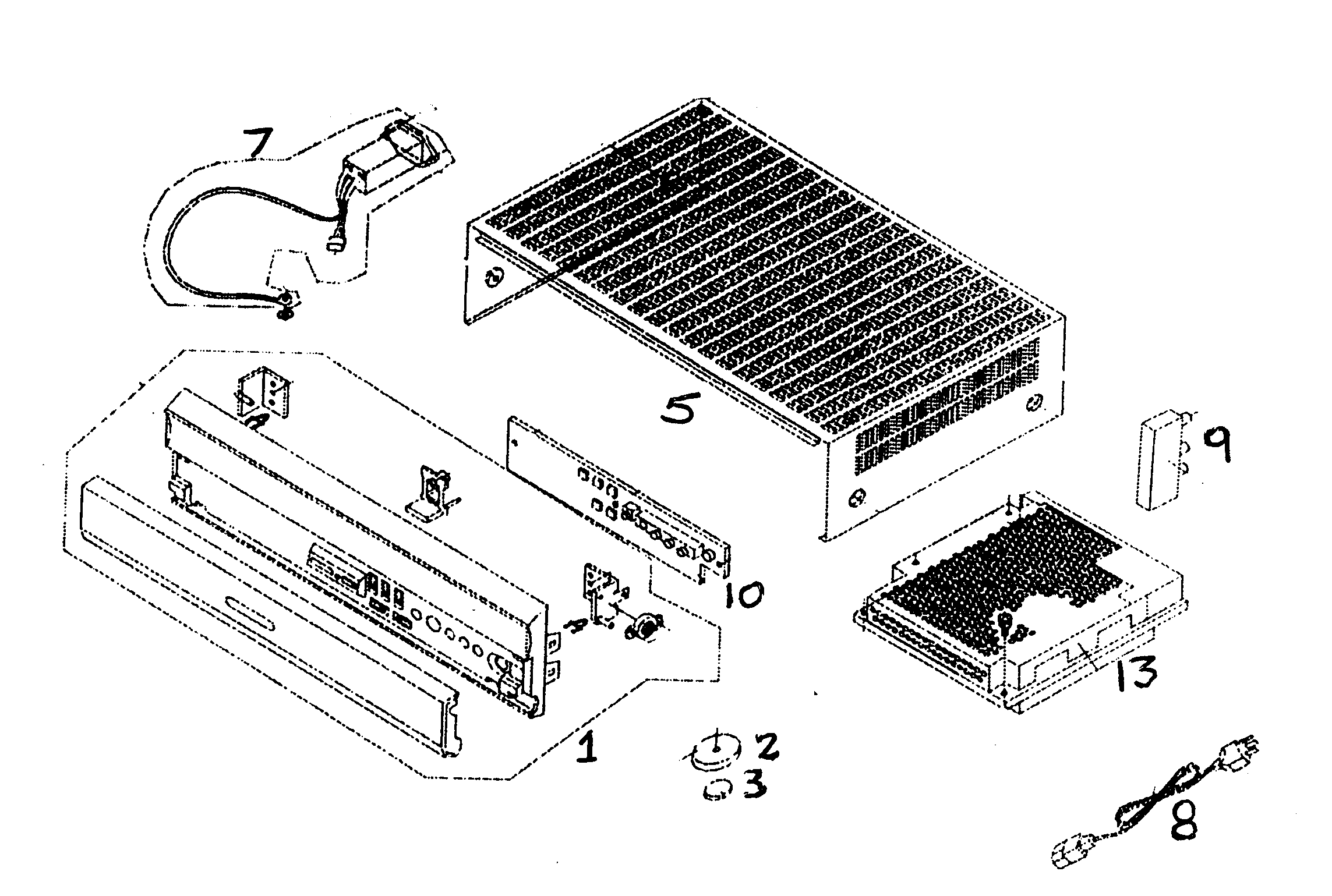

Control center,avc20 diagram

Pcb assembly

Part #FPF17R-XSS5010

The manufacturer no longer makes this part, and there's no substitute part

Power Button PH31141
#12

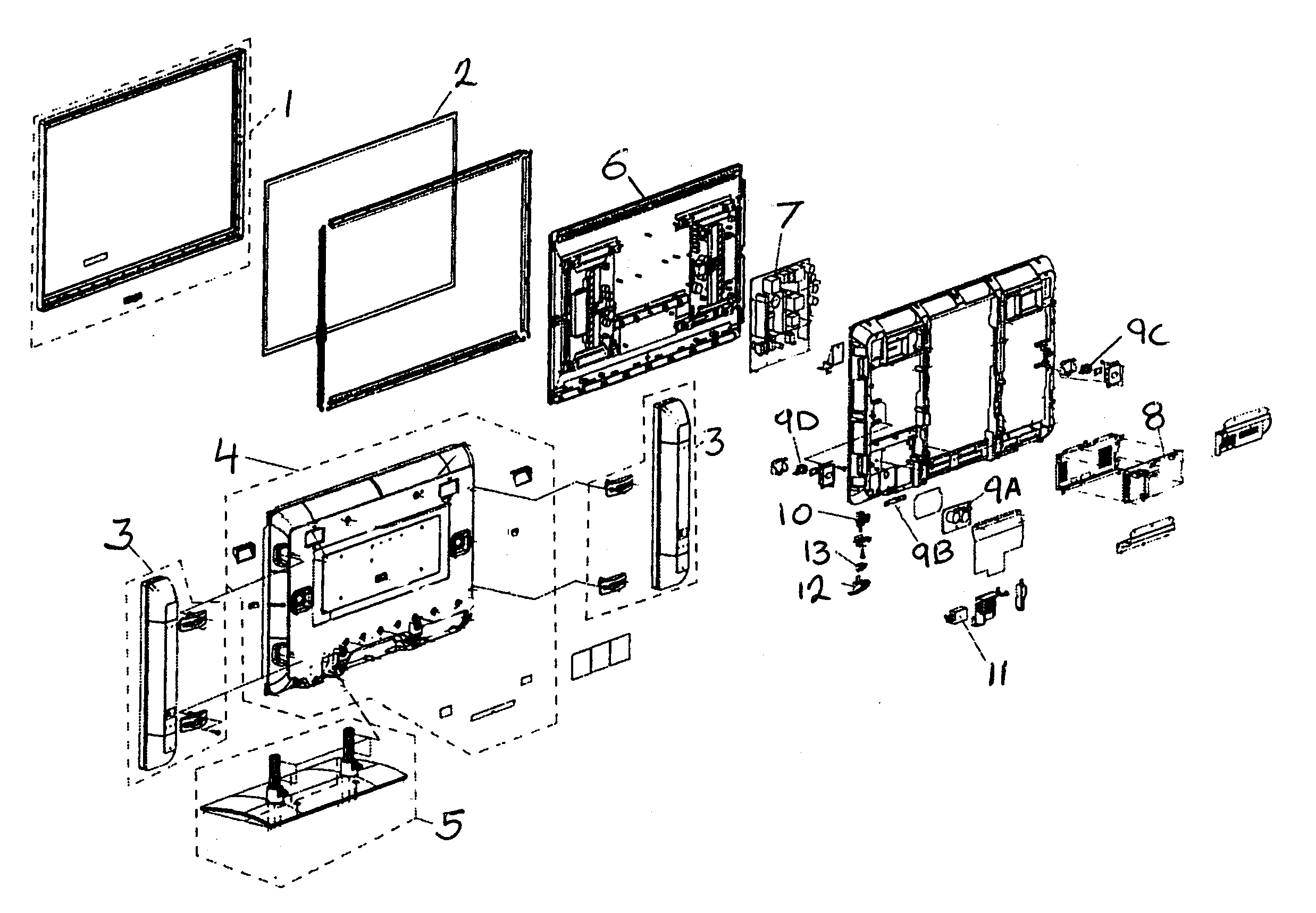

Cabinet parts,42hdt20m diagram

Power button

Part #PH31141

The manufacturer no longer makes this part, and there's no substitute part

Led Pcb JT23006
#9A

Cabinet parts,42hdt20m diagram

Led pcb

Part #JT23006

The manufacturer no longer makes this part, and there's no substitute part

Bezel Assembly QD21568
#1

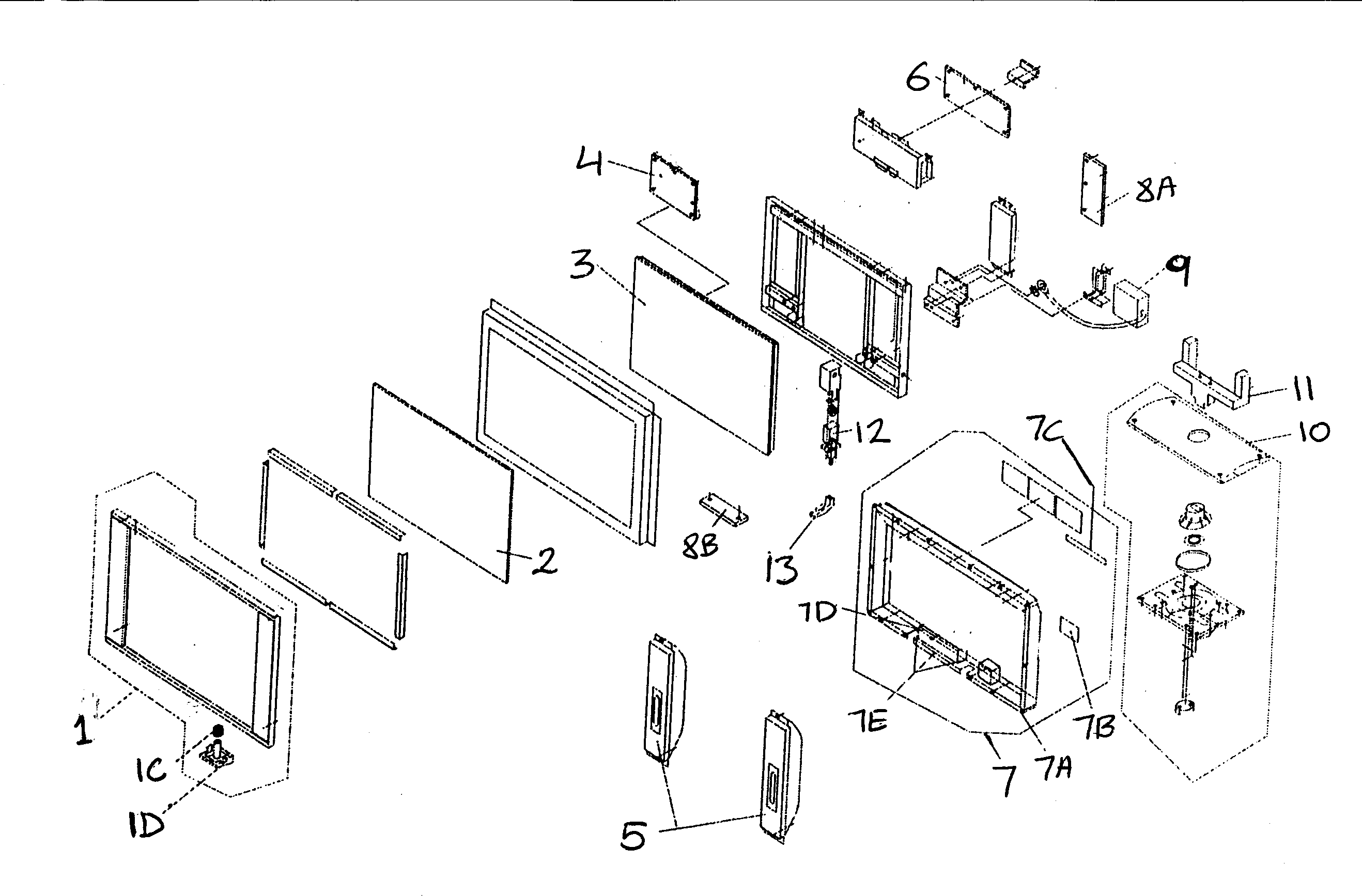

Cabinet parts,32hdt20m diagram

Bezel assembly

Part #QD21568

The manufacturer no longer makes this part, and there's no substitute part

Cover QA02603
#4

Cabinet parts,42hdt20m diagram

Cover

Part #QA02603

The manufacturer no longer makes this part, and there's no substitute part

Power Button PC04961
#1D

Cabinet parts,32hdt20m diagram

Power button

Part #PC04961

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker GM01095
#3

Cabinet parts,42hdt20m diagram

Television speaker

Part #GM01095

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker GM01061
#5

Cabinet parts,32hdt20m diagram

Television speaker

Part #GM01061

The manufacturer no longer makes this part, and there's no substitute part

Panel PH09468
#1

Control center,avc20 diagram

Panel

Part #PH09468

The manufacturer no longer makes this part, and there's no substitute part

Line Filter BZ02571
#NI

Control center,avc20 diagram

Line filter

Part #BZ02571

The manufacturer no longer makes this part, and there's no substitute part
