Model # ACE184XT0 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACE184XT0 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

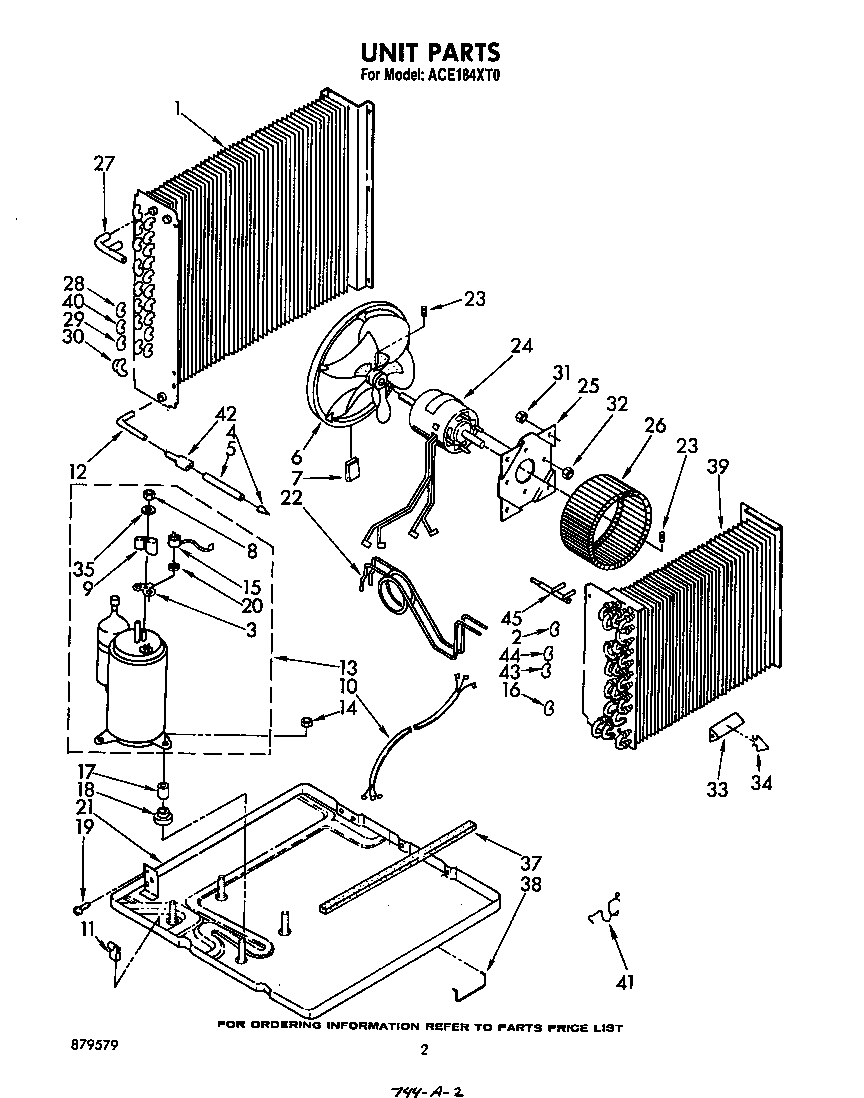

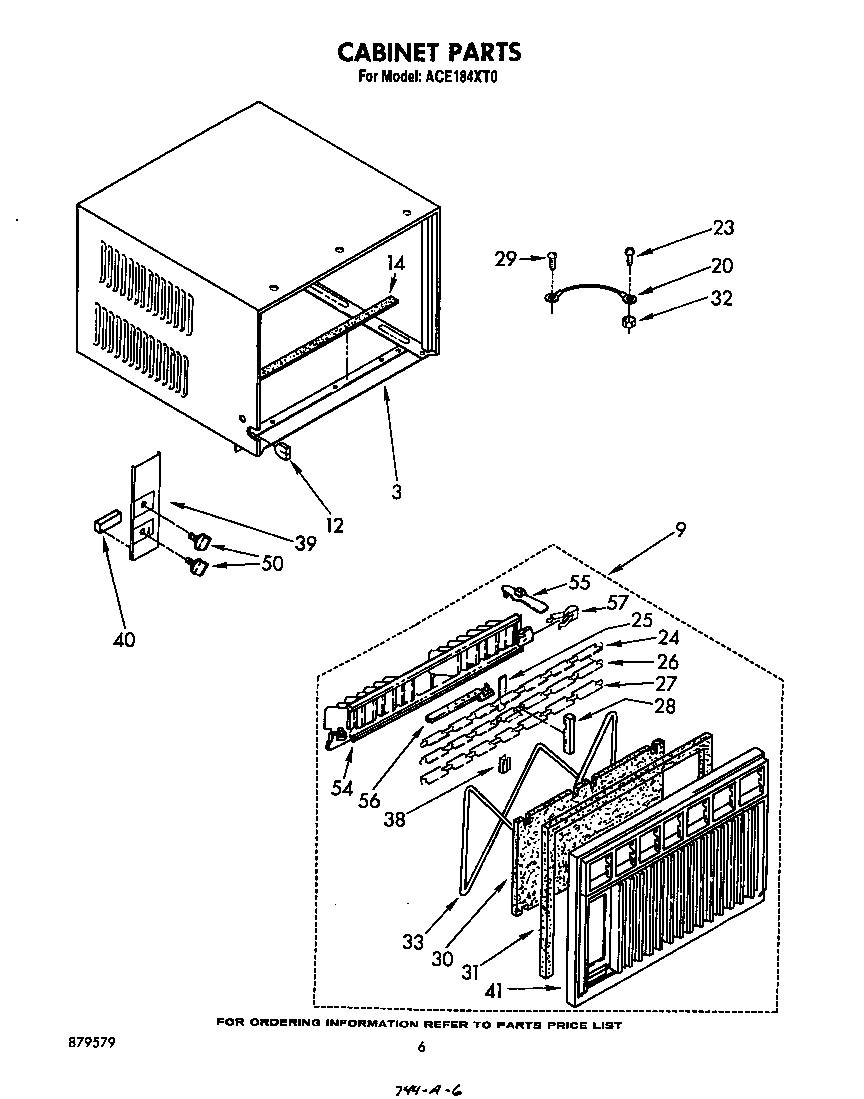

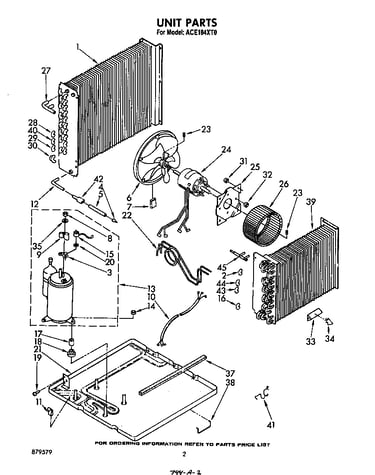

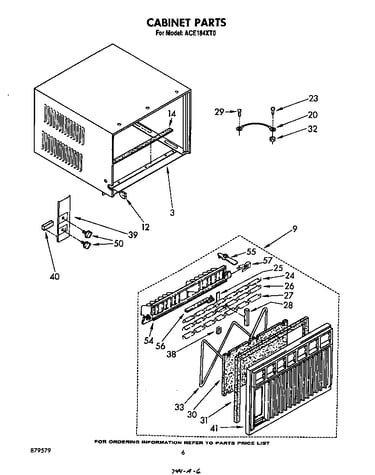

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |
Capacitor 999786
#6

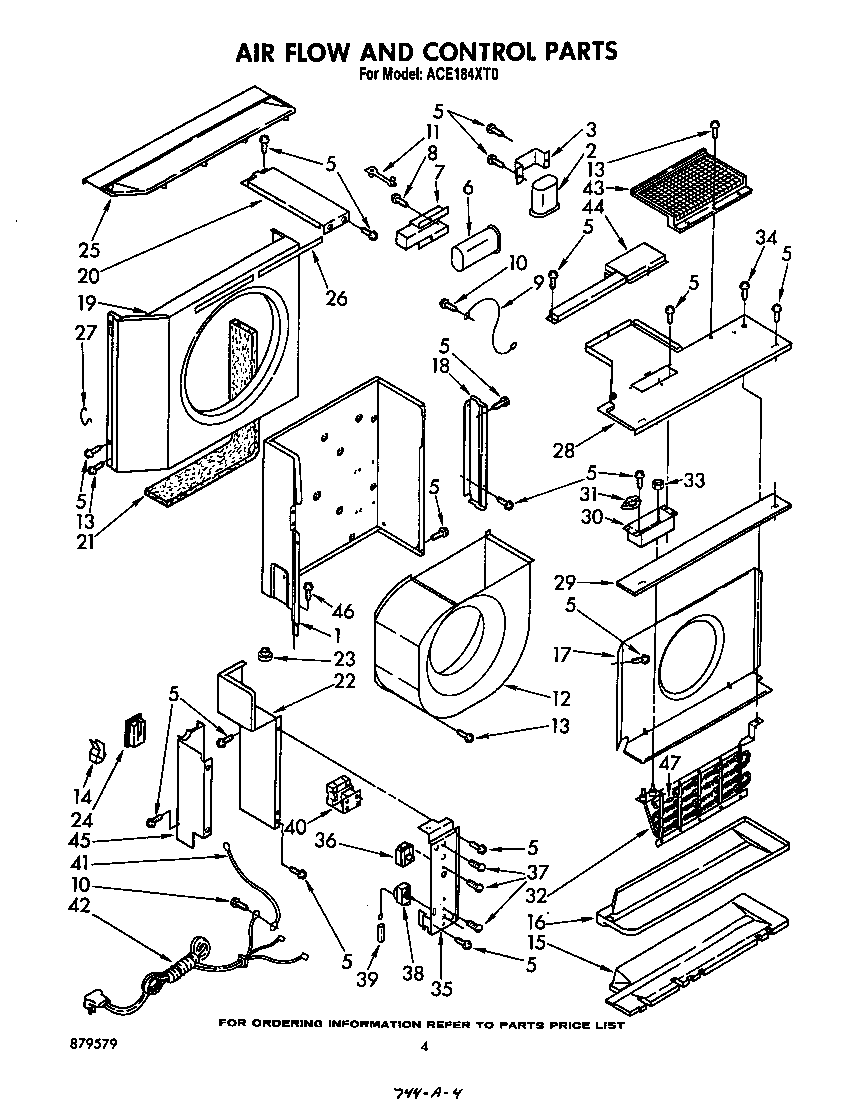

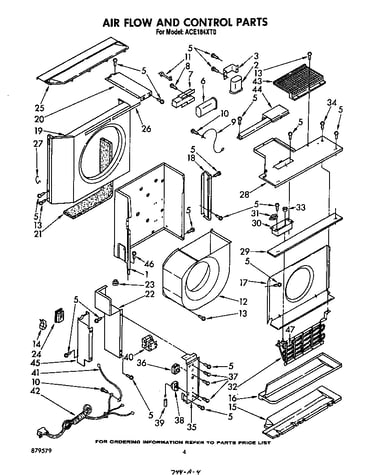

Airflow and control diagram

Capacitor

Part #999786

Replaced by #PAKTRCF5

?
Manufacturer substitution
This part replaces 999786. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.44 |
23% OFF Phone Price : $4.44
In Stock
Cement 279368
#10

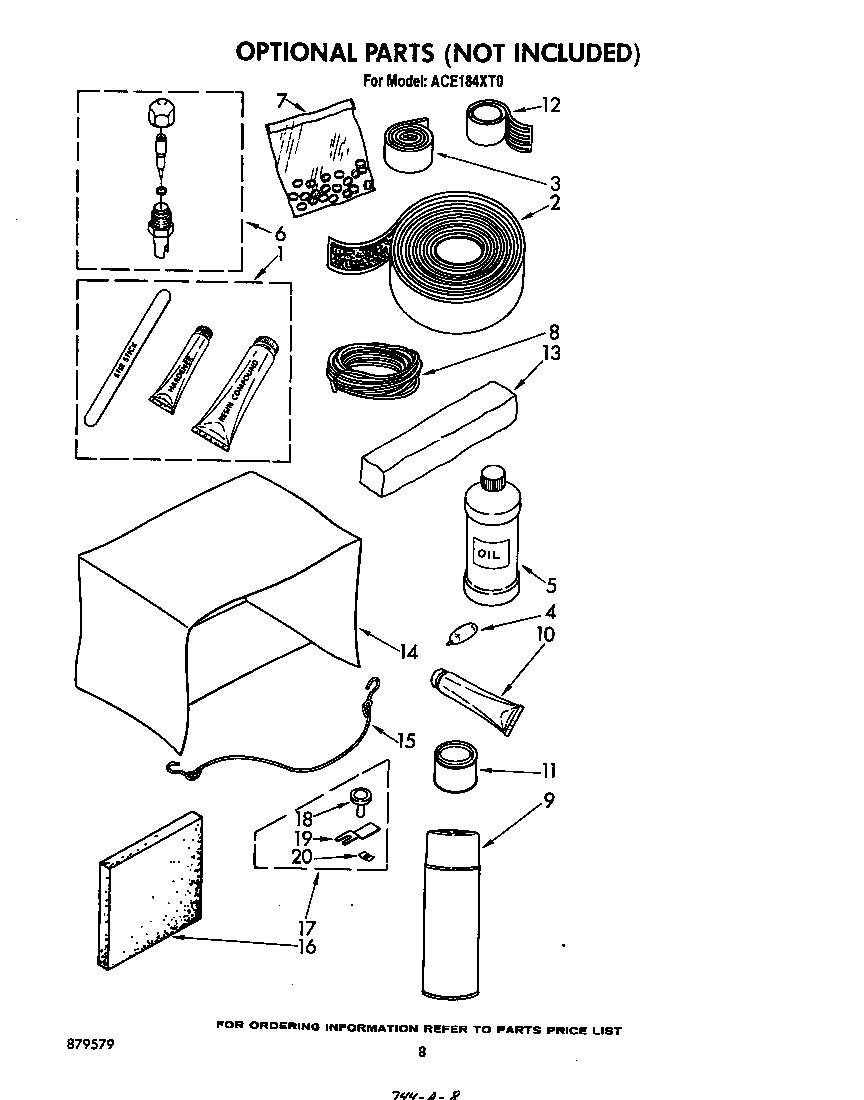

Lit/optional diagram

Cement

Part #279368

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Valve Kit 978025
#6B

Lit/optional diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Valve Kit 978026
#6C

Lit/optional diagram

Valve kit

Part #978026

Replaced by #978026

?
Manufacturer substitution
This part replaces 978026. Substitute parts can look different from the original.
$34.19 |
15% OFF Phone Price : $40.19
In Stock
Sealer 212643
#12

Lit/optional diagram

Sealer

Part #212643

Replaced by #212643

?
Manufacturer substitution
This part replaces 212643. Substitute parts can look different from the original.
This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Valve Kit 978030
#6G

Lit/optional diagram

Valve kit

Part #978030

Replaced by #978030

?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Seal 997267
#26B

Airflow and control diagram

Seal

Part #997267

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 997267. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Screw 488017
#19

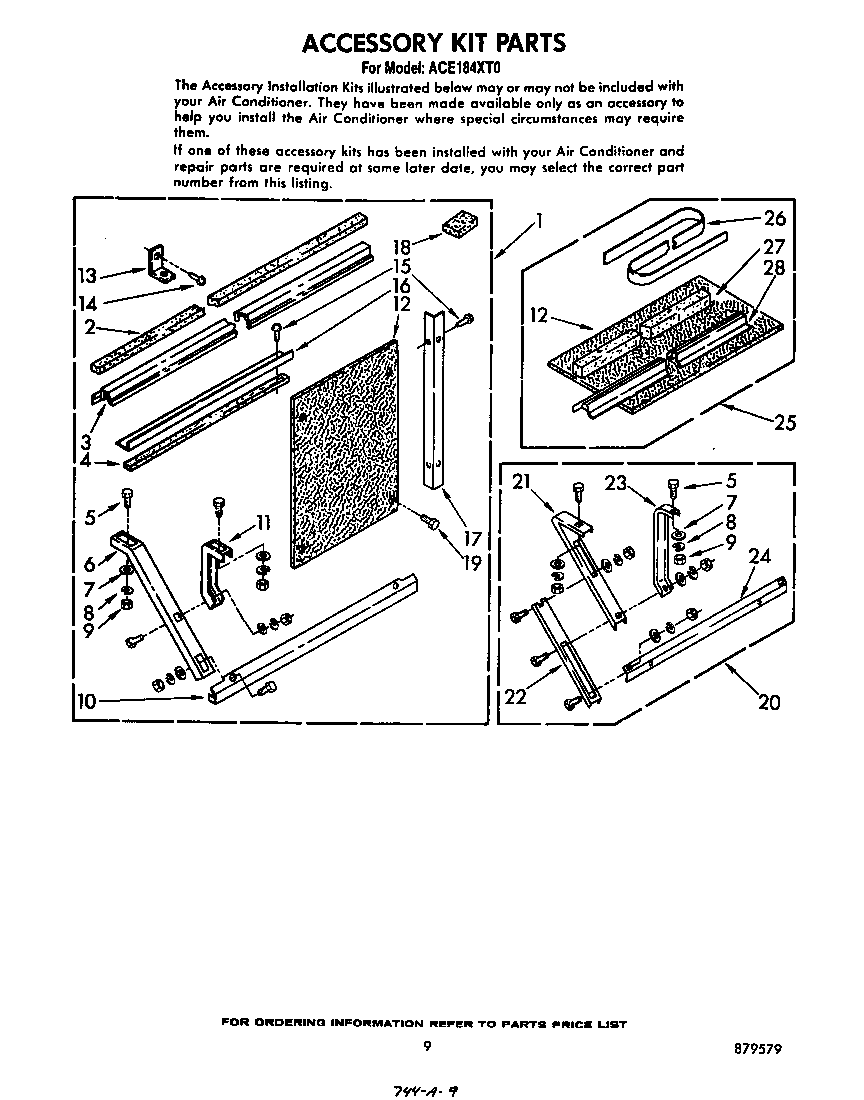

Accessory kit diagram

Screw

Part #488017

Replaced by #WP965173

?
Manufacturer substitution
This part replaces 488017. Substitute parts can look different from the original.
This item is not returnable
$5.85
In Stock
Bracket Support 644281
#24

Accessory kit diagram

Bracket support

Part #644281

$35.98
In Stock
Screw, 8 X 1 488480
#5

Airflow and control diagram

Screw, 8 x 1

Part #488480

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
