GE
Gas Range

Model # JGBS66EEK4ES Official GE gas range

Here are the diagrams and repair parts for Official GE JGBS66EEK4ES gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

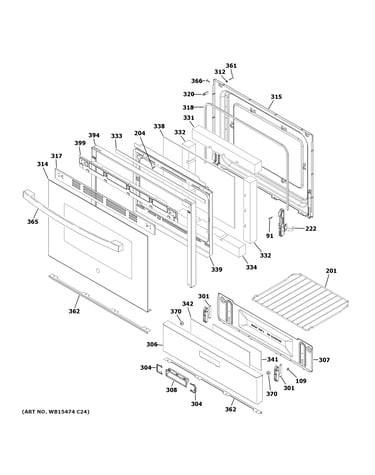

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Bake Burner Ignition WB13K0021
#218

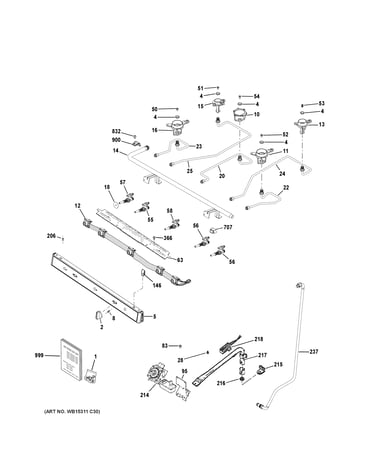

Gas & burner parts diagram

Bake burner ignition

Part #WB13K0021

Replaced by #WB13K21

?
Manufacturer substitution
This part replaces WB13K0021. Substitute parts can look different from the original.
BEST SELLER
$53.97 |
10% OFF Phone Price : $59.97
In Stock
40a15bulb STD372401
#235

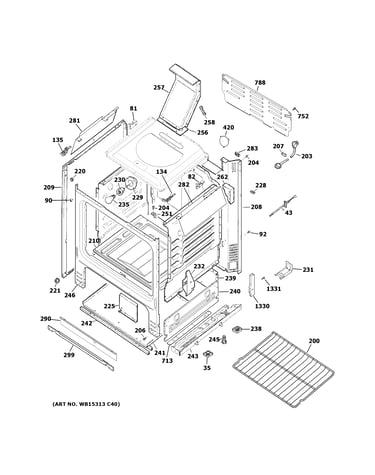

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Igniter Switch And Harness Assembly WB18X23202
#12

Gas & burner parts diagram

Range igniter switch and harness assembly

Part #WB18X23202

Replaced by #WB18X31213

?
Manufacturer substitution
This part replaces WB18X23202. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$25.72 |
19% OFF Phone Price : $31.72
In Stock
Range Extra Large Surface Burner, 18,000-btu WB16X24722
#157

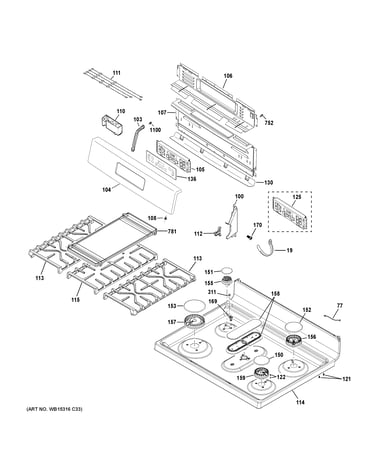

Control panel & cooktop diagram

Range extra large surface burner, 18,000-btu

Part #WB16X24722

BEST SELLER
This item is not returnable
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Range Spark Module WB13X24741
#110

Control panel & cooktop diagram

Range spark module

Part #WB13X24741

BEST SELLER
This item is not returnable
$24.18 |
20% OFF Phone Price : $30.18
In Stock
Range Oven Temperature Sensor WB20K10015
#43

Body parts diagram

Range oven temperature sensor

Part #WB20K10015

BEST SELLER
$36.17 |
14% OFF Phone Price : $42.17
In Stock
Range Surface Burner Cap WB29K10024
#152

Control panel & cooktop diagram

Range surface burner cap

Part #WB29K10024

BEST SELLER
$11.33 |
15% OFF Phone Price : $13.33
In Stock
Range Oven Control Board WB27X42807
#105

Control panel & cooktop diagram

Range oven control board

Part #WB27X42807

Replaced by #WB27X44726

?
Manufacturer substitution
This part replaces WB27X42807. Substitute parts can look different from the original.
BEST SELLER
$198.02
In Stock
Range Surface Burner Knob WB03X24818
#2

Gas & burner parts diagram

Range surface burner knob

Part #WB03X24818

BEST SELLER
$30.87 |
16% OFF Phone Price : $36.87
In Stock
Injet, Xl V2 WB02X24725
#16

Gas & burner parts diagram

Injet, xl v2

Part #WB02X24725

BEST SELLER
$93.16 |
6% OFF Phone Price : $99.16
In Stock
