Countertop Microwave

Model # JET203001 Official GE microwave

Here are the diagrams and repair parts for Official GE JET203001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Magnetron WB27X5142
#1428B

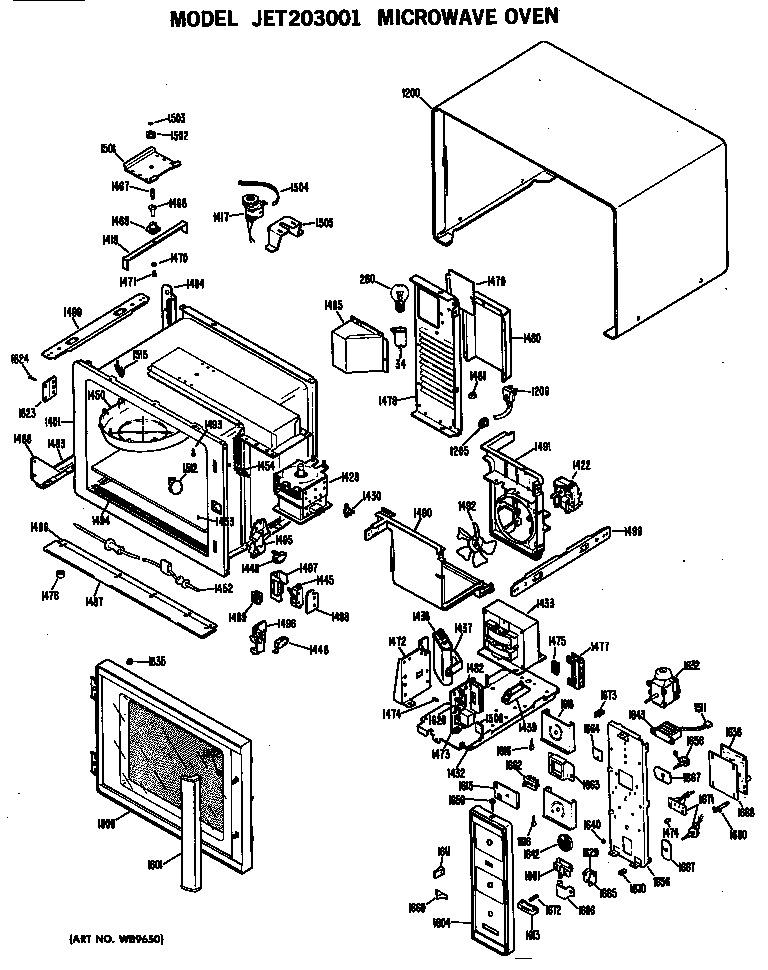

Microwave oven diagram

Magnetron

Part #WB27X5142

The manufacturer no longer makes this part, and there's no substitute part

Shield Lamp WB2X7073
#1485

Microwave oven diagram

Shield lamp

Part #WB2X7073

The manufacturer no longer makes this part, and there's no substitute part

Speed Nut WB1X5577
#0A

Microwave oven diagram

Speed nut

Part #WB1X5577

The manufacturer no longer makes this part, and there's no substitute part

Shield WB2X7065
#1477

Microwave oven diagram

Shield

Part #WB2X7065

The manufacturer no longer makes this part, and there's no substitute part

Stand Off WB2X7213
#1680

Microwave oven diagram

Stand off

Part #WB2X7213

The manufacturer no longer makes this part, and there's no substitute part

Button Spring WB9X5086
#1672

Microwave oven diagram

Button spring

Part #WB9X5086

The manufacturer no longer makes this part, and there's no substitute part

Hinge Support WB10X5133
#1823

Microwave oven diagram

Hinge support

Part #WB10X5133

The manufacturer no longer makes this part, and there's no substitute part

Microwave Diode WB27X5070
#1439

Microwave oven diagram

Microwave diode

Part #WB27X5070

The manufacturer no longer makes this part, and there's no substitute part

Potentiometer WB24X5187
#1658

Microwave oven diagram

Potentiometer

Part #WB24X5187

The manufacturer no longer makes this part, and there's no substitute part

Knob WB3X5625
#1611

Microwave oven diagram

Knob

Part #WB3X5625

The manufacturer no longer makes this part, and there's no substitute part
