Model # LRA087AT722 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire LRA087AT722 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

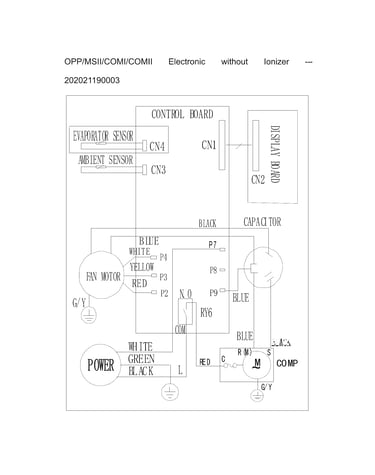

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Room Air Conditioner Installation Kit 5304491953
#41

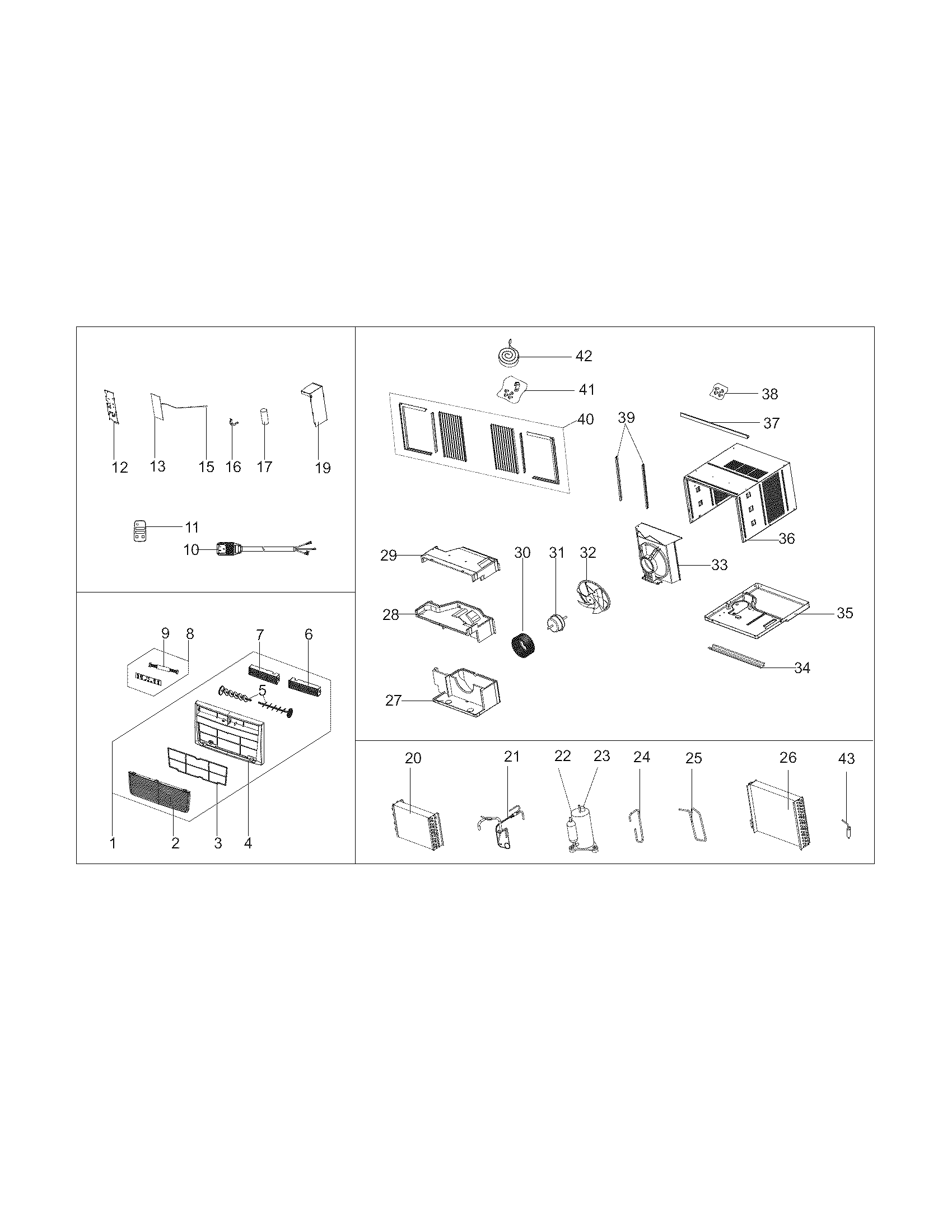

Recommended spare parts diagram

Room air conditioner installation kit

Part #5304491953

This item is not returnable
$19.76 |
9% OFF Phone Price : $21.76
In Stock
Room Air Conditioner Filter Dryer 5304476201
#43

Recommended spare parts diagram

Room air conditioner filter dryer

Part #5304476201

$33.53 |
15% OFF Phone Price : $39.53
In Stock
Louver 5304477051
#6

Recommended spare parts diagram

Louver

Part #5304477051

$11.33
In Stock
Overload Protector 5304492022
#23

Recommended spare parts diagram

Overload protector

Part #5304492022

$102.89
In Stock
Louver 5304477052
#7

Recommended spare parts diagram

Louver

Part #5304477052

$16.09
In Stock
Tube 5304492023
#24

Recommended spare parts diagram

Tube

Part #5304492023

$35.62
In Stock
Room Air Conditioner Wiring Harness 5304482356
#9

Recommended spare parts diagram

Room air conditioner wiring harness

Part #5304482356

$25.04
In Stock
Scroll 5304486039
#29

Recommended spare parts diagram

Scroll

Part #5304486039

$15.63
In Stock
Motor 5304485435
#31

Recommended spare parts diagram

Motor

Part #5304485435

$152.26 |
7% OFF Phone Price : $164.26
In Stock
Room Air Conditioner Remote Control 5304487535
#11

Recommended spare parts diagram

Room air conditioner remote control

Part #5304487535

$84.85 |
7% OFF Phone Price : $90.85
In Stock
