Model # DB6000TY2 Official Black & Decker handheld vacuum

Here are the diagrams and repair parts for Official Black & Decker DB6000TY2 handheld vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Black & Decker Base Cover 167803-01
#17

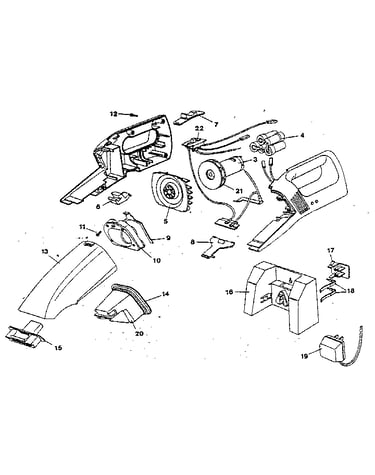

Unit parts diagram

Black & decker base cover

Part #167803-01

The manufacturer no longer makes this part, and there's no substitute part

Fan Cover 167822-00
#21

Unit parts diagram

Fan cover

Part #167822-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330013-02
#11

Unit parts diagram

Screw

Part #330013-02

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Venturi 167824-02
#10

Unit parts diagram

Black & decker venturi

Part #167824-02

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter, Type 1 167834-00
#14A

Unit parts diagram

Vacuum filter, type 1

Part #167834-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Lower Latch 167878-01
#8

Unit parts diagram

Black & decker lower latch

Part #167878-01

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Switch Cover 167821-01
#7

Unit parts diagram

Black & decker switch cover

Part #167821-01

The manufacturer no longer makes this part, and there's no substitute part

Diffuser 167825-00
#5

Unit parts diagram

Diffuser

Part #167825-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Accessory Kit 167847-00

#NI

All parts diagram

Black & decker accessory kit

Part #167847-00

The manufacturer no longer makes this part, and there's no substitute part

Pusher 167820-00
#9

Unit parts diagram

Pusher

Part #167820-00

The manufacturer no longer makes this part, and there's no substitute part
