Model # NTC5050BHB2 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP NTC5050BHB2 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#8

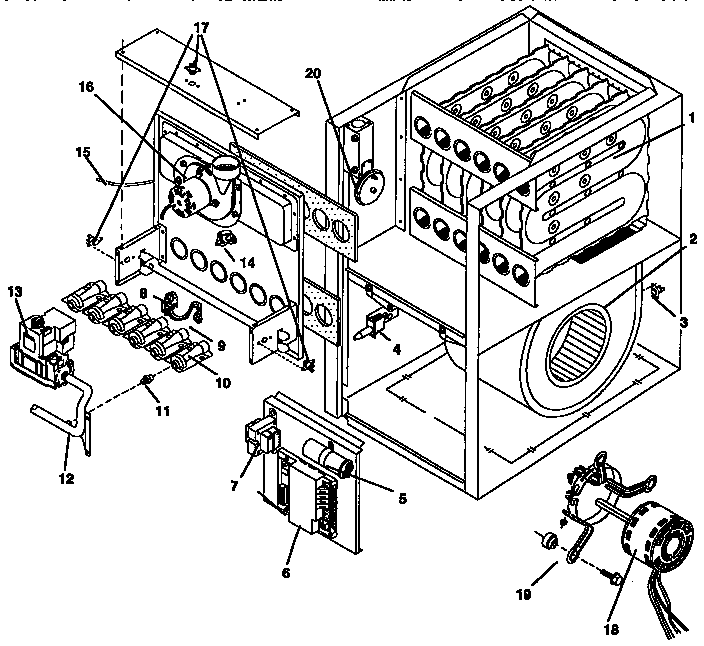

Functional replacement parts diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Cap Rnrd 1094956
#5

Functional replacement parts diagram

Cap rnrd

Part #1094956

Replaced by #12908

?
Manufacturer substitution
This part replaces 1094956. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Fan Timer 1008773
#6

Functional replacement parts diagram

Fan timer

Part #1008773

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1008773. Substitute parts can look different from the original.
$220.46 |
5% OFF Phone Price : $232.46
In Stock
Furnace Blower Fan Wheel 601210
#2

Functional replacement parts diagram

Furnace blower fan wheel

Part #601210

$194.16
In Stock
Control Pres 1093433
#20

Functional replacement parts diagram

Control pres

Part #1093433

Replaced by #1174276

?
Manufacturer substitution
This part replaces 1093433. Substitute parts can look different from the original.
$62.55 |
9% OFF Phone Price : $68.55
In Stock
Switch 611872
#4

Functional replacement parts diagram

Switch

Part #611872

$25.58
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#19

Functional replacement parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Panel Cutoff 721020008
#23

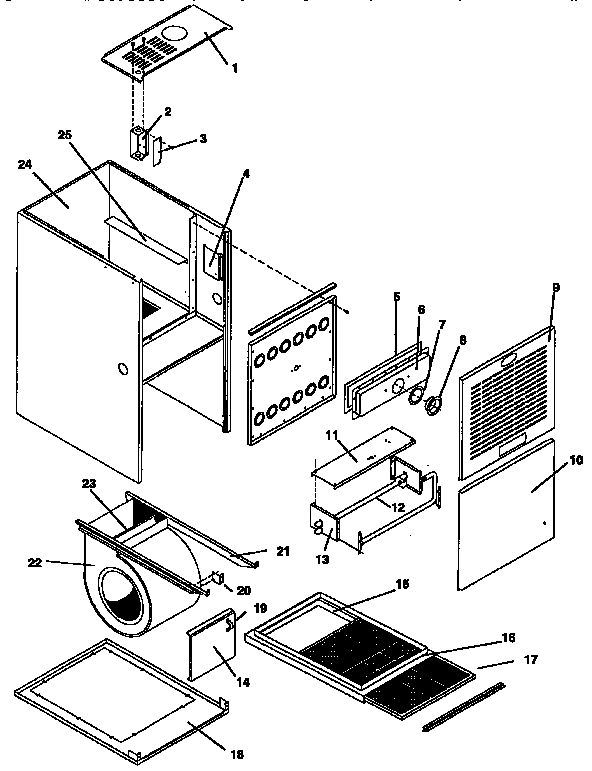

Non-functional replacement parts diagram

Panel cutoff

Part #721020008

$252.09
In Stock
Sw Lmtt L 1320365
#14

Functional replacement parts diagram

Sw lmtt l

Part #1320365

$37.82
In Stock
Arcoaire Gskt Htx Bnr 2480904
#1A

Functional replacement parts diagram

Arcoaire gskt htx bnr

Part #2480904

This item is not returnable
$3.37
In Stock
