Admiral (Kelon)
Room Air Conditioner

Model # AW-06CR1FMW Official Admiral (Kelon) air conditioner

Here are the diagrams and repair parts for Official Admiral (Kelon) AW-06CR1FMW air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Power Cord 1501518
#19

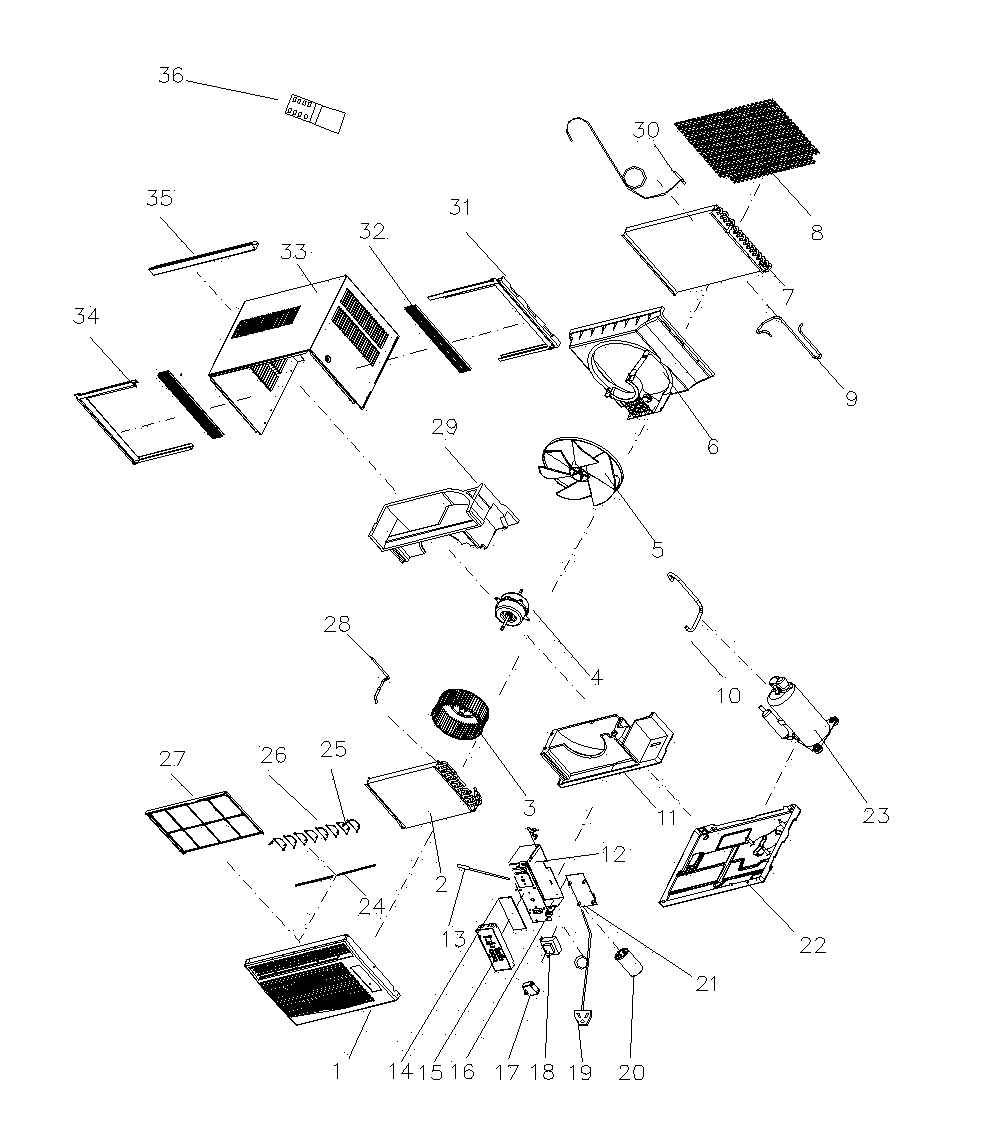

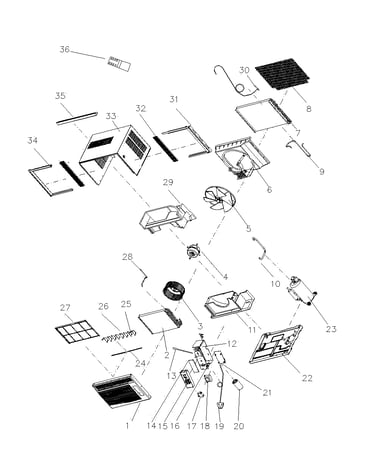

Cabinet parts diagram

Power cord

Part #1501518

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 81001330
#33

Cabinet parts diagram

Cabinet

Part #81001330

The manufacturer no longer makes this part, and there's no substitute part

Compressor 1304360
#23

Cabinet parts diagram

Compressor

Part #1304360

The manufacturer no longer makes this part, and there's no substitute part

Condenser 81302108
#7

Cabinet parts diagram

Condenser

Part #81302108

The manufacturer no longer makes this part, and there's no substitute part

Capillary 813031082
#30

Cabinet parts diagram

Capillary

Part #813031082

The manufacturer no longer makes this part, and there's no substitute part

Display Base 81408279
#14

Cabinet parts diagram

Display base

Part #81408279

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 8140216
#4

Cabinet parts diagram

Fan motor

Part #8140216

The manufacturer no longer makes this part, and there's no substitute part

Verti.vane 812014
#26

Cabinet parts diagram

Verti.vane

Part #812014

The manufacturer no longer makes this part, and there's no substitute part

Channel 812033
#35

Cabinet parts diagram

Channel

Part #812033

The manufacturer no longer makes this part, and there's no substitute part

Remote Control 814012400
#36

Cabinet parts diagram

Remote control

Part #814012400

The manufacturer no longer makes this part, and there's no substitute part
