Schwinn
Exercise Cycle

Model # SCHWINN IC ELITE-SILVER Official Schwinn cycle

Here are the diagrams and repair parts for Official Schwinn SCHWINN-IC-ELITE-SILVER cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Brake Pad 92874
#6

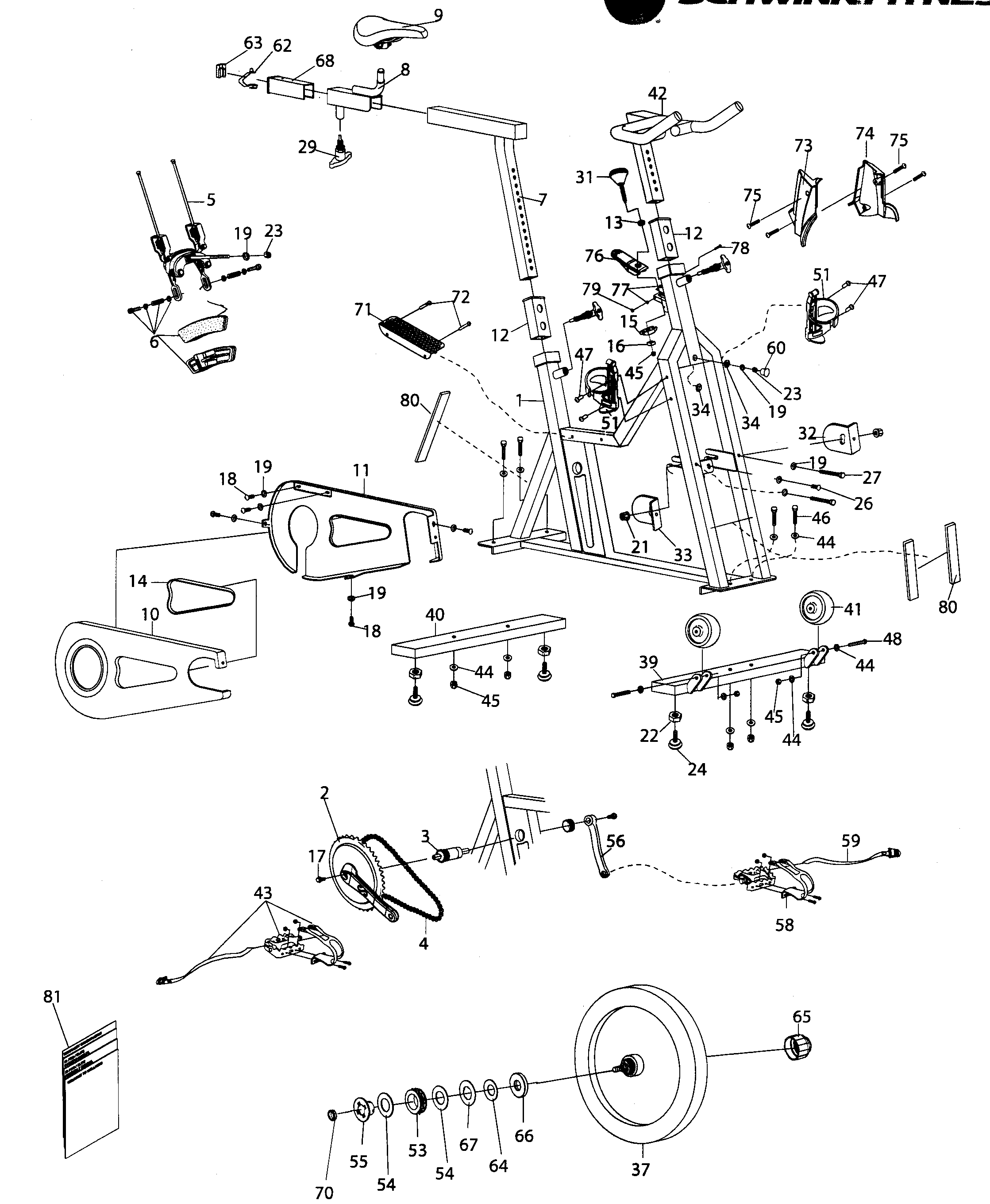

Cycle diagram

Brake pad

Part #92874

The manufacturer no longer makes this part, and there's no substitute part

Chainguard Outer 022-1151
#10

Cycle diagram

Chainguard outer

Part #022-1151

The manufacturer no longer makes this part, and there's no substitute part

Crank Bolt 80044
#17

Cycle diagram

Crank bolt

Part #80044

The manufacturer no longer makes this part, and there's no substitute part

Crank W/sprocket 80034
#2

Cycle diagram

Crank w/sprocket

Part #80034

The manufacturer no longer makes this part, and there's no substitute part

Plate 92453
#67

Cycle diagram

Plate

Part #92453

The manufacturer no longer makes this part, and there's no substitute part

Screw 98775
#26

Cycle diagram

Screw

Part #98775

The manufacturer no longer makes this part, and there's no substitute part

Conical Spring 92208
#64

Cycle diagram

Conical spring

Part #92208

The manufacturer no longer makes this part, and there's no substitute part

End Cap 84971
#63

Cycle diagram

End cap

Part #84971

The manufacturer no longer makes this part, and there's no substitute part

Frame Guard 84999
#80

Cycle diagram

Frame guard

Part #84999

The manufacturer no longer makes this part, and there's no substitute part

Crank Arm 80035
#56

Cycle diagram

Crank arm

Part #80035

The manufacturer no longer makes this part, and there's no substitute part
