Model # 110400 (0023-0224) Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 110400-0023-0224 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

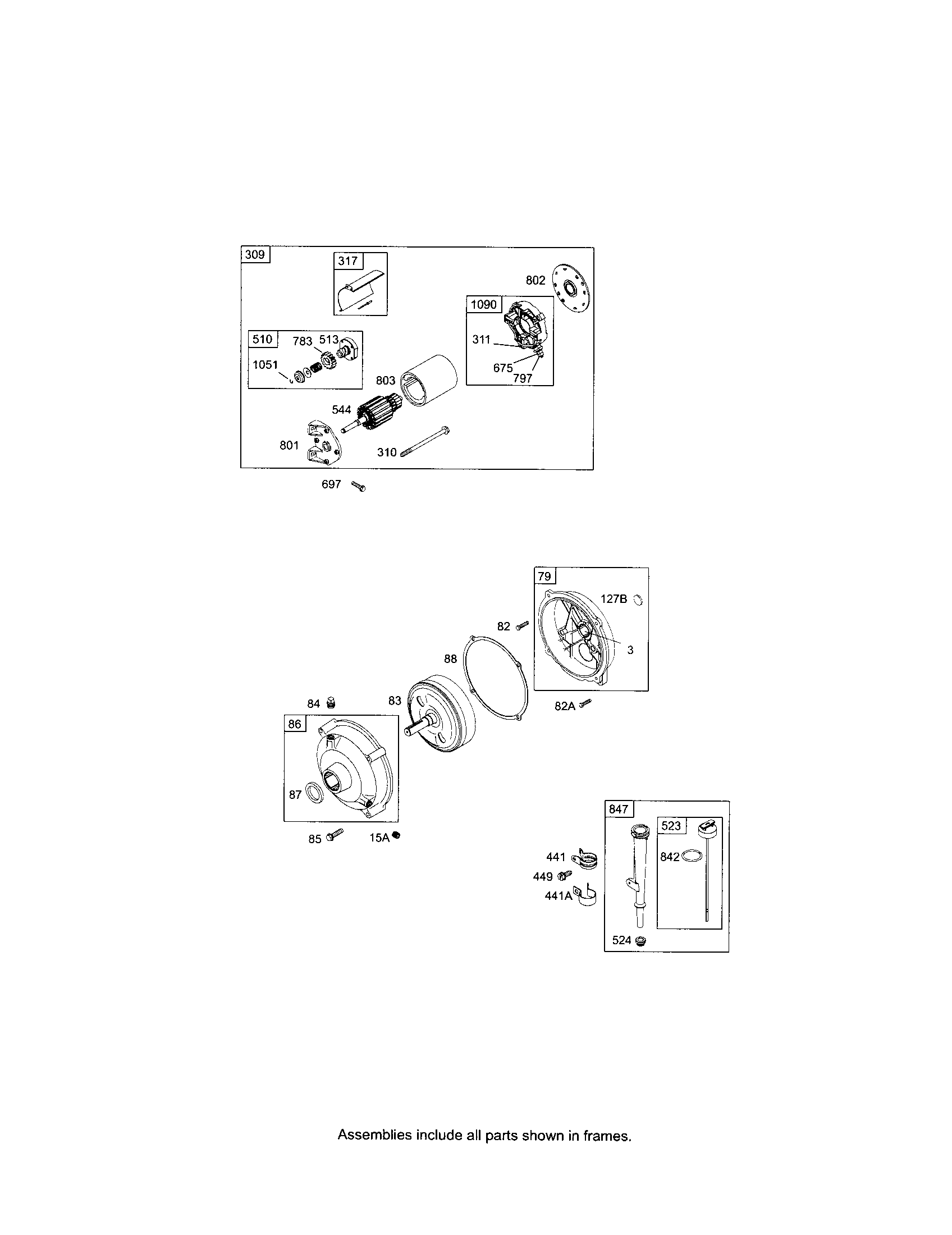

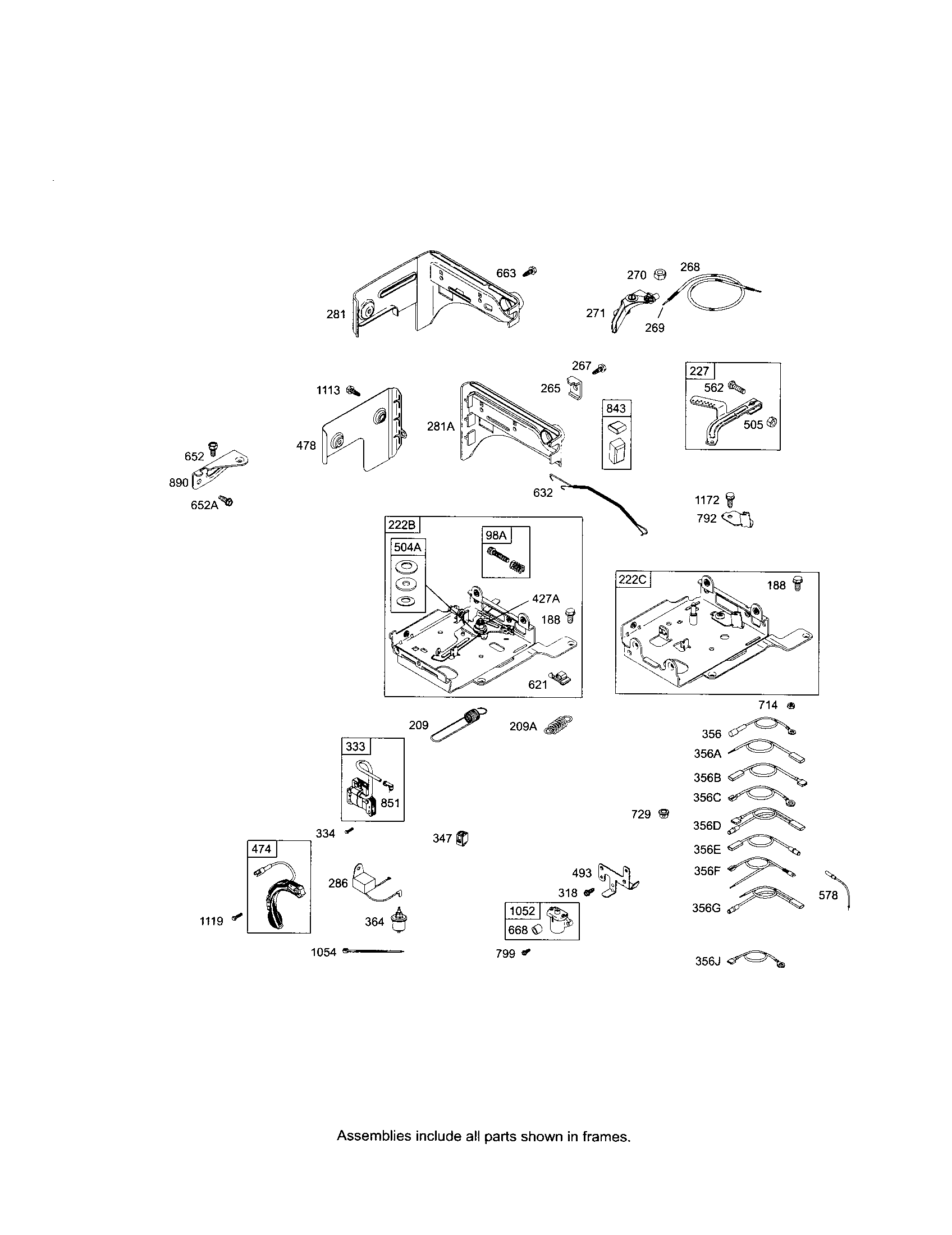

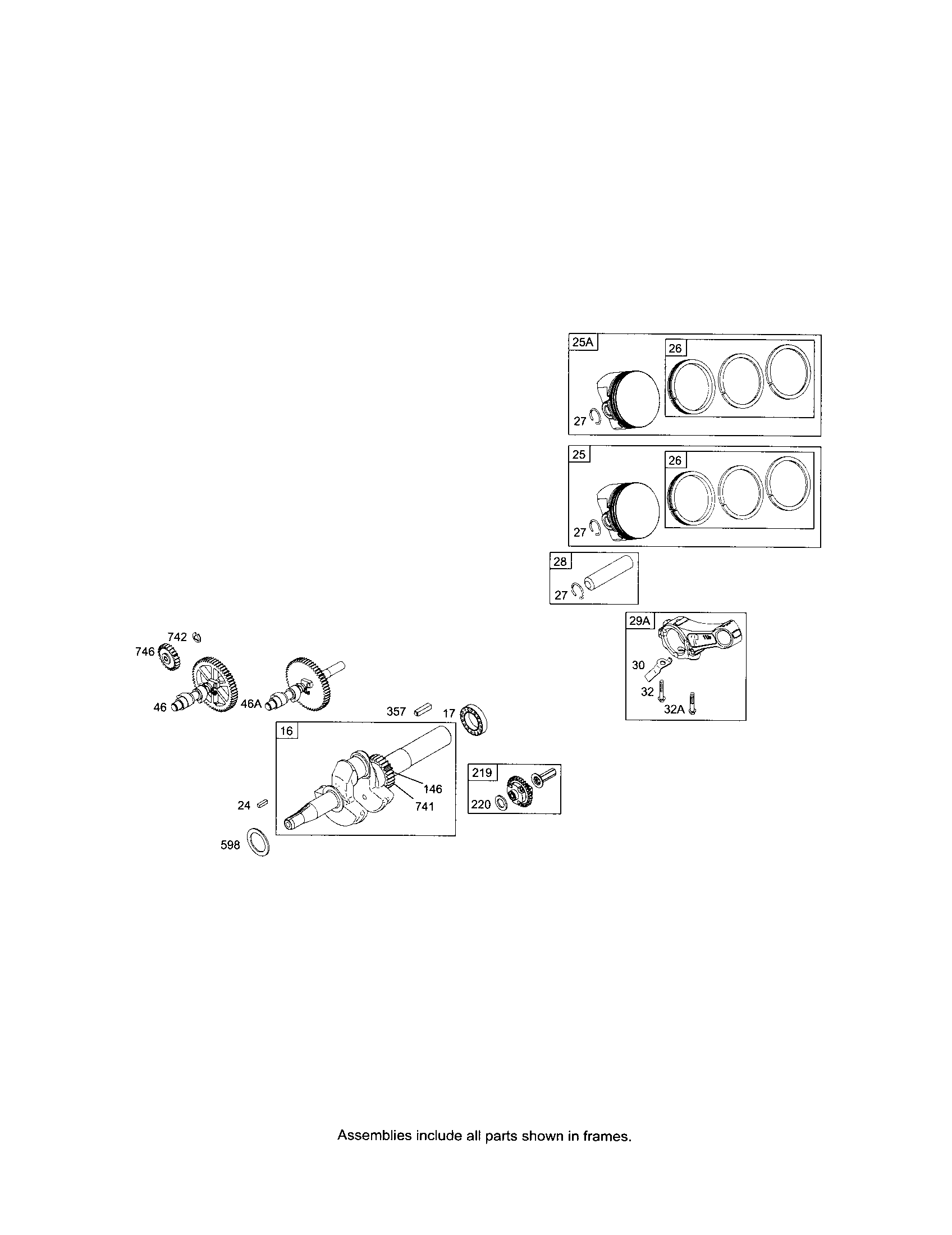

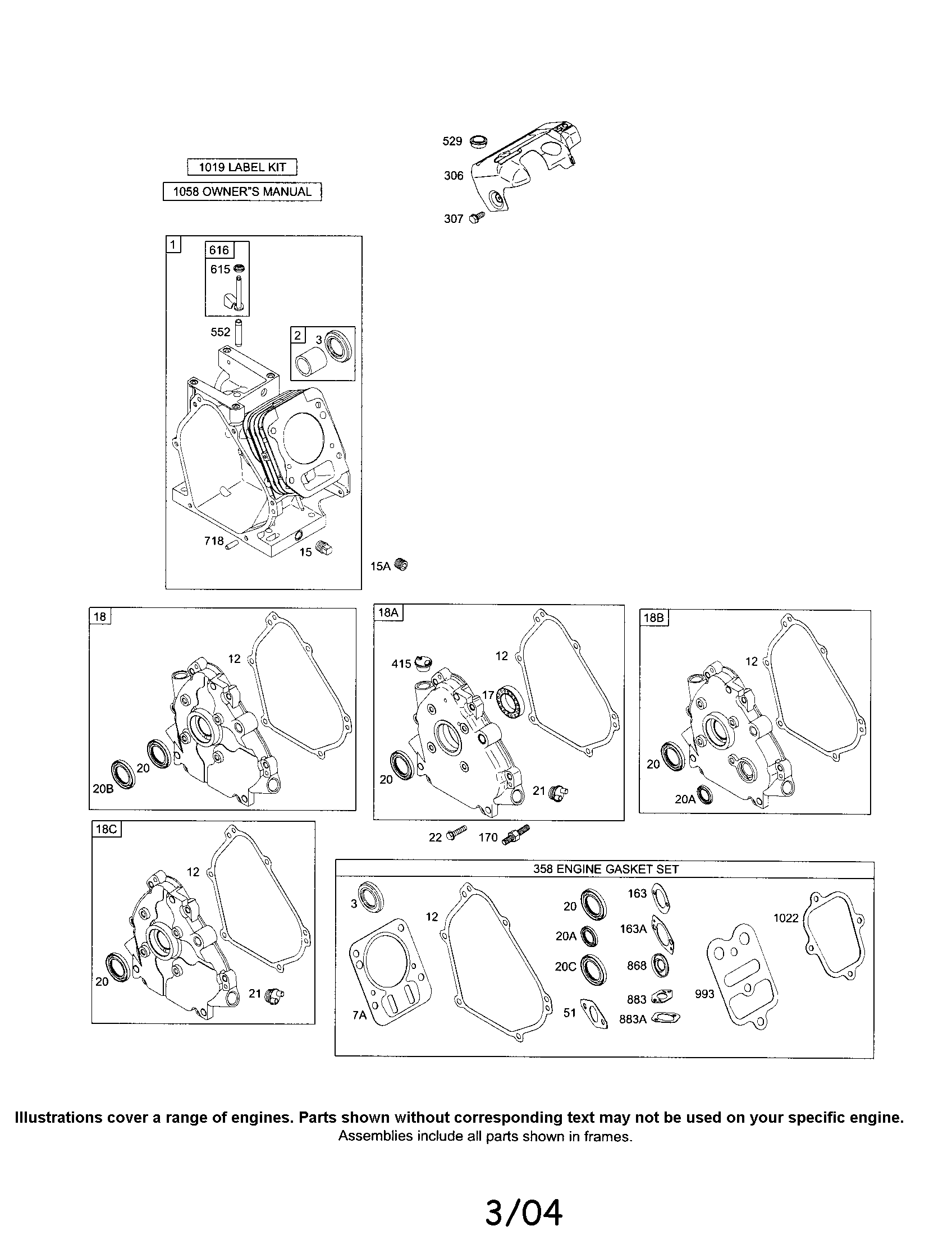

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 313 parts  |

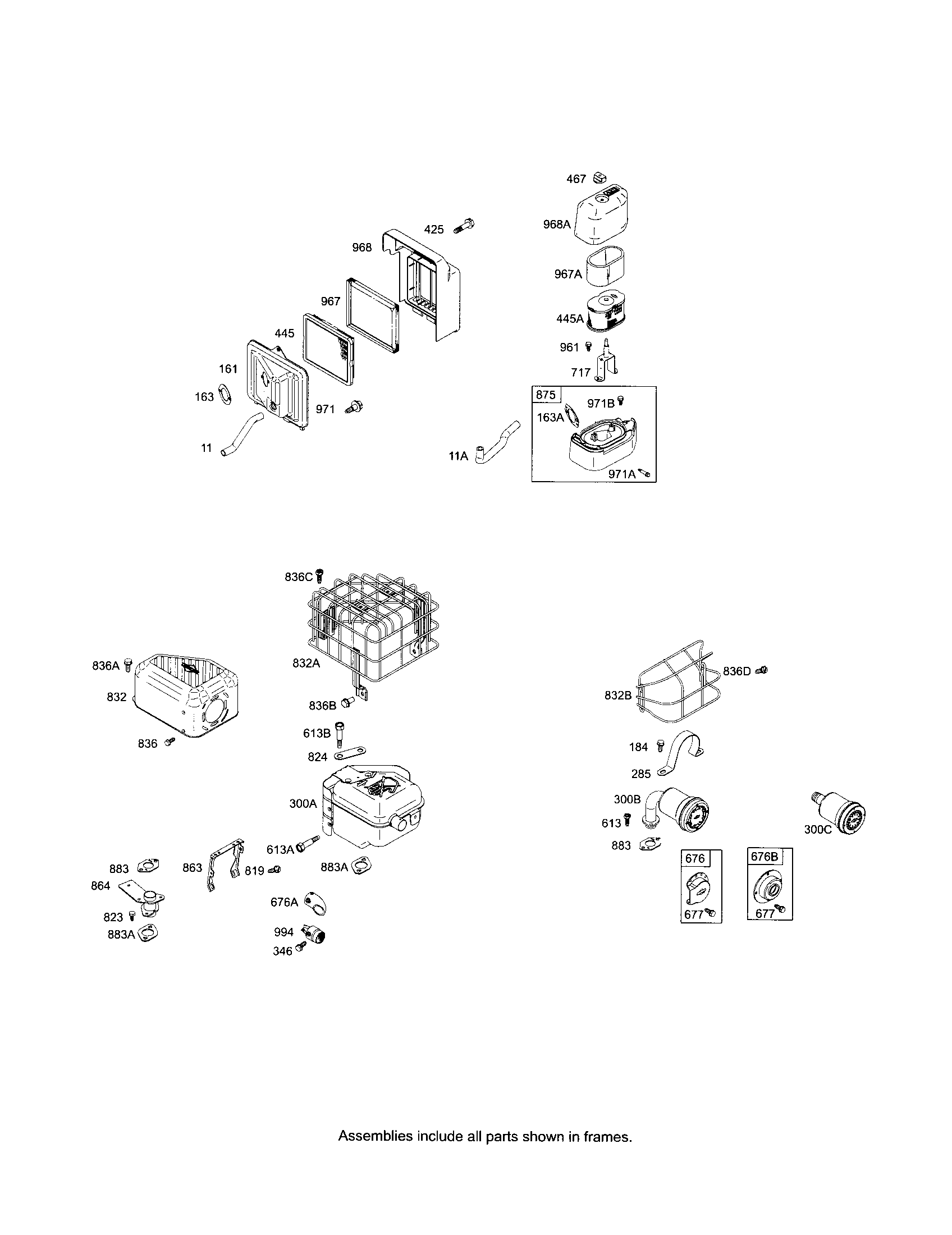

Lawn & Garden Equipment Engine Air Filter 491588

#445

All parts diagram

Lawn & garden equipment engine air filter

Part #491588

Replaced by #491588S

?
Manufacturer substitution
This part replaces 491588. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$9.24 |
10% OFF Phone Price : $10.24
In Stock

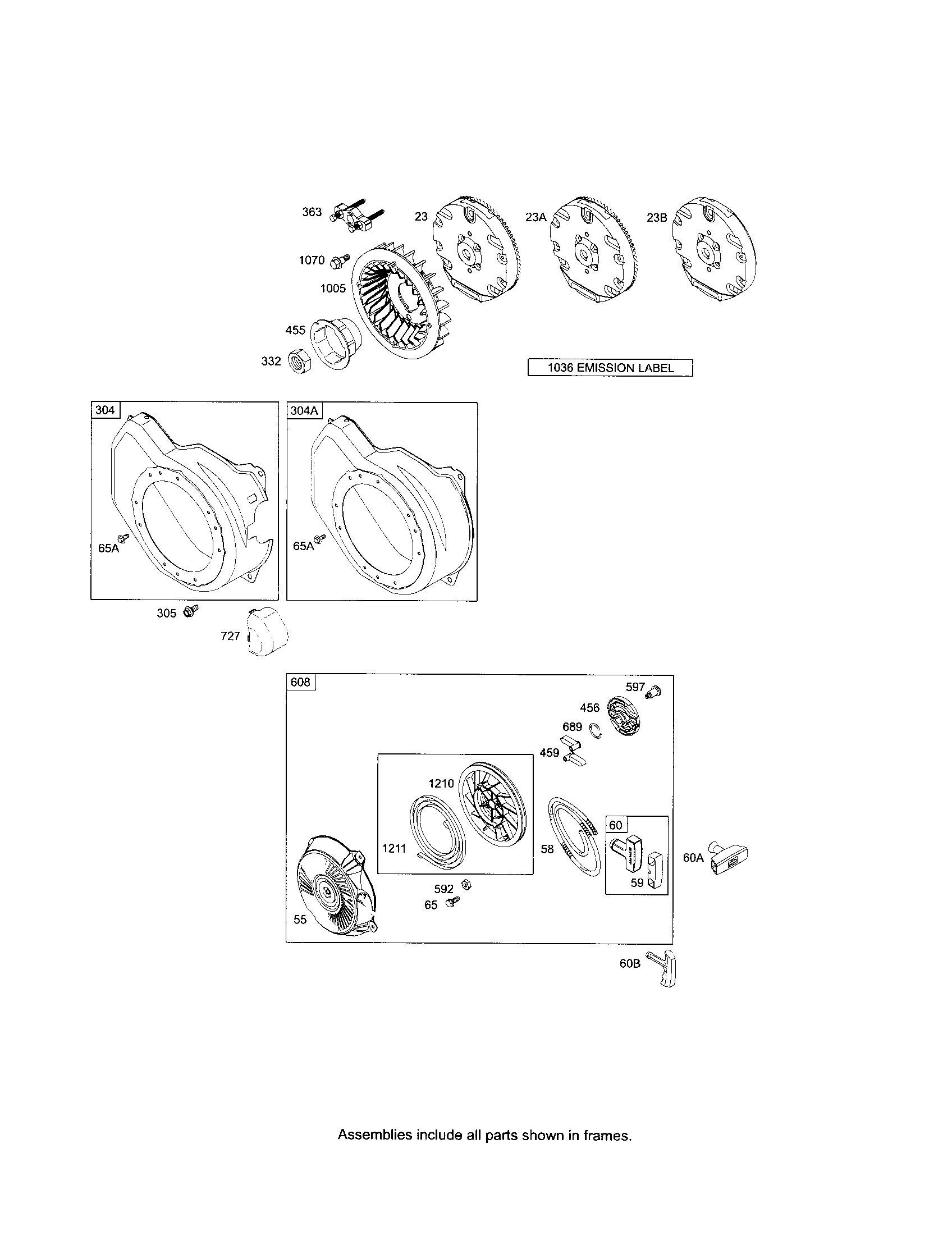

Starter Rope 692259

#58A

All parts diagram

Starter rope

Part #692259

Replaced by #697316

?
Manufacturer substitution
This part replaces 692259. Substitute parts can look different from the original.
BEST SELLER
$7.50 |
12% OFF Phone Price : $8.50
In Stock

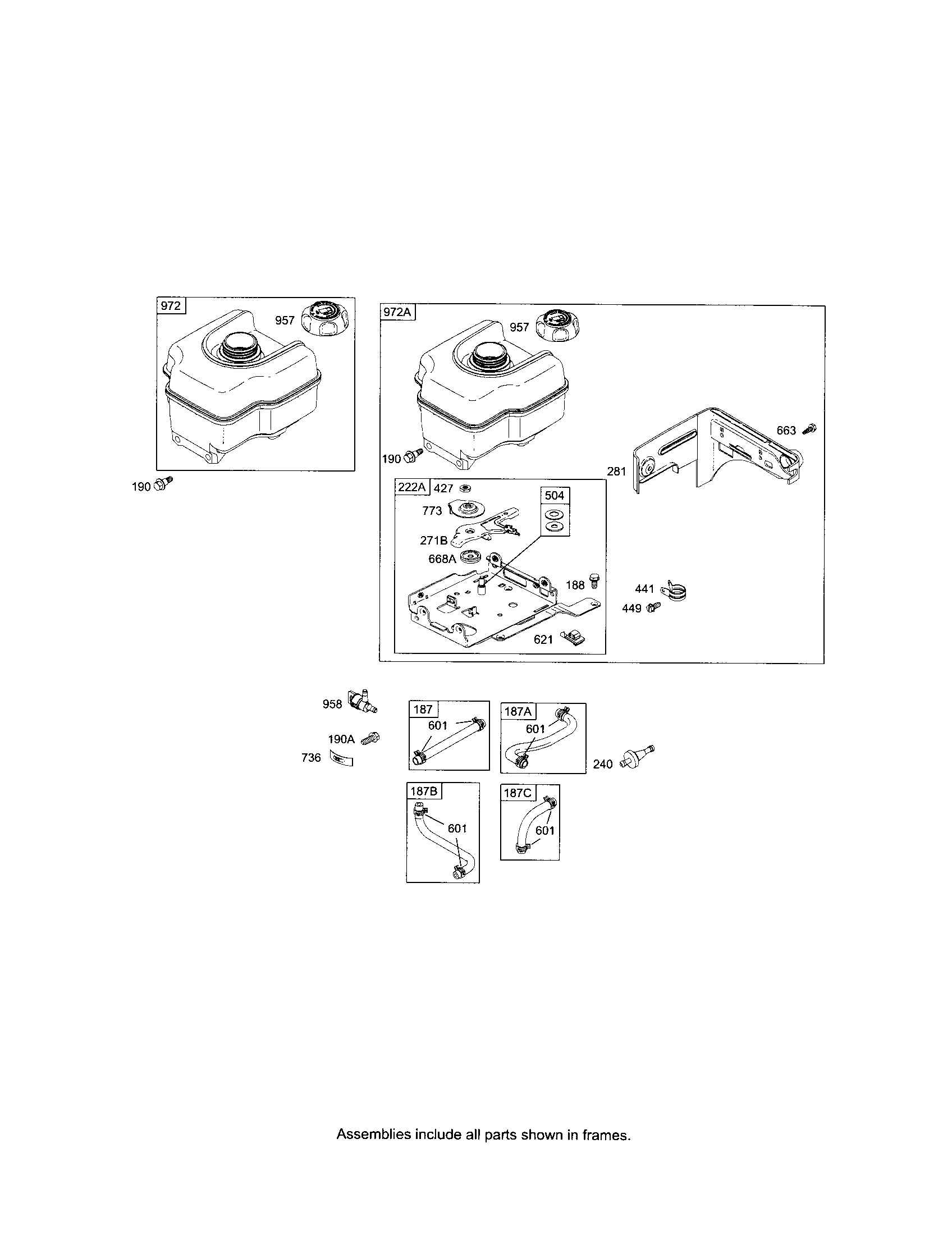

Fuel Line (red) 691050

#187

All parts diagram

Fuel line (red)

Part #691050

Replaced by #791766

?
Manufacturer substitution
This part replaces 691050. Substitute parts can look different from the original.
BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Fuel Line 694486

#187C

All parts diagram

Fuel line

Part #694486

Replaced by #791766

?
Manufacturer substitution
This part replaces 694486. Substitute parts can look different from the original.
BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Lawn & Garden Equipment Engine Air Filter (replaces 392672, 393365, 49245, 690610, Bs-697029) 697029

#445A

All parts diagram

Lawn & garden equipment engine air filter (replaces 392672, 393365, 49245, 690610, bs-697029)

Part #697029

BEST SELLER
$18.87 |
10% OFF Phone Price : $20.87
In Stock

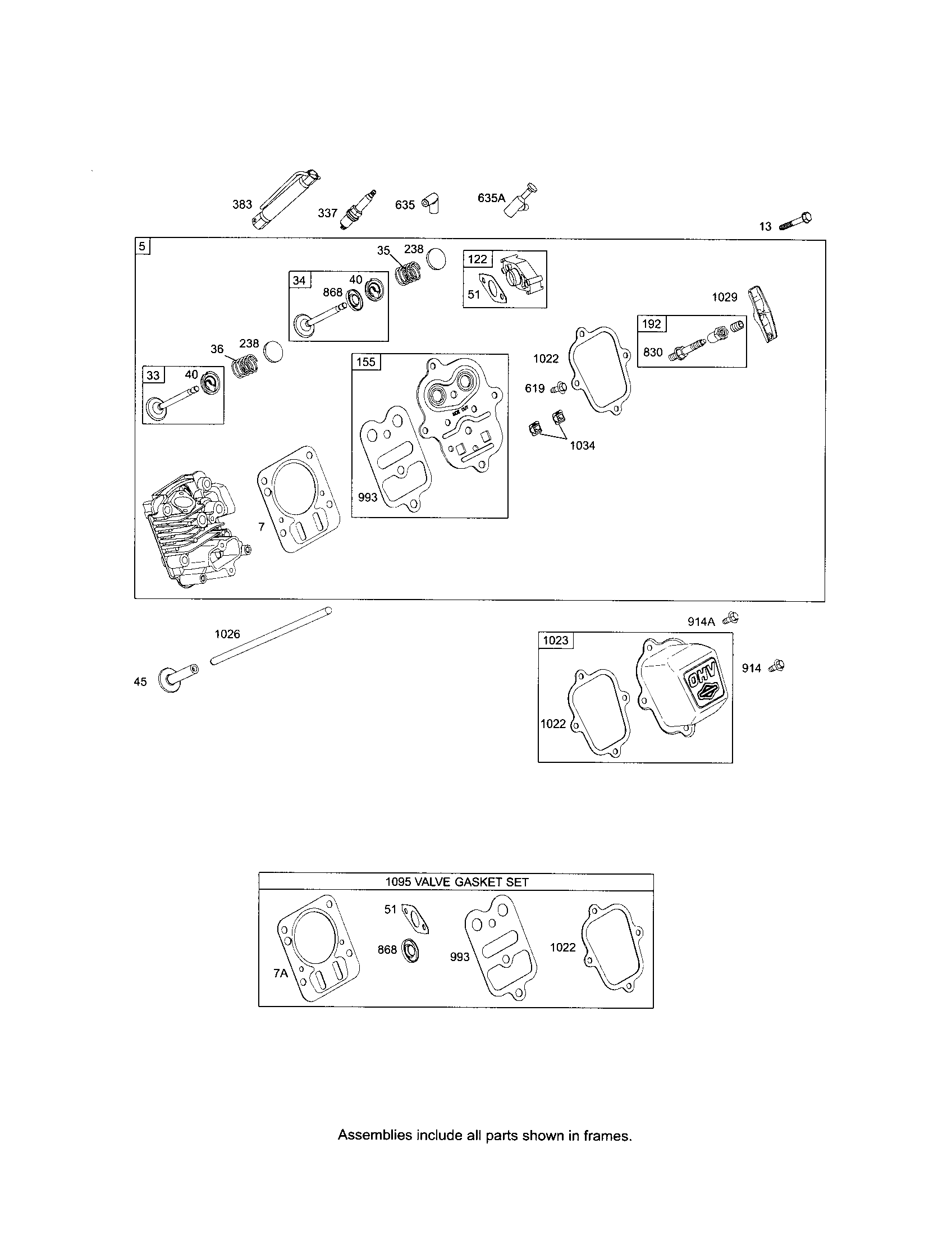

Lawn & Garden Equipment Engine Spark Plug (replaces Bs-691043) 691043

#337A

All parts diagram

Lawn & garden equipment engine spark plug (replaces bs-691043)

Part #691043

BEST SELLER

Get free shipping with Automatic Reorder

$7.27 |
12% OFF Phone Price : $8.27
In Stock
Lawn & Garden Equipment Engine Recoil Starter Pulley (replaces 263074, 281504, Bs-498144) 498144
Lawn & garden equipment engine recoil starter pulley (replaces 263074, 281504, bs-498144)

Part #498144

BEST SELLER
$23.76 |
20% OFF Phone Price : $29.76
In Stock
Lawn & Garden Equipment Engine Carburetor Fuel Inlet Fitting (replaces 493496, Bs-692317) 692317

#186

All parts diagram

Lawn & garden equipment engine carburetor fuel inlet fitting (replaces 493496, bs-692317)

Part #692317

BEST SELLER
$8.02 |
11% OFF Phone Price : $9.02
In Stock
Air Filter 273356

#967A

All parts diagram

Air filter

Part #273356

Replaced by #273356S

?
Manufacturer substitution
This part replaces 273356. Substitute parts can look different from the original.
BEST SELLER
$9.51 |
10% OFF Phone Price : $10.51
In Stock

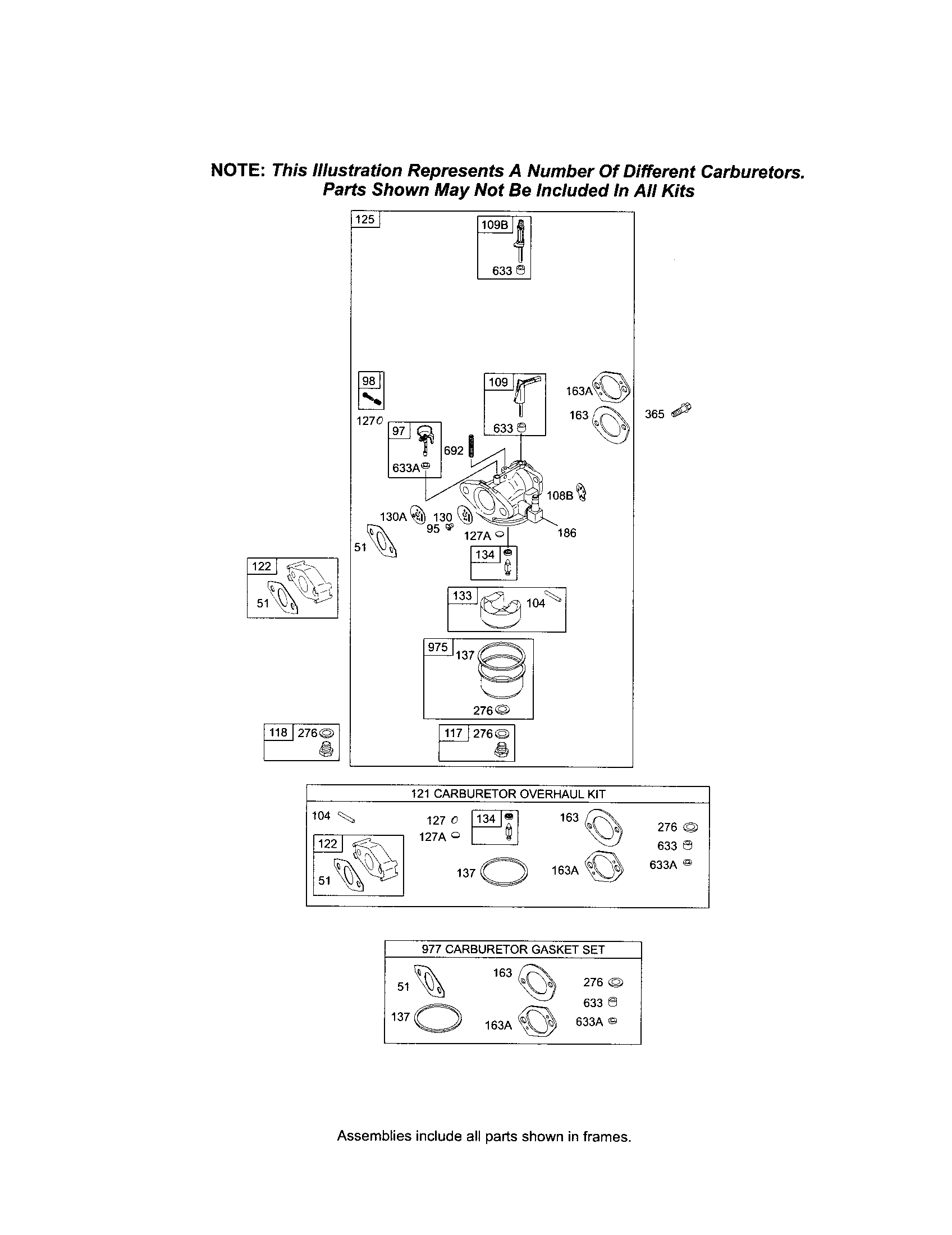

Carburetor 693865

#125

All parts diagram

Carburetor

Part #693865

Replaced by #798653

?
Manufacturer substitution
This part replaces 693865. Substitute parts can look different from the original.
BEST SELLER
$57.71 |
9% OFF Phone Price : $63.71
In Stock
