Frigidaire
Room Air Conditioner

Model # FAC126N1A1 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAC126N1A1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

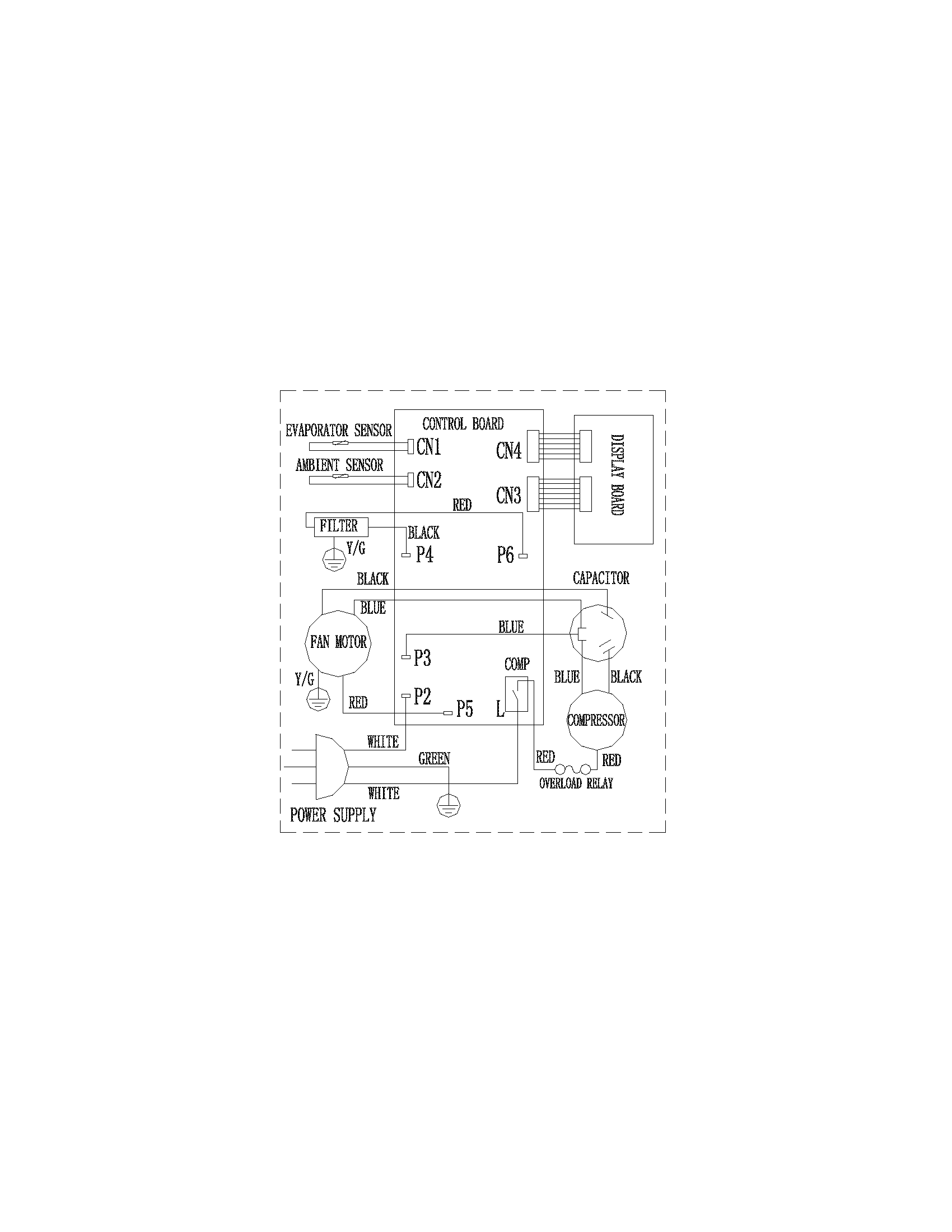

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Capillary 5304436580
#12

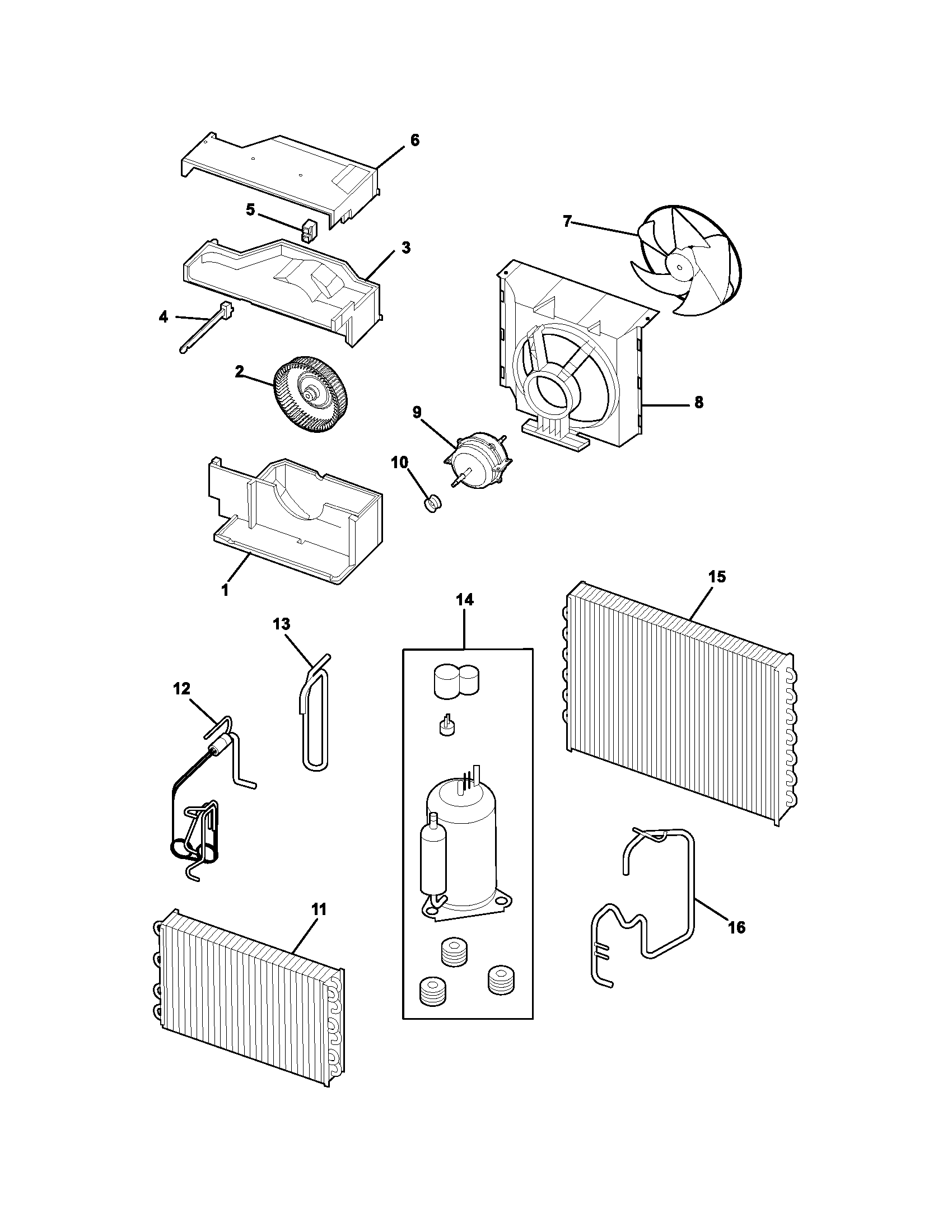

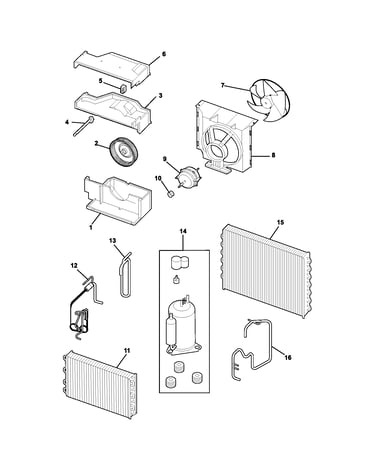

Cooling & air flow systems diagram

Capillary

Part #5304436580

$32.65
In Stock
Suction Pipe 5304436569
#16

Cooling & air flow systems diagram

Suction pipe

Part #5304436569

$26.96
In Stock
Discharge Pi 5304436575
#13

Cooling & air flow systems diagram

Discharge pi

Part #5304436575

This item is not returnable
$7.42
In Stock
Room Air Conditioner Fan Motor 5304436561
#9

Cooling & air flow systems diagram

Room air conditioner fan motor

Part #5304436561

$125.99
In Stock
Fan 5304436565
#6

Cooling & air flow systems diagram

Fan

Part #5304436565

$22.01
In Stock
Charging Board 5304436562
#8

Cooling & air flow systems diagram

Charging board

Part #5304436562

$48.72
In Stock
Fan 5304436563
#7

Cooling & air flow systems diagram

Fan

Part #5304436563

The manufacturer no longer makes this part, and there's no substitute part

Fan 5304436557
#2

Cooling & air flow systems diagram

Fan

Part #5304436557

The manufacturer no longer makes this part, and there's no substitute part

Electronic Control 5304436596
#26

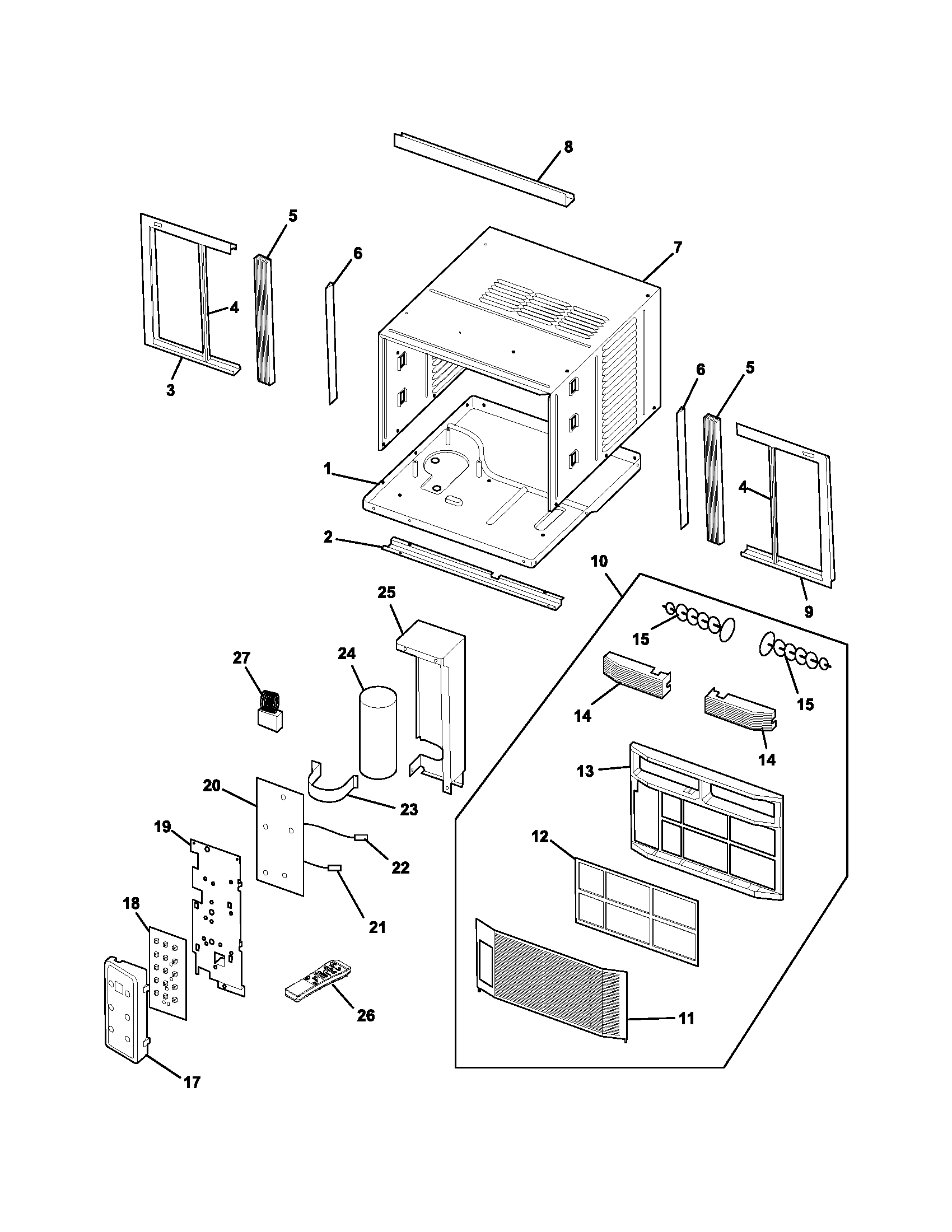

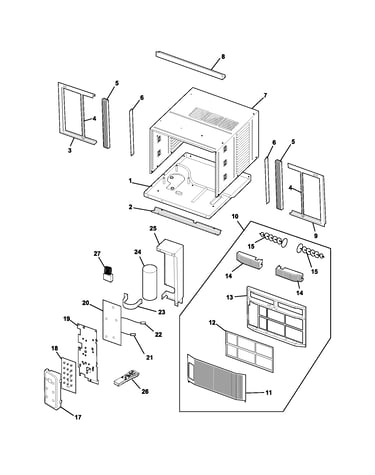

Cabiner/front/controls diagram

Electronic control

Part #5304436596

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Accordion Filler Frame, Right 5304436550
#9

Cabiner/front/controls diagram

Room air conditioner accordion filler frame, right

Part #5304436550

The manufacturer no longer makes this part, and there's no substitute part
