Model # 70172815-78 Official Sears gym set

Here are the diagrams and repair parts for Official Sears 70172815-78 gym set, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Brace 6231740
#20

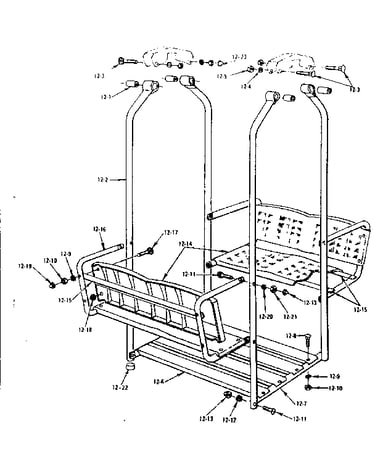

Lawnswing assembly no. 19 diagram

Brace

Part #6231740

The manufacturer no longer makes this part, and there's no substitute part

Swing Brng 2992430
#15

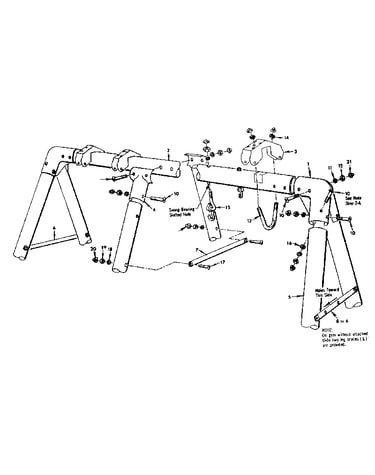

Frame assembly no. 19-a diagram

Swing brng

Part #2992430

The manufacturer no longer makes this part, and there's no substitute part

Washer 2994960
Washer

Part #2994960

The manufacturer no longer makes this part, and there's no substitute part

Fitting 6041560
#1

Frame assembly no. 19-a diagram

Fitting

Part #6041560

The manufacturer no longer makes this part, and there's no substitute part

Tip Cover 2994610
#13

Lawnswing assembly no. 19 diagram

Tip cover

Part #2994610

The manufacturer no longer makes this part, and there's no substitute part

Nut 2998140
#7

Lawnswing assembly no. 19 diagram

Nut

Part #2998140

The manufacturer no longer makes this part, and there's no substitute part

Bolt 2998210
#11

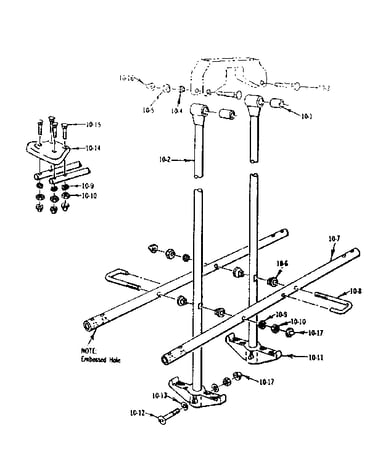

Glide ride assembly no. 9 diagram

Bolt

Part #2998210

The manufacturer no longer makes this part, and there's no substitute part

Support 6110530
#7A

Lawnswing assembly no. 19 diagram

Support

Part #6110530

The manufacturer no longer makes this part, and there's no substitute part

Arm 6090800
#21

Lawnswing assembly no. 19 diagram

Arm

Part #6090800

The manufacturer no longer makes this part, and there's no substitute part

Bolt 2998340
#10

Frame assembly no. 19-a diagram

Bolt

Part #2998340

The manufacturer no longer makes this part, and there's no substitute part
