Model # 56-2268-10-01 Official Tappan microwave

Here are the diagrams and repair parts for Official Tappan 56-2268-10-01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

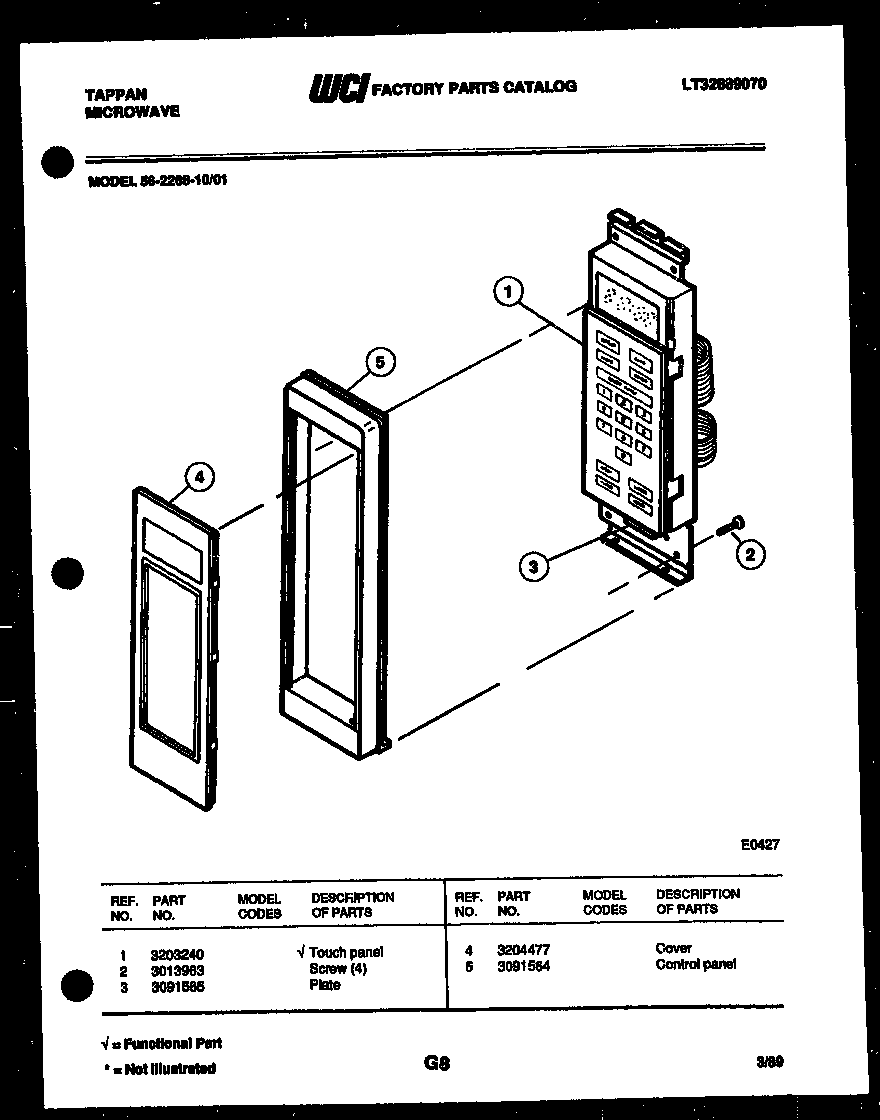

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |

Diode 3091303
#3

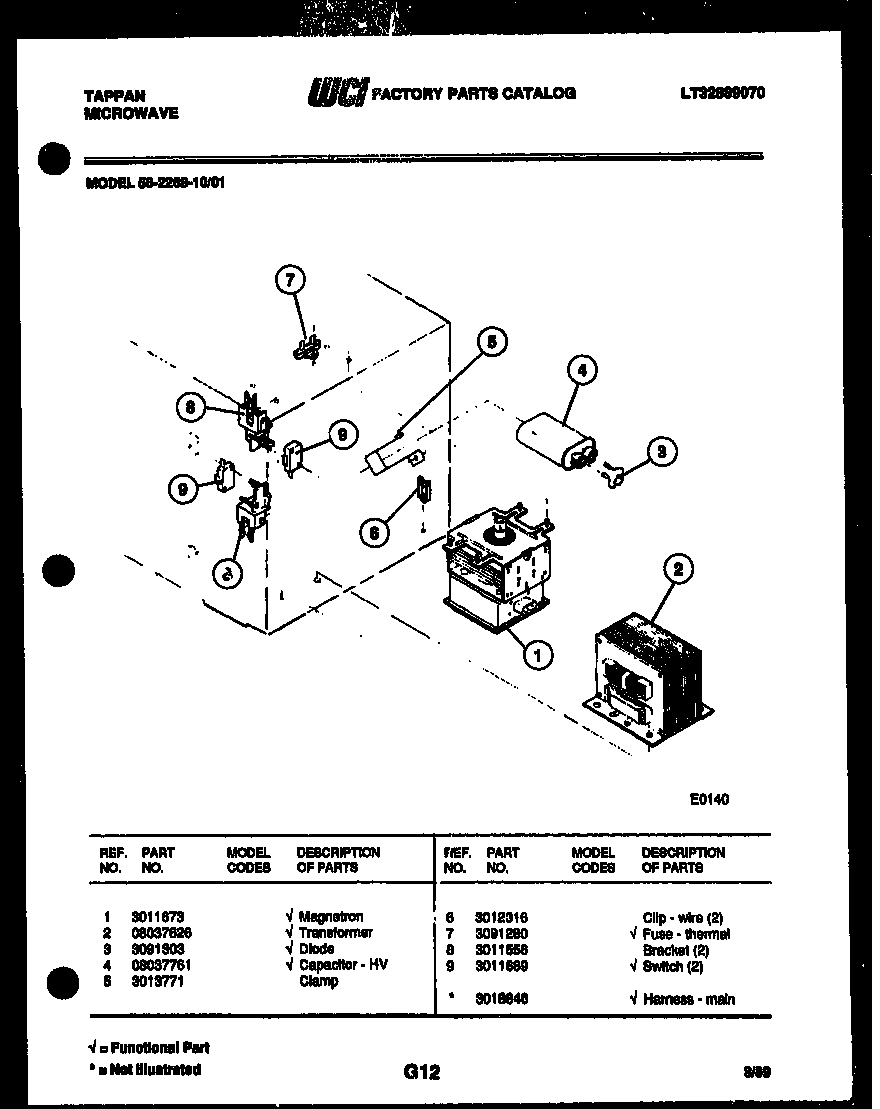

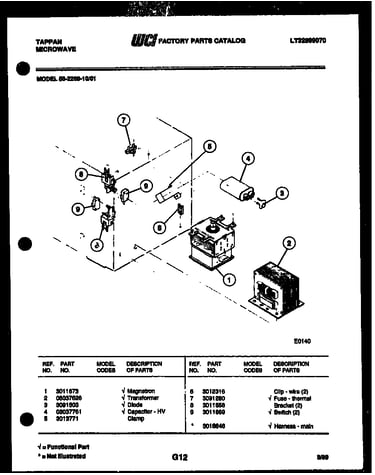

Power control diagram

Diode

Part #3091303

In Stock
Support 3011555
#26

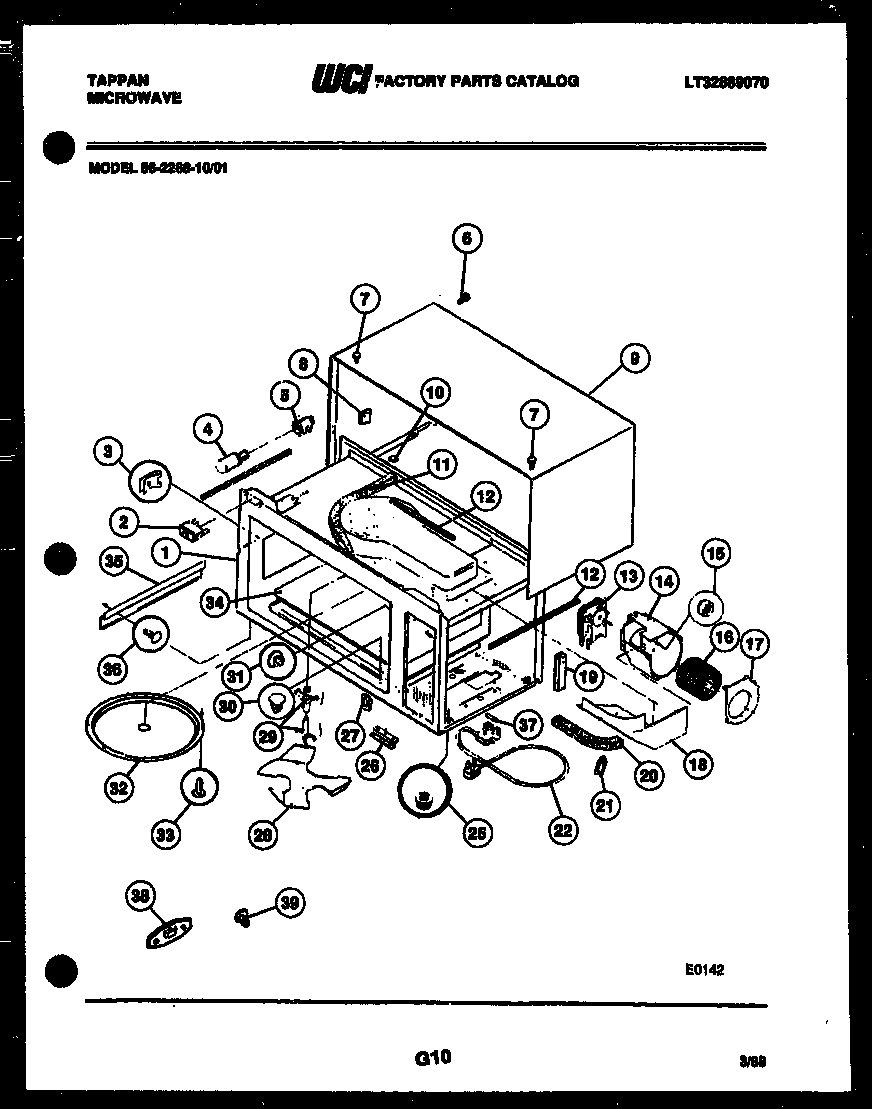

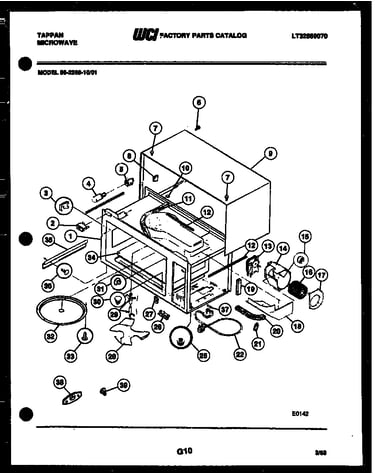

Body parts diagram

Support

Part #3011555

This item is not returnable
In Stock
White-westinghouse Fuse 3011670
#37

Body parts diagram

White-westinghouse fuse

Part #3011670

This item is not returnable
In Stock
White-westinghouse Plug 3013626
#38

Body parts diagram

White-westinghouse plug

Part #3013626

This item is not returnable
In Stock
Frigidaire Light Socket 3014074
#5

Body parts diagram

Frigidaire light socket

Part #3014074

This item is not returnable
In Stock
Clip 3012323
#3

Body parts diagram

Clip

Part #3012323

This item is not returnable
In Stock
Rivet 3013807
#33

Body parts diagram

Rivet

Part #3013807

This item is not returnable
In Stock
Screw 3091100
#6

Body parts diagram

Screw

Part #3091100

Replaced by #5303273263

?
Manufacturer substitution
This part replaces 3091100. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 3051818
#5

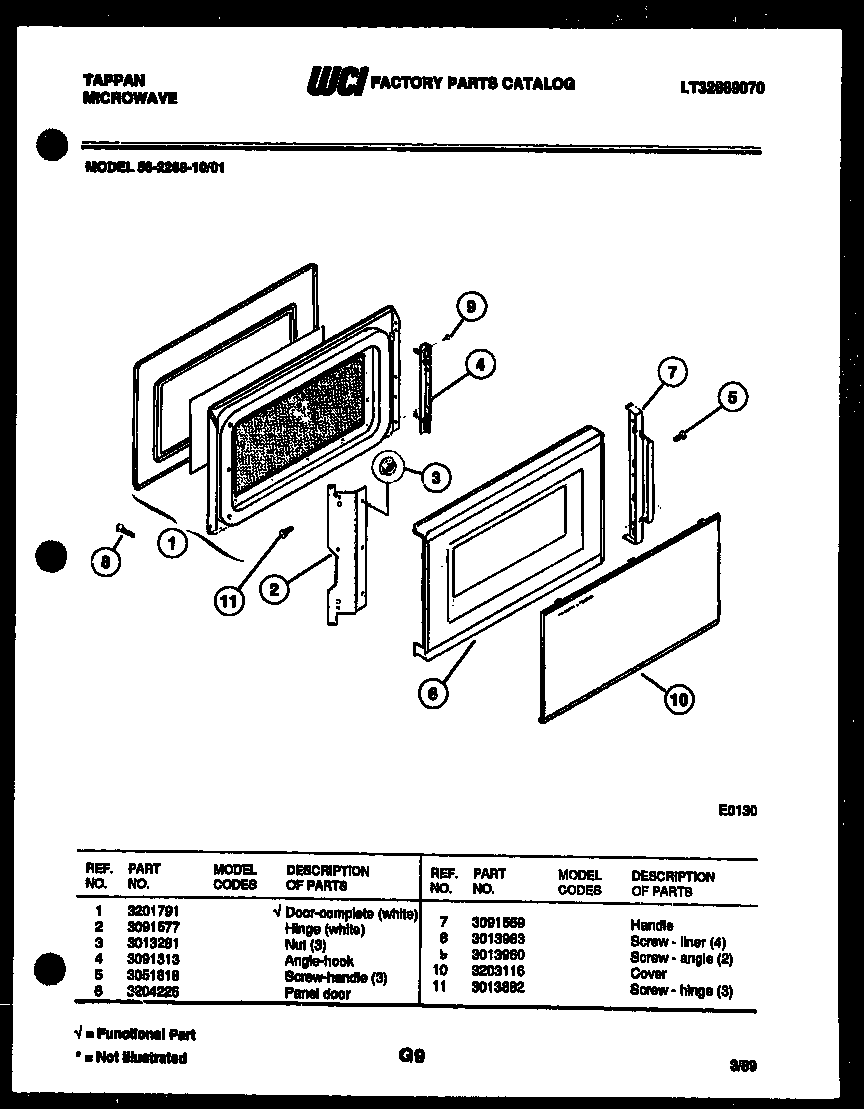

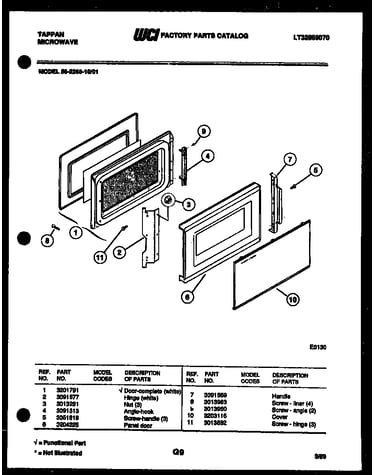

Door parts diagram

Screw

Part #3051818

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 3051818. Substitute parts can look different from the original.
This item is not returnable
In Stock
Fuse - Thermal 3091280
#7

Power control diagram

Fuse - thermal

Part #3091280

The manufacturer no longer makes this part, and there's no substitute part
