Eureka
Upright Vacuum

Model # 167A Official Eureka stick broom vacuum cleaner

Here are the diagrams and repair parts for Official Eureka 167A stick broom vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |

Kenmore Fluid Support 13920-1
#3

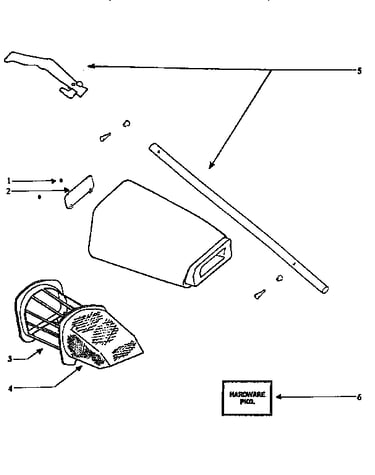

Handle and bag housing diagram

Kenmore fluid support

Part #13920-1

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Distributor 54578
#8

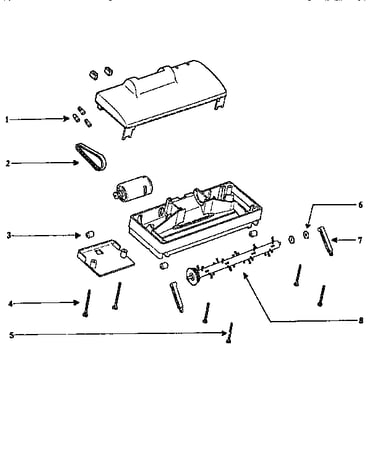

Base assembly diagram

Kenmore distributor

Part #54578

The manufacturer no longer makes this part, and there's no substitute part

Eureka Latch 37449-119N
#5

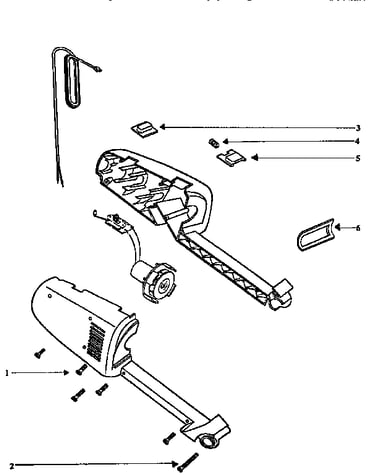

Nozzle and motor assembly diagram

Eureka latch

Part #37449-119N

The manufacturer no longer makes this part, and there's no substitute part

Eureka Guide 58573A

#NI

All parts diagram

Eureka guide

Part #58573A

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Screw 53292-2
#2

Nozzle and motor assembly diagram

Kenmore screw

Part #53292-2

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Screw 53292-1
#1

Nozzle and motor assembly diagram

Kenmore screw

Part #53292-1

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Handle 38625-1
#5

Handle and bag housing diagram

Kenmore vacuum handle

Part #38625-1

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 53214-1
#1

Base assembly diagram

Twist-on wire connector

Part #53214-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 56334
#2

Base assembly diagram

Vacuum beater bar belt

Part #56334

The manufacturer no longer makes this part, and there's no substitute part

Flap 37464
#2

Handle and bag housing diagram

Flap

Part #37464

The manufacturer no longer makes this part, and there's no substitute part
