Model # KM484KXM0 Official White-Westinghouse microwave

Here are the diagrams and repair parts for Official White-Westinghouse KM484KXM0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Screw 636T090P46

#NI

All parts diagram

Screw

Part #636T090P46

This item is not returnable
$2.16
In Stock
Rivet 615T030P03
#32

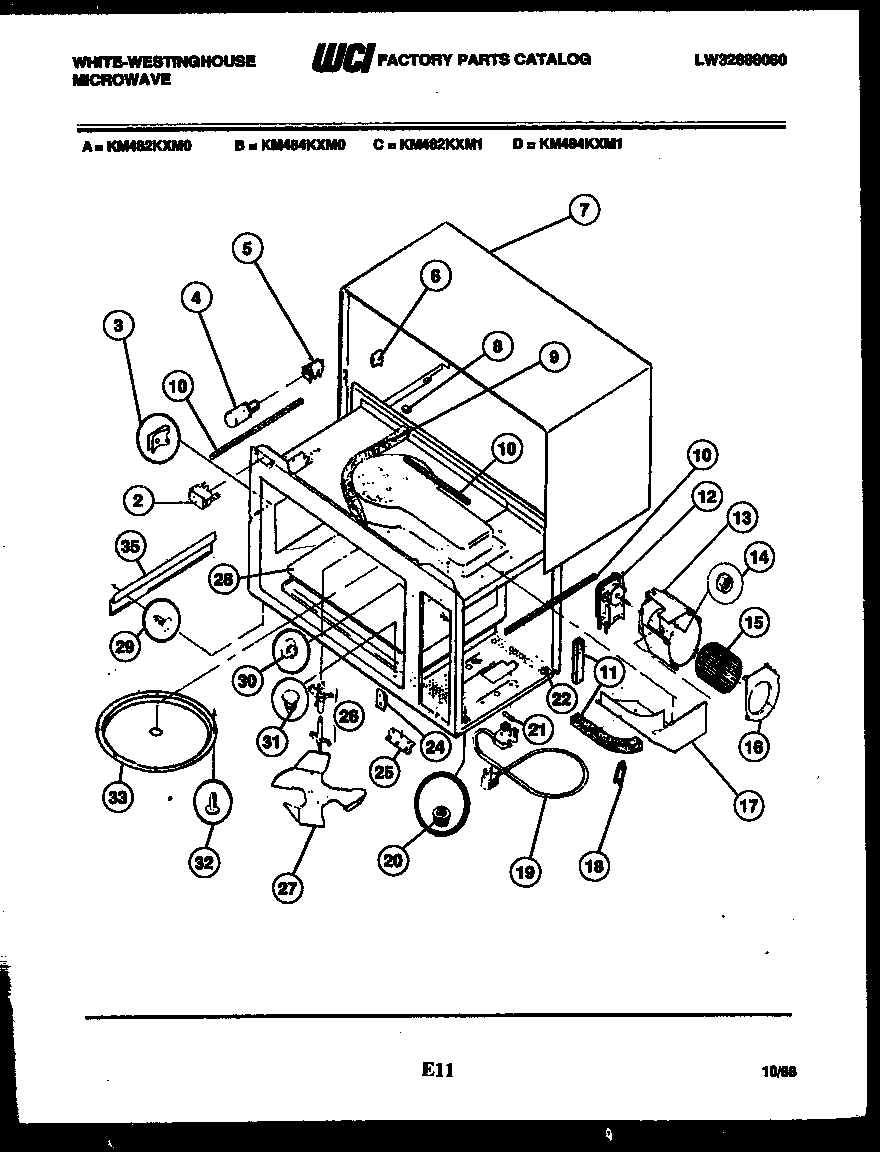

Body parts diagram

Rivet

Part #615T030P03

Replaced by #3013807

?
Manufacturer substitution
This part replaces 615T030P03. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Door-complete Q198519
#1

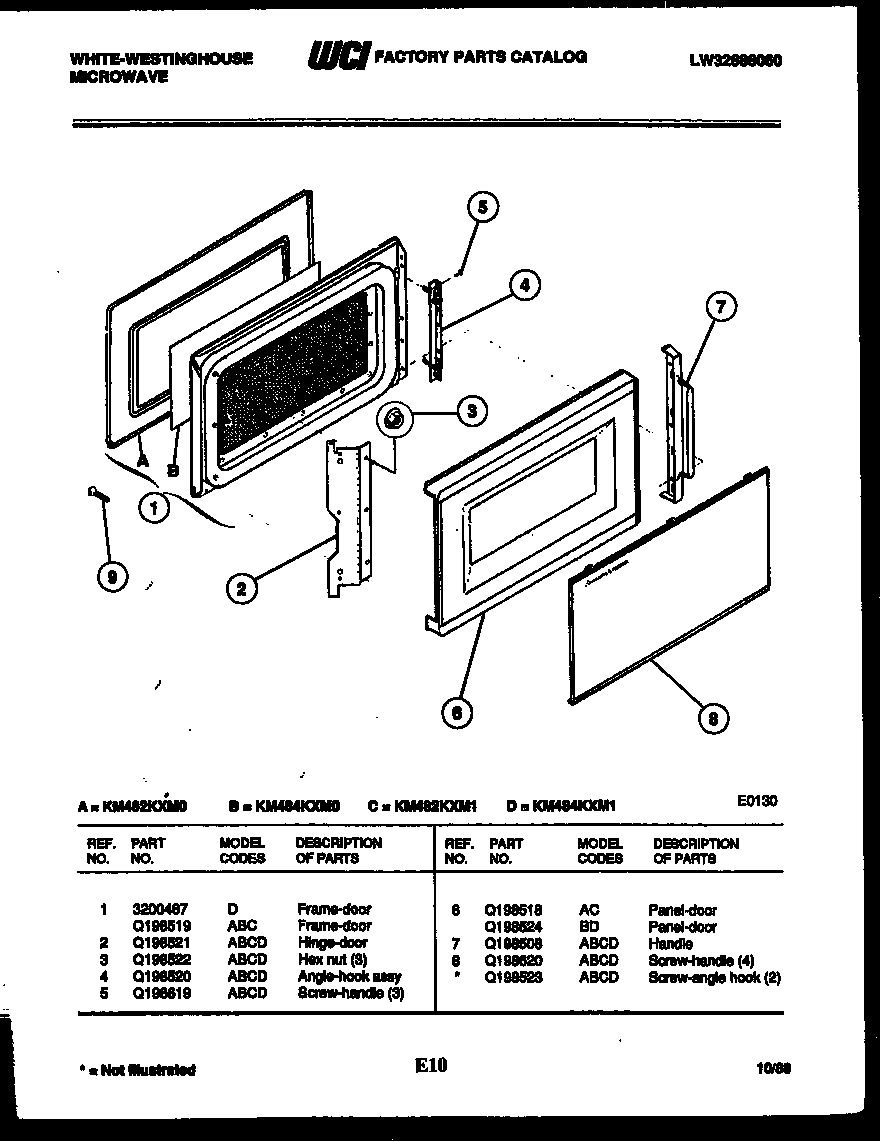

Door parts diagram

Door-complete

Part #Q198519

The manufacturer no longer makes this part, and there's no substitute part

Door Panel Q198524
#6

Door parts diagram

Door panel

Part #Q198524

The manufacturer no longer makes this part, and there's no substitute part

Fuse-thermal Q198489
#7

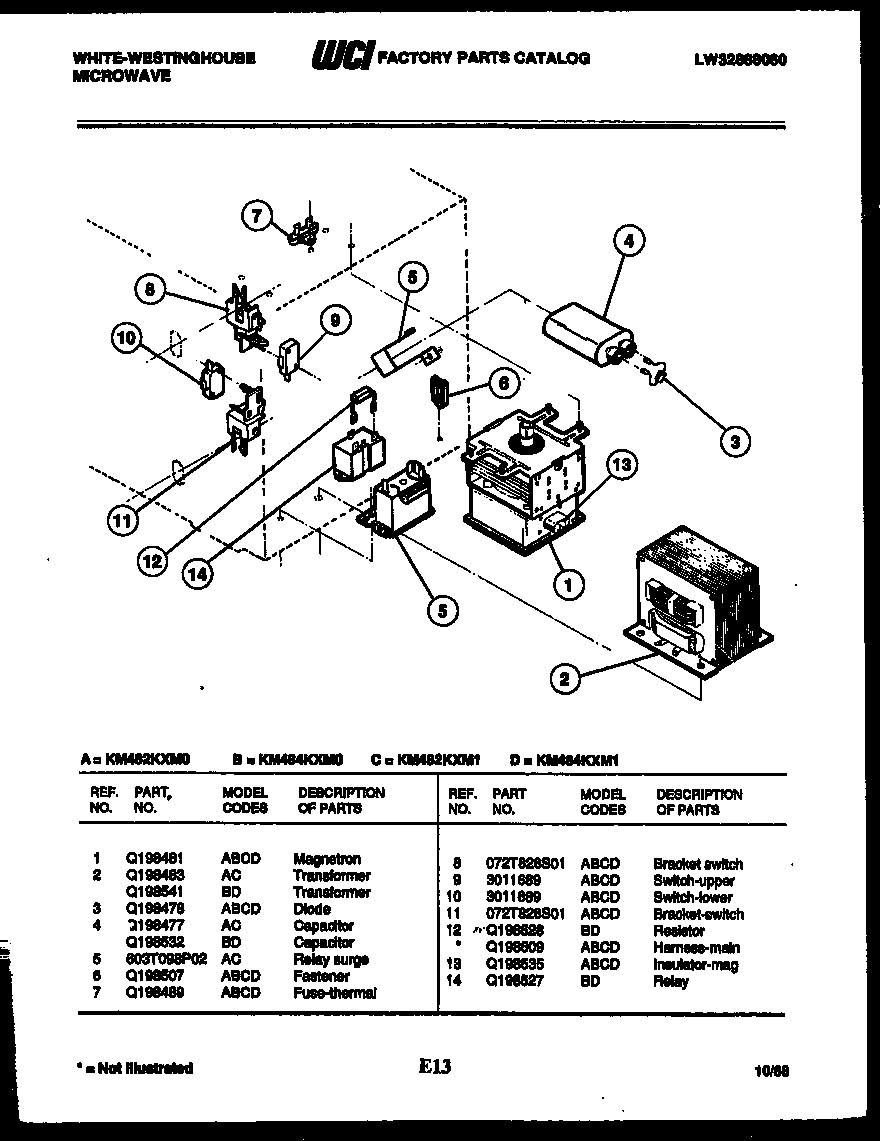

Power control diagram

Fuse-thermal

Part #Q198489

The manufacturer no longer makes this part, and there's no substitute part

Plate-control Q198514
#2

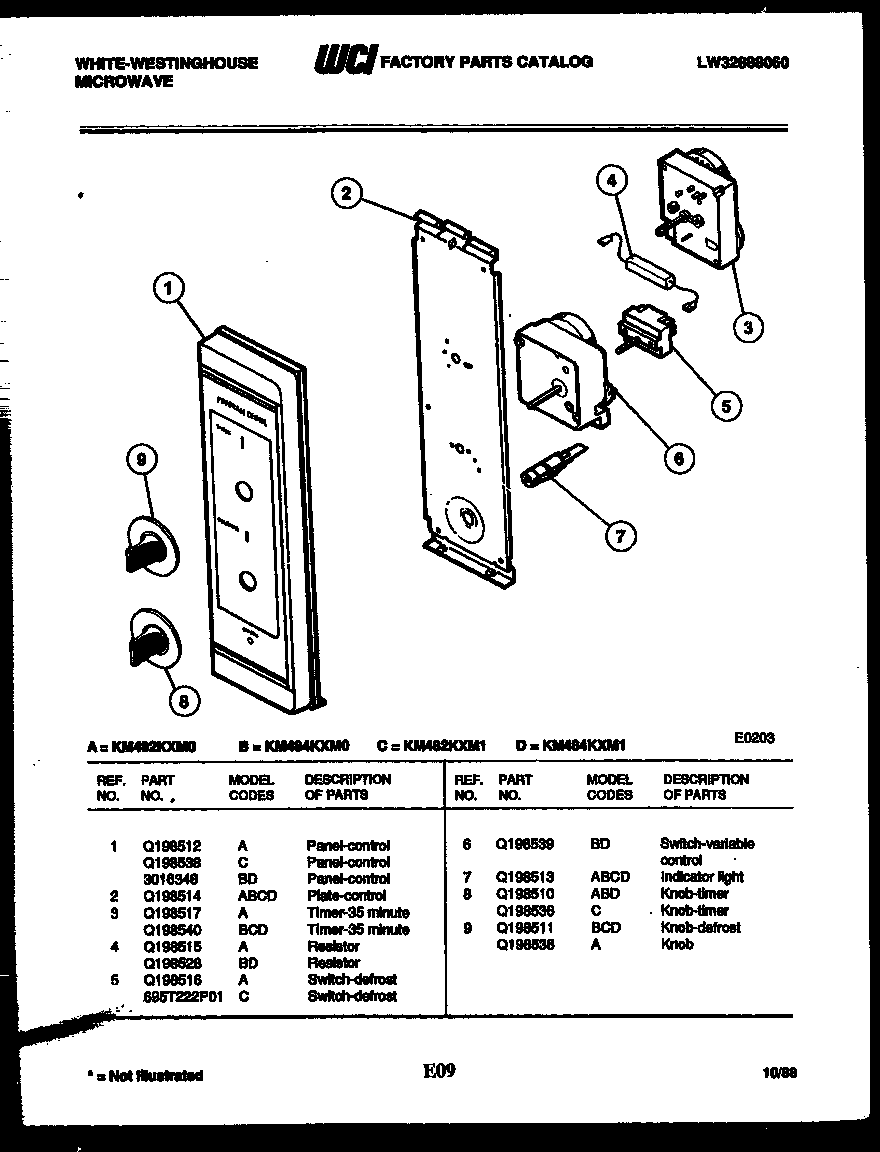

Control panel diagram

Plate-control

Part #Q198514

The manufacturer no longer makes this part, and there's no substitute part

Nut 479T069P01
#14

Body parts diagram

Nut

Part #479T069P01

The manufacturer no longer makes this part, and there's no substitute part

Harness-main (non-illustrated) Q198509
#12A

Power control diagram

Harness-main (non-illustrated)

Part #Q198509

The manufacturer no longer makes this part, and there's no substitute part

Duct - Air Cavity Q198487
#17

Body parts diagram

Duct - air cavity

Part #Q198487

The manufacturer no longer makes this part, and there's no substitute part

Knob Defrost Q198511
#9

Control panel diagram

Knob defrost

Part #Q198511

The manufacturer no longer makes this part, and there's no substitute part
