DeWalt
Reciprocating Saw

Model # DW304K TYPE 2 Official DeWalt saw

Here are the diagrams and repair parts for Official DeWalt DW304K-TYPE-2 saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Field Case 447799-07
#43

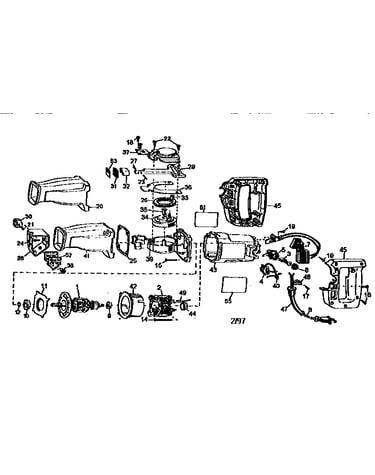

Unit parts diagram

Field case

Part #447799-07

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Reciprocating Saw Field Assembly 448719-71
#2

Unit parts diagram

Black & decker reciprocating saw field assembly

Part #448719-71

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Reciprocating Saw Blade Clamp 679868-00
#30

Unit parts diagram

Black & decker reciprocating saw blade clamp

Part #679868-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 330003-09
#10

Unit parts diagram

Power tool bearing

Part #330003-09

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Reciprocating Saw Clamp Pin 144434-00
#23

Unit parts diagram

Black & decker reciprocating saw clamp pin

Part #144434-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Bearing 450865-00
#32

Unit parts diagram

Black & decker bearing

Part #450865-00

The manufacturer no longer makes this part, and there's no substitute part

Pin 158466-00
#27

Unit parts diagram

Pin

Part #158466-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Bearing 135531-00
#35

Unit parts diagram

Black & decker bearing

Part #135531-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 330005-01
#47

Unit parts diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Screw, #6-19 X 5/8-in 330013-03
#17

Unit parts diagram

Power tool screw, #6-19 x 5/8-in

Part #330013-03

The manufacturer no longer makes this part, and there's no substitute part
