Canon
Digital Camcorder

Model # FS100A Official Canon digital camcorder

Here are the diagrams and repair parts for Official Canon FS100A digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

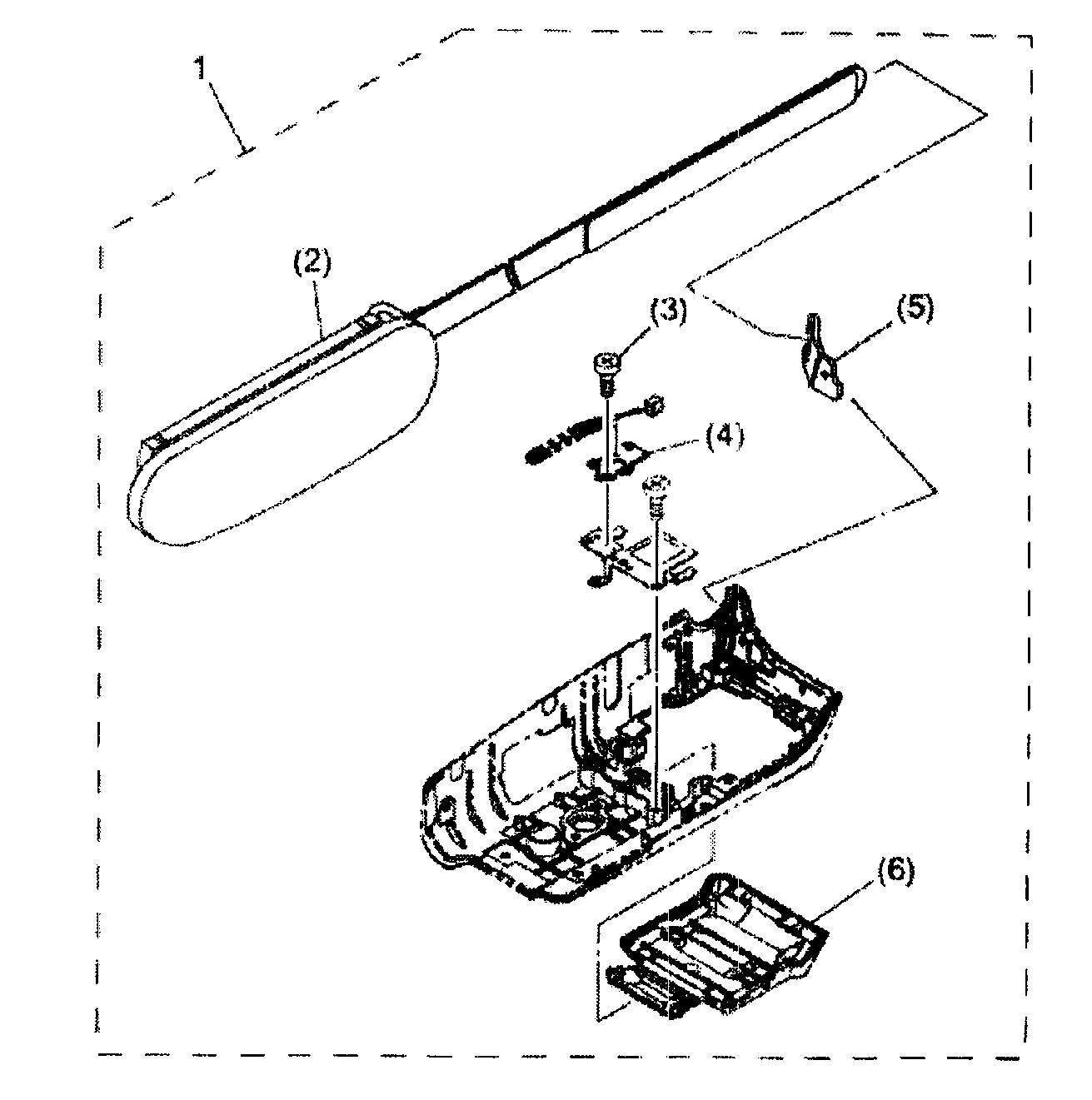

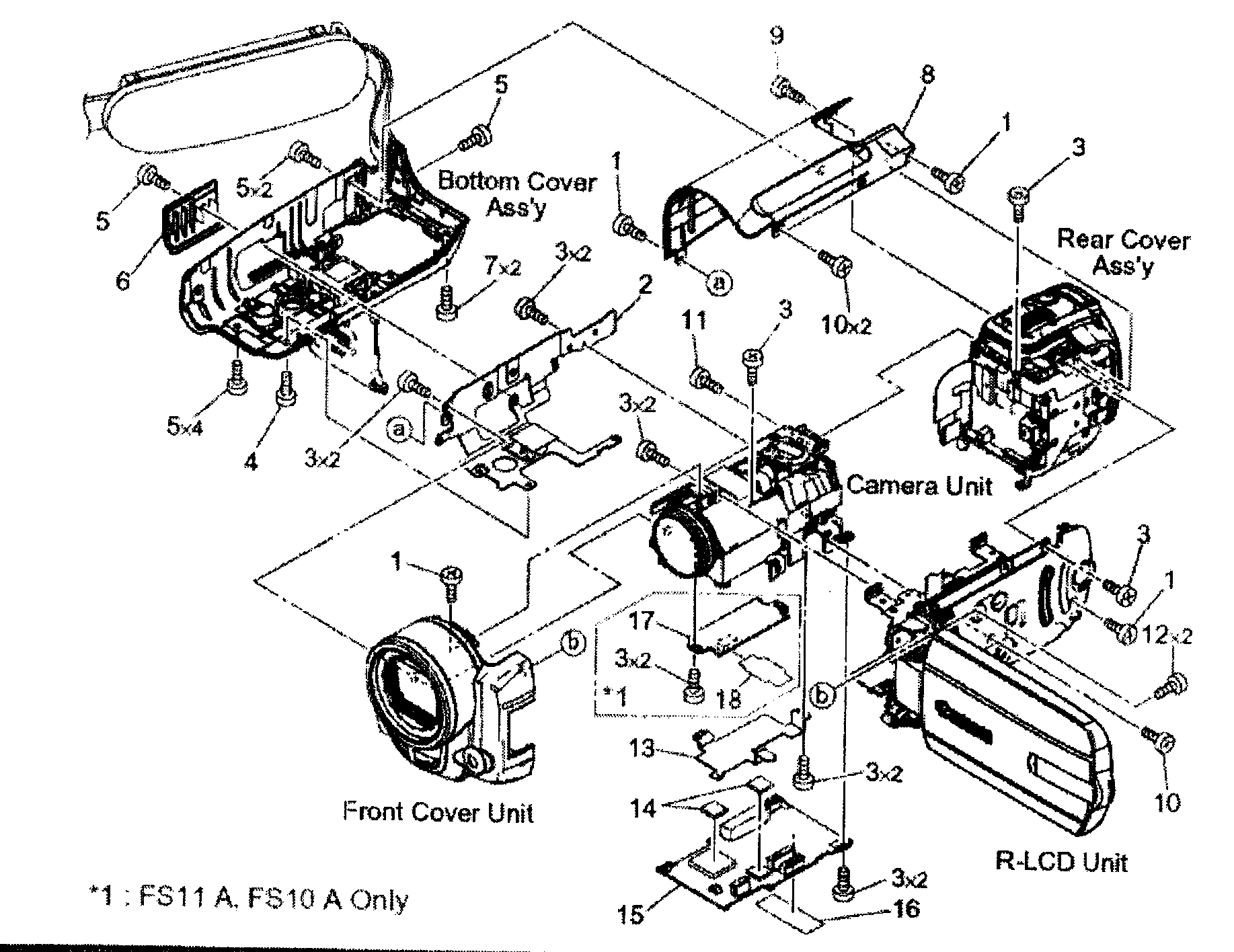

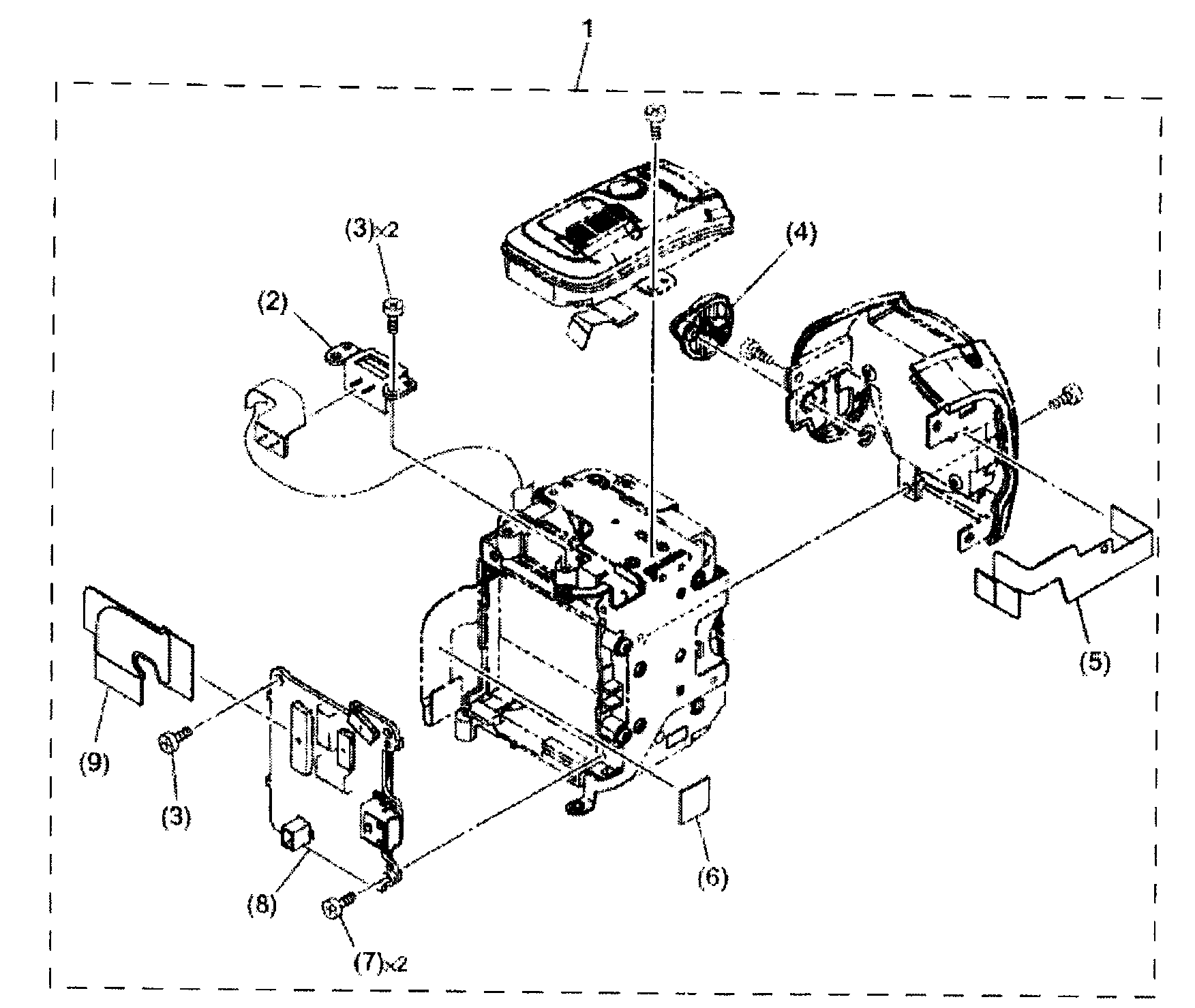

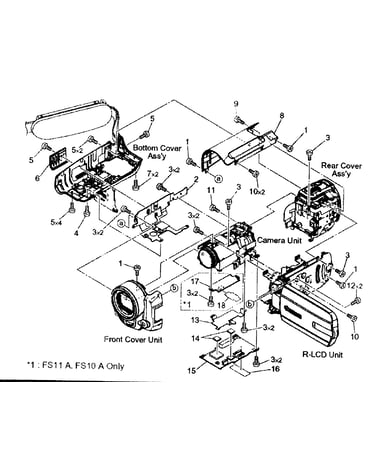

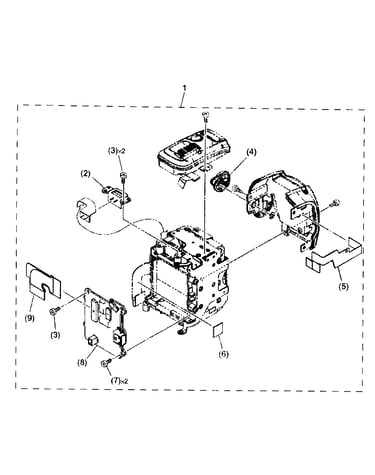

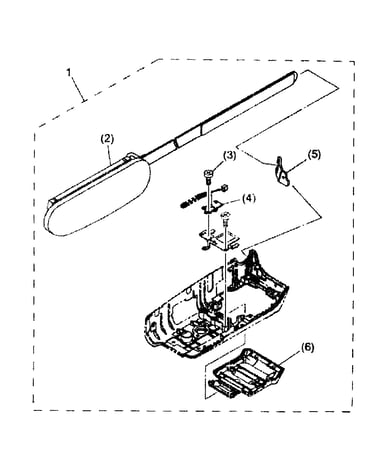

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Lcd Pcb Ay DG3-2526-000
#4

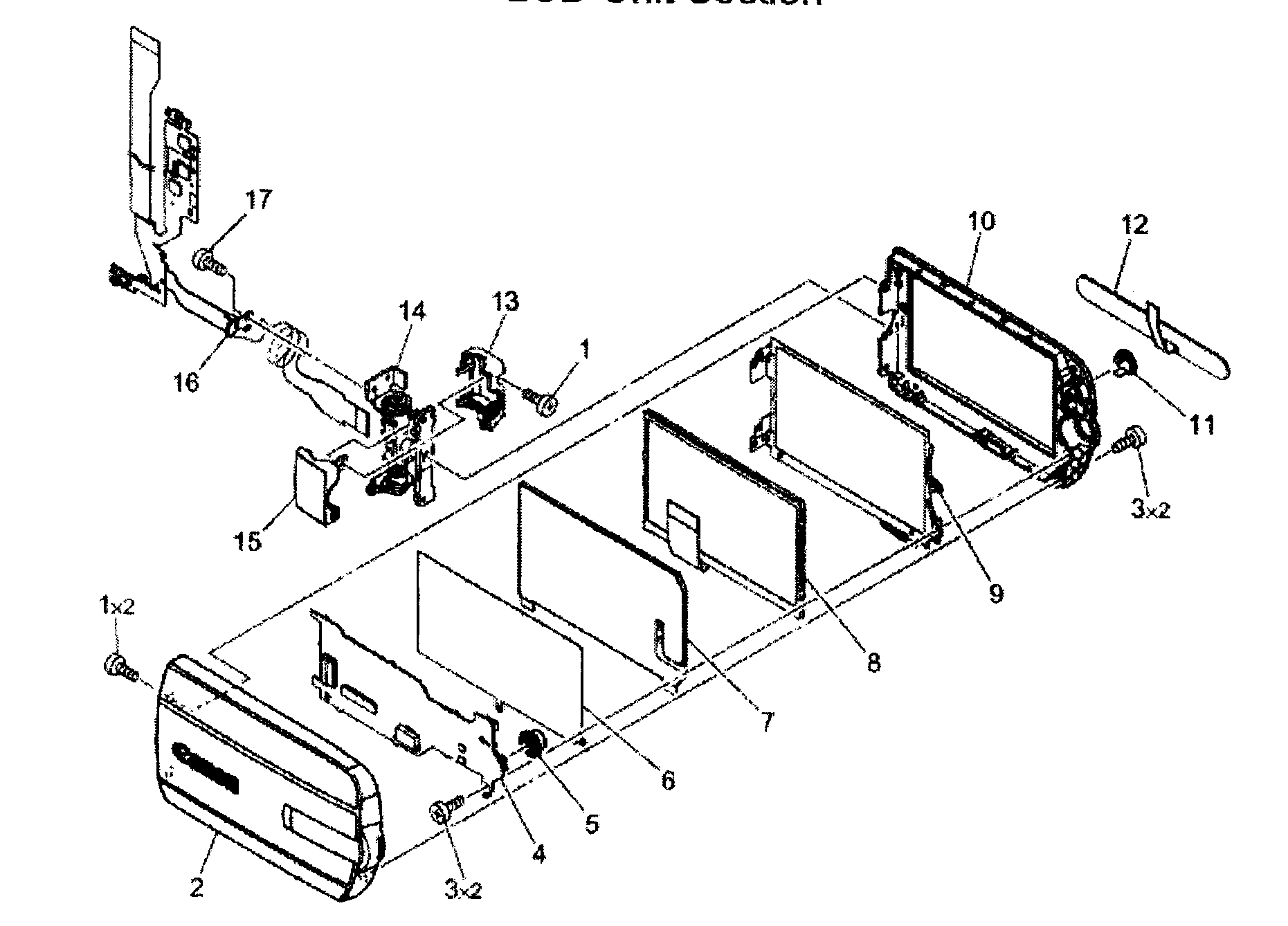

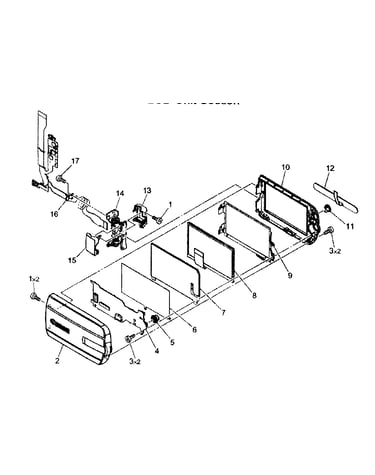

Lcd unit diagram

Lcd pcb ay

Part #DG3-2526-000

The manufacturer no longer makes this part, and there's no substitute part

Ground Plate DA3-7586-000
#5

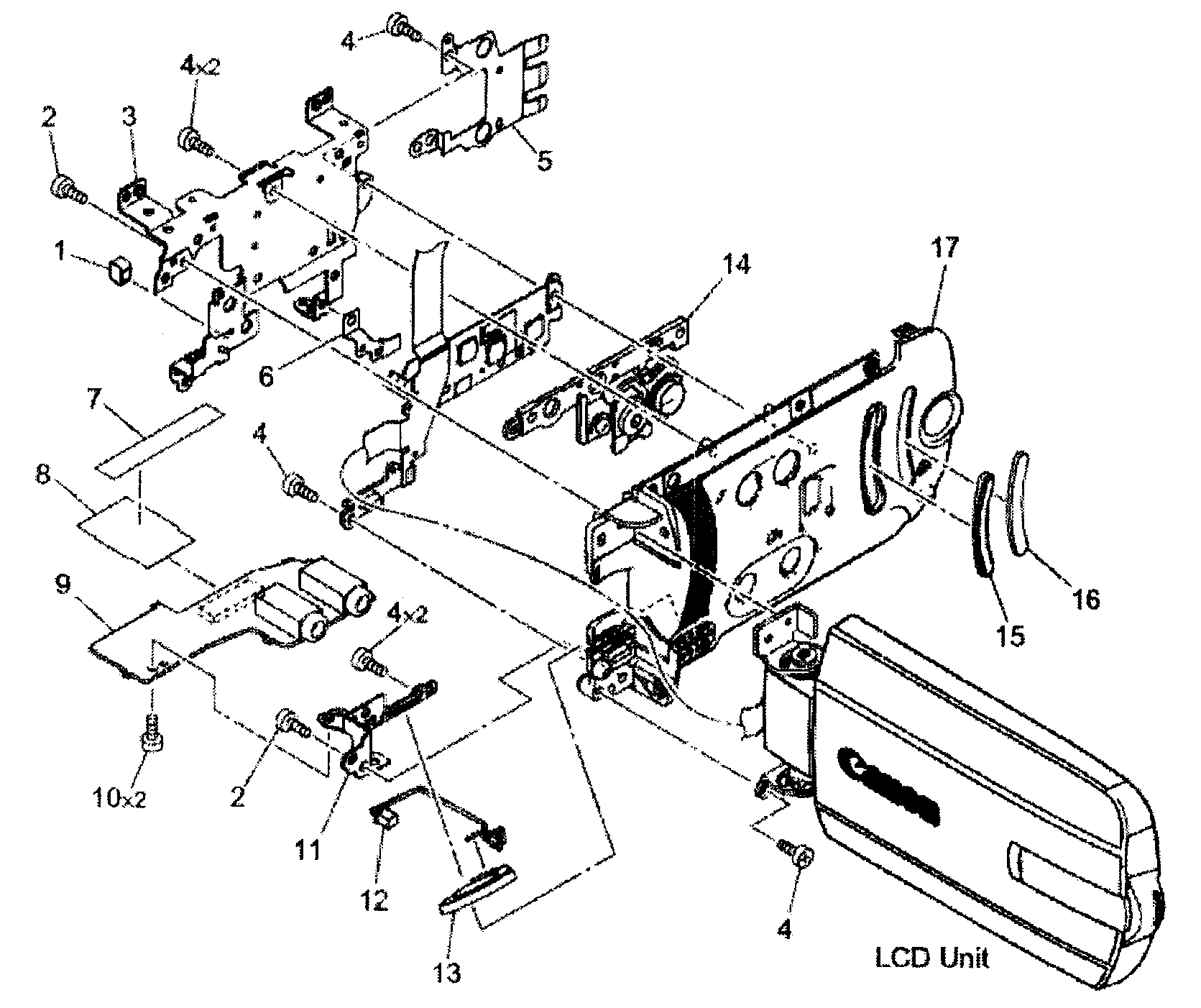

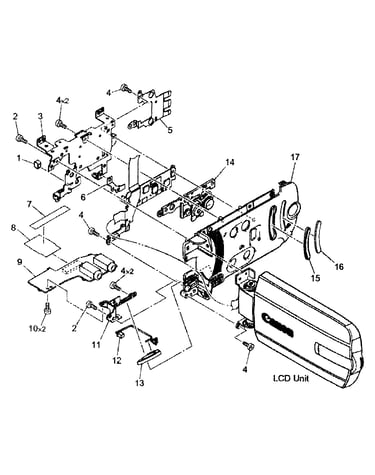

R-lcd unit diagram

Ground plate

Part #DA3-7586-000

The manufacturer no longer makes this part, and there's no substitute part

Ac Adapter CA-590
#6

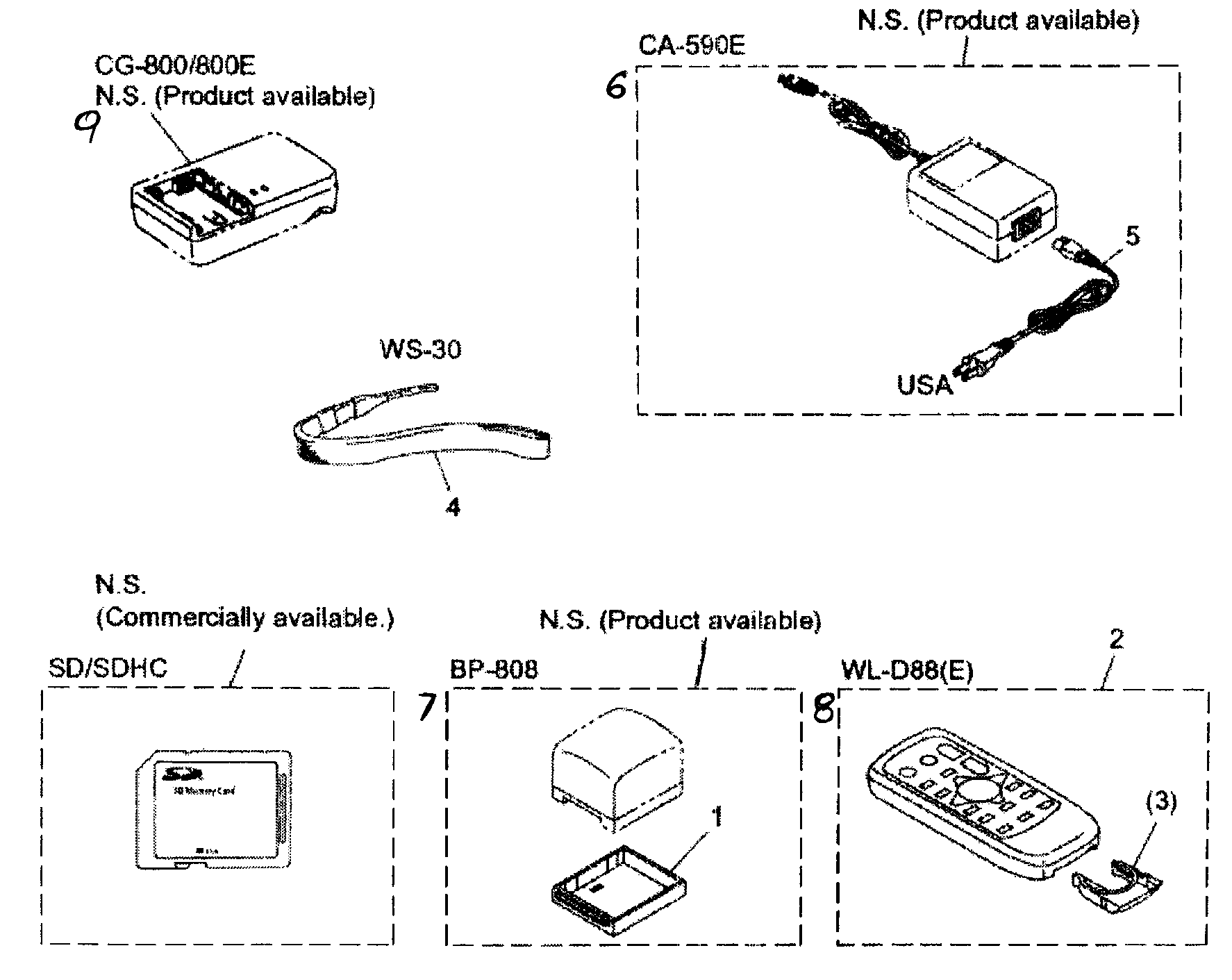

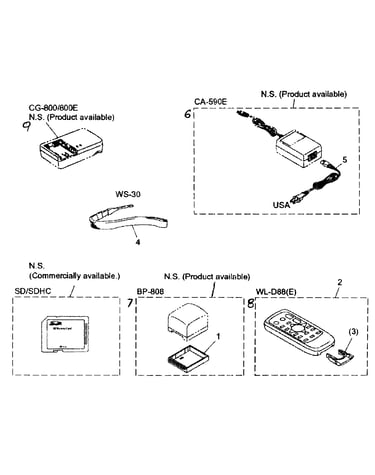

Accessory diagram

Ac adapter

Part #CA-590

The manufacturer no longer makes this part, and there's no substitute part

Canon Lcd Cover DY1-9215-000
#2

Lcd unit diagram

Canon lcd cover

Part #DY1-9215-000

The manufacturer no longer makes this part, and there's no substitute part

Sheet DA3-7833-000
#7

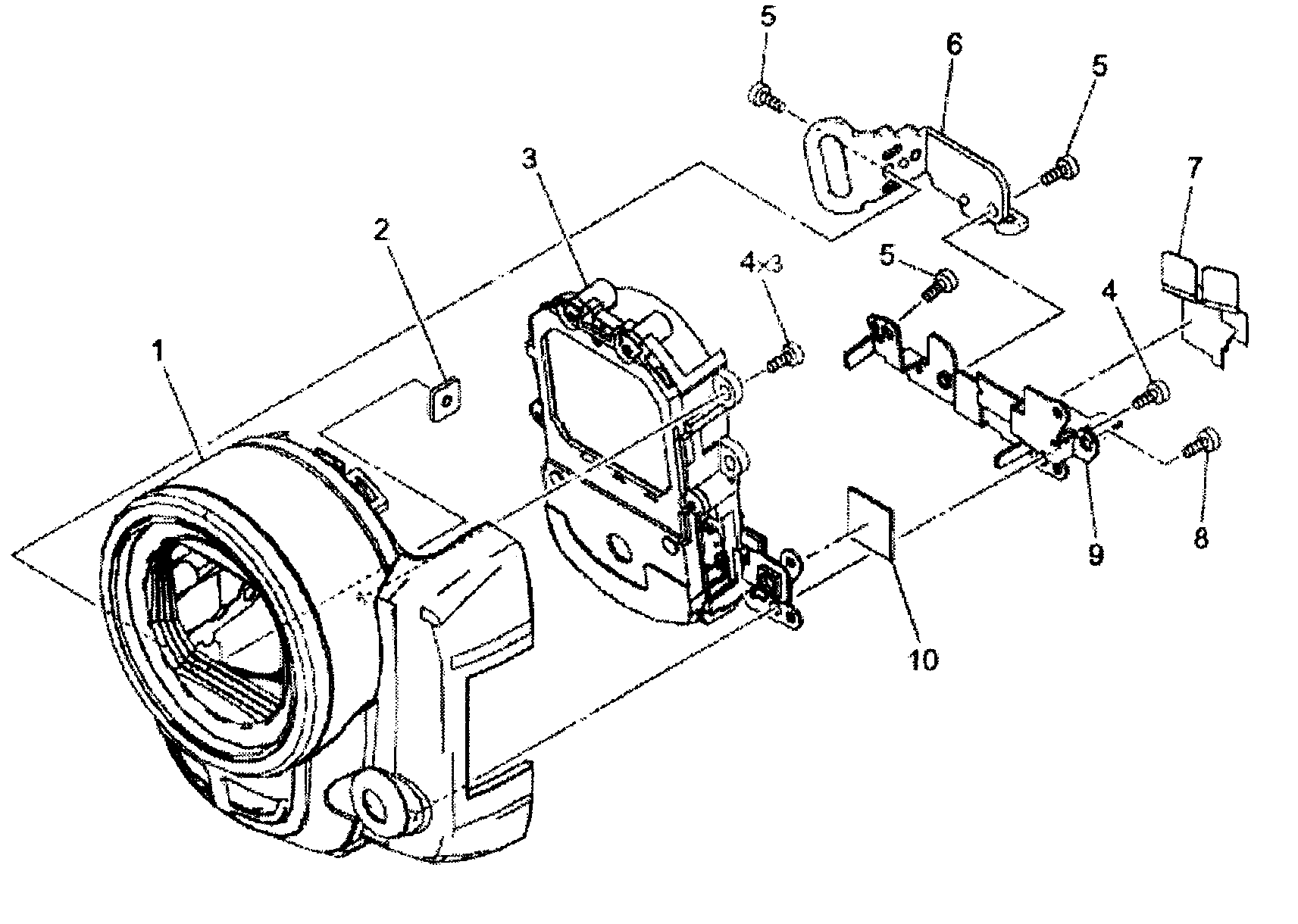

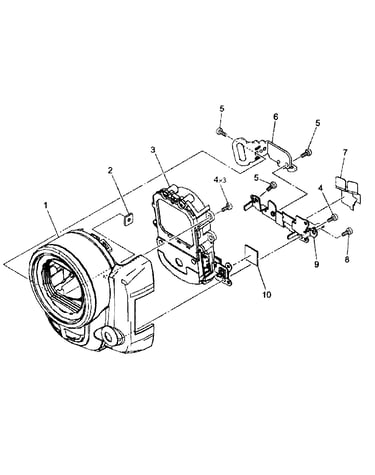

Front cover unit diagram

Sheet

Part #DA3-7833-000

The manufacturer no longer makes this part, and there's no substitute part

Ring Lens DA3-6126-000
#9

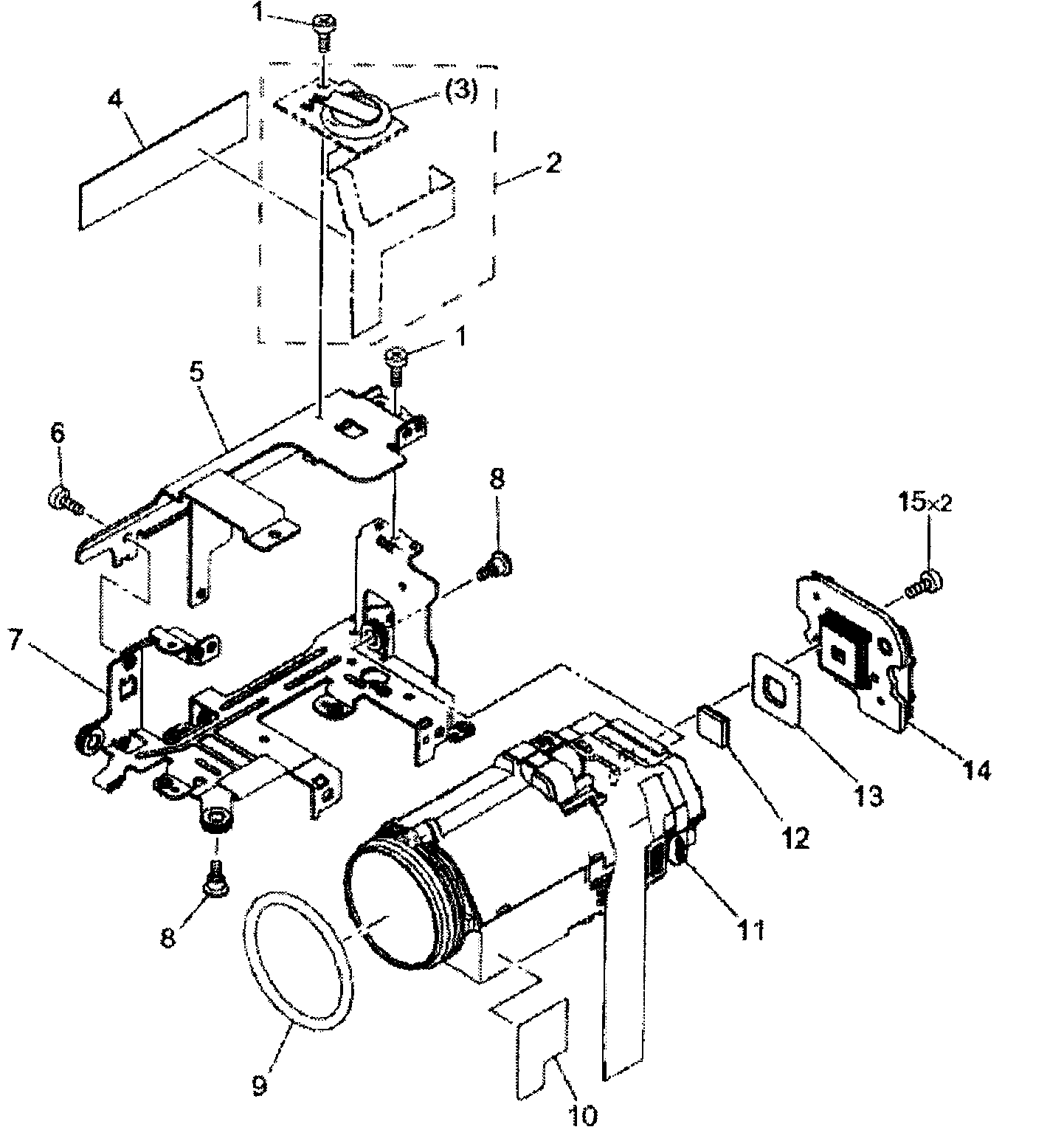

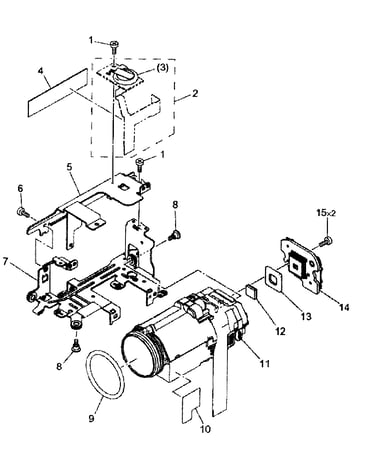

Lens unit diagram

Ring lens

Part #DA3-6126-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Cover DA3-7842-000
#17A

R-lcd unit diagram

Canon cover

Part #DA3-7842-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Cover DA3-7847-000
#15A

Lcd unit diagram

Canon cover

Part #DA3-7847-000

The manufacturer no longer makes this part, and there's no substitute part

Plate DA3-7606-000
#6

R-lcd unit diagram

Plate

Part #DA3-7606-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DA3-7589-000
#10

Lcd unit diagram

Cover

Part #DA3-7589-000

The manufacturer no longer makes this part, and there's no substitute part
