Model # A218AKA1 Official ICP condensing unit

Here are the diagrams and repair parts for Official ICP A218AKA1 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Central Air Conditioner Refrigerant Suction Line Service Valve 1085991
#7

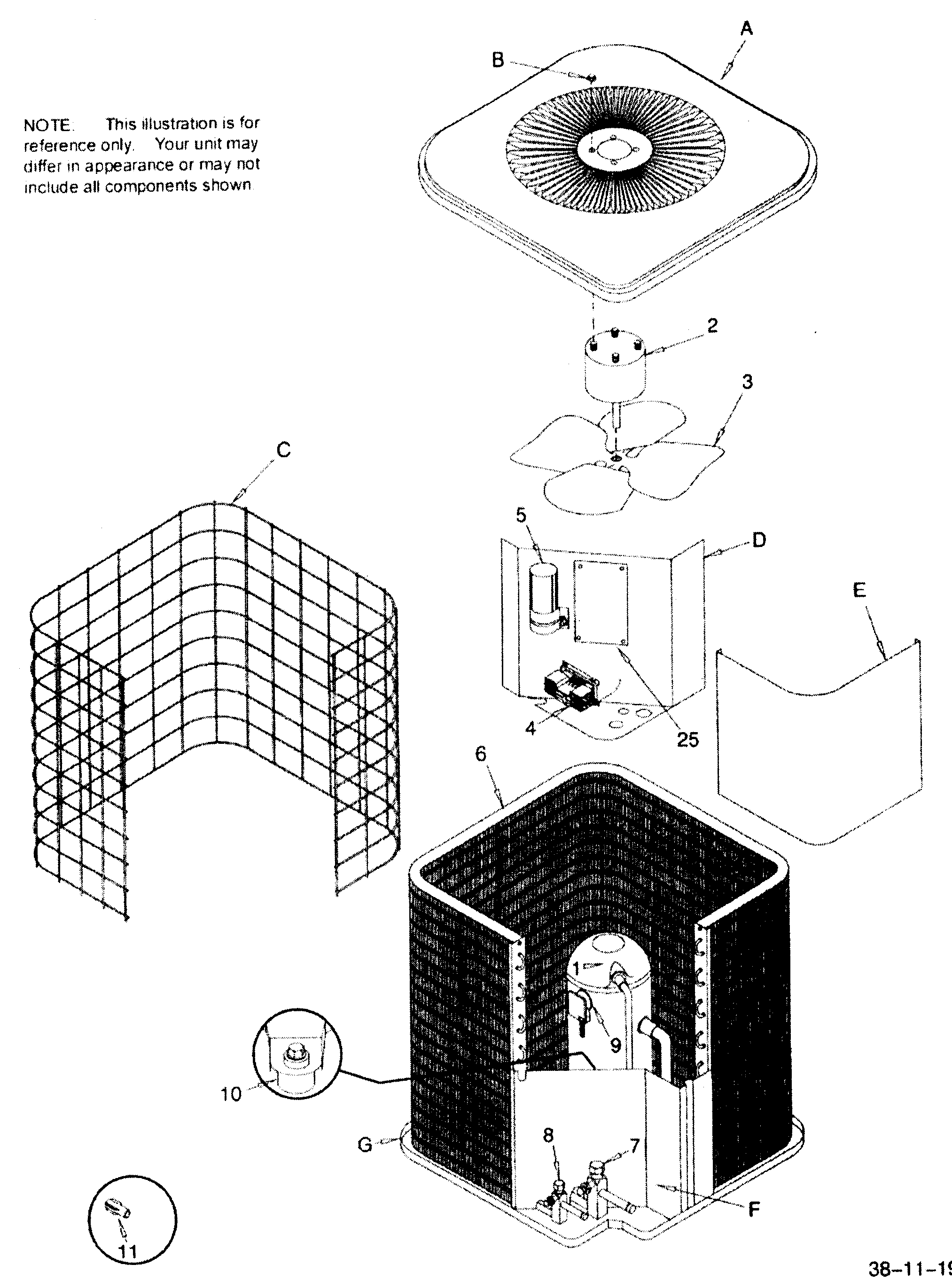

Cabinet parts diagram

Central air conditioner refrigerant suction line service valve

Part #1085991

$107.04
In Stock
Central Air Conditioner Condenser Fan Blade 1085684
#3

Cabinet parts diagram

Central air conditioner condenser fan blade

Part #1085684

$91.57
In Stock
Valve 1085989
#8

Cabinet parts diagram

Valve

Part #1085989

$73.29
In Stock
Plug Wire 1081938
#9

Cabinet parts diagram

Plug wire

Part #1081938

Replaced by #1083654

?
Manufacturer substitution
This part replaces 1081938. Substitute parts can look different from the original.
$54.17 |
10% OFF Phone Price : $60.17
In Stock
Contactor 1050699
#4

Cabinet parts diagram

Contactor

Part #1050699

Replaced by #94-388

?
Manufacturer substitution
This part replaces 1050699. Substitute parts can look different from the original.
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Coil-cndsr 1086134
#6

Cabinet parts diagram

Coil-cndsr

Part #1086134

Replaced by #1088278

?
Manufacturer substitution
This part replaces 1086134. Substitute parts can look different from the original.
$1280.74
In Stock
Box Cover 1086004
#E

Cabinet parts diagram

Box cover

Part #1086004

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 1082631
#5

Cabinet parts diagram

Capacitor

Part #1082631

The manufacturer no longer makes this part, and there's no substitute part

Compressor ZR16K4PFV130
#1

Cabinet parts diagram

Compressor

Part #ZR16K4PFV130

The manufacturer no longer makes this part, and there's no substitute part

Base Panel 1085982
#G

Cabinet parts diagram

Base panel

Part #1085982

The manufacturer no longer makes this part, and there's no substitute part
