Model # DCH363KL TYPE 1 Official DeWalt cordless rotary hammer

Here are the diagrams and repair parts for Official DeWalt DCH363KL-TYPE-1 cordless rotary hammer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Lever 575025-00
#80

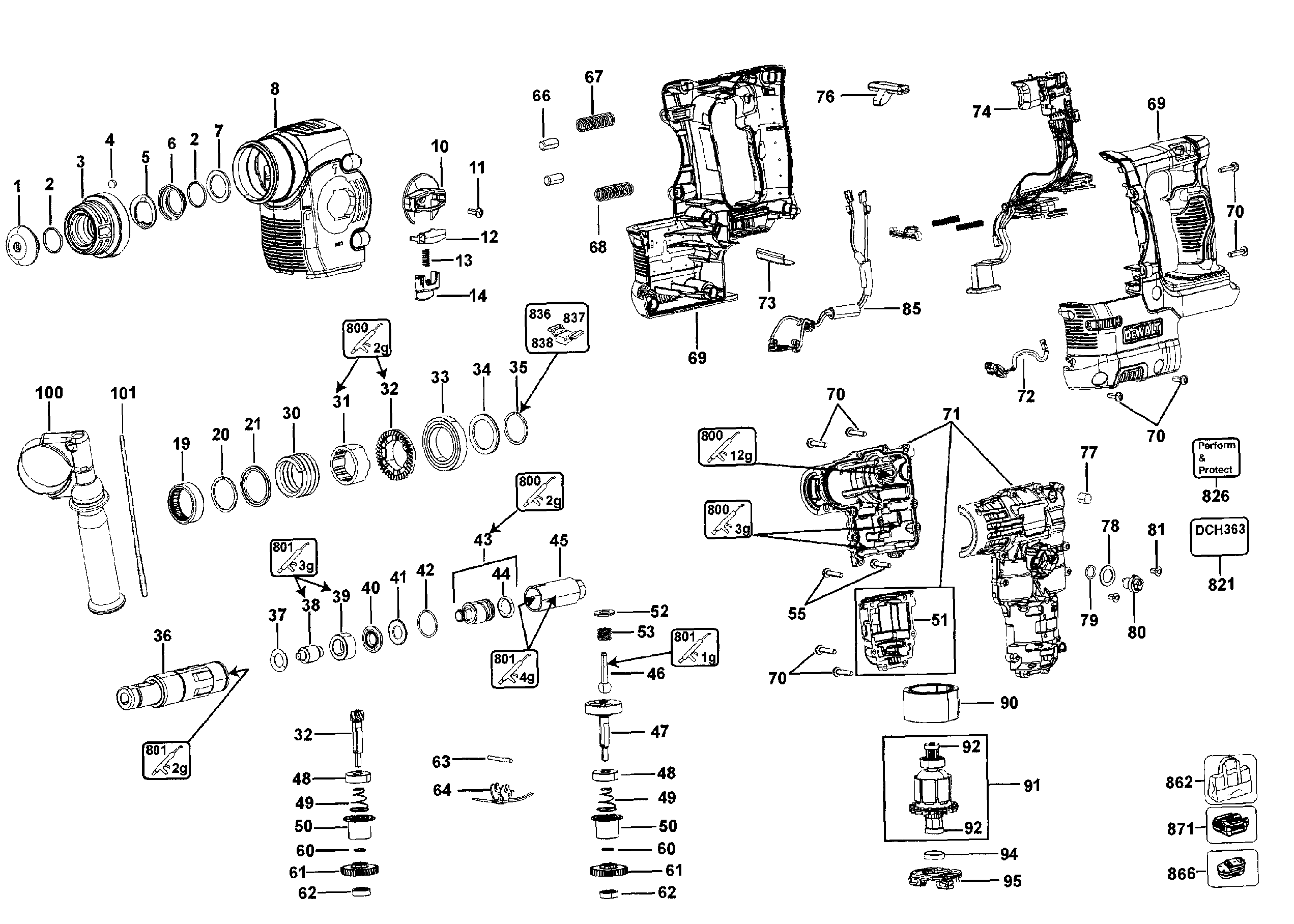

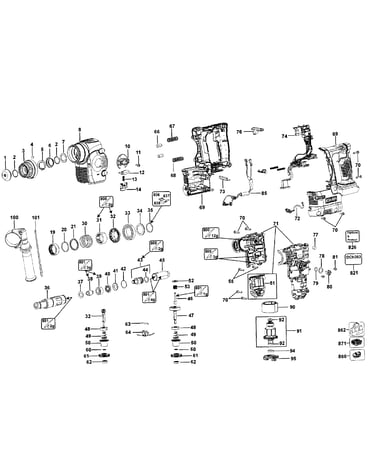

Drill assy diagram

Lever

Part #575025-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-81
#55

Drill assy diagram

Screw

Part #330019-81

The manufacturer no longer makes this part, and there's no substitute part

Collar N150085
#50

Drill assy diagram

Collar

Part #N150085

The manufacturer no longer makes this part, and there's no substitute part

Gear Kit N290001
#32

Drill assy diagram

Gear kit

Part #N290001

The manufacturer no longer makes this part, and there's no substitute part

Spring N074923
#13

Drill assy diagram

Spring

Part #N074923

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Latch N269419
#73

Drill assy diagram

Dewalt latch

Part #N269419

The manufacturer no longer makes this part, and there's no substitute part

Hammer Drill Ball 583890-00
#4

Drill assy diagram

Hammer drill ball

Part #583890-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Hammer Drill Battery Pack, 36-volt DCB361
#NI

Drill assy diagram

Dewalt hammer drill battery pack, 36-volt

Part #DCB361

The manufacturer no longer makes this part, and there's no substitute part

O N114827
#44

Drill assy diagram

O

Part #N114827

The manufacturer no longer makes this part, and there's no substitute part

Pin 575032-00
#66

Drill assy diagram

Pin

Part #575032-00

The manufacturer no longer makes this part, and there's no substitute part
