Kenmore
Coffee Maker

Model # 62067280 Official Kenmore stainless steel immersible coffee maker

Here are the diagrams and repair parts for Official Kenmore 62067280 stainless steel immersible coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

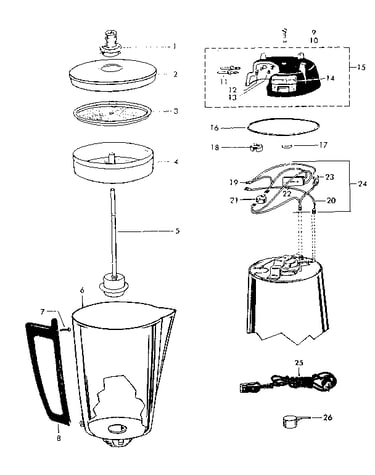

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Lead Wire 95546
#20

Replacement parts diagram

Lead wire

Part #95546

The manufacturer no longer makes this part, and there's no substitute part

Pin 95274
#11

Replacement parts diagram

Pin

Part #95274

The manufacturer no longer makes this part, and there's no substitute part

Terminal 27112
#12

Replacement parts diagram

Terminal

Part #27112

The manufacturer no longer makes this part, and there's no substitute part

Coffee Scoop 49318
#26

Replacement parts diagram

Coffee scoop

Part #49318

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 34023
#21

Replacement parts diagram

Thermostat

Part #34023

The manufacturer no longer makes this part, and there's no substitute part

Heater 35056
#22

Replacement parts diagram

Heater

Part #35056

The manufacturer no longer makes this part, and there's no substitute part

Body Assembly 98398
#6

Replacement parts diagram

Body assembly

Part #98398

The manufacturer no longer makes this part, and there's no substitute part

O-ring 33037
#10

Replacement parts diagram

O-ring

Part #33037

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 27110
#19

Replacement parts diagram

Receptacle

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Screw 24501
#7

Replacement parts diagram

Screw

Part #24501

The manufacturer no longer makes this part, and there's no substitute part
