Skil
Circular Saw

Model # 5790 TYPE 1 Official Skil power saw

Here are the diagrams and repair parts for Official Skil 5790-TYPE-1 power saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |

Baffle 326193
#23

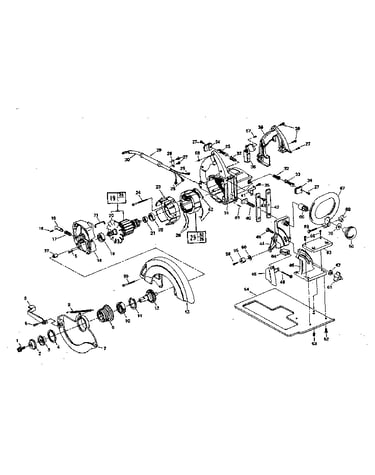

Unit parts diagram

Baffle

Part #326193

The manufacturer no longer makes this part, and there's no substitute part

Washer 320493
#70

Unit parts diagram

Washer

Part #320493

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 326107
#53

Unit parts diagram

Set screw

Part #326107

The manufacturer no longer makes this part, and there's no substitute part

Screw 326028
#43

Unit parts diagram

Screw

Part #326028

The manufacturer no longer makes this part, and there's no substitute part

Gear/shft As 326191
#12

Unit parts diagram

Gear/shft as

Part #326191

The manufacturer no longer makes this part, and there's no substitute part

Grnd Strap 321435
#71

Unit parts diagram

Grnd strap

Part #321435

The manufacturer no longer makes this part, and there's no substitute part

Washer 326090
#47

Unit parts diagram

Washer

Part #326090

The manufacturer no longer makes this part, and there's no substitute part

Upper Guard 326111
#13

Unit parts diagram

Upper guard

Part #326111

The manufacturer no longer makes this part, and there's no substitute part

Bearing 11012
#37

Unit parts diagram

Bearing

Part #11012

The manufacturer no longer makes this part, and there's no substitute part

Aux Grd Adp 326148
#64

Unit parts diagram

Aux grd adp

Part #326148

The manufacturer no longer makes this part, and there's no substitute part
