Model # RCB60A3B/P1205312C Official Amana remote condensing unit technical information

Here are the diagrams and repair parts for Official Amana RCB60A3B-P1205312C remote condensing unit technical information, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Condenser Fan 10625707
#2031

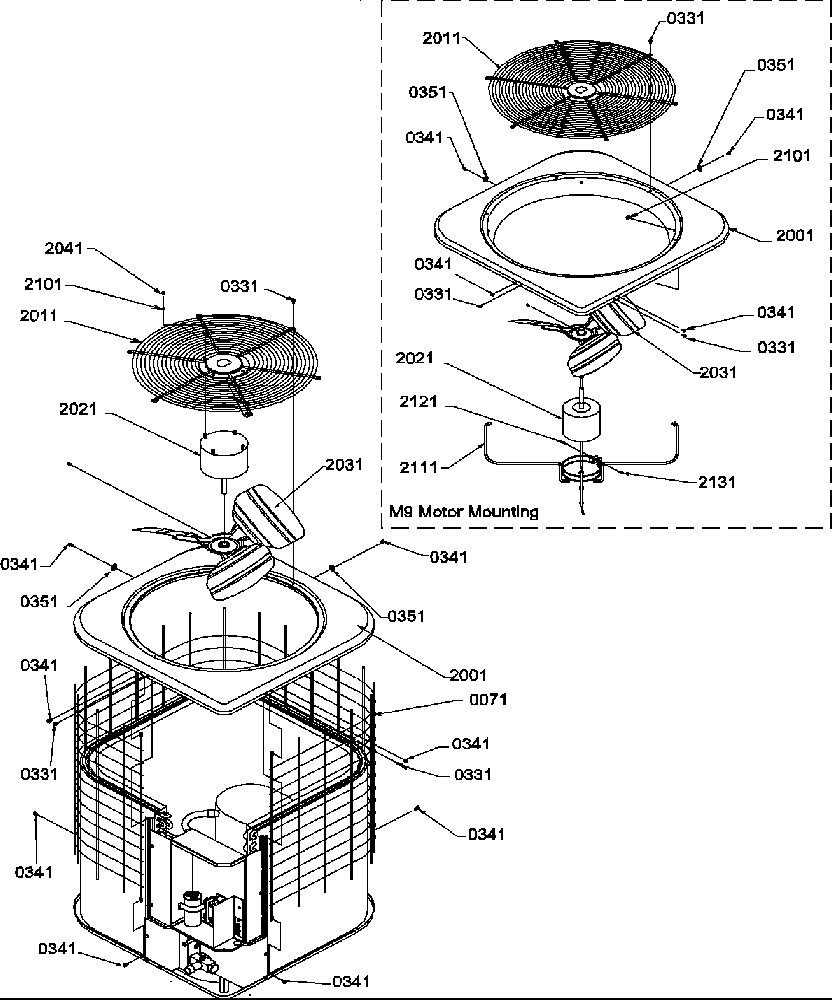

Motor mount assembly diagram

Condenser fan

Part #10625707

$119.74
In Stock
Grille-formed 10596707
#71

Motor mount assembly diagram

Grille-formed

Part #10596707

The manufacturer no longer makes this part, and there's no substitute part

Control Box 11009601
#12

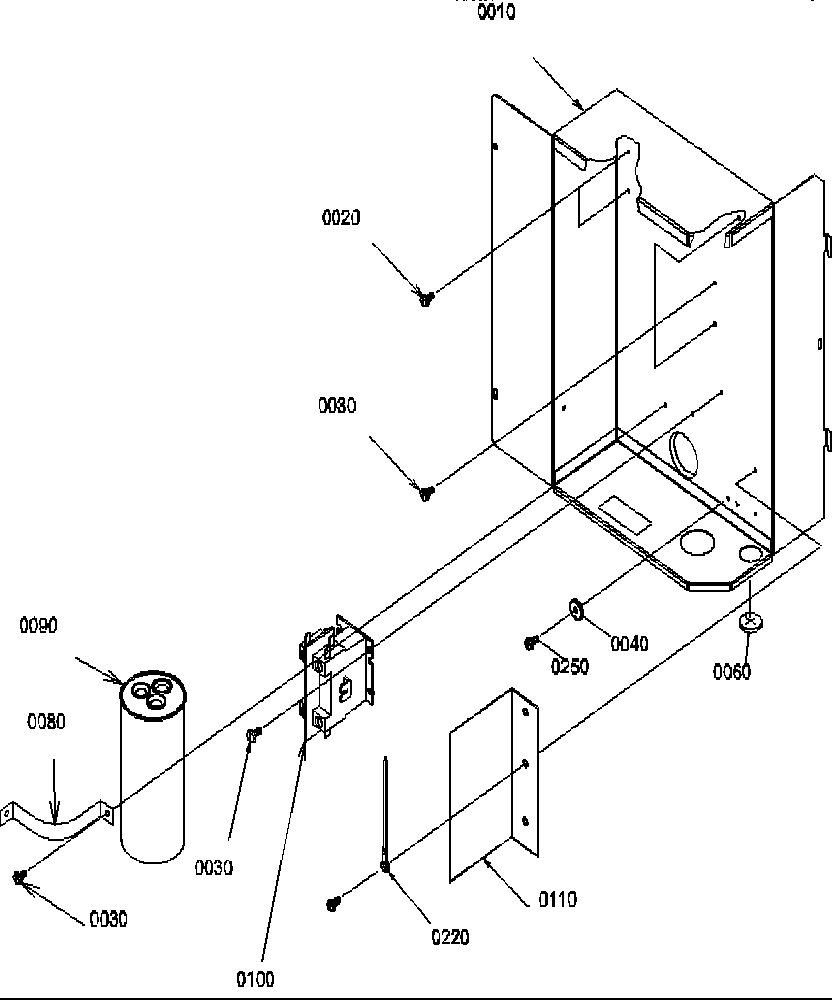

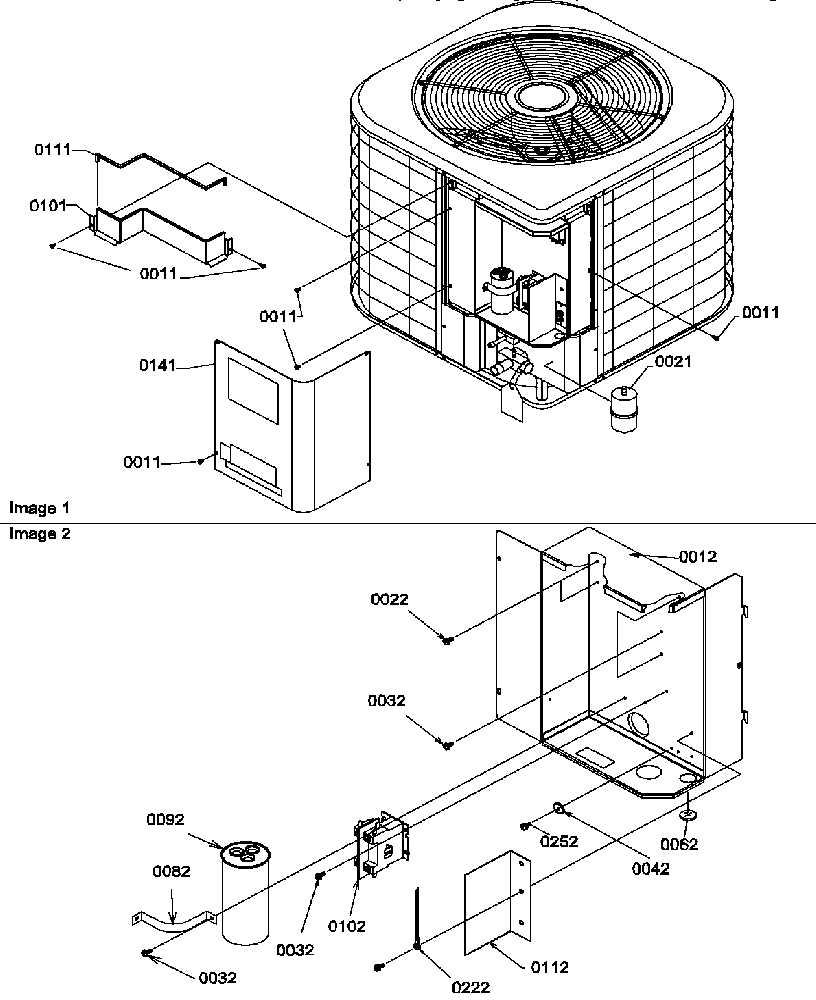

Unit & control box assembly diagram

Control box

Part #11009601

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 10099901
#92

Unit & control box assembly diagram

Capacitor

Part #10099901

The manufacturer no longer makes this part, and there's no substitute part

Capacitor D6789031
#92

Unit & control box assembly diagram

Capacitor

Part #D6789031

The manufacturer no longer makes this part, and there's no substitute part

Fastener M0257564
#2121

Motor mount assembly diagram

Fastener

Part #M0257564

The manufacturer no longer makes this part, and there's no substitute part

Sweat Valve Weld 11030906
#3021

Basepan assembly diagram

Sweat valve weld

Part #11030906

The manufacturer no longer makes this part, and there's no substitute part

Drier-filter 10641501
#21

Unit & control box assembly diagram

Drier-filter

Part #10641501

The manufacturer no longer makes this part, and there's no substitute part

Comp-tc 10611907
#31

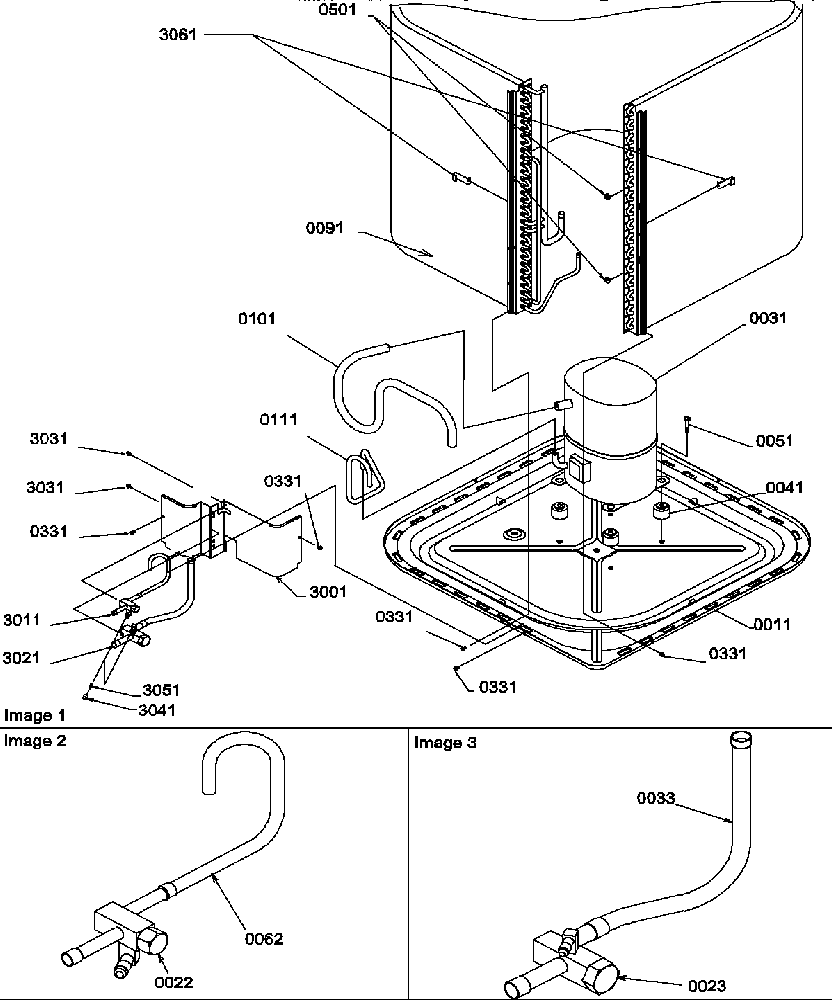

Basepan assembly diagram

Comp-tc

Part #10611907

The manufacturer no longer makes this part, and there's no substitute part

Restrictor 071 B1443822

#NI

All parts diagram

Restrictor 071

Part #B1443822

The manufacturer no longer makes this part, and there's no substitute part
