Craftsman
Electric Line Trimmer

Model # 358745120 Official Craftsman line trimmer

Here are the diagrams and repair parts for Official Craftsman 358745120 line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Line Trimmer Spool Retainer Clip (replaces 5304019-57, 530-401957) 530401957
#13

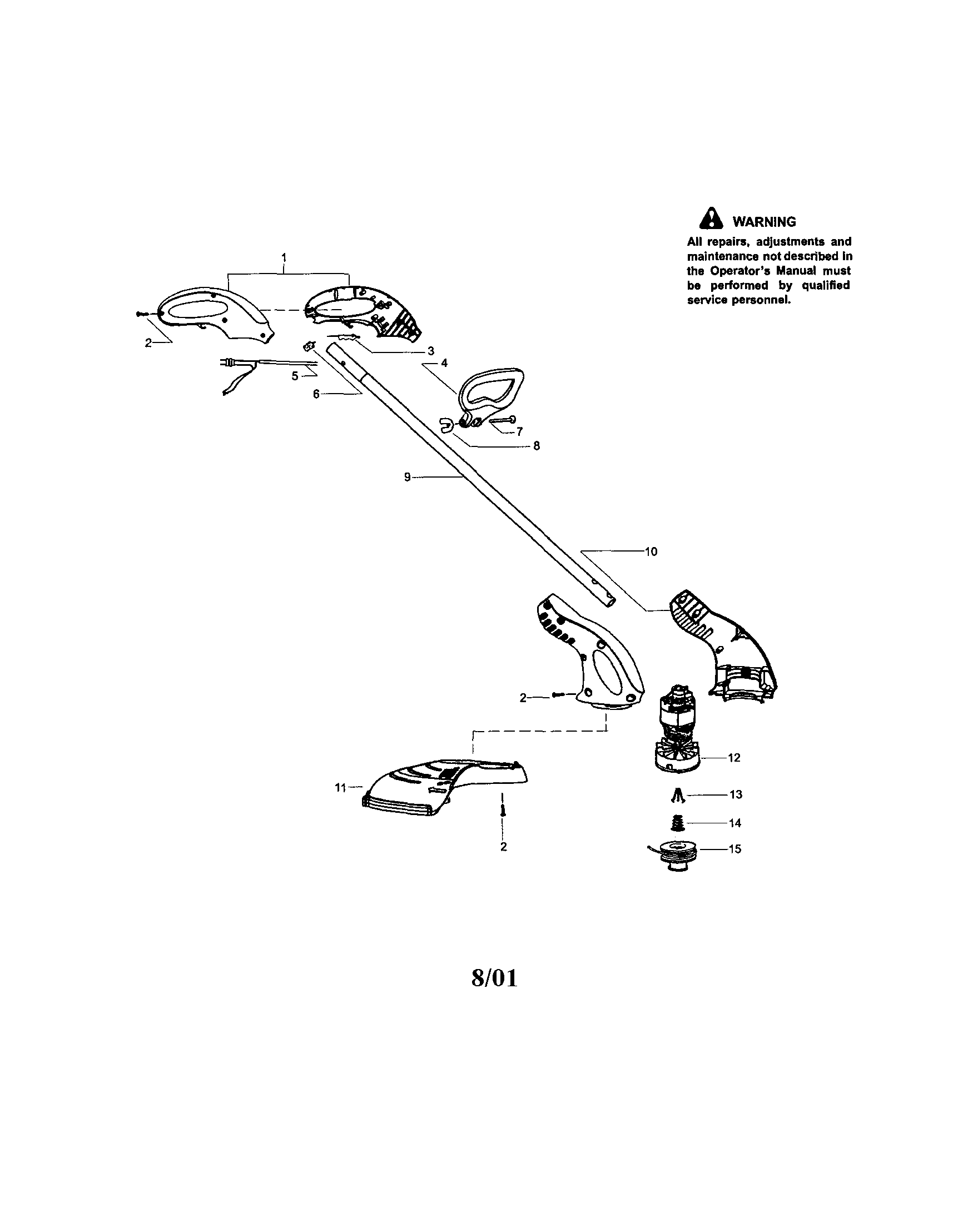

Trimmer diagram

Line trimmer spool retainer clip (replaces 5304019-57, 530-401957)

Part #530401957

This item is not returnable
$5.54
In Stock
Line Trimmer On/off Switch 530402879
#6

Trimmer diagram

Line trimmer on/off switch

Part #530402879

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Wing Nut 530016118
#8

Trimmer diagram

Wing nut

Part #530016118

Replaced by #530091373

?
Manufacturer substitution
This part replaces 530016118. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Decal-housing 530403852

#NI

All parts diagram

Decal-housing

Part #530403852

The manufacturer no longer makes this part, and there's no substitute part

Shield Assembly 530403916
#11

Trimmer diagram

Shield assembly

Part #530403916

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Housing 530403826
#10

Trimmer diagram

Line trimmer housing

Part #530403826

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Spool Spring (replaces 530-401958) 530401958
#14

Trimmer diagram

Line trimmer spool spring (replaces 530-401958)

Part #530401958

The manufacturer no longer makes this part, and there's no substitute part

Spoolw/line 71-85837
#15

Trimmer diagram

Spoolw/line

Part #71-85837

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 530403908
#5

Trimmer diagram

Wire harness

Part #530403908

The manufacturer no longer makes this part, and there's no substitute part

Decal-warning 530403854

#NI

All parts diagram

Decal-warning

Part #530403854

The manufacturer no longer makes this part, and there's no substitute part
