Amana
Room Air Conditioner

Model # 29M43PA-P1214806R Official Amana room air conditioner

Here are the diagrams and repair parts for Official Amana 29M43PA-P1214806R room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Screw M0245203
#41

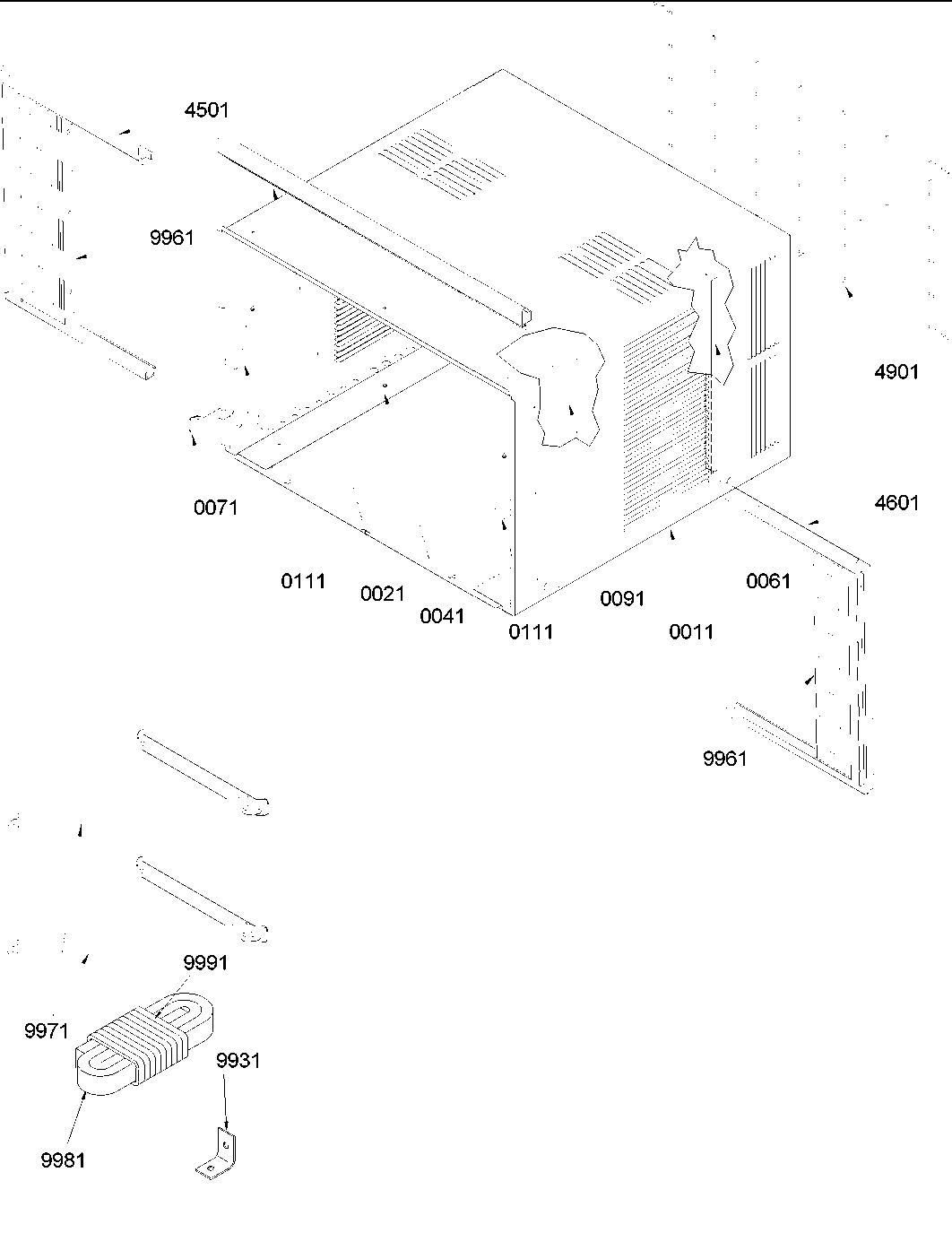

Outer case assembly diagram

Screw

Part #M0245203

Replaced by #WP693995

?
Manufacturer substitution
This part replaces M0245203. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw M0211030
#999A

Outer case assembly diagram

Screw

Part #M0211030

Replaced by #R9800670

?
Manufacturer substitution
This part replaces M0211030. Substitute parts can look different from the original.
This item is not returnable
$4.97 |
17% OFF Phone Price : $5.97
In Stock
Screw M0216515
#221

Control assembly diagram

Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Bracket 20061801
#997

Outer case assembly diagram

Bracket

Part #20061801

Replaced by #20061801

?
Manufacturer substitution
This part replaces 20061801. Substitute parts can look different from the original.
This item is not returnable
$4.01
In Stock
Tie M0321202
#370

Chassis assembly 2 diagram

Tie

Part #M0321202

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces M0321202. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw M0219730
#501

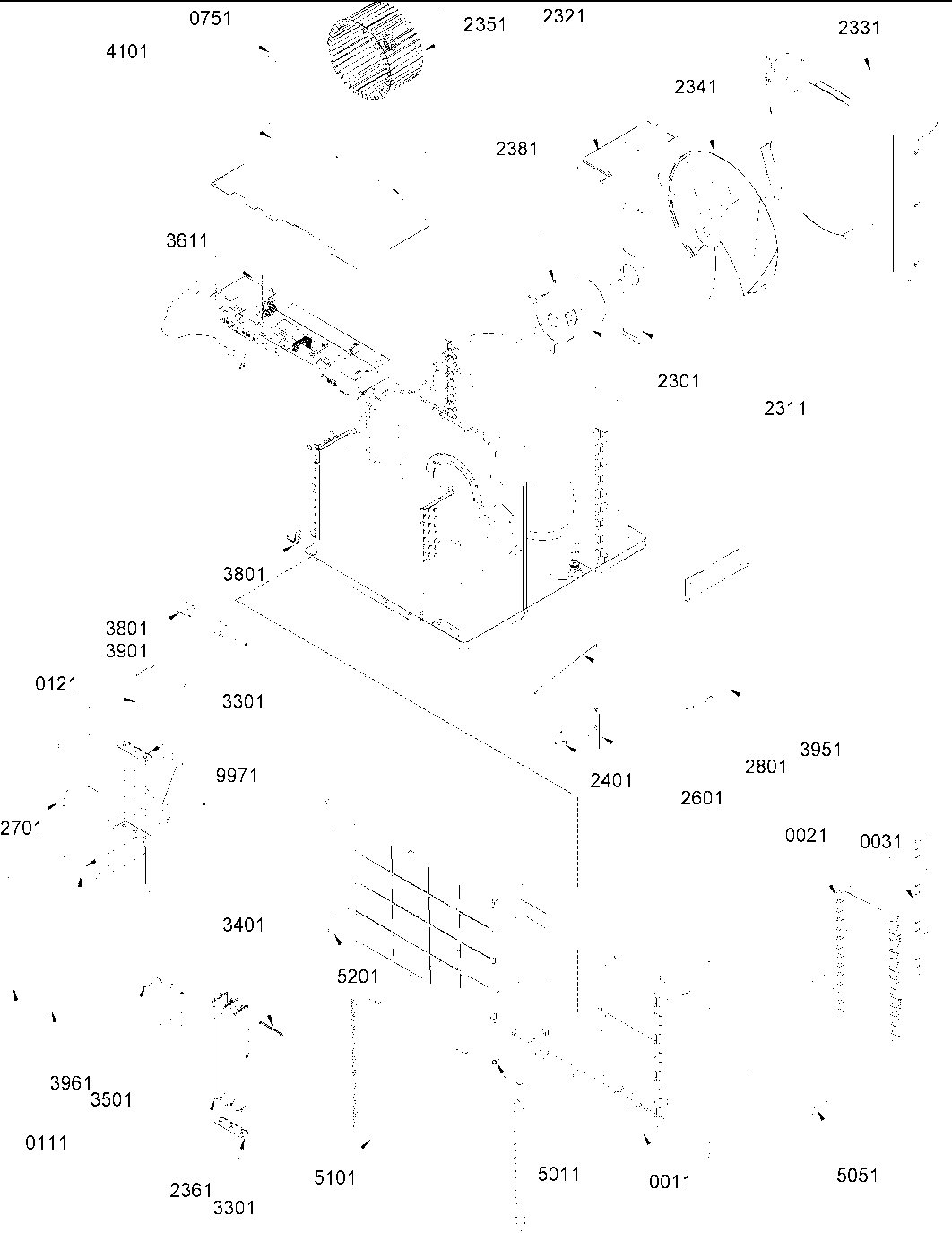

Chassis assembly 1 diagram

Screw

Part #M0219730

Replaced by #WPM0219730

?
Manufacturer substitution
This part replaces M0219730. Substitute parts can look different from the original.
This item is not returnable
$8.00
In Stock
Tap Screw M0224956
#238

Chassis assembly 1 diagram

Tap screw

Part #M0224956

Replaced by #WP489427

?
Manufacturer substitution
This part replaces M0224956. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Bracket, Com 20093701
#123

Chassis assembly 2 diagram

Bracket, com

Part #20093701

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Wheel 20071801
#235

Chassis assembly 1 diagram

Air conditioner blower wheel

Part #20071801

The manufacturer no longer makes this part, and there's no substitute part

Louver 20062301
#21

Chassis assembly 1 diagram

Louver

Part #20062301

The manufacturer no longer makes this part, and there's no substitute part
