Model # GNJ125N20B1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP GNJ125N20B1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |

Cap Rnrd 1094956
#5

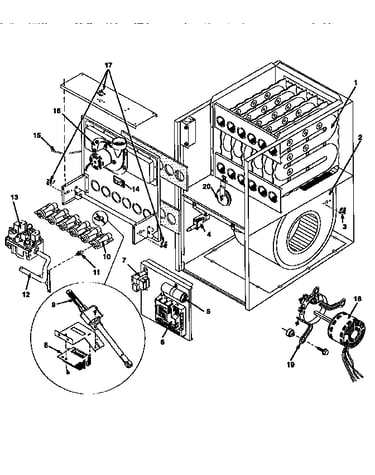

Functional replacement parts diagram

Cap rnrd

Part #1094956

Replaced by #12908

?
Manufacturer substitution
This part replaces 1094956. Substitute parts can look different from the original.
This item is not returnable
$5.26
16% OFF Phone Price : $6.26
Back Order
Rail Galv Bl 57059

#NI

All parts diagram

Rail galv bl

Part #57059

In Stock
Gskt Htx Bnr 2480907
#1A

Functional replacement parts diagram

Gskt htx bnr

Part #2480907

This item is not returnable
In Stock
Switch 611872
#4

Functional replacement parts diagram

Switch

Part #611872

In Stock
Furnace Burner 1008726
#10

Functional replacement parts diagram

Furnace burner

Part #1008726

In Stock
Panel Cutoff 721020008
#22

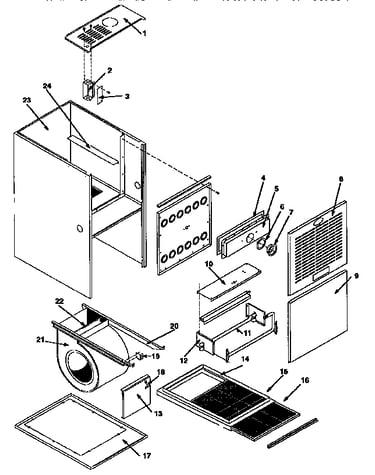

Non-functional replacement parts diagram

Panel cutoff

Part #721020008

In Stock
Front Panel 1008073
#1B

Functional replacement parts diagram

Front panel

Part #1008073

In Stock
Sw Lmt T  Rp 1320362
#14

Functional replacement parts diagram

Sw lmt t rp

Part #1320362

Replaced by #1066427

?
Manufacturer substitution
This part replaces 1320362. Substitute parts can look different from the original.
In Stock
Filter Rack 741010039
#14

Non-functional replacement parts diagram

Filter rack

Part #741010039

Replaced by #741010039

?
Manufacturer substitution
This part replaces 741010039. Substitute parts can look different from the original.
In Stock
Module 1009947
#6

Functional replacement parts diagram

Module

Part #1009947

Replaced by #1011671

?
Manufacturer substitution
This part replaces 1009947. Substitute parts can look different from the original.
In Stock
