Model # AEN05LJS1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AEN05LJS1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Om Ge Air Co 49-7540
#9999

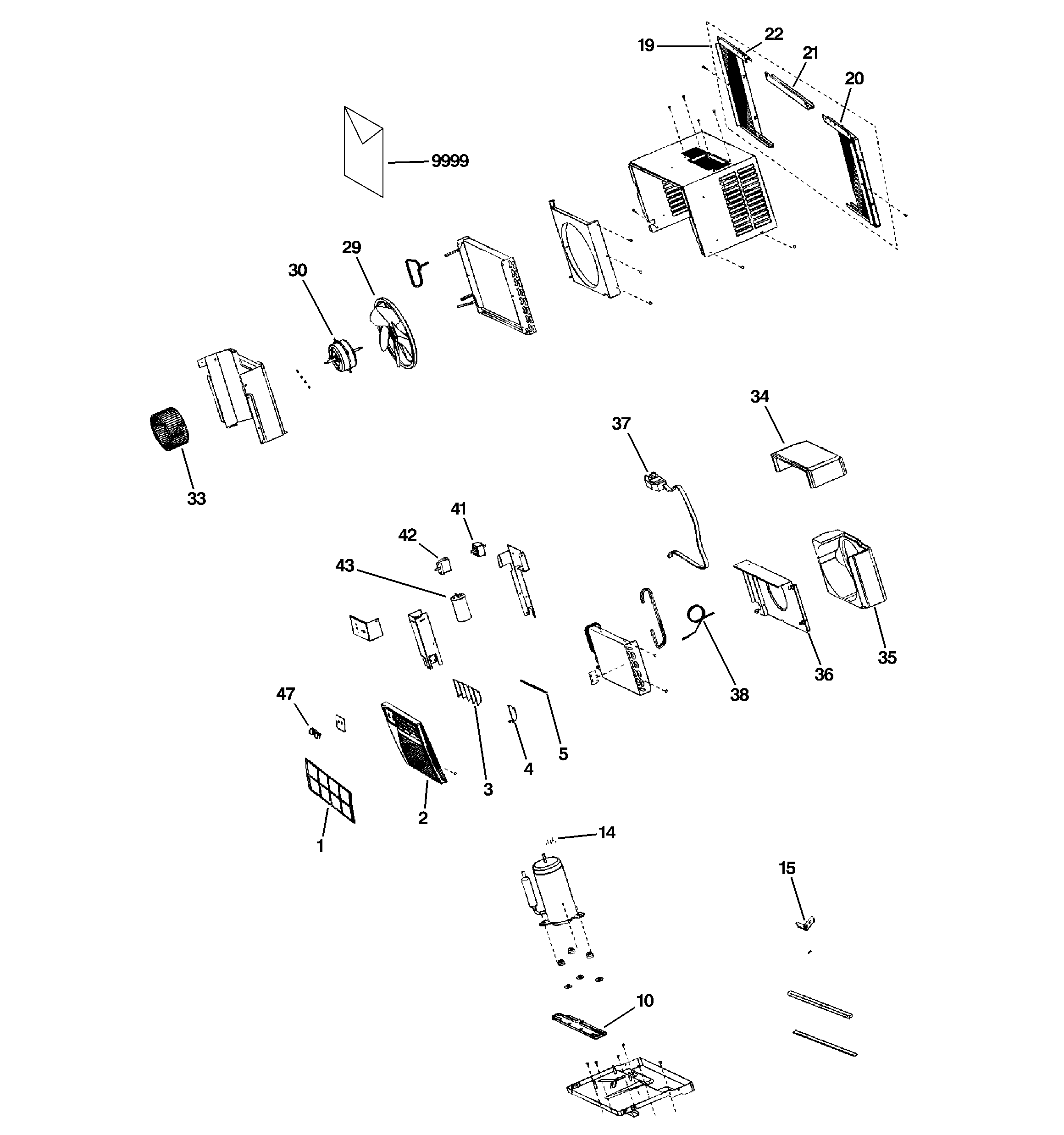

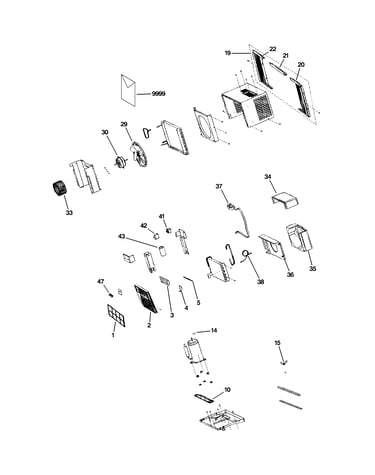

Room air conditioner diagram

Om ge air co

Part #49-7540

$17.99
In Stock
Window Locki WJ01X10293
#15

Room air conditioner diagram

Window locki

Part #WJ01X10293

Replaced by #WJ66X10098

?
Manufacturer substitution
This part replaces WJ01X10293. Substitute parts can look different from the original.
$29.41
In Stock
Motor WJ94X10240
#30

Room air conditioner diagram

Motor

Part #WJ94X10240

The manufacturer no longer makes this part, and there's no substitute part

Panel WJ68X10054
#2

Room air conditioner diagram

Panel

Part #WJ68X10054

The manufacturer no longer makes this part, and there's no substitute part

Axial Flow Fan WJ73X10154
#29

Room air conditioner diagram

Axial flow fan

Part #WJ73X10154

The manufacturer no longer makes this part, and there's no substitute part

Power Cord WJ35X10117
#37

Room air conditioner diagram

Power cord

Part #WJ35X10117

The manufacturer no longer makes this part, and there's no substitute part

Knob WJ12X10088
#47

Room air conditioner diagram

Knob

Part #WJ12X10088

The manufacturer no longer makes this part, and there's no substitute part

Centrifugal WJ73X10155
#33

Room air conditioner diagram

Centrifugal

Part #WJ73X10155

The manufacturer no longer makes this part, and there's no substitute part

Curtain Support WJ01X10295
#22

Room air conditioner diagram

Curtain support

Part #WJ01X10295

The manufacturer no longer makes this part, and there's no substitute part

Curtain Support WJ01X10294
#20

Room air conditioner diagram

Curtain support

Part #WJ01X10294

The manufacturer no longer makes this part, and there's no substitute part
