Model # UH70005B Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover UH70005B vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Spring Switch 93001706
#2

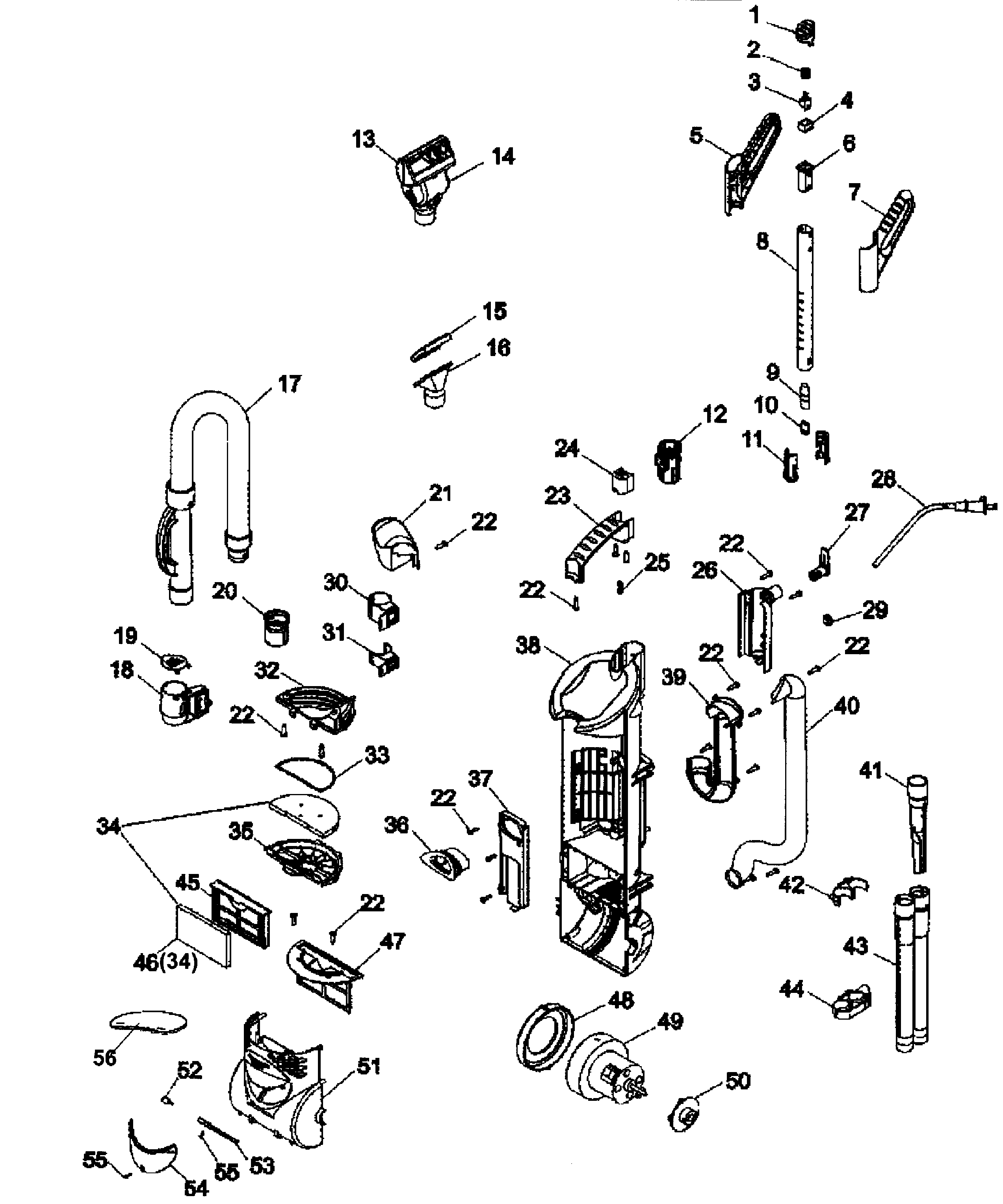

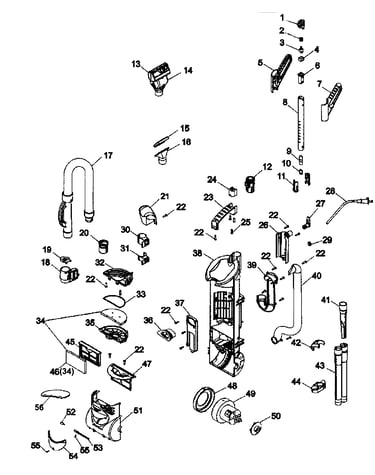

Main body diagram

Spring switch

Part #93001706

The manufacturer no longer makes this part, and there's no substitute part

Cycln Duct 93001650
#6

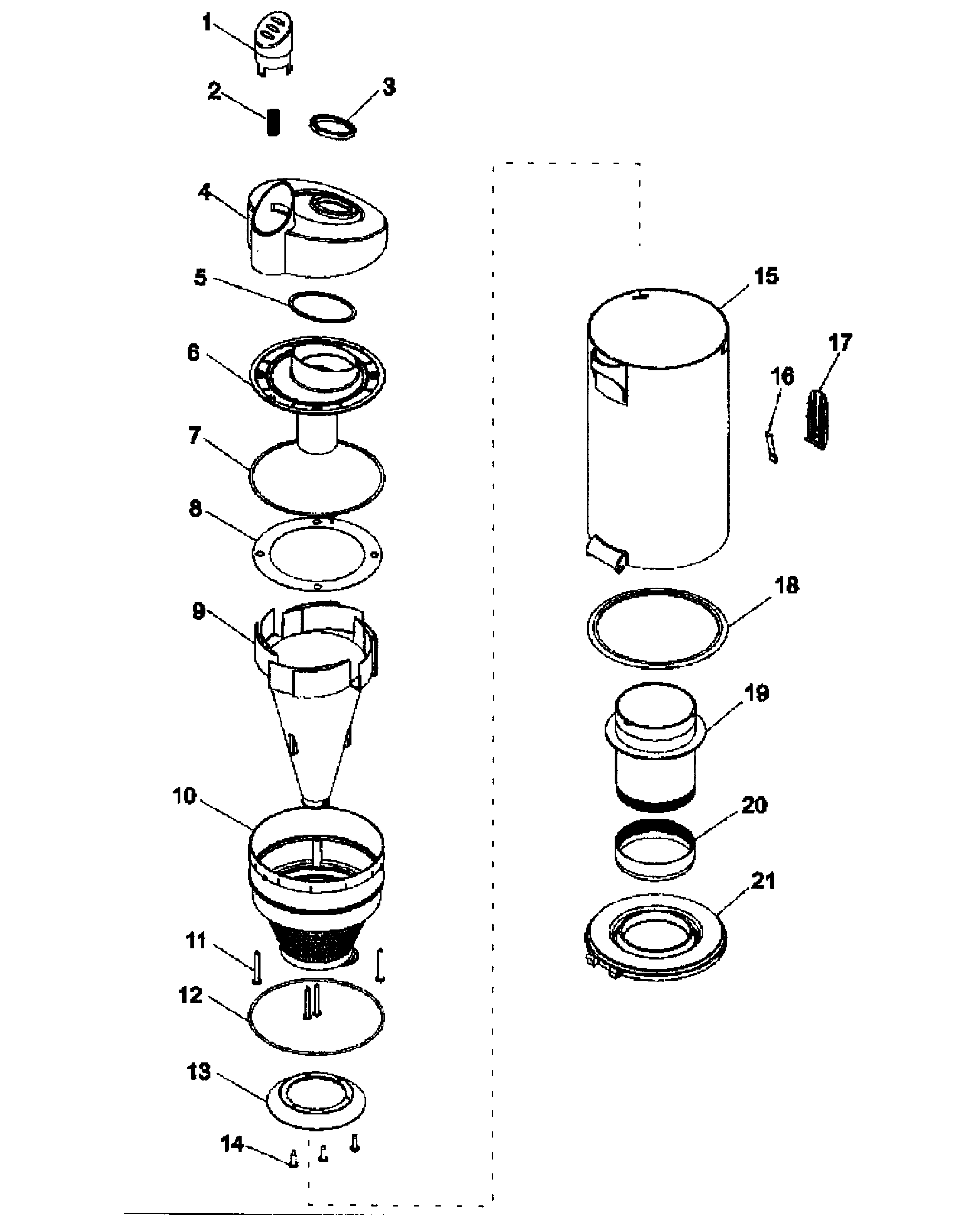

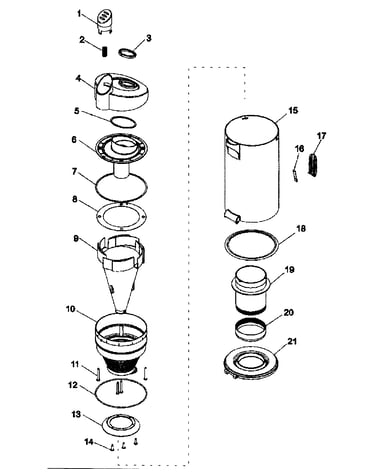

Cyclone diagram

Cycln duct

Part #93001650

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb 27313107
#52

Main body diagram

Vacuum light bulb

Part #27313107

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Axle 93001676
#21

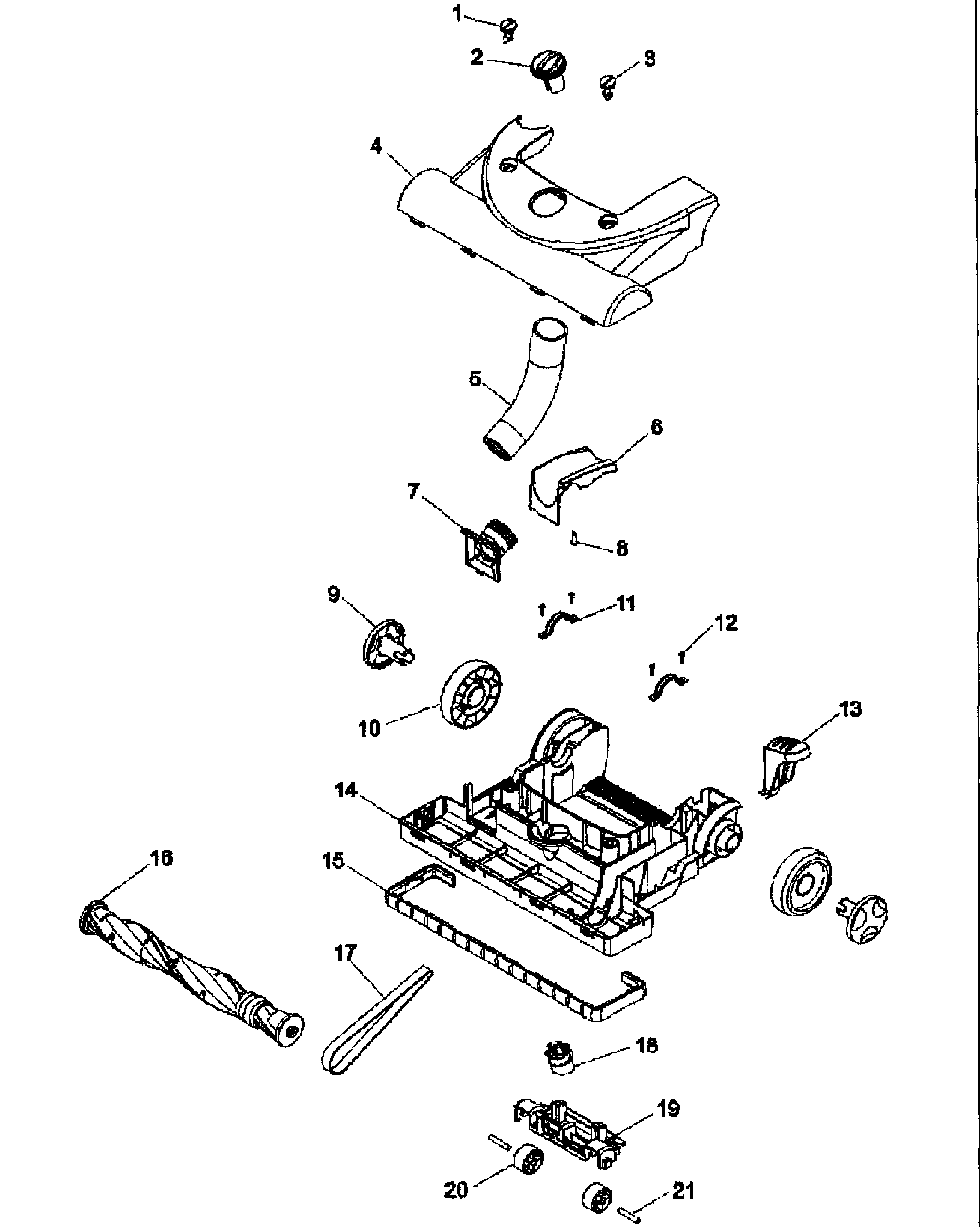

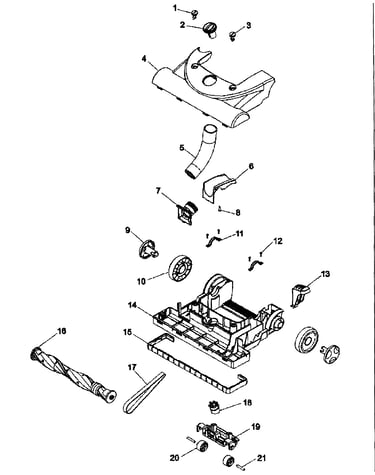

Base diagram

Vacuum wheel axle

Part #93001676

The manufacturer no longer makes this part, and there's no substitute part

Lamp Socket 93001660
#53

Main body diagram

Lamp socket

Part #93001660

The manufacturer no longer makes this part, and there's no substitute part

Clamp 93001663
#11

Base diagram

Clamp

Part #93001663

The manufacturer no longer makes this part, and there's no substitute part

Adapter 93001690
#20

Main body diagram

Adapter

Part #93001690

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Tube 38634092
#43

Main body diagram

Vacuum handle tube

Part #38634092

The manufacturer no longer makes this part, and there's no substitute part

Filter Seal 93001833
#12

Cyclone diagram

Filter seal

Part #93001833

The manufacturer no longer makes this part, and there's no substitute part

Female Control 93001717
#10

Main body diagram

Female control

Part #93001717

The manufacturer no longer makes this part, and there's no substitute part
