Model # 153318910 Official Kenmore economizer tabletop electric water heater

Here are the diagrams and repair parts for Official Kenmore 153318910 economizer tabletop electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Thermostat 0180032
#27

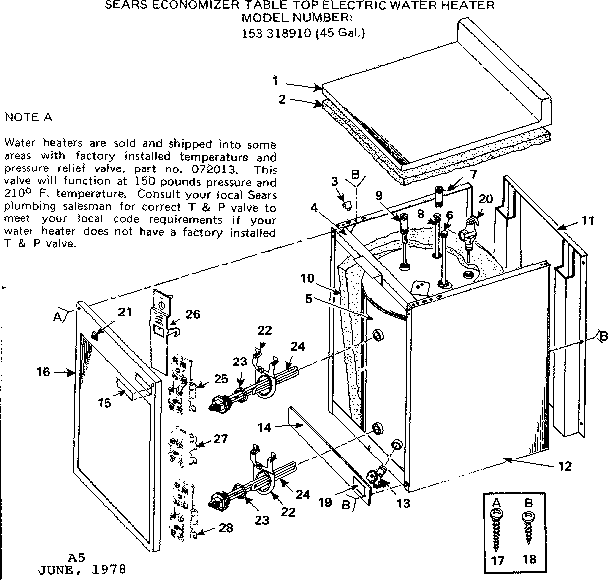

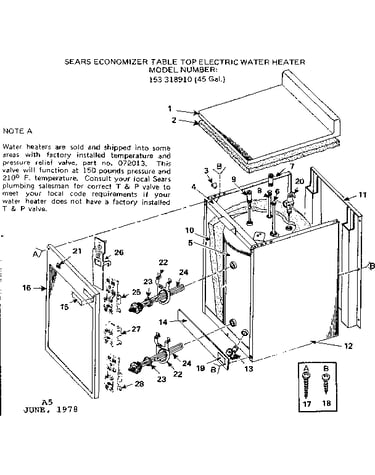

Replacement parts diagram

Thermostat

Part #0180032

Replaced by #9000507015

?
Manufacturer substitution
This part replaces 0180032. Substitute parts can look different from the original.
BEST SELLER
$32.20 |
16% OFF Phone Price : $38.20
In Stock
Gasket 0530037
#23

Replacement parts diagram

Gasket

Part #0530037

Replaced by #9000308005

?
Manufacturer substitution
This part replaces 0530037. Substitute parts can look different from the original.
$30.62 |
16% OFF Phone Price : $36.62
In Stock
Kenmore Insulation 0130154
#2

Replacement parts diagram

Kenmore insulation

Part #0130154

This item is not returnable
$2.29
In Stock
Top 1500423
#1

Replacement parts diagram

Top

Part #1500423

$33.99
In Stock
Kenmore Insulation 0130238
#10

Replacement parts diagram

Kenmore insulation

Part #0130238

$8.20
In Stock
Thermostat 0180031
#25

Replacement parts diagram

Thermostat

Part #0180031

Replaced by #9001954015

?
Manufacturer substitution
This part replaces 0180031. Substitute parts can look different from the original.
$28.09 |
18% OFF Phone Price : $34.09
In Stock
Light 0790001
#21

Replacement parts diagram

Light

Part #0790001

Replaced by #100108384

?
Manufacturer substitution
This part replaces 0790001. Substitute parts can look different from the original.
$30.00
In Stock
Panel 1190727
#14

Replacement parts diagram

Panel

Part #1190727

Replaced by #9000339

?
Manufacturer substitution
This part replaces 1190727. Substitute parts can look different from the original.
$9.99
In Stock
Clip 0400004
#3

Replacement parts diagram

Clip

Part #0400004

Replaced by #9000337

?
Manufacturer substitution
This part replaces 0400004. Substitute parts can look different from the original.
$16.49
In Stock
Element 0740310
#24

Replacement parts diagram

Element

Part #0740310

Replaced by #100108330

?
Manufacturer substitution
This part replaces 0740310. Substitute parts can look different from the original.
$65.56
In Stock
