Model # SB-AK520P Official Panasonic audio speaker

Here are the diagrams and repair parts for Official Panasonic SB-AK520P audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |
Panasonic Audio Speaker LOAA16A00009
#SP2

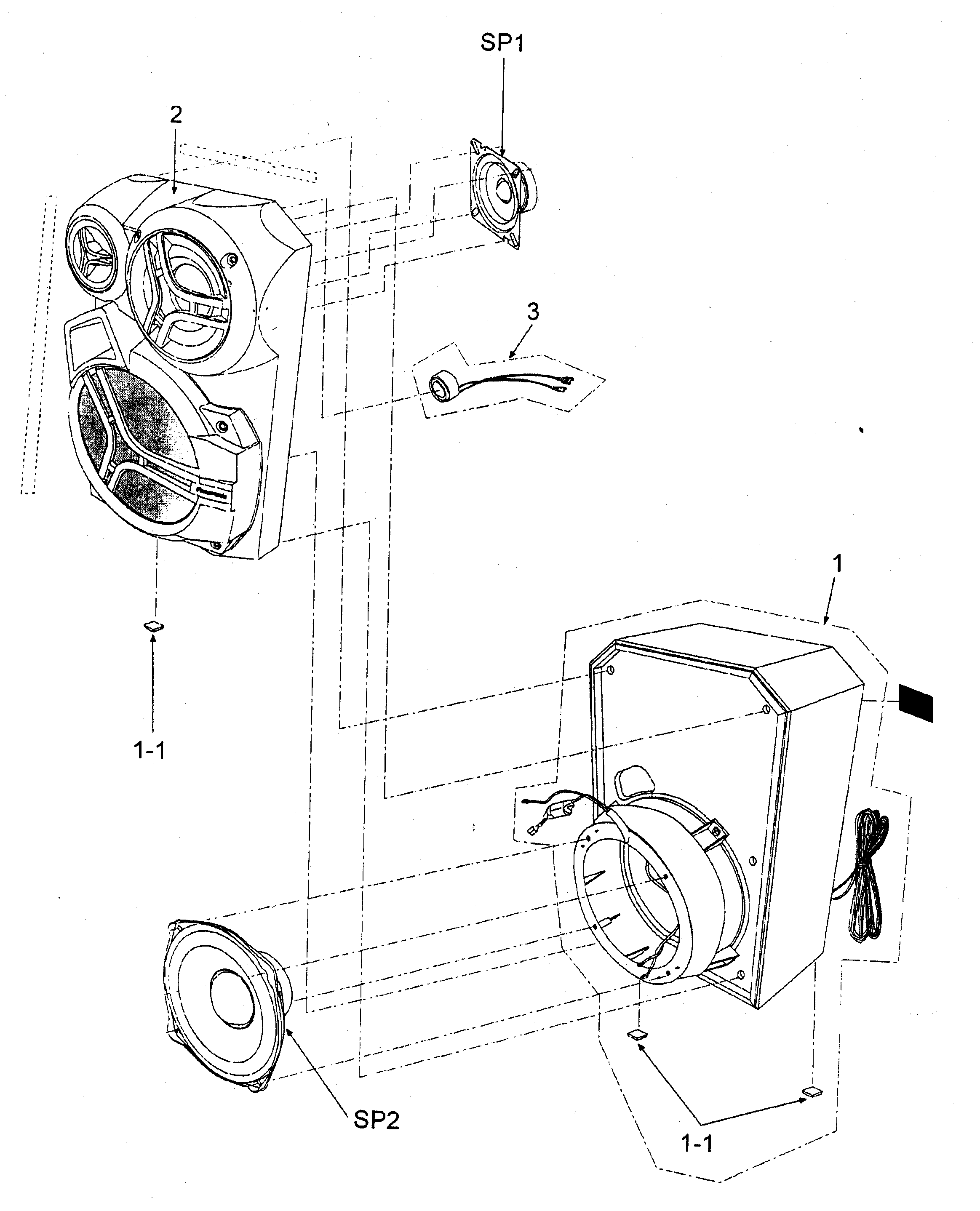

Speaker diagram

Panasonic audio speaker

Part #LOAA16A00009

The manufacturer no longer makes this part, and there's no substitute part

Leg RKA0072-KJ
#1-1

Speaker diagram

Leg

Part #RKA0072-KJ

The manufacturer no longer makes this part, and there's no substitute part

Front Panel Asy R RYBX0046A-K
#2A

Speaker diagram

Front panel asy r

Part #RYBX0046A-K

The manufacturer no longer makes this part, and there's no substitute part

Panel RYBX0045A-K
#2

Speaker diagram

Panel

Part #RYBX0045A-K

The manufacturer no longer makes this part, and there's no substitute part

Tweeter EAST6PH11H6
#SP1

Speaker diagram

Tweeter

Part #EAST6PH11H6

The manufacturer no longer makes this part, and there's no substitute part

Box Speaker RFKHBAK320KB
#1A

Speaker diagram

Box speaker

Part #RFKHBAK320KB

The manufacturer no longer makes this part, and there's no substitute part

Box Speaker RFKHBAK320KA
#1

Speaker diagram

Box speaker

Part #RFKHBAK320KA

The manufacturer no longer makes this part, and there's no substitute part

Capacitor ECA1HAY4R7
#NI

Speaker diagram

Capacitor

Part #ECA1HAY4R7

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual RQT7330-1P
#NI

Speaker diagram

Owner's manual

Part #RQT7330-1P

The manufacturer no longer makes this part, and there's no substitute part

Service Manual MD0312523C1
#NI

Speaker diagram

Service manual

Part #MD0312523C1

The manufacturer no longer makes this part, and there's no substitute part
