Countertop Microwave

Model # JES1244GC001 Official GE microwave

Here are the diagrams and repair parts for Official GE JES1244GC001 microwave, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forJES1244GC001 Microwaves

  • Switch-micro WB24X10038
    #30

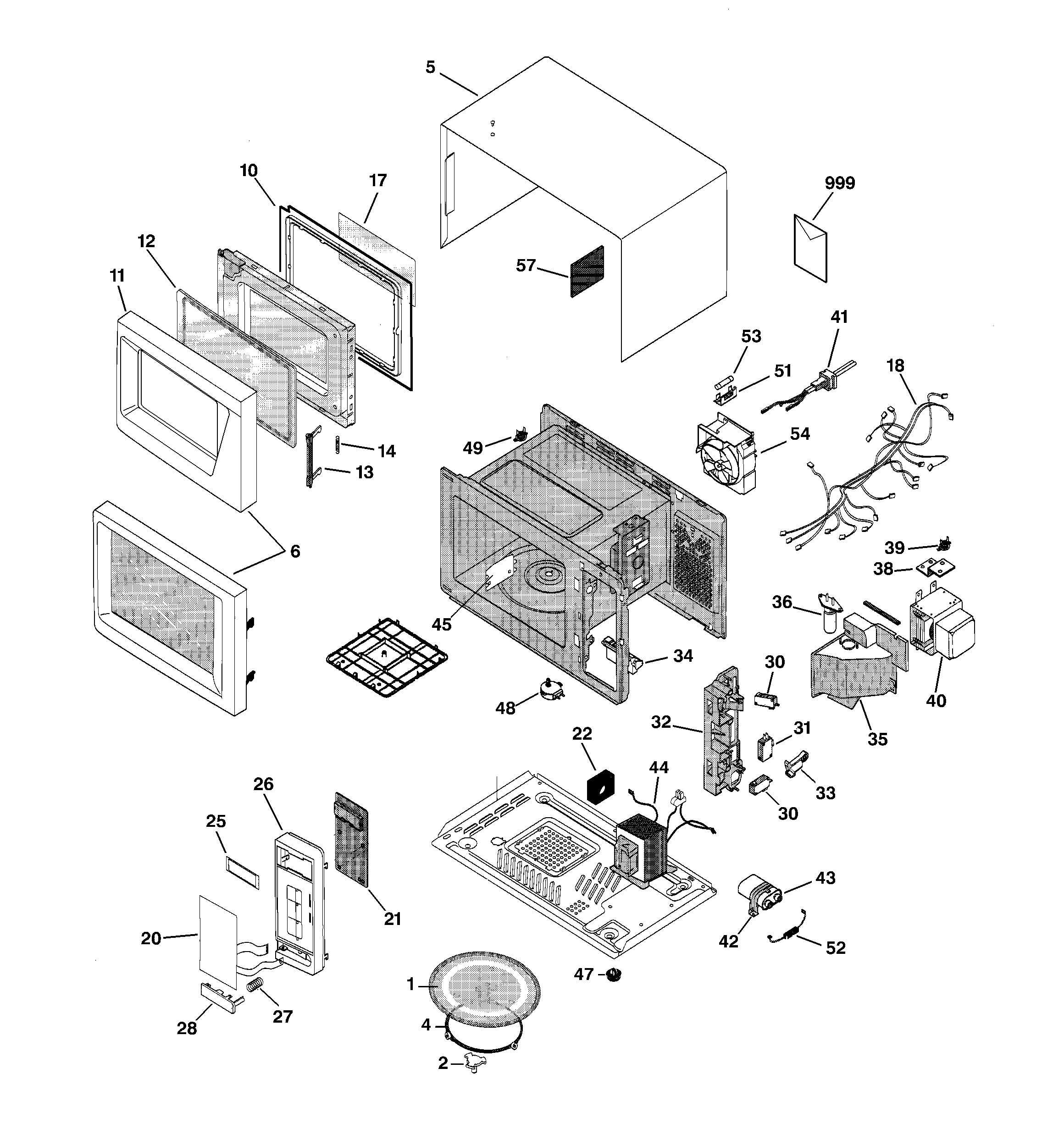

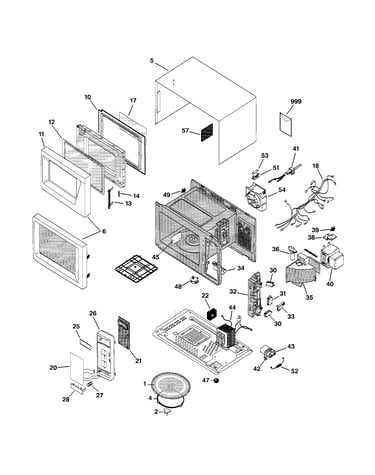

    Microwave diagram

    Switch-micro

    Part #WB24X10038

    Replaced by #WB24X829

    ?
    Manufacturer substitution
    This part replaces WB24X10038. Substitute parts can look different from the original.
    4.57 (7)
    BEST SELLER
    $31.32 |
    16% OFF Phone Price : $37.32
    In Stock
  • Fuse WB27X1159
    #53

    Microwave diagram

    Fuse

    Part #WB27X1159

    Replaced by #WB27X10928

    ?
    Manufacturer substitution
    This part replaces WB27X1159. Substitute parts can look different from the original.
    3 (1)
    BEST SELLER
    $12.12 |
    14% OFF Phone Price : $14.12
    In Stock
  • Microwave High-voltage Diode WB27X1160
    #52

    Microwave diagram

    Microwave high-voltage diode

    Part #WB27X1160

    5 (1)
    BEST SELLER
    $91.95 |
    6% OFF Phone Price : $97.95
    In Stock
  • Magnetron WB27X10343
    #40

    Microwave diagram

    Magnetron

    Part #WB27X10343

    Replaced by #WB27X10516

    ?
    Manufacturer substitution
    This part replaces WB27X10343. Substitute parts can look different from the original.
    BEST SELLER
    $288.68 |
    $12.00 OFF Phone Price : $300.68
    In Stock
  • Microwave Turntable Motor WB26X10024
    #48

    Microwave diagram

    Microwave turntable motor

    Part #WB26X10024

    $52.46
    In Stock
  • Microwave Thermostat WB20X10003
    #39

    Microwave diagram

    Microwave thermostat

    Part #WB20X10003

    $15.24 |
    50% OFF Was : $30.39
    In Stock
  • Foot WB06X10194
    #47

    Microwave diagram

    Foot

    Part #WB06X10194

    $9.06
    In Stock
  • Thermistor Bracket WB02X10517
    #38

    Microwave diagram

    Thermistor bracket

    Part #WB02X10517

    $13.03
    In Stock
  • Coupler WB06X10059
    #2

    Microwave diagram

    Coupler

    Part #WB06X10059

    $44.71 |
    12% OFF Phone Price : $50.71
    In Stock
  • Door Lever WB06X10186
    #34

    Microwave diagram

    Door lever

    Part #WB06X10186

    $13.74
    In Stock
