Cleva
Wet/Dry Vacuum

Model # VJC809SC Official Cleva vacuum

Here are the diagrams and repair parts for Official Cleva VJC809SC vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Shop Vacuum Filter (red Stripe) 17816
#9

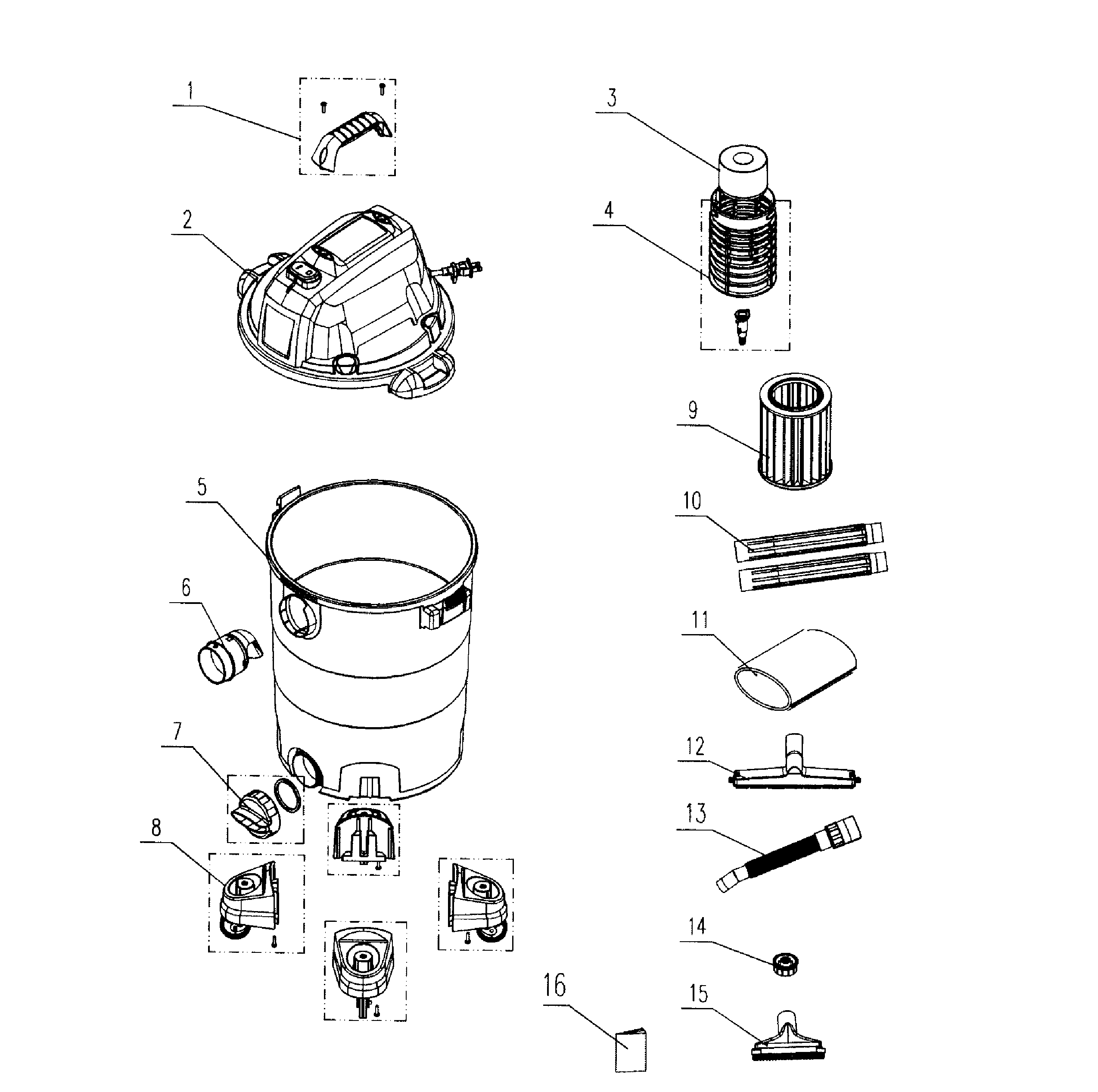

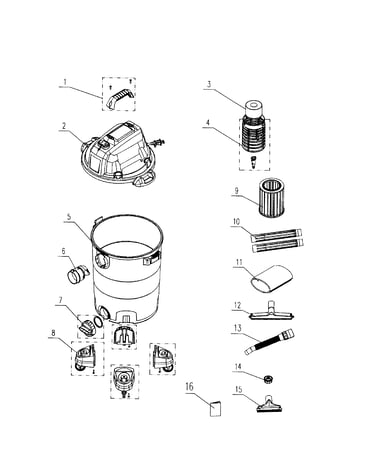

Vacuum assy diagram

Shop vacuum filter (red stripe)

Part #17816

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Caster And Foot TVQTJC.22.00
#8

Vacuum assy diagram

Shop vacuum caster and foot

Part #TVQTJC.22.00

Replaced by #551058106

?
Manufacturer substitution
This part replaces TVQTJC.22.00. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.67 |
10% OFF Phone Price : $9.67
In Stock
Shop Vacuum Hose, 1-1/4-in X 6-ft 17866
#13

Vacuum assy diagram

Shop vacuum hose, 1-1/4-in x 6-ft

Part #17866

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Foam Filter Sleeve 17888
#11

Vacuum assy diagram

Shop vacuum foam filter sleeve

Part #17888

The manufacturer no longer makes this part, and there's no substitute part

Drain Cap VB01PF.20.01
#7

Vacuum assy diagram

Drain cap

Part #VB01PF.20.01

Replaced by #551002110

?
Manufacturer substitution
This part replaces VB01PF.20.01. Substitute parts can look different from the original.
This item is not returnable
$7.19 |
12% OFF Phone Price : $8.19
In Stock
Float TVQTZS.06.YZ.W2.00
#3

Vacuum assy diagram

Float

Part #TVQTZS.06.YZ.W2.00

Replaced by #551005103

?
Manufacturer substitution
This part replaces TVQTZS.06.YZ.W2.00. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Shop Vacuum Extension Wand 17849
#10

Vacuum assy diagram

Shop vacuum extension wand

Part #17849

This item is not returnable
$10.79 |
16% OFF Phone Price : $12.79
In Stock
Shop Vacuum Utility Nozzle FV7774.01.00
#15

Vacuum assy diagram

Shop vacuum utility nozzle

Part #FV7774.01.00

Replaced by #551004113

?
Manufacturer substitution
This part replaces FV7774.01.00. Substitute parts can look different from the original.
$9.00
In Stock
Retainer FV9543.11.01
#14

Vacuum assy diagram

Retainer

Part #FV9543.11.01

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Filter Cage Assembly VJ51PF.10.04.W2.00
#4

Vacuum assy diagram

Shop vacuum filter cage assembly

Part #VJ51PF.10.04.W2.00

Replaced by #551006104

?
Manufacturer substitution
This part replaces VJ51PF.10.04.W2.00. Substitute parts can look different from the original.
This item is not returnable
$6.29 |
14% OFF Phone Price : $7.29
In Stock
