Model # 11071 TYPE J Official Milwaukee 1/2" reversible drill

Here are the diagrams and repair parts for Official Milwaukee 11071-TYPE-J 1/2" reversible drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

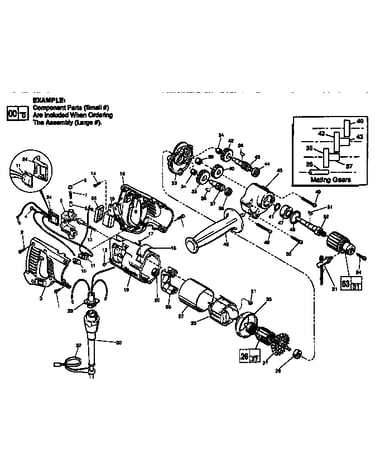

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Screw 06-95-0075
#4

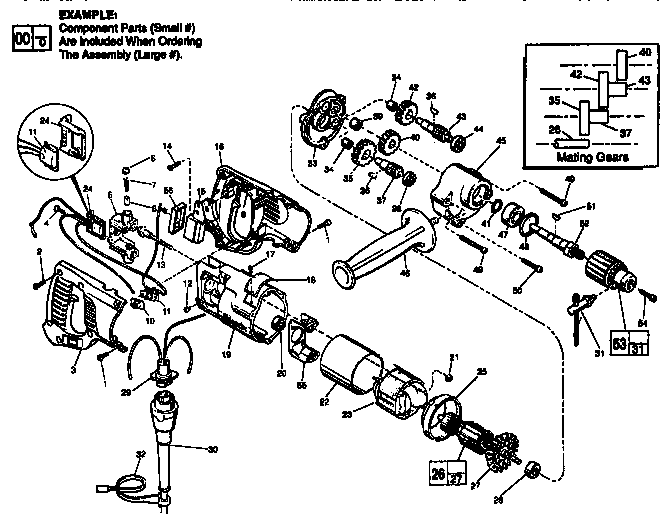

Unit diagram

Screw

Part #06-95-0075

The manufacturer no longer makes this part, and there's no substitute part

Handle Rht 31-44-1661
#3

Unit diagram

Handle rht

Part #31-44-1661

The manufacturer no longer makes this part, and there's no substitute part

Left Handl 31-44-1666
#16

Unit diagram

Left handl

Part #31-44-1666

The manufacturer no longer makes this part, and there's no substitute part

Diaphragm 28-28-0611
#33

Unit diagram

Diaphragm

Part #28-28-0611

The manufacturer no longer makes this part, and there's no substitute part

Holder 22-22-1380
#5

Unit diagram

Holder

Part #22-22-1380

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord 48-76-4008
#30

Unit diagram

Power tool power cord

Part #48-76-4008

The manufacturer no longer makes this part, and there's no substitute part

Holder 43-72-0175
#24

Unit diagram

Holder

Part #43-72-0175

The manufacturer no longer makes this part, and there's no substitute part

Shaft 36-66-4012
#43

Unit diagram

Shaft

Part #36-66-4012

The manufacturer no longer makes this part, and there's no substitute part

Insulator 23-16-0456
#22

Unit diagram

Insulator

Part #23-16-0456

The manufacturer no longer makes this part, and there's no substitute part

Armature 16-30-0326
#26

Unit diagram

Armature

Part #16-30-0326

The manufacturer no longer makes this part, and there's no substitute part
