Gas Snowblower

Model # 247888900 Official Craftsman snow thrower

Here are the diagrams and repair parts for Official Craftsman 247888900 snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

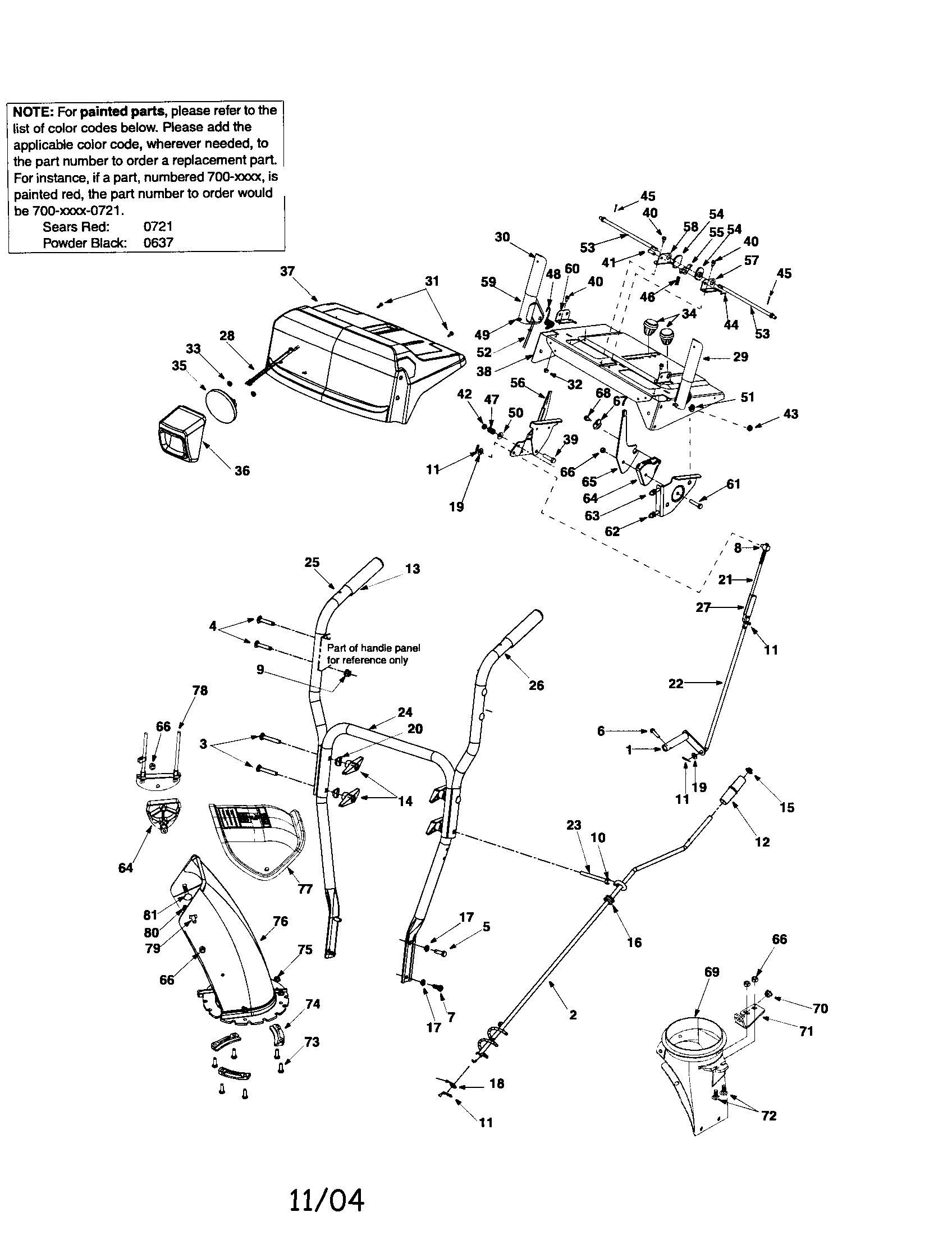

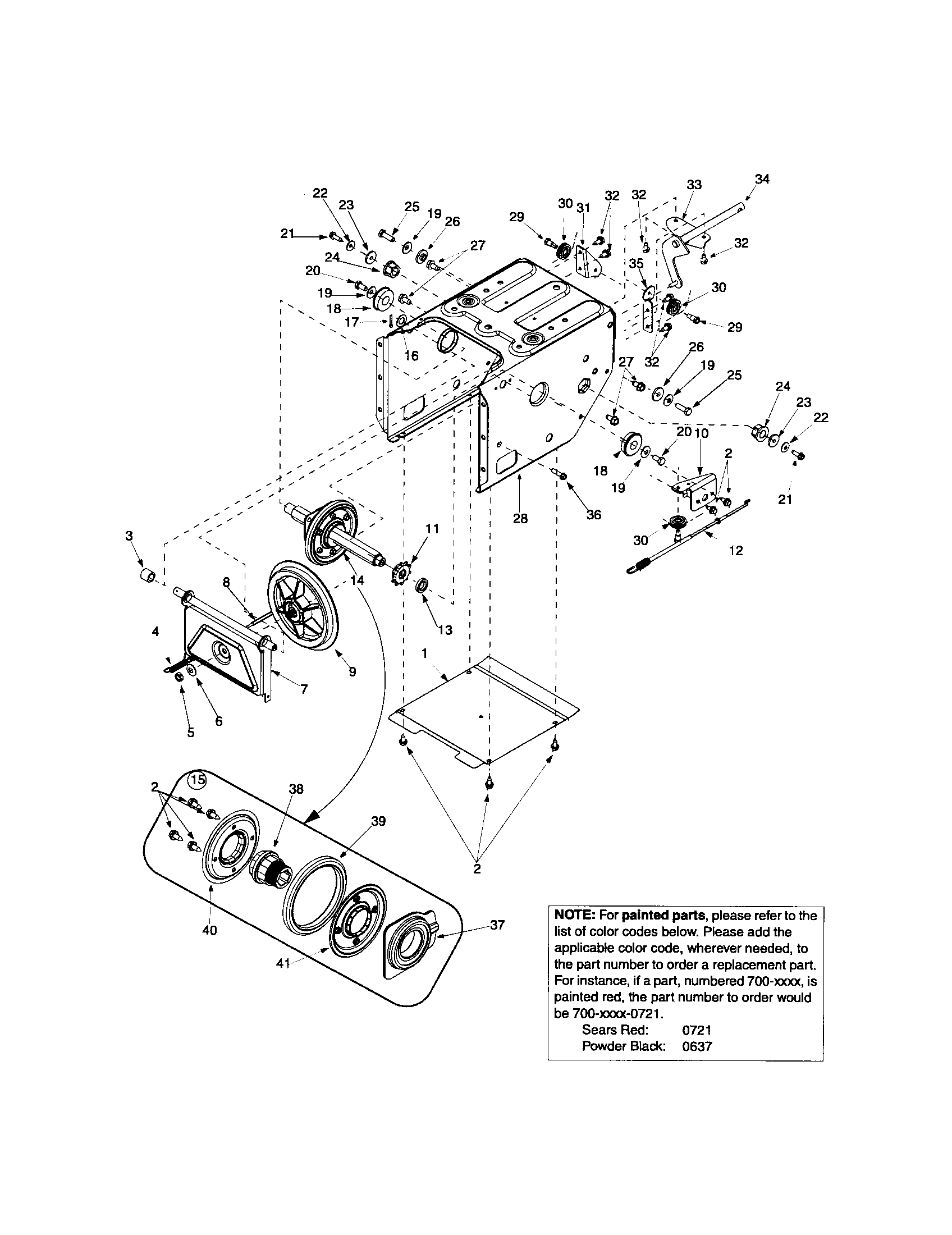

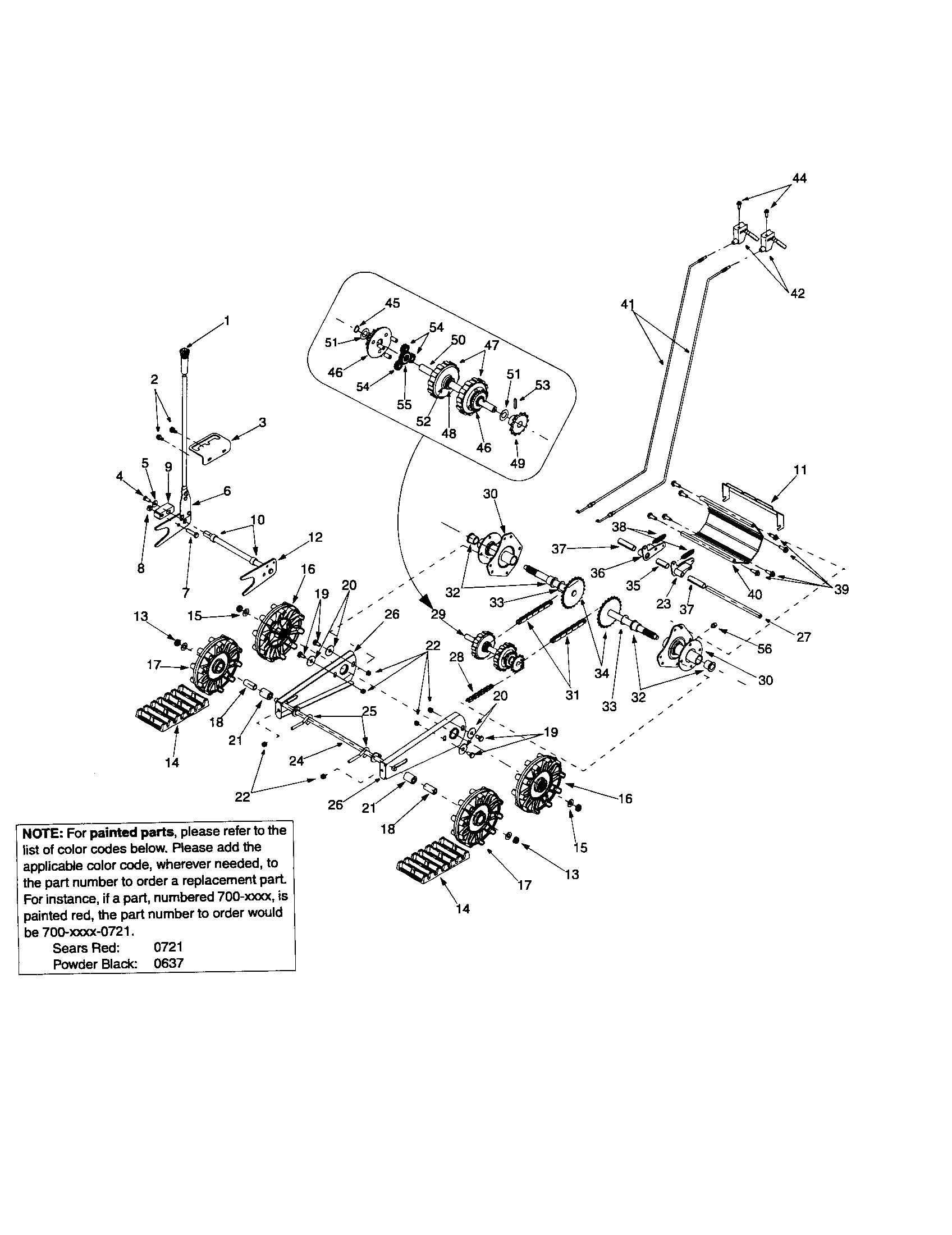

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 448 parts  |
Yard Machines Lawn & Garden Equipment Lock Nut, 5/16-18 (replaces 753-05591) 712-04063
Yard machines lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)

Part #712-04063

BEST SELLER
This item is not returnable
$4.53 |
18% OFF Phone Price : $5.53
In Stock
Toro Lawn & Garden Equipment Carriage Bolt (replaces 753-08024, 910-0451) 710-0451
Toro lawn & garden equipment carriage bolt (replaces 753-08024, 910-0451)

Part #710-0451

BEST SELLER
This item is not returnable
$5.42 |
16% OFF Phone Price : $6.42
In Stock
Snowblower Scraper Blade 790-00118-0638
#33

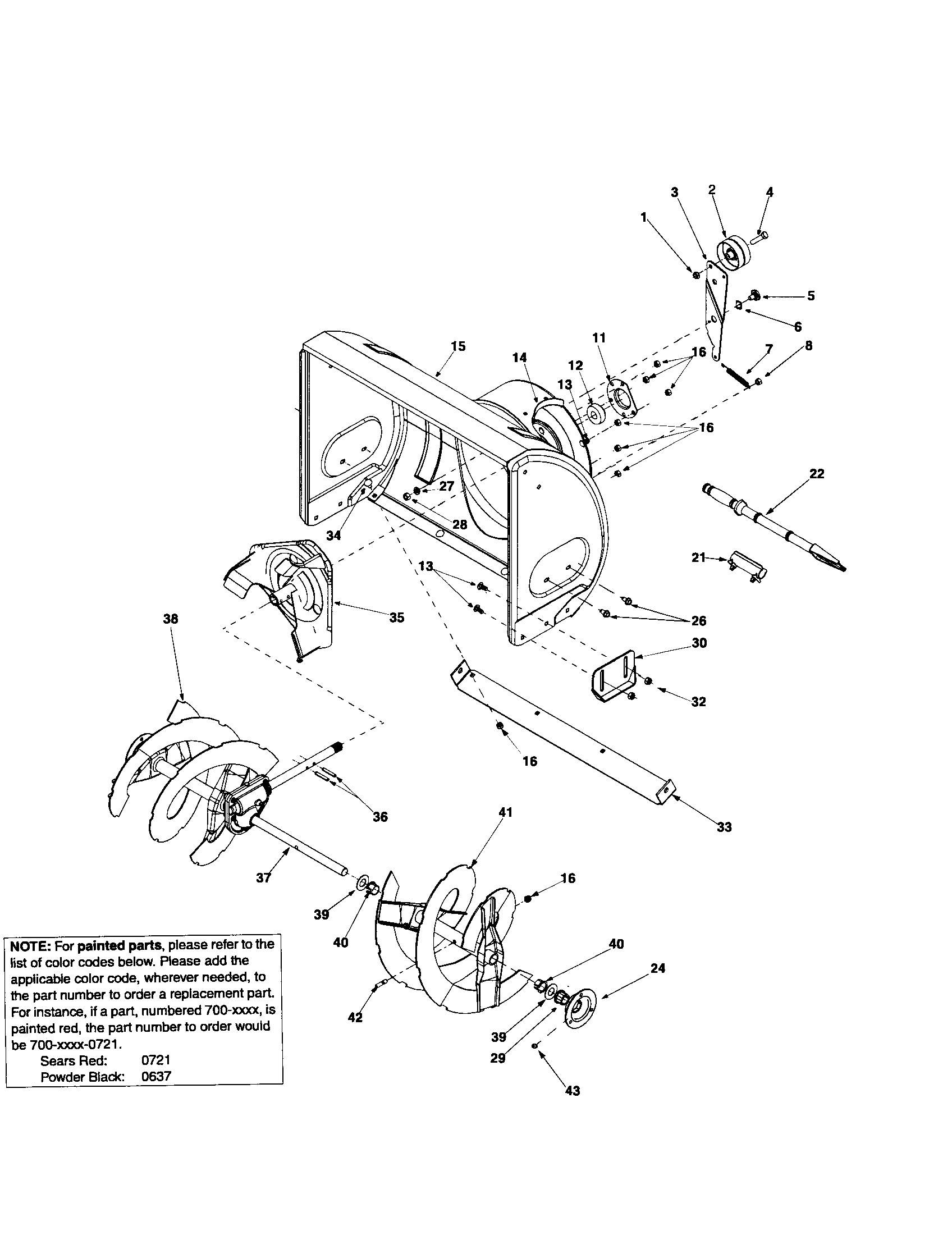

Auger housing/spirals/impeller diagram

Snowblower scraper blade

Part #790-00118-0638

Replaced by #790-00118-0637

?
Manufacturer substitution
This part replaces 790-00118-0638. Substitute parts can look different from the original.
BEST SELLER
$41.50 |
13% OFF Phone Price : $47.50
In Stock
Skid Shoe 784-5580
#30

Auger housing/spirals/impeller diagram

Skid shoe

Part #784-5580

Replaced by #784-5580-0637

?
Manufacturer substitution
This part replaces 784-5580. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.25 |
21% OFF Phone Price : $28.25
In Stock
Worm Gear 717-0528A
#7

Gear assembly diagram

Worm gear

Part #717-0528A

Replaced by #917-04861

?
Manufacturer substitution
This part replaces 717-0528A. Substitute parts can look different from the original.
BEST SELLER
$47.16 |
11% OFF Phone Price : $53.16
In Stock
Extension Cord 629-0071
#26

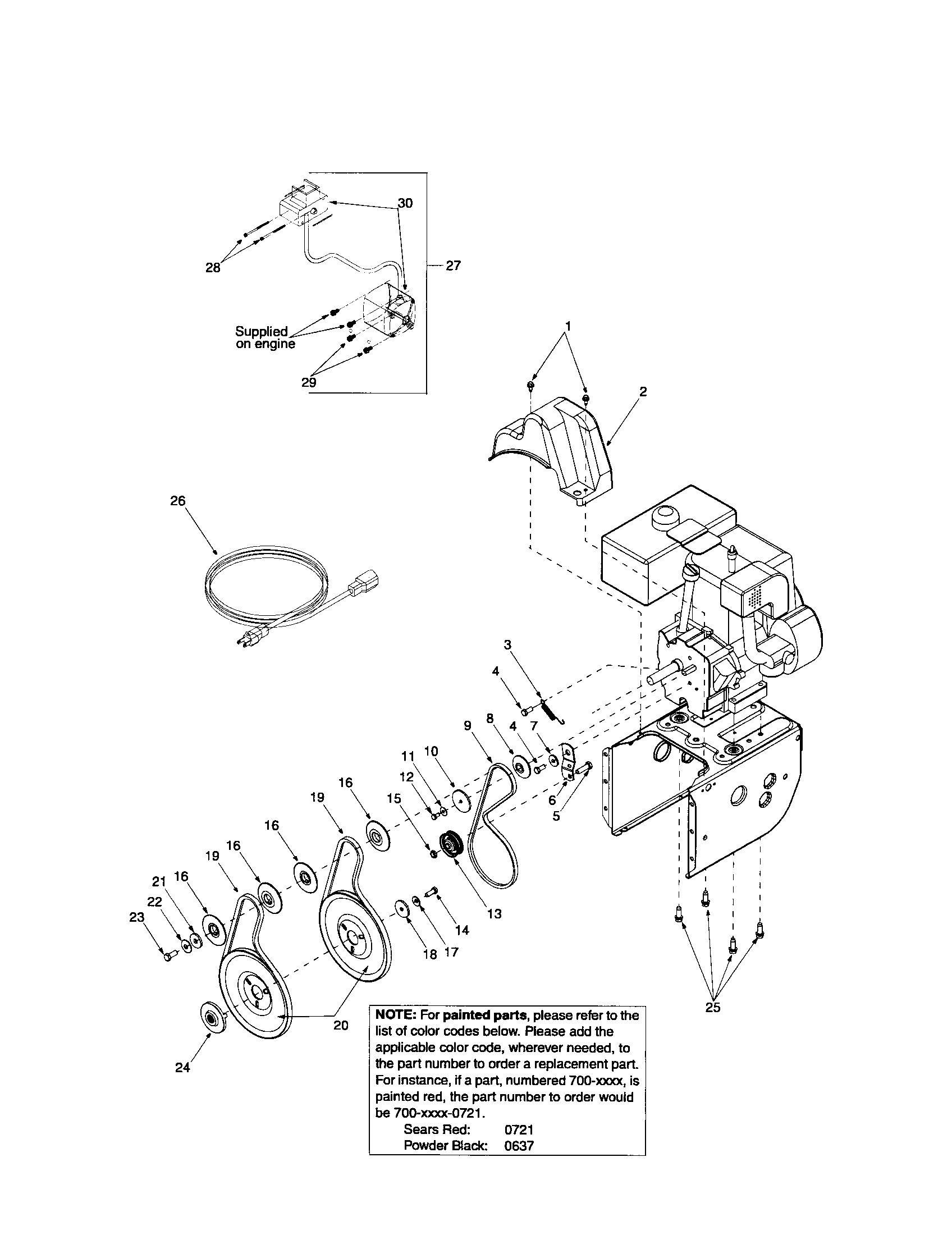

Belt/belt cover/engine shroud diagram

Extension cord

Part #629-0071

Replaced by #929-0071B

?
Manufacturer substitution
This part replaces 629-0071. Substitute parts can look different from the original.
BEST SELLER
$30.18 |
17% OFF Phone Price : $36.18
In Stock
Lawn Tractor Screw, 1/4-20 X 5/8-in (replaces 910-1652) 710-1652
#1

Belt/belt cover/engine shroud diagram

Lawn tractor screw, 1/4-20 x 5/8-in (replaces 910-1652)

Part #710-1652

This item is not returnable
$5.44 |
16% OFF Phone Price : $6.44
In Stock
Lawn & Garden Equipment Hex Head Screw 710-0895
Lawn & garden equipment hex head screw

Part #710-0895

$8.20 |
11% OFF Phone Price : $9.20
In Stock
Bearing 741-0245
#29

Auger housing/spirals/impeller diagram

Bearing

Part #741-0245

Replaced by #941-0245

?
Manufacturer substitution
This part replaces 741-0245. Substitute parts can look different from the original.
$12.75 |
14% OFF Phone Price : $14.75
In Stock
Starter Kit OEM-390-987
#27

Belt/belt cover/engine shroud diagram

Starter kit

Part #OEM-390-987

Replaced by #33329H

?
Manufacturer substitution
This part replaces OEM-390-987. Substitute parts can look different from the original.
$203.45 |
6% OFF Phone Price : $215.45
Back Order
